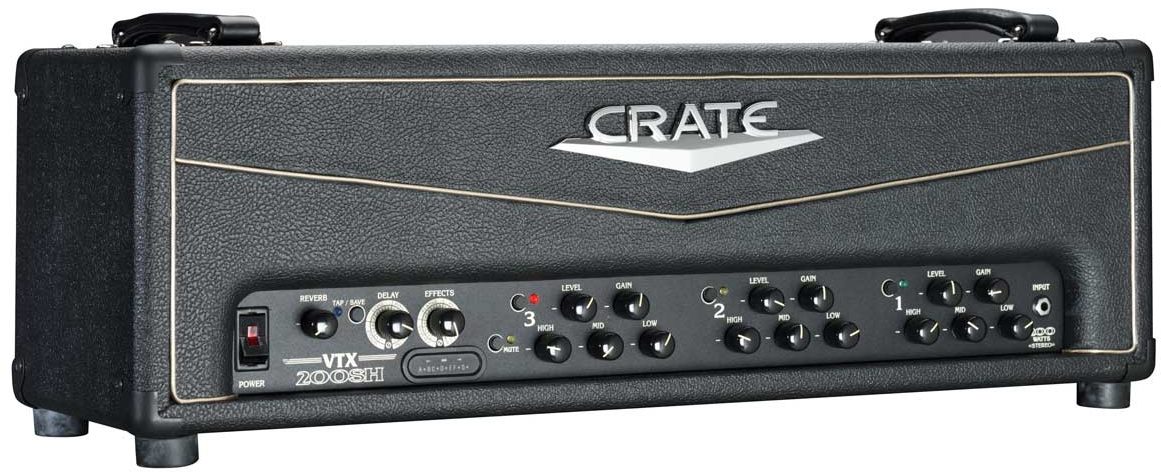

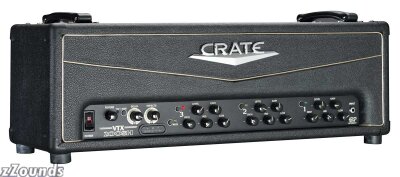

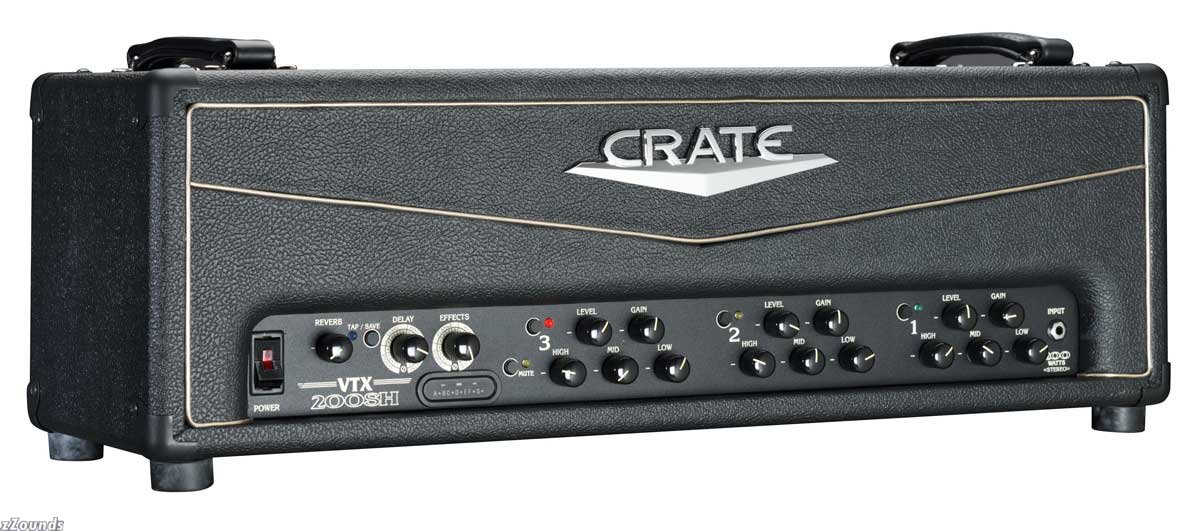

Crate VTX200SH Guitar Amplifier Head (2x100 Watts)

The new VTX200SH is a great sounding stereo combo amp with total control over the DSP section and vintage styling.

The effect section of the VTX200SH is designed to take advantage of the stereo power section to add spacious sound to your tone. Crate has created special stereo versions of many of the most popular effects on the VTX models. These effects add drama with incredible clarity and tone.

Technical Info

Output Power Rating:
70W per channel @5% THD, 8 ohm load
100W per channel @5% THD, 4 ohm load

Maximum Input Signal Accepted: 5 volts peak-to-peak min. @ 1kHz

Total System Gain:
Ch 1 74dB, all controls @10
Ch 2 88dB, all controls @10
Ch 3 103dB, all controls @10

Channel 1
Low Control 26dB range @ 70Hz
Mid Control 10dB range @ 900Hz
High Control 20dB range @ 10kHz

Channel 2
Low Control 26dB range @ 70Hz
Mid Control 10dB range @ 900Hz
High Control 20dB range @ 10kHz

Channel 3
Low Control 17dB range @ 100Hz
Mid Control 16dB range @ 1kHz
High Control 12dB range @ 7kHz

Input Impedance 470k

Power Requirements: 120 VAC, 60Hz
