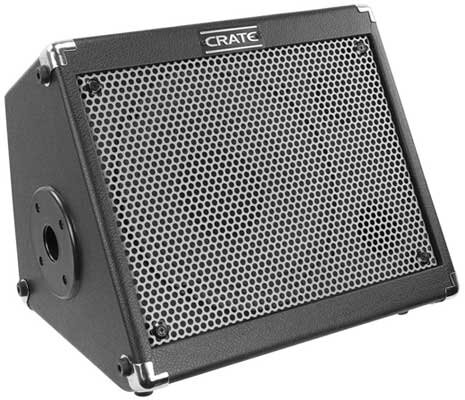

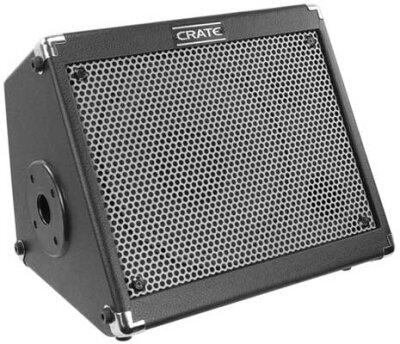

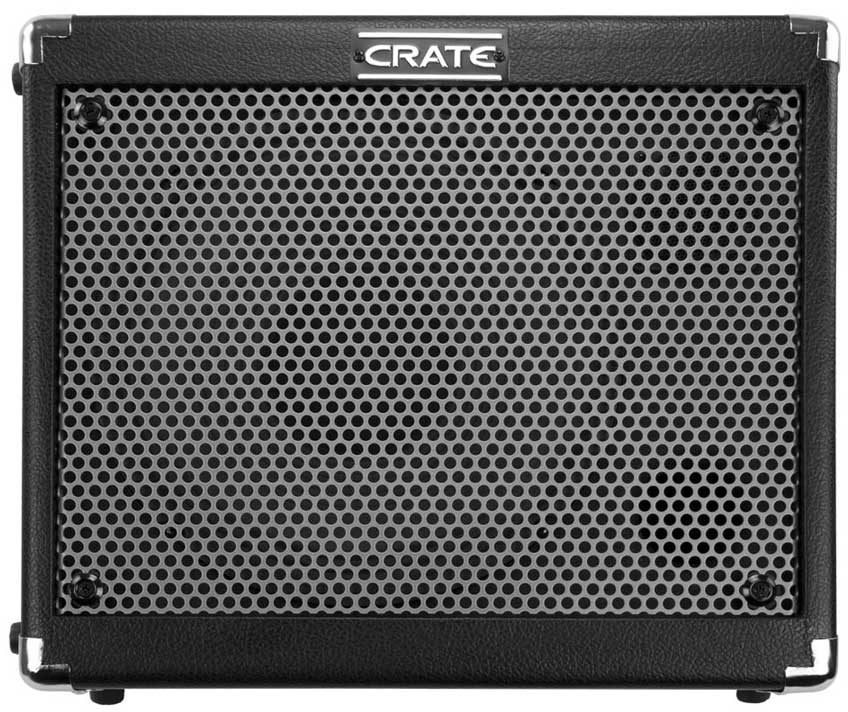

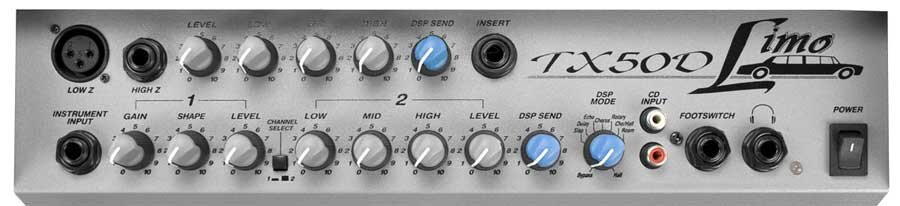

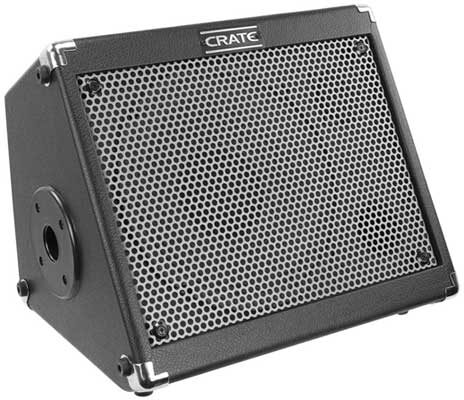

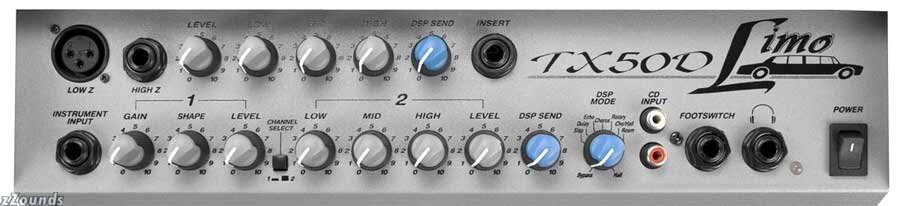

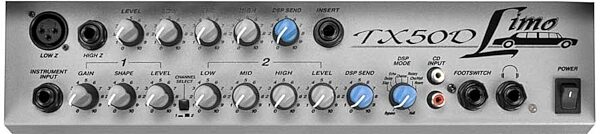

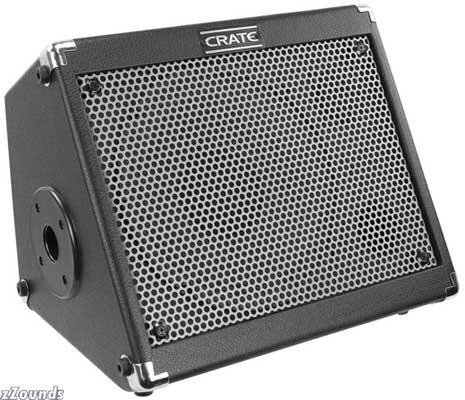

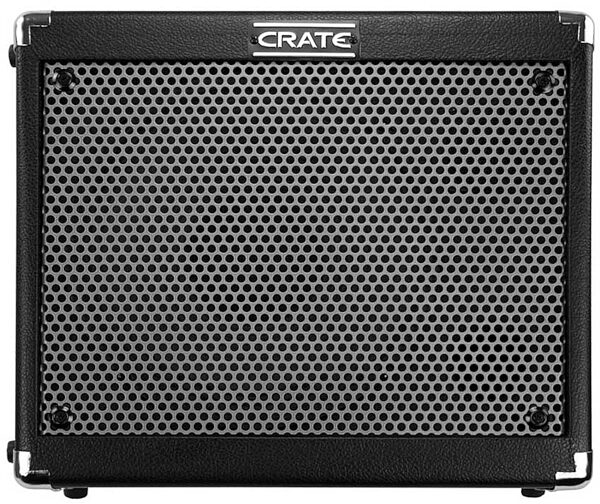

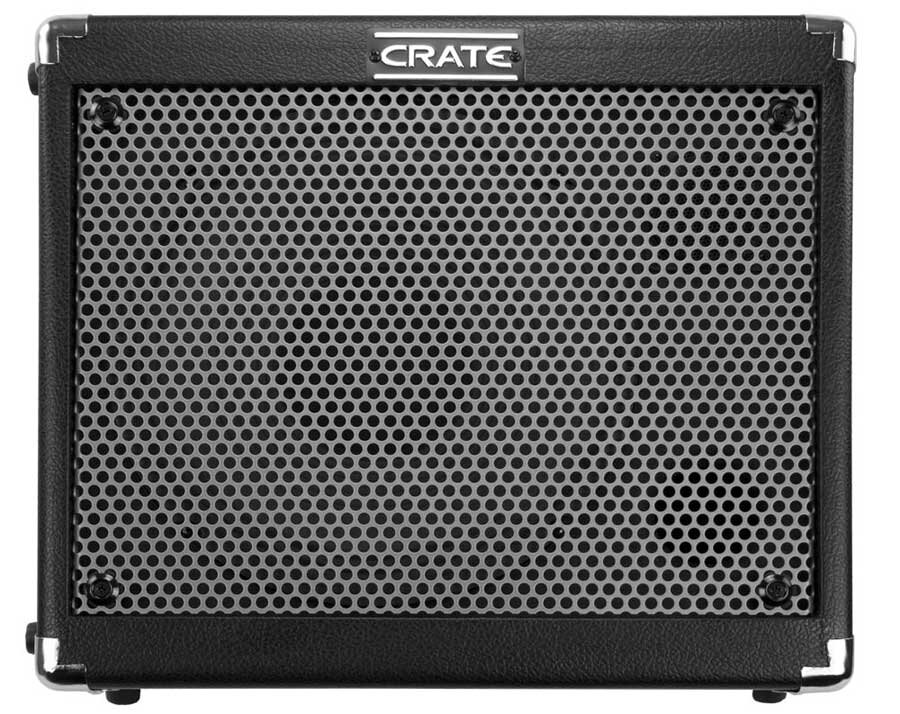

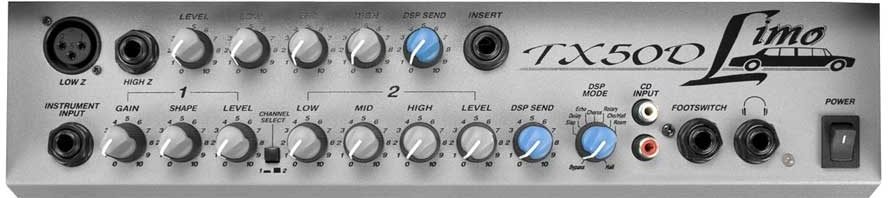

A step-up from the award winning TX30, the LIMO amplifiers provide an even more advanced feature selection. Featuring a Crate specially designed woofer and piezo tweeter, the Limo delivers 50 watts of power with digital effects. An instrument channel features clean and distortion modes. A microphone channel includes low Z XLR input, and high Z 1/4 in. input, 3 band EQ and DSP send. A main/aux. section includes dual RCA inputs for CD player, DSP mode for 8 digital effects, headphone jack and footswitch jack. Provide award winning tone wherever you go with the Taxi Series.
Technical Info
Output Power Rating: 50W RMS @ 10% THD, 4 ohms, 13.6VDC in
Input Impedance: 1M ohm
Maximum Signal Accepted:
Mic Low Z 2V peak to peak
Mic Hi Z 12V peak to peak
Instrument 12V peak to peak
Gain:
Mic 57dB High Z, 72dB Low Z
Instrument
44dB with Gain switch out, Ch2
85dB with Gain switch in, Ch1
Sensitivity:
Mic 3.5mV RMS High Z, 20mV RMS Low Z
Instrument 80mV RMS with Gain switch out Ch2 .8mV RMS with Gain switch in Ch1
Line In Insert 400mV RMS
EQs, Mic:
Low ±15dB @ 60Hz
Mid ±15dB @ 600Hz
High ±15dB @ 10kHz
EQs, Instrument:
Low 12.5dB range @ 80Hz
Mid 18dB range @ 800Hz
High 18dB range @ 10kHz
Shape Crate proprietary circuit
Insert Jack:
Tip Line In
Ring Line Out
Sleeve Ground
Speakers
Woofer: Crate Custom Design 10 in., 4 ohm, 100 watt 1.5 in. voice coil, 16 oz magnet
Tweeter: 2 in. Piezo , 4 ohm, 150 watt network
Power Requirements
Internal 12V DC power supply
DC adapter for use with 120VAC
Optional 12V vehicle lighter adapter
Dimensions (W x H x D): 15-1/2 x 13 x 12 in.
Weight: 32 lbs.
