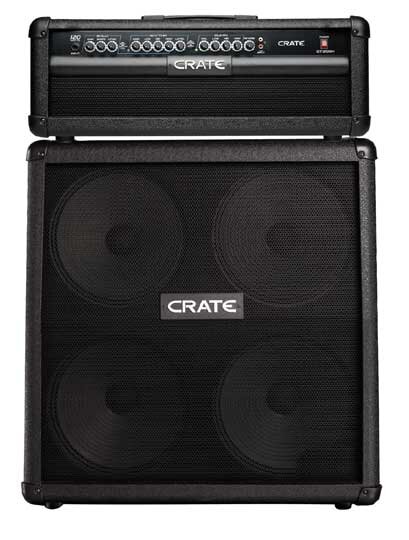

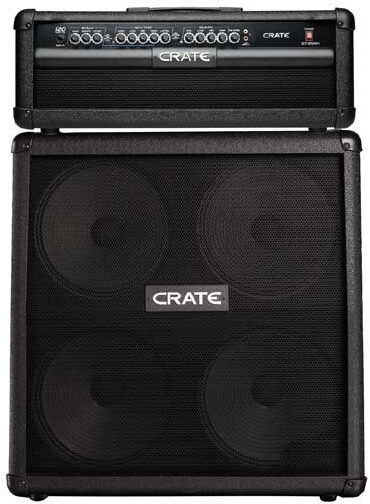

New for 2004, the GT1200H features many unique technologies that make Crate solid-state amps the choice of players everywhere. Crate's patented "FlexWave Evolution 5" circuitry replicates the tone, response and feel of tubes in a solid-state circuit in a way that no other amplifier can. It adds a little compression, low-end distortion and a great tactile "feel" to the preamp circuit.
Front Panel Controls
Input: Use this jack to connect your guitar to the amplifier by means of a shielded instrument cable.
Solo/rhythm channels: High gain channels giving you sounds with serious overdrive.
Solo LED: This LED illuminates when the Solo channel is selected.
Gain: Use this control to adjust the amount of distortion produced by the Solo channel.
Shape: Use this control to "dial in" the tone for the Solo channel. Rotating the control counterclockwise
enhances the mid frequencies, while rotating the control clockwise enhances the low and high frequencies.
Level: Use this control to adjust the output level of the Solo channel.
Solo/Rhythm select: Use this switch to select the Solo or Rhythm channel. When this switch is
depressed, the Solo channel is selected. With the switch in the out position, the Rhythm channel is selected. This switch is active only when the Solo-Rhythm/Clean Select switch is depressed.
Rhythm LED: This LED illuminates when the Rhythm channel is selected.
Gain: Use this control to adjust the amount of distortion produced by the Rhythm channel.
Low: Use this control to adjust the low frequency level of the Solo/Rhythm channel.
Mid: Use this control to adjust the midrange frequency level of the Solo/Rhythm channel.
High: Use this control to adjust the high frequency level of the Solo/Rhythm channel.
Level: Use this control to adjust the output level of the Rhythm channel.
Solo-rhythm/clean select: Use this switch to select the Clean channel or the Solo and
Rhythm channels. With the switch in the out position, the Clean channel is selected. When the switch is
depressed, either the Solo or Rhythm channel is selected, depending on the setting of the Solo/ Rhythm
Select switch.
Clean channel: A normal gain channel designed to give you crystal clean sounds.
Clean LED: This LED illuminates when the Clean channel is selected.
Vol: Use this control to adjust the output level of the Clean channel.
Low: Use this control to adjust the low frequency level of the Clean channel.
Mid: Use this control to adjust the midrange frequency level of the Clean channel.
High: Use this control to adjust the high frequency level of the Clean channel.
Reverb: Use this control to adjust the amount of reverb effect: in its fully counterclockwise position
the signal will be "dry" (without any effect). As you rotate the control clockwise the amount of reverb increases.
CD input: Use these RCA jacks to connect the output from a CD player or tape deck to the amplifier.
The signal at these jacks is combined into a mono signal which is sent to the internal power amp circuit.
Use the CD or tape player's output level control to adjust the signal for the proper mix with your guitar.
Power: Use this switch to turn the amplifier on (top of the switch depressed) and off (bottom of the
switch depressed). The switch illuminates when the power is on.
Technical Info
Output power rating: 120 watts RMS
Speaker size and rating: N/A
Preamp: FlexWave Evolution 5 preamp
Input: RCA/CD inputs
3 channels: solo, rhythm, clean
Aux. jacks: headphone jack
External speaker jack
Other: reverb level control, lighted power switch, 1/4 in. insert/effects loop
CFS3 footswitch included
Size and weight: 27 in. x 10 in. x 10.5 in. 29 lbs.
