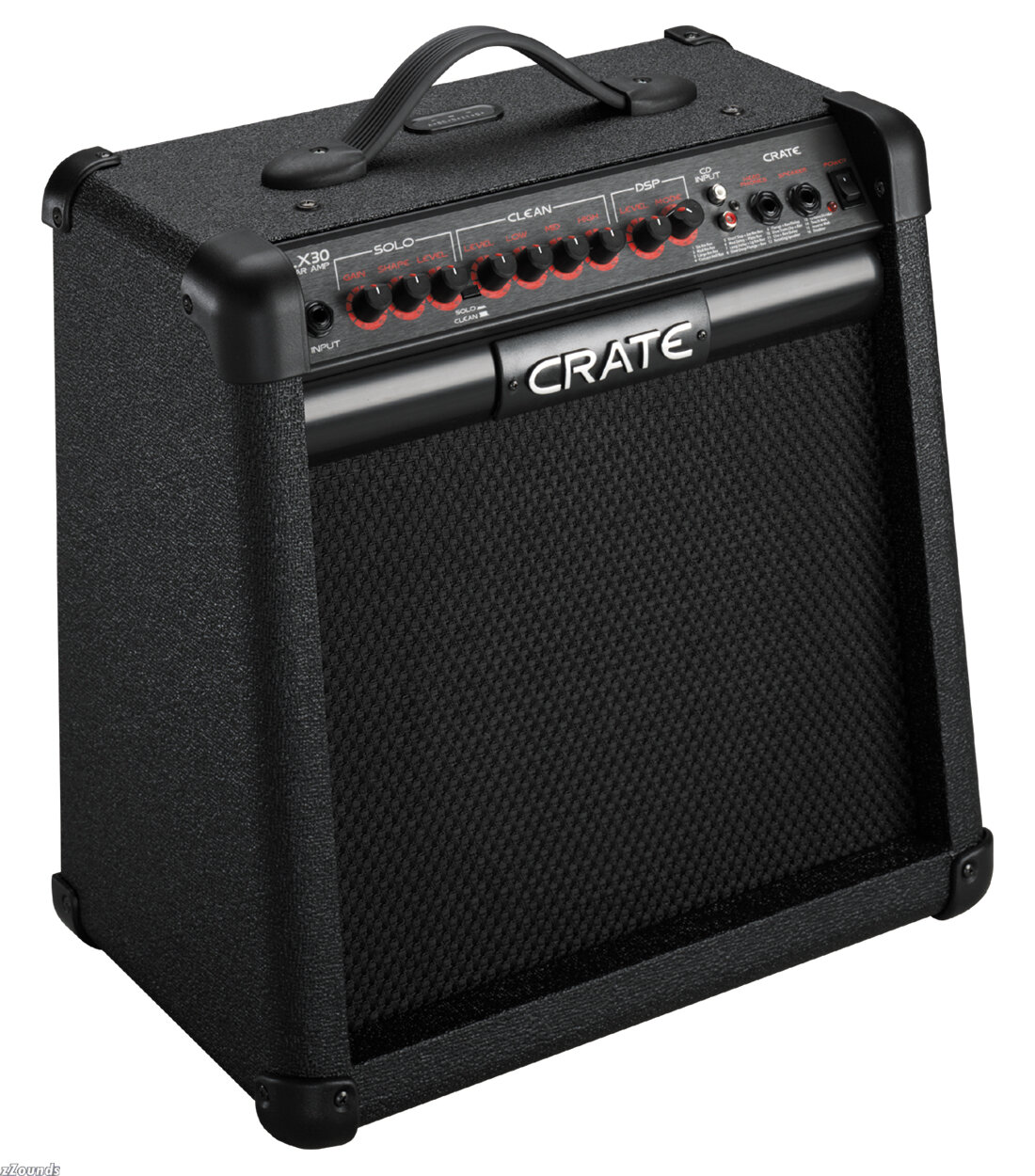

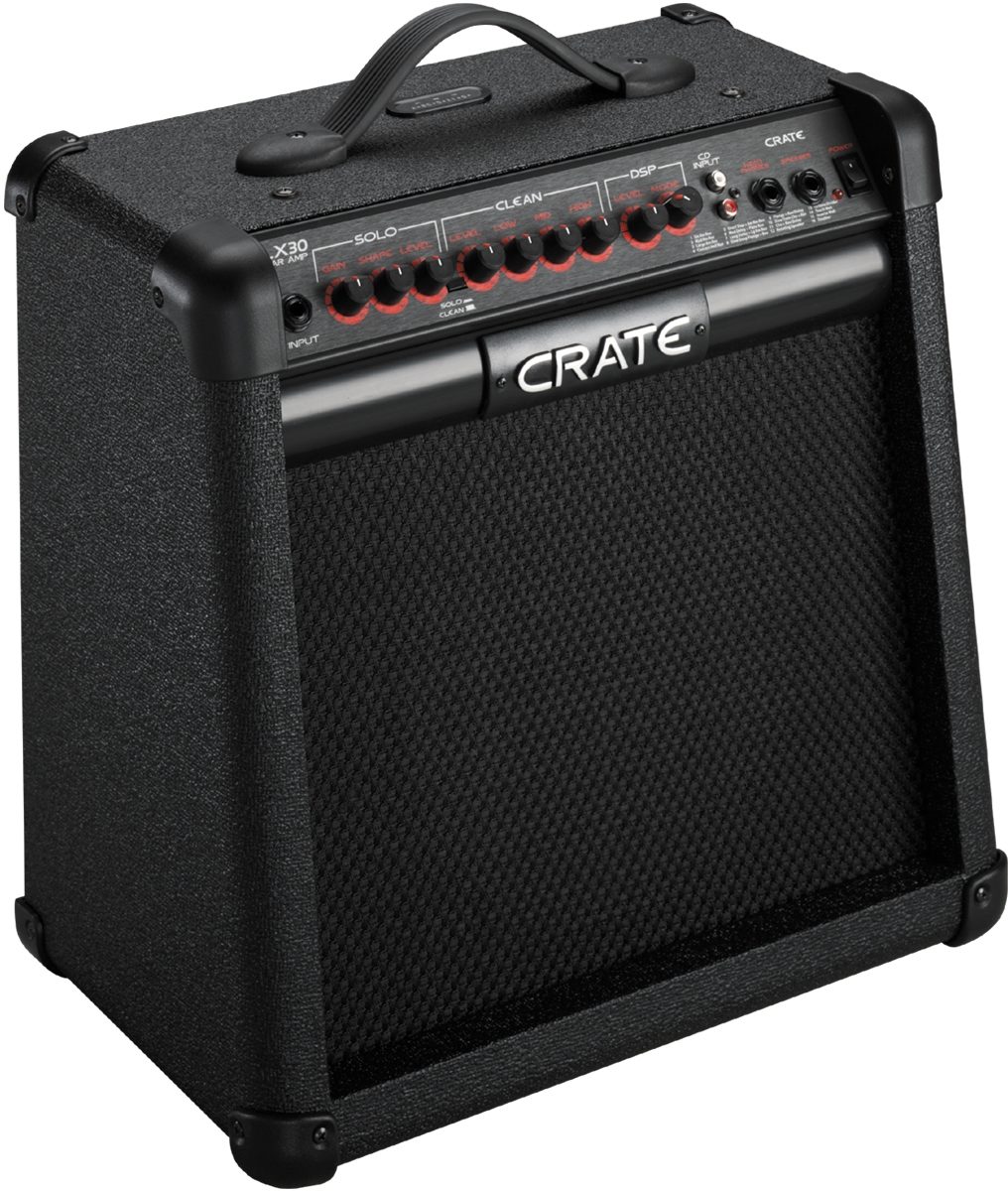

Crate GLX30 Guitar Amplifier

The new GLX Series is the top of the line series of analog amps with digital signal processing. Featuring a Crate 12 in. driver and 30 watts RMS, the GLX30 includes 2-channel operation for clean and distortion tones, angled control panel, RCA CD inputs, external speaker jack, 3-band EQ, 16 digital effect settings and headphone jack for private operation. Also, the built-in electronic tuner is active whenever the amp is turned on, providing constant, "real-time" tuning.

Player Type: With a powerful 12 in. driver, the GLX30 features versatile tone and applications. Players could use this amp for a home studio, practice, jams, or even small band rehearsal.

The new GLX Series is the top of the line series of analog amps with digital signal processing.

GLX Series Features:
Lighted control panel for visibility in any stage lighting conditions, with lights on/off switch (GLX65, GLX120 & GLX212 only)

An "always on" built-in digital chromatic tuner with mute switch for private tuning

Angled-back control panel and new control knob design for better visibility and access

Angled speaker baffle board for upward sound projection

Heavy duty cabinet construction with beefed up cabinet design for increased strength and durability

16 on-board digital effects with channel tracking* and level control for tonal versatility

True 3-channel layout/operation; clean, rhythm and solo channels; each with independent EQ and level controls (GLX65, GLX120 & GLX212 only)

Flexwave Evolution 5 tube simulating preamp design with sequential cascading gains

CD inputs (GLX30 only)

Heavy Duty Cup style one-piece handle with soft-touch rubberized grip for better transportability (GLX65, GLX120 & GLX212 only)

Oversized galvanized rubber strap handle for better transportability (GLX15 & GLX30 models only)

Made in the USA

5-year transferable warranty

Technical Info

Output Power Rating: >30W RMS @ 5% THD, 4&Mac189;, 120 VAC

Gain
Solo Ch: 98dB +/-6dB @ 1kHz
Clean Ch: 42dB +/-6dB @ 1kHz

Maximum Input Signal Accepted: 6 volts peak-to-peak min. @ 1kHz

Tone Controls
Low: 20dB range @ 80Hz
Mid: 12dB range @ 900Hz
High: 18dB range @ 10kHz

Internal Speaker: 12 in. Crate Custom Design 4-ohm

Power Requirements: 120 VAC, 60Hz, 50VA

Size: 15-1/2 in. H x 16-3/4 in. W x 9-3/4 in. D

Weight: 20 lbs.
