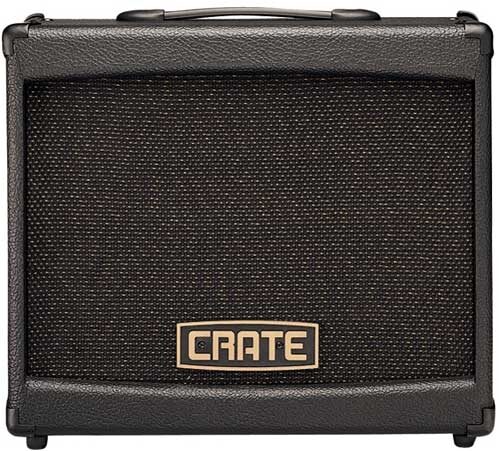

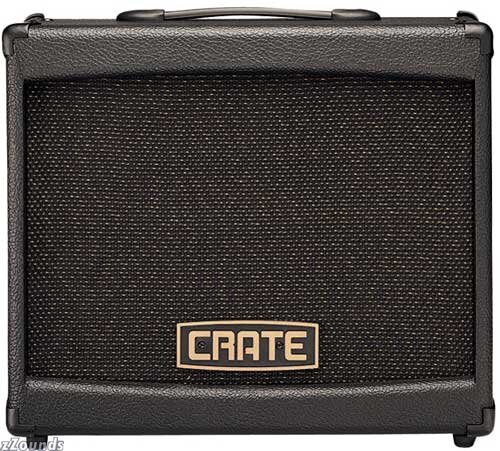

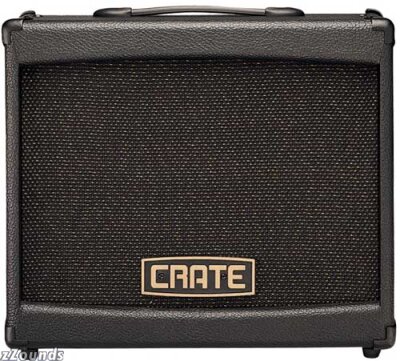

Crate DXB112 Top-Mount Digital Guitar Amplifier (30 Watts, 1x12 in.)

Looking for that certain tone, but can't get it with your old amps? With 16 great amp voices, and another 16 digital effects, you are sure to find the sound you have been looking for. When you find that unique sound for you, save it one of 6 tone preset locations, and call it up whenever you need it. Backed up by a vintage Crate 12" speaker, you're sure to fill the aisles, seats, benches, lawn, or backyard; wherever and whenever you're playing.

16 digital tone effects including: Bypass/Compressor, Tremolo, Vibrato, Chorus, Flanger, Delay, Echo, Rotating Speaker, Chorus/Delay, Flange/Delay, Compressor/Vibrato/Delay, Compressor/Chorus/Delay, Compressor/Flange/Delay, Compressor/Chorus, Compressor/Delay, Touch-Wah

16 amp voices including: Brit Class A, Brit Hi Gain, Small Tweed, Black Face, Large Tweed, 60's Era UK, 70's Era UK, Fuzzbox, Rectified, California Mod, Ampeg VL, FlexWave, Vintage Club, Blue Voodoo, Acoustic, Clean

Features
60 watts RMS to 8 ohms

Vintage Crate 12" speaker

3-band EQ

Gain control

Touch Pad stores and activates programmable channels

Rear panel includes MIDI in/out/thru, Stereo line in/out, and headphones

Technical Info

Analog
Output Power Rating: 60 watts RMS; DX-212 100 watts RMS (50W RMS x 2)

Input Impedance: High gain 80k ohm; Low gain 150k ohm

Line Input Impedance: 47k ohm

Line Output Impedance: 1k ohm

Headphone Impedance: 32 ohm minimum

Internal Speaker: (1) 12 Custom Eminence, 8 ohms

Power Requirements: 120VAC, 60Hz, 200VA; 100/115VAC, 50/60Hz, 200VA; 230VAC, 50/60Hz, 200VA

Dimensions (H x W x D): 21.4 x 27.9 x 10.2 in.

Weight: 50 lbs.

Digital
Analog to Digital Conversion: 20-bit Delta-Sigma with 64x oversampling

Digital to Analog Conversion: 20-bit Delta-Sigma with 128x oversampling

Conversion Rate: 46.875 kHz

Digital Signal Processor: 24-bit operating at >40 million instructions/second

Final Note: No oversampling was used in our emulation software, and no animals were harmed during its design and development (except for those that asked for it).
