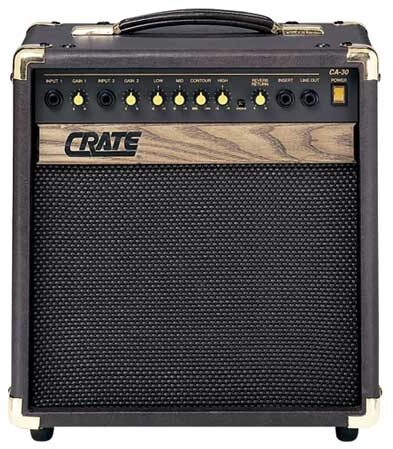

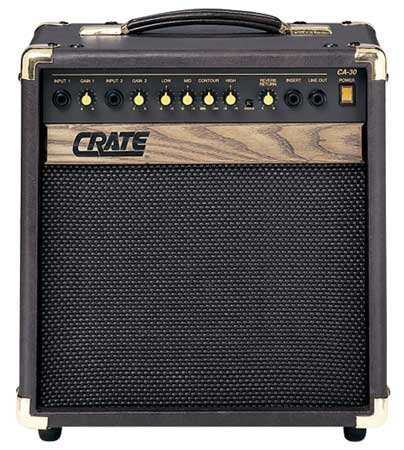

Crate CA30 Acoustic Amplifier

The Crate Acoustic Series has evolved into an entire line of products devoted to making the acoustic player heard...and sound better. Whether you play folk, country, rock, or blues, you will be amazed at how your acoustic will sound through a Crate Acoustic.

Multi-channel operation, multiple inputs, and patented feedback elimination circuit are just a few of the features found on the Acoustic Series amps. It's no wonder the list of professionals playing these amps grows by the day. If you have ever thought about amplifying your acoustic guitar, you really owe it to yourself to Crate Your Own Sound.

Technical Info

Output Power Rating: 30W RMS @ 10% THD, 8 Ohms, 13.6VDC in
Input Impedance: 1M ohm
Maximum Signal Accepted:
Channel 1: 6V peak to peak
Channel 2: 12V peak to peak
Gain:
Channel 1: 64dB
Channel 2: 56dB w/Gain switch out, 86dB w/Gain switch in
Sensitivity: Channel 1: 9mV RMS
Channel 2: 20mV RMS w/Gain switch out, .7mV RMS w/Gain switch in
Line In Insert: .3V RMS
Tone, Channel 1: +/-15dB @ 600Hz
EQs, Channel 2:
Low: 12.5dB range @ 80Hz
Mid: 18dB range @ 850Hz
High: 13dB range @ 6kHz
Insert Jack:
Tip: Line Out
Ring: Line Out
Sleeve: Ground
Speakers:
Woofer: Crate Custom Design 8", 8 ohm, 50 watt, 1" voice coil
Tweeter: 2" Piezo, 8 ohm, 50 watt
Power Requirements: Internal 12 volt DC power supply, DC adapter for use with 120VAC, Optional 12V vehicle lighter adapter
Dimensions (W x H x D): 14.5 x 11.75 x 12 in.
