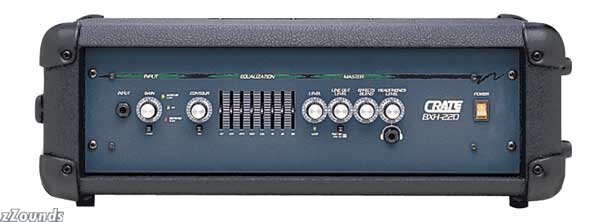

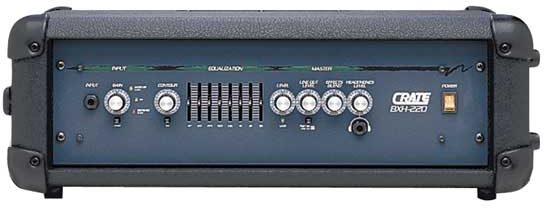

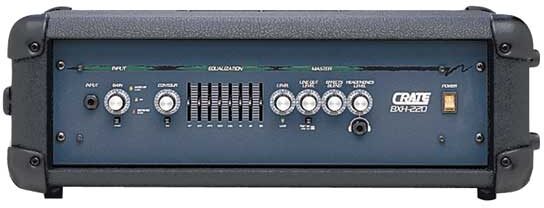

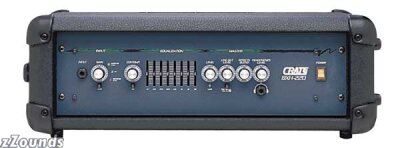

Crate BXH220 FlexWave Bass Head

Crate Bass systems come in a variety of flavors for every type of player. But, what makes them so special? Well, they test each unit in real-world gigs. (Would you believe the Crate Product Manager is a bass player?) From entry-level combos to higher-end designed units with pro features like contour circuits, XLR line out with level and optional JBL speakers, Crate's bass systems hold the bottom line every time. Crate Your Own Sound!

Features
160/220 Watts RMS Low-Damped Power Amp

Contour/Shape Circuit Adds Warmth

8-band Graphic EQ 40Hz-16kHz

Pre/Post Line Out with XLR

Single 1/4 in. Input with Gain and Input Pad

Line Out Level with Pre/Post Select

Master Volume with Indicator

Effect Blend for Loop (Return)

Dual Speaker Jacks

Headphone/Tuner Out Jack with Level

Technical Info

Output Power Rating:
160 watts RMS @ < 5% THD w/8 ohm load, 120VAC line
220 watts RMS @ < 5% THD w/4 ohm load, 120VAC line

Graphic EQ: 20dB range @ 40Hz, 100Hz, 225Hz, 625Hz, 1.6kHz, 4kHz. 8kHz, 16kHz

Input Impedance: 500k ohms (-15dB switch out), 75k ohms (-15dB switch in)

Maximum Signal Accepted: 17 volts peak to peak (-15dB switch in)

Gain: 67dB with EQ flat, countour off

Signal to Noise: 75dB typical

Power Requirements: 120VAC, 60Hz, 250VA; 110/115VAC, 50/60Hz, 250VA; 230VAC, 50/60Hz, 250VA

Size (H x W x D): 7.25 x 21 x 12.5 in.
