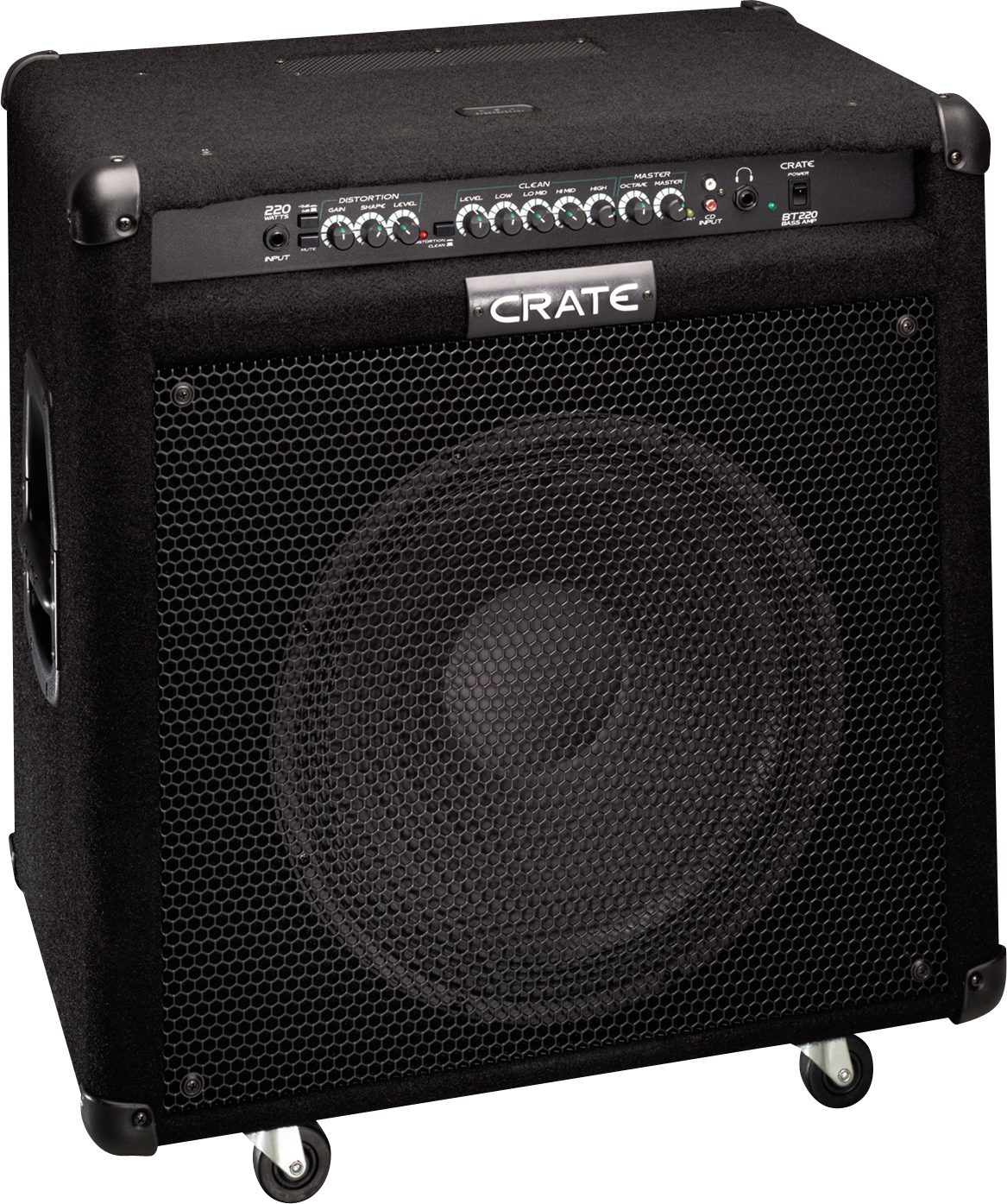

Crate BT220 Bass Combo Amplifier (220 Watts, 1x15 in.)

New for 2004, Crate is introducing the BT Series bass amps featuring new functions and cosmetics. All models feature rugged Ozite covering, heavy-duty steel grilles and road rugged handles. Combos over 25 watts also feature a built-in chromatic tuner, 2-channel operation for clean and distortion tones, a variable sub-octave feature and RCA CD Inputs. The flagship of the line is the new BT220, a 220-watt single 15 in. combo which features input pad and mute buttons distortion and clean channels with 4-band EQ, CD Inputs and a headphone jack. Rear panel features include: effects loop with send and return, extension speaker jack, XLR balanced line out with level control, ground lift button and pre/post EQ selection for the line out.

Innovation is Contagious
Tone-rich and robust, Crate's BT/BX bass amps stand shoulder to shoulder with our GT/GX series amps. Flooding sound through our FlexWave circuit, Crate's bass gear blends seamlessly with the Crate guitar amp sound -- delivering warmth and feel in clean tones and harmonic richness and bloom in distorted tones. It's a formidable bass sound 25 years in the making.

Technical Info

Output Power Rating: 12 watts RMS @ 5% THD, 4 ohms, 120 VAC

Maximum Input Signal Level Accepted: 15 volts peak-to-peak

Input Impedance: 25k ohms

Signal to Noise Ratio: 72dB

Low Control: 15dB range @ 50Hz

Lo Mid Control: 12dB range @ 250Hz

Hi Mid Control: 13dB range @ 1kHz

High Control: 24dB range @ 10kHz

Input Power Requirements: 120 VAC, 60Hz, 30VA 100/115VAC, 50/60Hz, 30VA 230VAC, 50/60Hz, 30VA

Speaker Size and Rating: Crate Custom Design 8 in., 15 watts

Cabinet Size and Weight: 24-1/2” H x 24-1/2” W x 16-1/2” D, 87 lbs
