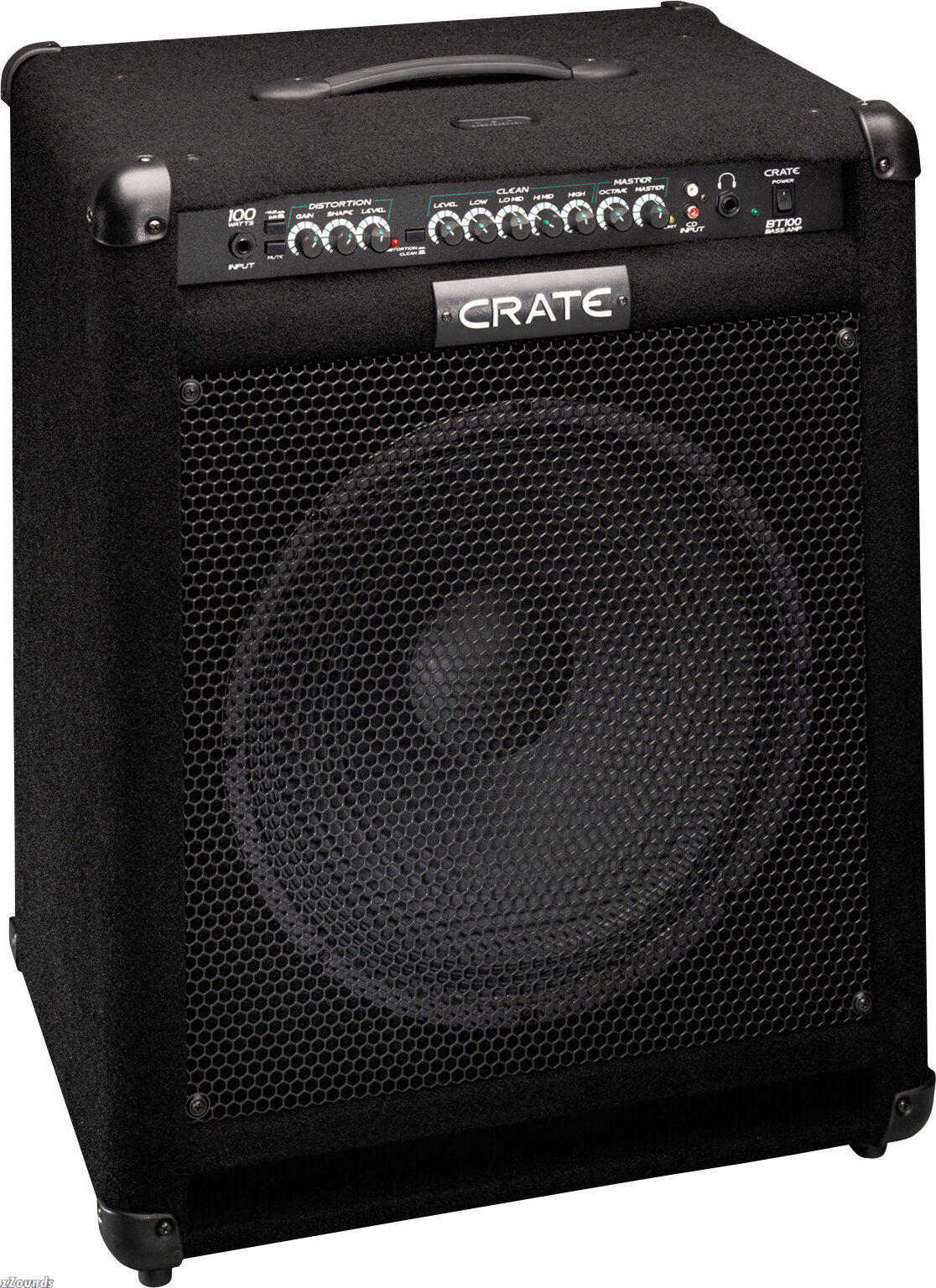

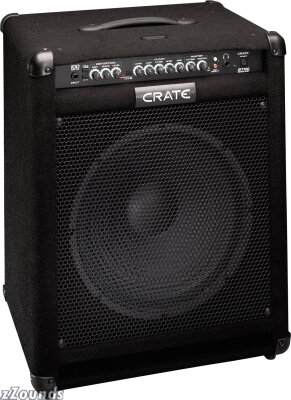

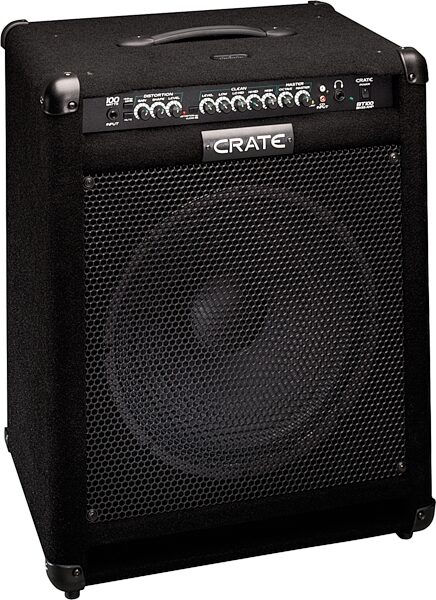

Crate BT100 Bass Combo Amplifier (100 Watts, 1x15 in.)

The BT100 features 2 different channels: a distortion channel, featuring Crate's exclusive Shape control for quick and easy access to the tone you need, and a clean channel with a 4-band rotary EQ. Another unique and valuable feature of this amplifier is the Octave control. This feature electronically creates a second signal that is one octave lower than the original signal. An active electronic tuner, conveniently located on top of the amplifier, allows you to get in tune and stay in tune "on the fly." The Mute switch allows you to tune in silence without changing the channel Level controls. A built-in Limiter keeps your sound clean even at full output power levels, and front panel jacks are provided for connecting a CD player and a pair of headphones, thereby optimizing your practice time.

Innovation is Contagious
Tone-rich and robust, Crate's BT/BX bass amps stand shoulder to shoulder with our GT/GX series amps. Flooding sound through our FlexWave circuit, Crate's bass gear blends seamlessly with the Crate guitar amp sound -- delivering warmth and feel in clean tones and harmonic richness and bloom in distorted tones. It's a formidable bass sound 25 years in the making.

Technical Info

Output Power Rating: 100 watts RMS @ 2% THD, 4 ohms, 120 VAC

Distortion gain: 103dB

Clean gain: 61dB

CD Inputs gain: 33dB

Low tone range: 20dB @ 50Hz

Lo Mid tone range: 24dB @ 150Hz

Hi Mid tone range: 18dB @ 1kHz

High tone range: 32dB @ 10kHz

Input Impedance: 220k ohms

Maximum Signal Accepted: 15 volts peak to peak

Internal Speaker Size: 15 in.

Internal Speaker Type: Crate Custom Cast Frame

Internal Speaker Magnet: 56 oz.

Internal Speaker Voice Coil: 2.5

Internal Speaker RMS Rating: 150 watts

Internal Speaker Impedance: 4 ohms

Balanced Line Out Jack: 2 volts peak-to-peak @ full rated power w/600 ohm load

Signal to Noise: 65dB below full power, tones flat, gain and level @ "10"

Power Requirements: 120 VAC, 60Hz, 115VA; 100/115VAC, 50/60Hz, 115VA; 230VAC, 50/60Hz, 115VA

Size and Weight: 26-1/2 in. H x 21-1/2 in. W x 16-1/2 in. D, 69 lbs

*without casters
