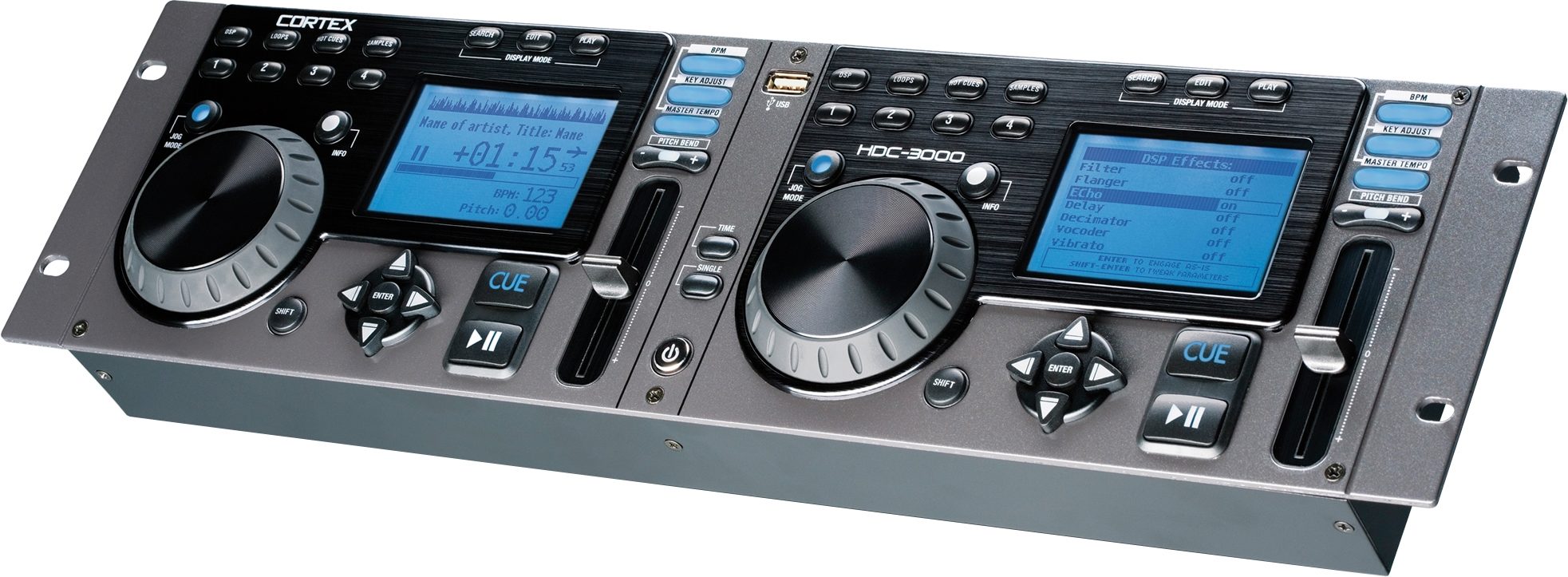

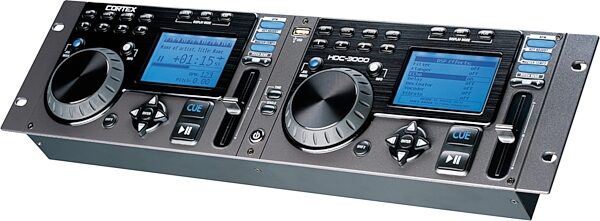

Cortex HDC3000 Dual Digital Music Controller

Manufacturer's Description for Cortex HDC3000 Dual Digital Music Controller

Power to Move
Music has touched the deepest parts of the human cortex since the dawn of time. Cortex is proud to bring you the smartest DJ equipment on this planet. The music world is yours to rule. Own it.

Intelligent Music Database Management
The HDC-3000 uses a database management system that allows the user to search through a massive library of music within seconds, by artist, title, genre, album or even by string. This unit also allows users to find their top 100 most played tracks, the last 100 played, or what tracks were recently added to the storage device.

PC-Based Database Creation
Users can create databases via the HDC unit or the PC application and quickly manage those database files at a gig, or on a home computer. Search Options The cataloging system gives you several browsing options, including Search by Artist, Song, Title, Album, and Genre. This system allows users to search the same way they would using an iPod® or similar portable music player.

String Search
Users can search by a certain word or phrase to find tracks on their storage device, even if they're unsure of the name. When the user inputs a keyword, it will search all Artists, Titles, Albums, and Genres, and show all matches to that keyword. The user can then select from that list.

Playlist Editing
The playlist editor allows users to save, load, and edit playlists. Users can even cascade music between each side of the controller.

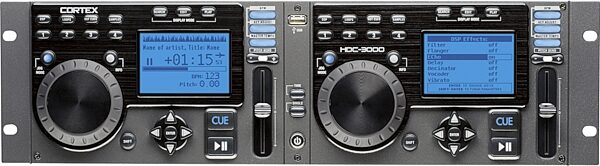

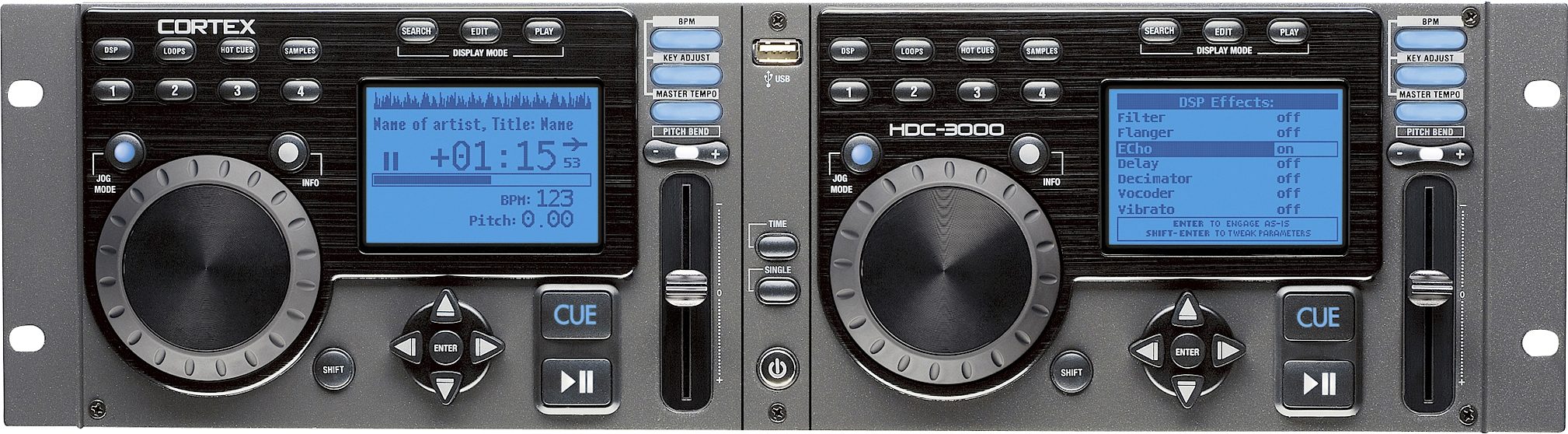

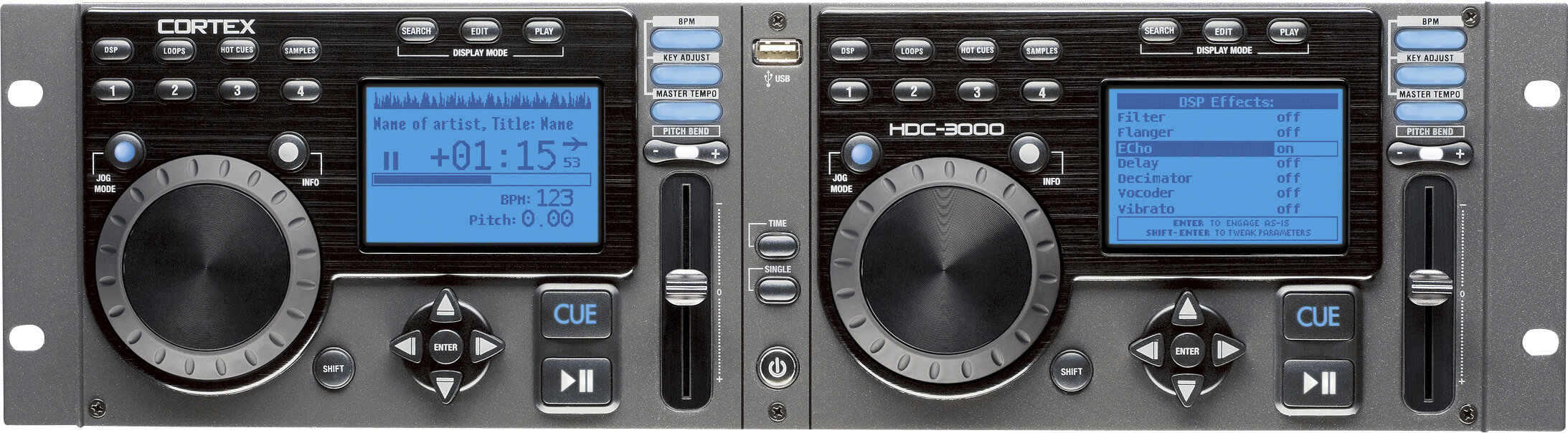

Main Playback Screen
The backlit graphical LCD playback screens display info on any track in the catalog, showing everything from the essentials such as artist, track title, pitch, time elapsed/remaining to detailed information including file format (MP3 or WAV), genre, and track length. Additionally, the HDC-3000 offers a waveform view.

CD-Audio Playback
No need to abandon the CD collection, the HDC-3000 is able to play audio CDs with any compatible USB CD-ROM or DVD-ROM drive.

CD/DVD Data Playback
Play back user-created CD-Rs or DVD-Rs loaded with MP3 or WAV music files using a compatible USB CD-ROM or DVD-ROM drive.

Storage Device Selection
Take a client's request from his iPod or USB memory flash drive, plug it in, and play it right away without having to reboot the unit. With two USB ports (and support for up to 4 devices when using a USB hub), this unit allows users to connect and recognize multiple storage devices to access a variety of separate music databases simultaneously.

File Explorer Mode
Allows users to browse through files and directories as if they were using a computer, showing them the directory structure and file names exactly as they exist on the storage device. DJs with their own organizational system can navigate it quicker than using the database.

Keyboard Support
Quickly find that hot new track in a massive library of music with just a few taps of a USB-compatible keyboard.

VBR & CBR File Support
The HDC-3000 can play all your MP3's; CBR or VBR at any bitrate up to 320kbps.

Multi-language Support
The HDC-3000 supports multiple languages including English, French, and Spanish.

Ultra-fast Instant Start
From Cue to Start, get into the mix with no delay.

Cue Point Management
Cue points can be set like a normal CD player, so that the DJ can return to a certain time in the track just by pressing a button. Cue points may also be saved permanently to the connected storage device, allowing them to load automatically with a track. Also, the unit allows for 4 hot cue points per side, which can also be stored to the connected mass storage device.

Efficient Sampling
Samples can be set and stored in any of 4 banks with the simple touch of a button. Samples can be trimmed and edited with the graphical user interface, and the samples pitch can be altered.

Comprehensive Looping
Up to 4 loops can be programmed with a loop-editing feature. Unlike a traditional CD player, the loops can be edited easily using the HDC-3000's graphical user interface, which allows the loop to be trimmed until it sounds perfect. Loops can be saved to the connected storage device, so that they can be recalled each time you load that particular track.

DSP Effects
This module gives the users a choice of 12 effects (including Filter, Flanger, Echo, Delay, Auto-Pan and more) plus, truly comprehensive parameter setting capabilities. EACH parameter can be edited in real time offering a greater ability to modify the sound while still preserving the preset simplicity.

Performance Protection
Every Cortex HDC unit features exclusive protection from accidental shutdown while playing, securing your precious digital files from sudden corruption and preserving your performance. To turn the unit off, simply press and hold the power button for more than 2 seconds. zZounds is an authorized dealer of Cortex products.

General
Type of unit: Streaming Digital Audio Controller

Format compatibility: MP3, WAV, CD-Audio

MP3 format: 8 kbps ~ 320 kbps, CBR/VBR, 44.1 kHz

WAV format: 44.1 kHz, 16 bit stereo

Instant Start: <0.1 second

Pitch ranges: 4, 8, 16, 24%

Pitch increment: 0.05% at 4 and 8% 0.1% at 16 and 24%

Power: AC 100~240V, 50/60 Hz

Power consumption: 12 watts

Operating environment humidity: 5-85%

Weight: 3.75 lbs 1.7 kgs

Dimensions: 19 x 5.2 x 3.6 inches 482 x 132 x 91mm

Power supply: USA 110v 059-370-R VDE (Europe) 059-371-R UK 059-372-R JIS (Japan) 059-373

Audio Output Section
Audio output: 4 Channel (2x2)

Output level: 1..2 V RMS (1 kHz, 0dB)

Output connectors: Unbalanced RCA Type

Frequency response: 20 Hz - 22 kHz

S/N ratio: 90dB

Total harmonic distortion: <0.05%

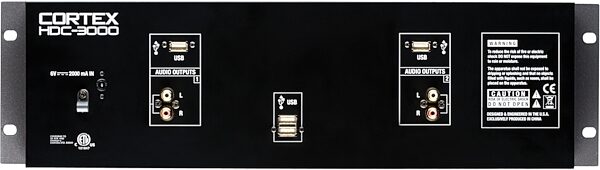

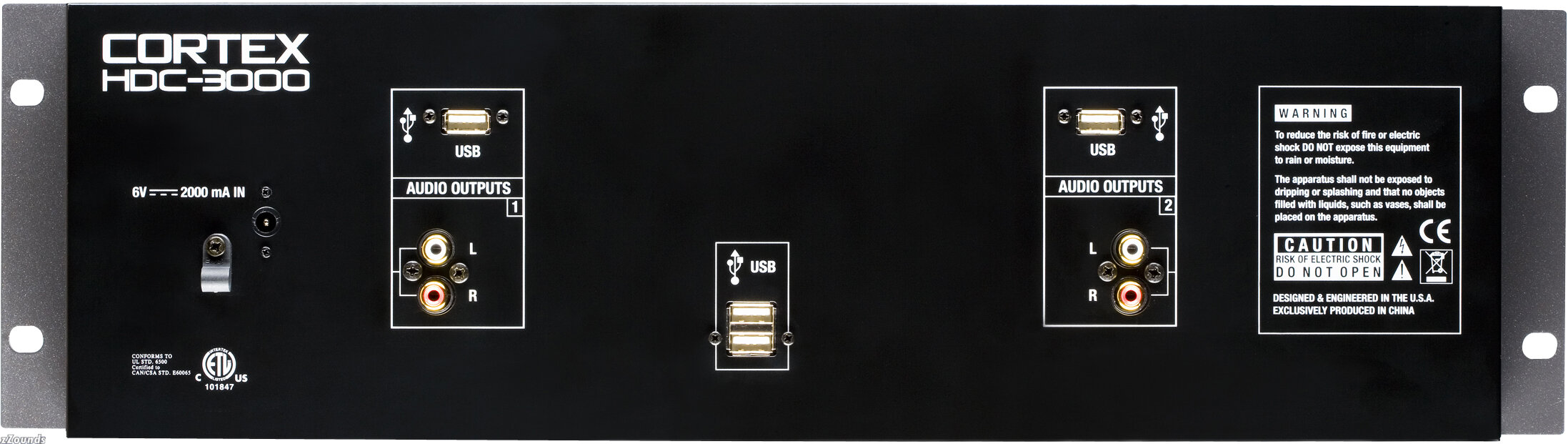

USB Interface Section
Connector type: USB Type A

USB protocol support: 1.0, 1.1 (Full Speed) and 2.0 (Hi-Speed)

Number of ports: 5

Maximum number of connected devices (via USB hub, sold separately): 4 (Plus Keyboard)

File system support: FAT32, NTFS, HFS+, CDFS, UDFS
