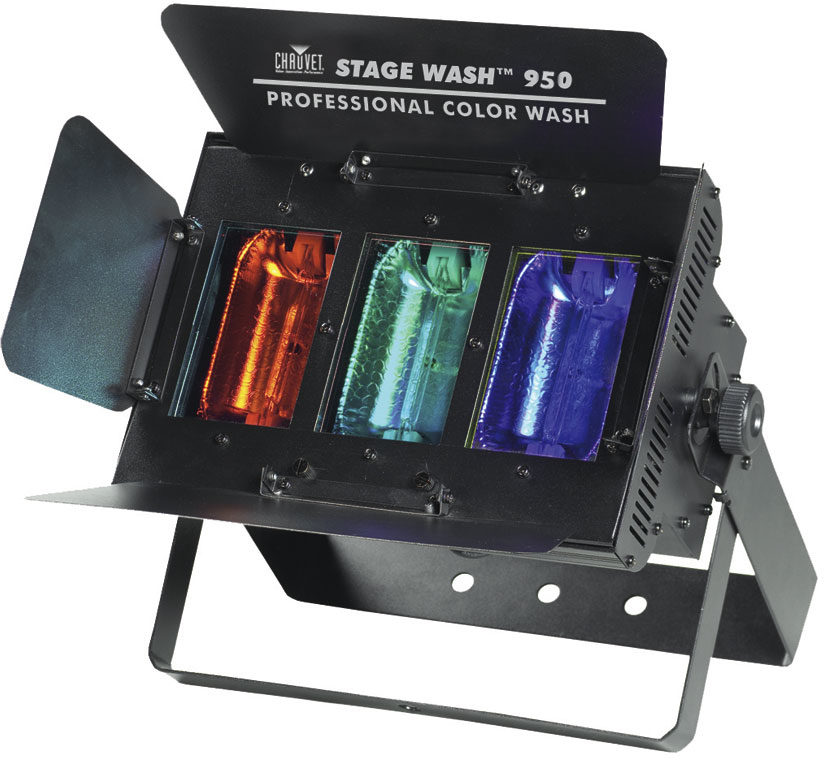

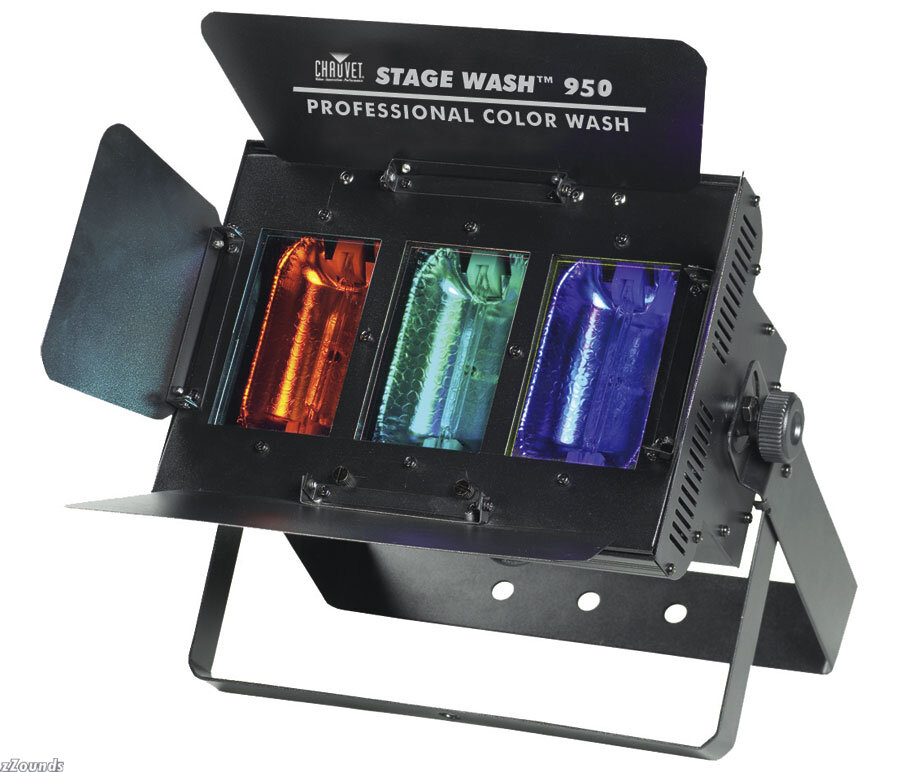

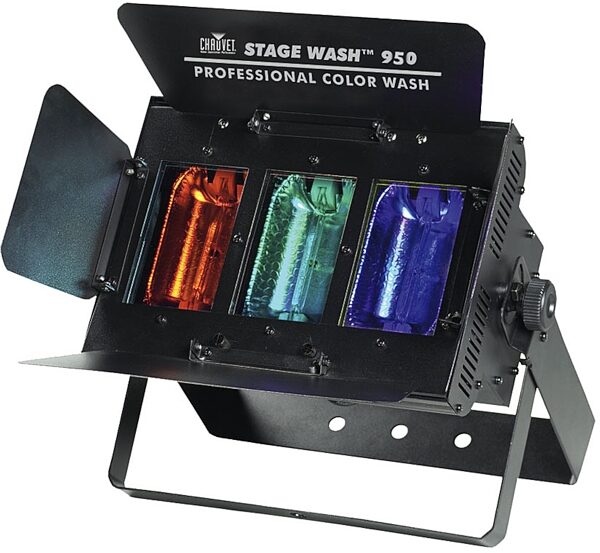

Two to four-channel DMX-512 RGB color wash fixture.
Features:
RGB color mixing
Parcan-style fixture with wide flood lens
Built-in automated programs via master/slave
Built-in sound activated programs via master/slave
LED Display
Thermal fuse
900 watts of total brightness
Built in beat-activated and automatic programs (stand-alone)
Barn doors
Sound sensitivity knob
Double bracket yoke doubles as floor stand
Linkable via master/slave
Fan cooled
2-year limited warranty
Operating Modes:
RGB Mode: full RGB mix plus dimmer (4 channels)
C&B Mode: color selection (40 presets) and dimmer (2 channels)
RGB & Chase Mode: 7 distinct operating modes (4 channels)
RGB mix, 8-pattern auto, 8-pattern sound, auto-chase, sound-chase, 40-color auto or sound
Individual Channel Controls May Include:
Red 0-100%, color selection or mode select
Green or red 0-100%, dimmer 0-100%
Blue or green 0-100%, fade time
Dimmer 0-100%, speed time
Optional Controllers:
Programmable: TFX-CONPK (Stage Wash Controller & Stage Wash Foot Controller*) or any universal DMX-512 controller
Non-Programmable: TFX-SWF Easy Foot Controller
Technical Info
Beam Angle: 20 degrees
Footcandles: 1,705
Lux: 18,346
Light Source:
3 x EHM2 230V 300W
3 x EHM 120V 300W
Current Draw: (peak 1415W @ 120V) (inrush 988W @ 120V)
Power: Switchable 110V/230V
Weight: 13 lbs. (5kgs)
Size: 12in x 9in x 6in; 305mm x 229mm x 152mm
