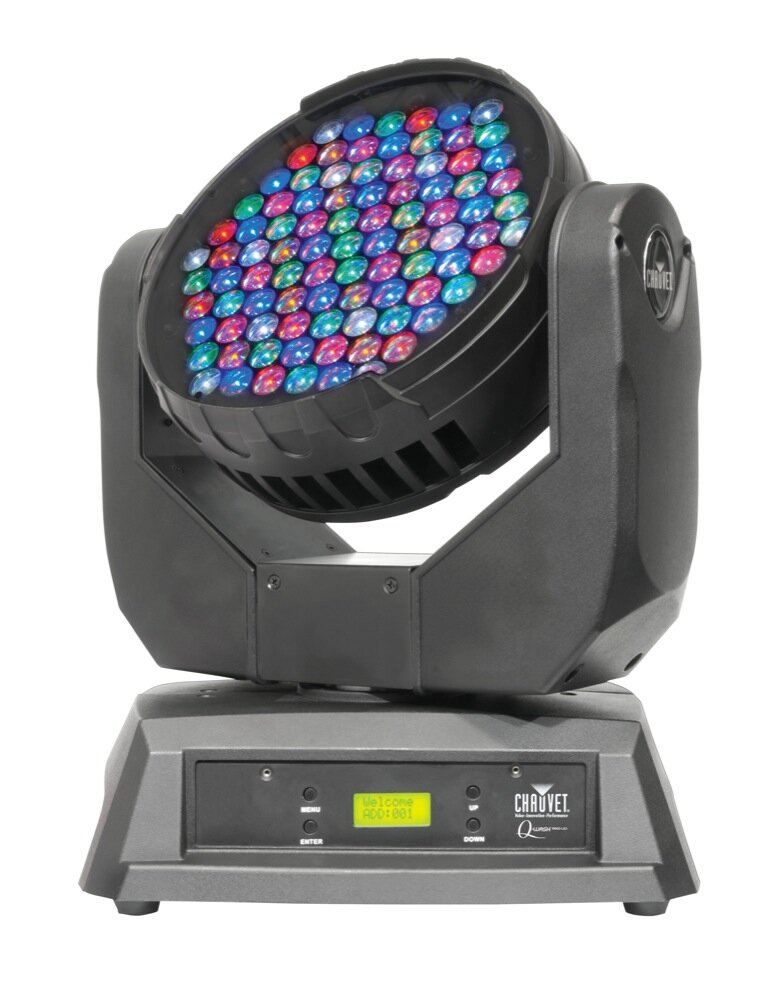

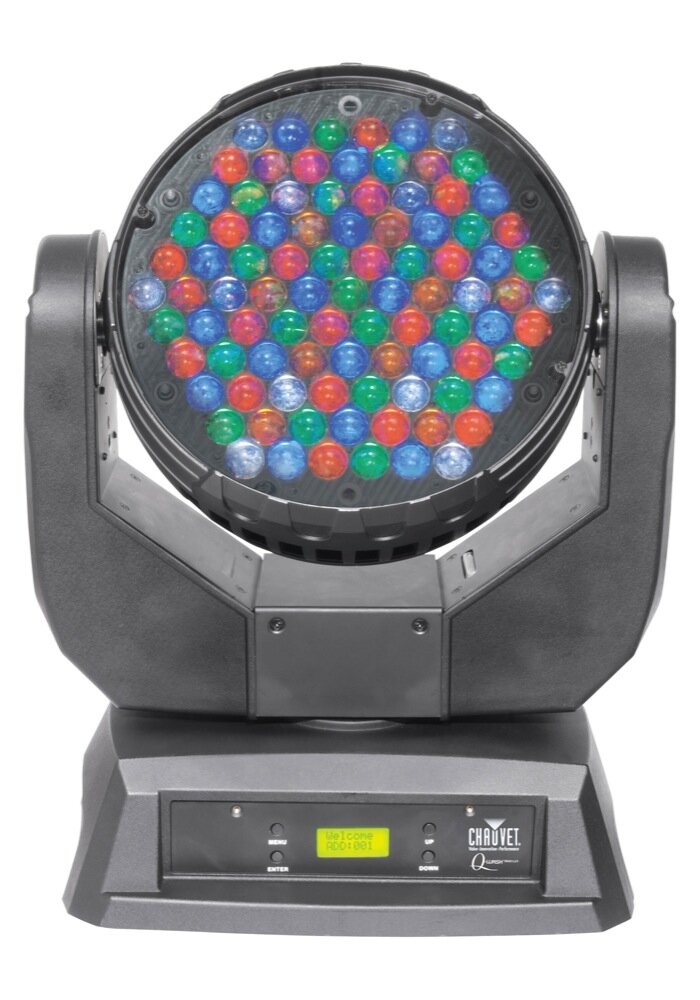

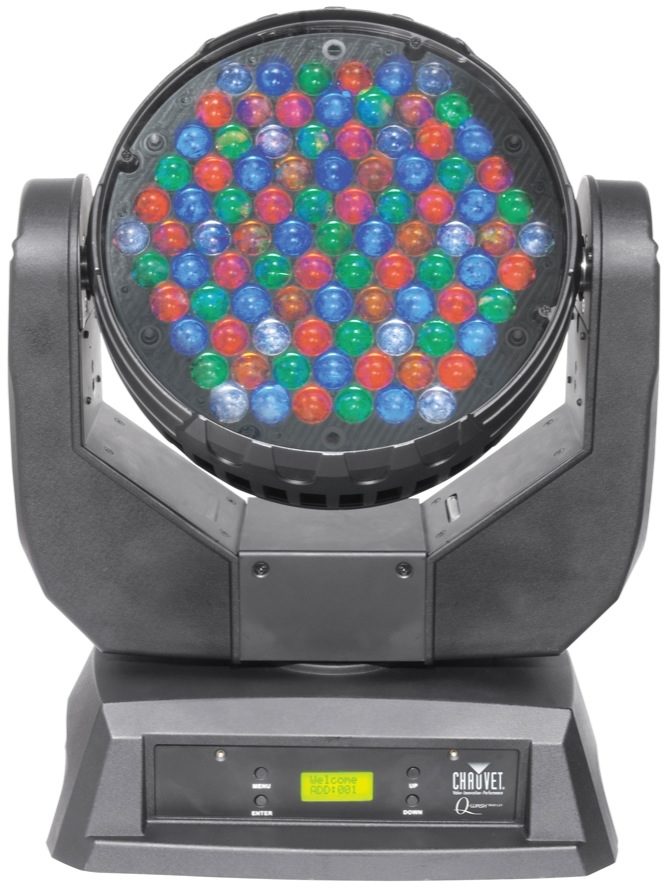

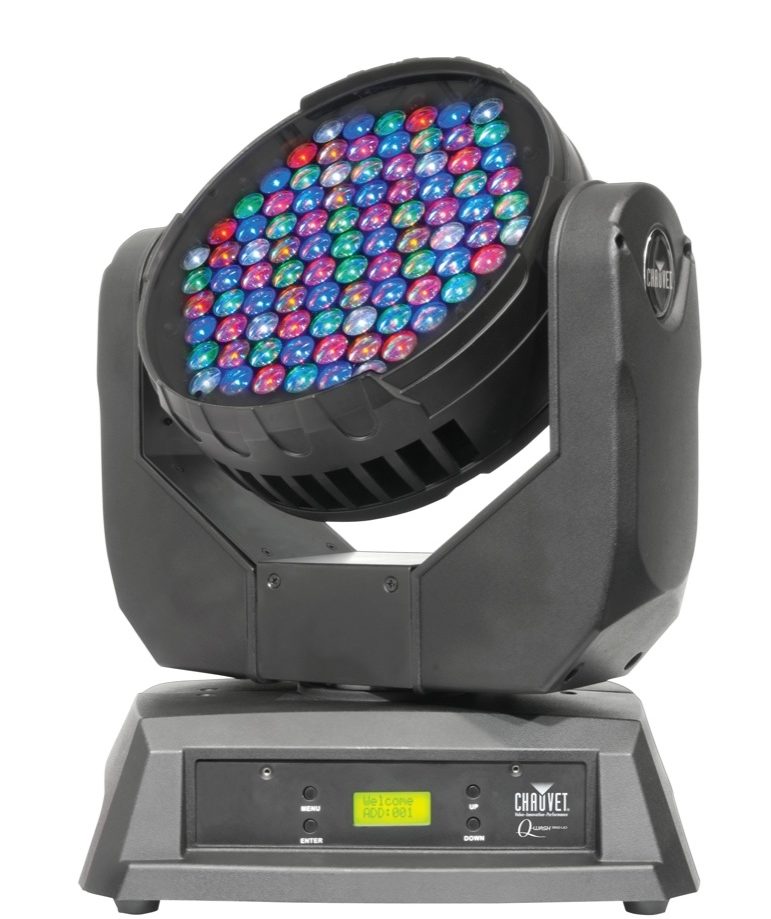

Chauvet Q-Wash 560Z-LED Moving Yoke Stage Light
No longer available at zZounds
This powerful moving yoke wash pushes an impressive 13,100 lux at 5 meters.
Overview
The Chauvet Q-Wash 560Z-LED is a best-in-class moving yoke wash with a wide zoom range and variable beam angle. It powers out an impressive 13,100 lux at 5 meters. The incorporation 91, calibrated high intensity RGBWA CREE LEDs ensures a uniform wash, excellent color rendering and a vast color palette of soft pastels and vivid hues.
- Operating Modes:
-- 12-Channel Basic Mode - pan, tilt, red, green, blue, white, amber, color macro, dimmer, strobe, zoom and control
-- 14-Channel G1 Mode - pan, fine pan, tilt, fine tilt, pan/tilt speed, red, green, blue, white, color macro, dimmer, strobe, zoom, and control
-- 15-Channel Advanced Mode - pan, fine pan, tilt, fine tilt, pan/tilt speed, red, green, blue, white, amber, color macro, dimmer, strobe, zoom and control
-- 6-37 degrees zoom
- RGBWA LEDs
- RGBWA color mixing
- Electronic shutter
- Electronic dimmer
- All functions reset over DMX
- Move in Black over DMX or on display
- Color Macros with speed adjustment
- IP rating: IP20
- Lightweight and easy to install
- 3-pin and 5-pin DMX connections
- User-selectable pan/tilt ranges
- Automatic pan/tilt correction
Features
- DMX channels: (12, 14 or 15)- Operating Modes:
-- 12-Channel Basic Mode - pan, tilt, red, green, blue, white, amber, color macro, dimmer, strobe, zoom and control
-- 14-Channel G1 Mode - pan, fine pan, tilt, fine tilt, pan/tilt speed, red, green, blue, white, color macro, dimmer, strobe, zoom, and control
-- 15-Channel Advanced Mode - pan, fine pan, tilt, fine tilt, pan/tilt speed, red, green, blue, white, amber, color macro, dimmer, strobe, zoom and control
-- 6-37 degrees zoom
- RGBWA LEDs
- RGBWA color mixing
- Electronic shutter
- Electronic dimmer
- All functions reset over DMX
- Move in Black over DMX or on display
- Color Macros with speed adjustment
- IP rating: IP20
- Lightweight and easy to install
- 3-pin and 5-pin DMX connections
- User-selectable pan/tilt ranges
- Automatic pan/tilt correction
Specs
- Pan & tilt: 540 degrees / 270 degrees

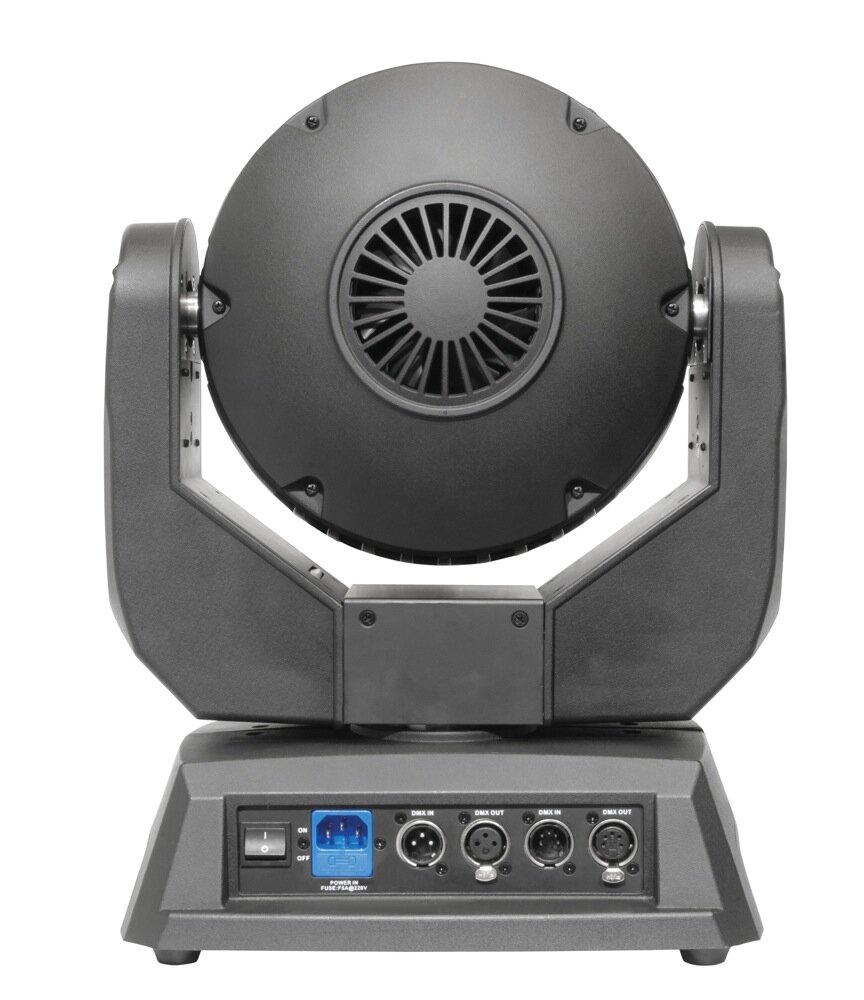

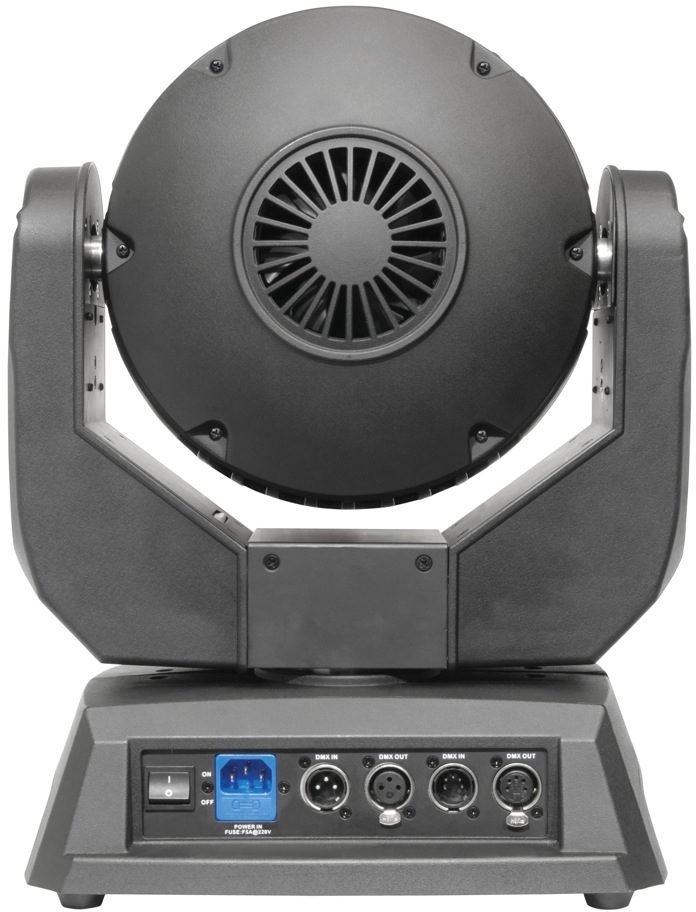

- DMX connection: 3-pin & 5-pin
- Source: 91 (3 W) LEDs, 50,000 hours
- Configuration: 22 red, 23 green, 22 blue, 12 white, 12 amber
- Installed Optic(s): Zoomable optics from 6 ~32 degrees
- Beam angle: 6 - 32 degrees
- Field angle: 9 - 37 degrees
- Lux: 13,100 (6 degrees) - 917 (32 degrees) @ 5 m
- AC Voltage Range: 100 - 240 V, 50/60 Hz (auto-ranging)
- Power Consumption 120 V, 60 Hz: 309 W, 2.7 A (operating)
- Power Consumption 230 V, 50 Hz: 289 W, 1.4 A (operating)
- Dimensions (WxHxD): 13.3 x 9.1 x 14.2 inches
- Weight: 21.2 lbs.
- Power Connection: IEC
- Control Connection: 3-pin & 5-pin DMX
- Certification: CE, ETLc
- Environment: IP20, dry location
- DMX connection: 3-pin & 5-pin
- Source: 91 (3 W) LEDs, 50,000 hours
- Configuration: 22 red, 23 green, 22 blue, 12 white, 12 amber
- Installed Optic(s): Zoomable optics from 6 ~32 degrees
- Beam angle: 6 - 32 degrees
- Field angle: 9 - 37 degrees
- Lux: 13,100 (6 degrees) - 917 (32 degrees) @ 5 m
- AC Voltage Range: 100 - 240 V, 50/60 Hz (auto-ranging)
- Power Consumption 120 V, 60 Hz: 309 W, 2.7 A (operating)
- Power Consumption 230 V, 50 Hz: 289 W, 1.4 A (operating)
- Dimensions (WxHxD): 13.3 x 9.1 x 14.2 inches
- Weight: 21.2 lbs.
- Power Connection: IEC
- Control Connection: 3-pin & 5-pin DMX
- Certification: CE, ETLc
- Environment: IP20, dry location
