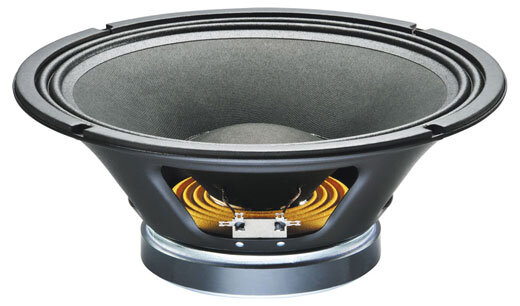

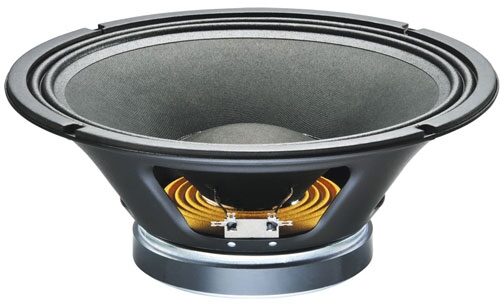

Celestion TF1225E Replacement PA Speaker (300 Watts)

Suitable for 2-way and 3-way systems, this replacement PA speaker from Celestion is designed to provide Ferrite magnet drivers.

Overview

The Celestion TF1225E is a 12 Inch-300 Watt RMS Speaker with 8 ohms of resistance. The Celestion TF is a closed-back midrange design to provide system builders with a dependable, comprehensive range of conventional, pressed steel, Ferrite magnet drivers.

TF drivers employ Kevlar-impregnated cones with sealed surround and damping for reduced distortion, and double roll surrounds for greater excursion control. Rigid chassis designs ensure maximum energy transfer.

Features

- 12 inch Bass and mid-range driver with extended low frequency response

- 2.5 inch edgewound voice coil provides 96dB sensitivity and 300Wrms (AES standard) power handling

- Kevlar-loaded cone with sealed surround and damping for reduced distortion

- Double roll surround for greater excursion control

- Suitable for use in 2-way and compact 3-way systems

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- General:

- Nominal diameter: 305mm/12in

- Power rating: 300Wrms

- Nominal impedance: 8 Ohms

- Sensitivity: 96dB

- Frequency range: 50-3000Hz

- Voice coil diameter: 64mm/2.5in

- Chassis type: Pressed steel

- Magnet type: Ferrite

- Magnet weight: 1.4kg/50oz

- Coil material: Edgewound copper

- Former material: Polymide

- Cone material: Kevlar loaded paper

- Surround material: Cloth-sealed

- Suspension: Single

- Xmax: 3.5mm/0.14in

- Gap depth: 8mm/0.31in

- Voice coil winding width: 14.5mm/0.57in

- Mounting Information:

- Overall diameter: 309mm/12.17in

- Overall depth: 139mm/5.47in

- Cut-out diameter: 283mm/11.14in

- Mounting slot dimensions: 7.9mm/0.31in

- Number of mounting slots: 4

- Mounting PCD range: 297mm/11.69in

- Unit weight: 4.4kg/9.7lb

- Packed Dimensions & Weight:

- Single pack size W x D x H: 13.0 x 13.0 x 5.9 in. (330mm x 330mm x 150mm)

- Single pack weight: 5kg/11lb

Dimensions and Weight in Packaging
12 inch, 8 Ohms: Shipping Weight: 11 lbs; Shipping Dimensions: 14 x 13 x 6 in; Manufacturer Part Number (MPN): T5323
