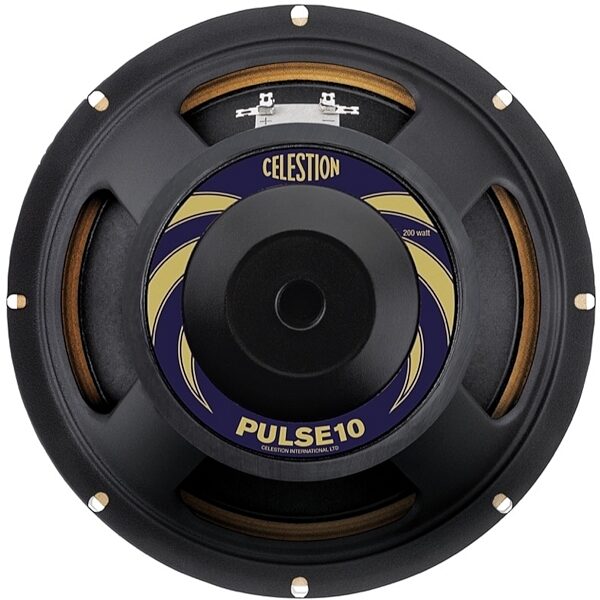

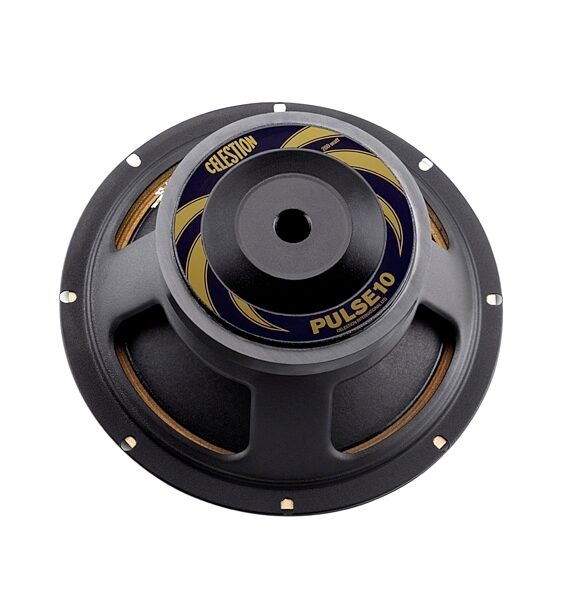

Celestion PULSE10 Bass Speaker (200 Watts, 10")

Warm up your midrange with the powerful, 200-watt PULSE10 bass speaker. This 8-ohm driver is the perfect replacement for any cab, from a 1x10 to a huge 8x10.

Overview

With its robust steel-chassis, the Celestion PULSE10, provides a rock-solid bass performance whether alone in a single speaker combo, in a 4x10 or even an 8x10 cab. Expect a tight, punchy low end with a warm mid-range that's full of presence, bringing focus and articulation to your playing. This heavy-duty driver truly delivers bass you can feel as well as hear.

WARNING: Cancer and Reproductive Harm - www.p65Warnings.ca.gov.

Specs

- Nominal diameter: 10", 254mm
- Power rating: 200W
- Nominal impedance: 8 ohm
- Sensitivity: 94dB
- Magnet type: Ferrite
- Voice coil diameter: 2", 50.8mm
- Cone material: Kevlar loaded paper
- Former material: Polyimide
- Surround material: Cloth-sealed
- Frequency range: 45-3500Hz
- Xmax: 0.15", 4mm
- Gap depth: 0.31", 8mm
- Voice coil winding width: 0.62", 16mm
- Voice coil material: Copper

Small Signal Parameters:
- D: 0.21m/8.3in
- Fs: 68Hz
- Mms: 32.9g/1.16oz
- Mmd: 29.26g/1.03oz
- Qms: 2.54
- Qes: 0.53
- Qts: 0.44
- Re: 6.03 Ù
- Vas: 25.8lt/0.91cu.ft.
- BI: 12.88Tm
- Cms: 0.15mm/N
- Rms: 5.79kg/s
- Le: (at 1kHz) 0.92mH

Mounting Information:
- Cut-out diameter: 9", 229mm
- Diameter: 10.1", 256mm
- Mounting slot dimensions: 0.24x0.31", 6x8mm Ø
- Mounting slot PCD: 9.6", 245mm
- Number of mounting slots: 4
- Overall depth: 4.3", 110mm
- Unit weight: 6.6lb, 3kg

Dimensions and Weight in Packaging
8 Ohms: Shipping Weight: 7.5 lbs; Shipping Dimensions: 11 x 11 x 6 in; Manufacturer Part Number (MPN): T5968

Documents and Manuals

For support or warranty questions, please contact the manufacturer:
Phone: 800-996-8637
Web: https://celestion.com/about-us/contact-us/

Reviews

(1 ratings)

Submitted March 6, 2020 by Bobby S in Memphis, TN

"Excellent speaker"

Overall:

(see rating details)

Verified Customer zZounds has verified that this reviewer made a purchase from us.

I installed the Celestion Pulse 10 speaker in my Fender Rumble 40 bass amp combo. It is a direct fit; install is easy but the speaker is a little heavy to hold in place while hooking up wires. This speaker kicks like a mule and is a significant upgrade over the stock speaker. With the speaker’s power handling, it takes everything I throw at it without blinking. It has a vintage-y sound to it, like old Ampeg cabinet speakers, and I’m more than okay with that. Highly recommended.
