The LK220 introduces those who are just learning to play the keyboard to the new Step-Up learning system from Casui. The practice pieces are divided into small learning units, which are then learned step by step. And that's not all; the LK220 has plenty more to offer, including the new AHL sound source boasting 48 notes, 150 rhythms, an extended automatic accompaniment feature with ON-bass chord and a large, easy-to-read display. The sampling function provides hours of fun: Recordings of up to a second can be played back via the keyboard using the Mic-in facility.
New 48-note polyphony AHL sound source
400 Tones, 150 Rhythms
New StepUp lesson system
Sampling Function, Audio-in Terminal for mp3-Player
Step-Up learning system

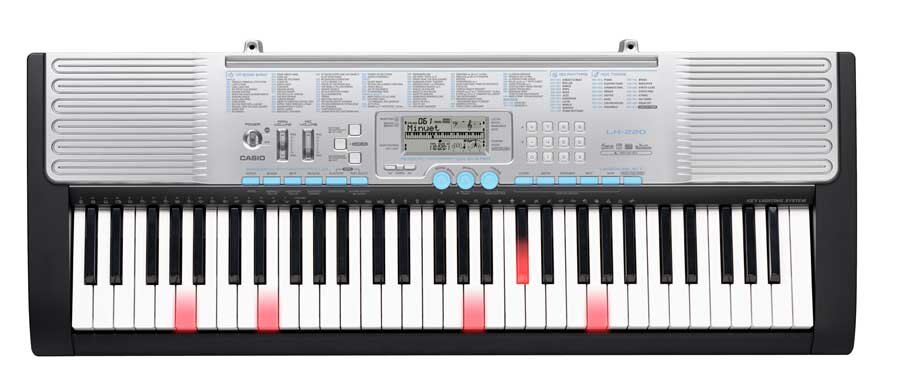

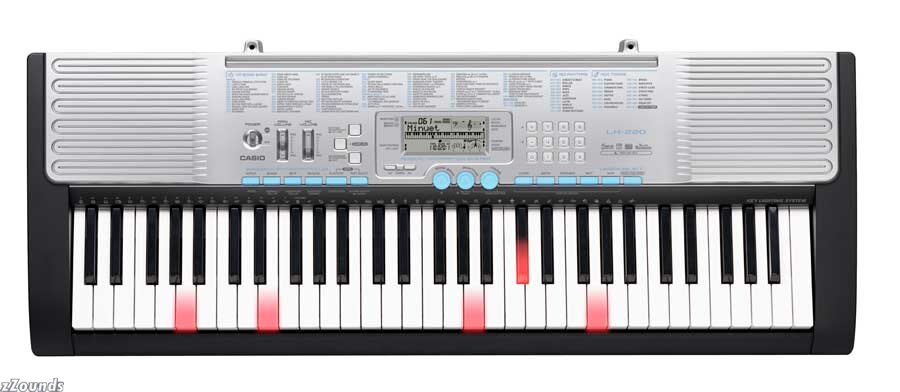

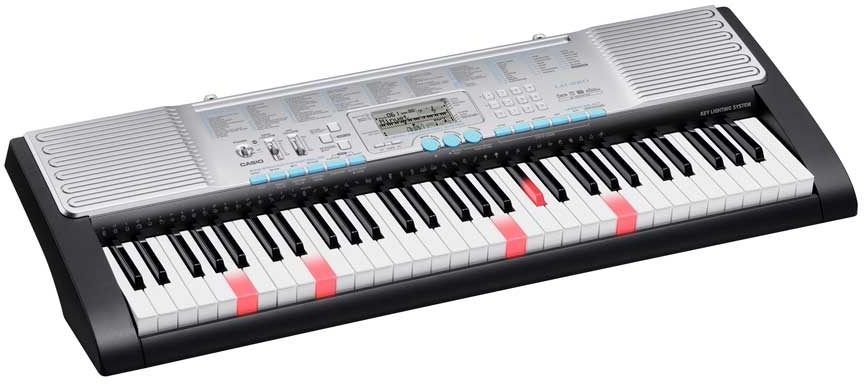

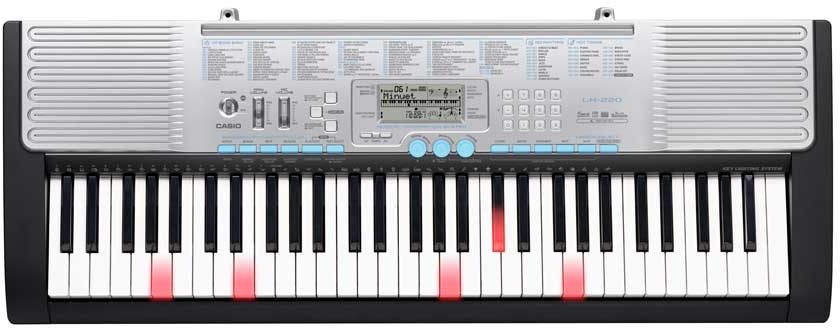

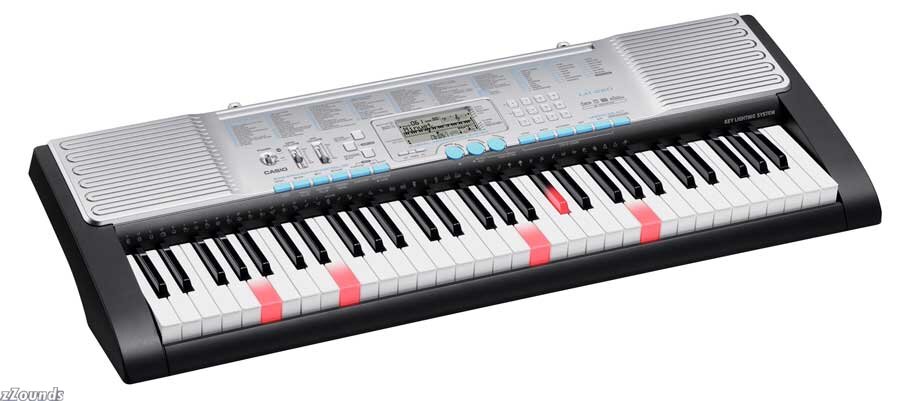

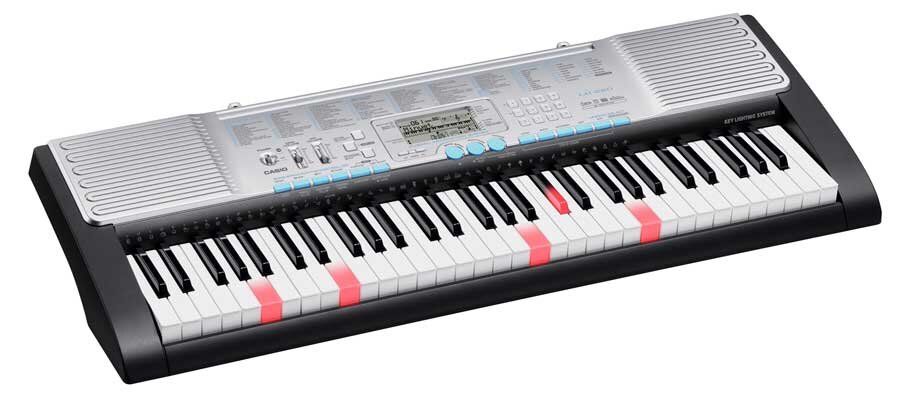

The 61 light-up keys on the LK220 guide you through a whole host of songs: The practice piece is divided into individual sections and then learned step by step - just like in a traditional music lesson. The 3-level, interactive learning system featuring light-up keys offers a simple way to achieve your learning goals.
The tried-and-tested interface quickly and simply connects your keyboard with the computer; Plug & Play with Windows XP/Vista and Mac from OSX 10.3 ensures optimum compatibility.
Recording and playback: Recordings of up to a second can be played back via the keyboard using the sampling function. 10 additional sound effects are provided to boost the fun factor.
10 digital effects
Whether you're giving a live performance to an audience or you're alone in your living room, an impressive 10 reverb effects enhance the sound diversity of your keyboard.
Microphone input (Mic-in)
Simply plug in and get singing: The LK220 has a practical microphone input facility that allows users to sing along to a selection of songs or make recordings using the sampling function.
Audio input (Audio-in)
It's easy to connect a CD or MP3 player to the audio input on your LK220 and play along with your favorite song on the keyboard.
zZounds is an authorized dealer of
61 standard-size keys
Touch Response: 2 types, Off
Key Light System: Up to 4 keys can be lit at the same time
Maximum Polyphony: 48 notes (24 for certain tones)
- Built-in Tones: 400
- Sampling Tones: 1
- Sampling time: 1 second (fixed)
- Effects: 10 types
- Reverb: 1 to 10, Off
- Beats per Measure: 0,2 to 6
- Tempo Range: 30 to 255
- Tunes 110
Step Up Lesson:
Lessons: 4 (Listen, Watch, Remember, Auto)
Lesson Part: L, R, LR
Functions: Repeat, Voice Fingering Guide, Note Guide, Performance Evaluation
Music Challenge: 20 notes
Rhythm Patterns: 150
One Touch Presets: 150
Transpose: +/-1 octaves (12 semitones)
Tuning: A4 = approx. 440 Hz +/- 100 cents
16 multi-timbre received, GM Level 1 standard
Musical Information Function: Tone, Rhythm, Song Bank, numbers and names; staff notation, fingering, pedal operation, tempo, measure and beat number, chord name, etc.
USB port: TYPE B
Sustain jack: Standard jack (sustain, sostenuto, soft, rhythm start/stop)
Phones/Output jack: Stereo standard jack
Output Impedance: 200 Ohm, Output Voltage: 4.8 V (RMS) MAX
Audio In jack: Stereo mini jack
Input Impedance: 40 kOhm, Input Sensitivity: 200 mV
Mic In jack: Standard jack
Input Impedance: 3 kOhm, Input Sensitivity: 10 mV
Power Jack: 9V DC
Batteries: 6 AA-size zinc-carbon batteries or alkaline batteries
Battery Life: Approximately 3 hours continuous operation on alkaline batteries
AC Adaptor: AD-5
Auto Power Off: Approximately 6 minutes after last key operation (Operates during battery use only)
Speakers: 10 cm x 2 (Output: 2 W + 2 W)
Power Consumption: 9V - 7.7W
Dimensions (WxDxH): 94.9 x 35.7 x 11.8 cm
Weight: Approximately 4.2 kg (without batteries)
If you have additional warranty questions,
please contact the manufacturer at 800-435-7732
