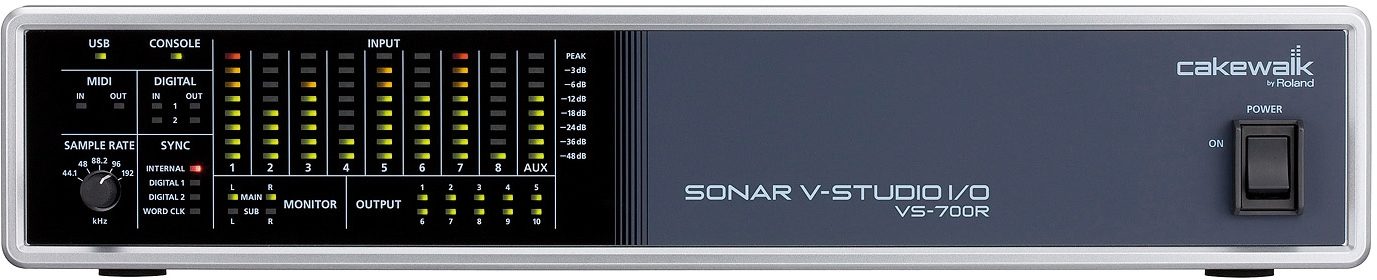

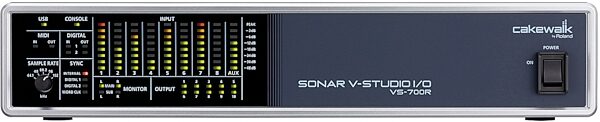

Cakewalk V-Studio 700R Rack USB 2.0 Recording Interface

Product Description

The VS700R V Studio I/O is a high speed USB 2.0 audio interface that provides all the recording and routing capabilities needed to handle any music production task. In addition to the 18/24 I/O audio interface, the VS700R also has an integrated Roland Fantom VS hardware synthesizer based on the world-renowned Fantom synthesizer.

VS700R V Studio I/O

This 20/26 (18/24 simultaneous) USB 2.0 audio interface has plenty of I/O options, including a mic/Hi-z input and dual headphone outs, 8 TRS/XLR inputs with phantom power, 14 analog outputs, ADAT I/O, AES/EBU and coaxial digital I/O, and MIDI I/O with Wordclock Sync. It provides you with 24-bit/192kHz A/D conversion, and comes with high-quality DSP--Phase, Pad, Low-cut, EQ, and Compressor. It also includes the Roland Fantom VS Synthesizer.

- 21/30 (19/24 simultaneous) audio interface including mic/hi-z input and dual headphone outs on the console
- 8 TRS/XLR inputs with phantom power
- Superior 24-bit/192 kHz A/D converters
- 8 digitally controlled mic preamps
- High quality input DSP including Phase, Pad, Low-cut, EQ, and Compressor
- 14 analog outputs
- ADAT I/O
- Digital I/O (AES/EBU, Coaxial)
- Easy USB 2.0 connection
- MIDI In/Out and Wordclock Sync
- Increase I/O capability to 41/56 (37/48 simultaneous) with additional VS-700R I/O unit (available separately)

Roland Fantom VS Synthesizer

Fantom Editor: Built into the V-Studio 700R is the excellent Roland Fantom VS Synthesizer which is stocked with over 1,400 patches from its famous namesake. It offers low latency and low-CPU performance. It also has a VSTi plug-in, synth router, and routing within SONAR for seamless integration of Fantom VS into your creative workflow.

- Integrated Roland Fantom VS hardware synthesizer
- Stocked with over 1,400 patches from world renowned Fantom Synth
- Hardware synth offers low latency and low-CPU performance
- VSTi plug-in, synth editor, and routing within SONAR for seamless integration of Fantom VS into your creative workflow
- Expandable via SuperNATURAL expansion board (ARX) slot found in VS-700R V-Studio I/O
- Double synth capability with additional VS-700R V-Studio I/O (available separately) zZounds is an authorized dealer of Cakewalk products.

System Requirements
Operating System: Microsoft Windows Vista, Windows Vista 64, Windows XP Professional, Windows 7
Computer: Windows compatible computer equipped with a USB 2.0 (Hi-SPEED USB) port
CPU/Clock: Intel Pentium 4 3.0GHz or higher, Core2Duo, Core2Quad recommended
Memory (RAM): 2 GB or higher
Hard Disk Space: 30 GB or higher
Hard Disk Type: 7,200 RPM or higher /SATA
Graphics (resolution, color depth) Minimum: 1024 x 768, 16-bit color / Recommended: 1280 x 960, 24-bit color or higher
Required Hardware: DVD-ROM Drive (Install), CD-R Drive (For CD writing), DVD-ROM, DVD+/-R, or DVD+/- RW Drive (Dual Layer-capable drive required for installation of SONAR 8 Producer content)

- SONAR does not support Windows 95, 98, ME, NT, 2000 or XP x64
-- Cakewalk Publisher requires you to have available web server space with FTP access privileges. An internet connection is required for music uploading. A broadband connection is recommended.

Specifications

Number of Audio Record/Playback Channels:

Sampling Frequency = 44.1 kHz, 48 kHz
Record: 19 channels, Playback: 24 channels

Sampling Frequency = 88.2 kHz, 96 kHz
Record: 15 channels, Playback: 20 channels

Sampling Frequency = 192 kHz
Record: 5 channels, Playback: 10 channels

Signal Processing:

PC interface: 24-bit

AD/DA Conversion: 24-bit

Internal: 40-bit

Sampling Frequency:

AD/DA Conversion: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz

DIGITAL 1, 2 (IN/OUT): 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz

Nominal Input Level:

INPUT 1-8: -40 to +4 dBu (PAD: ON) -60 to -16 dBu (PAD: OFF)

AUX IN: -60 to -20 dBu (NORMAL) -50 to -10 dBu (Hi-Z)

Pad:
20 dB ON/OFF

Maximum Input Level:

INPUT 1-8: +2 dBu (PAD: OFF) +22 dBu (PAD: ON)

AUX IN: -2 dBu (NORMAL, SENS: min.) +8 dBu (Hi-Z, SENS: min.)

Input Impedance:

INPUT 1-8: 35 k ohms

AUX In: 3 k ohms (NORMAL) 470 k ohms (Hi-Z)

Head Room:

18 dB

Nominal Output Level:

MAIN OUT, SUB OUT,
OUTPUT 1-10: +4 dBu (balanced)

Maximum Output Level:

MAIN OUT, SUB OUT, OUTPUT1-10: +22 dBu (balanced)
PHONES 1-2: 100mW + 100mW (32 ohms loaded)

Output Impedance:
MAIN OUT, SUB OUT, OUTPUT1-10: 600 ohms (balanced)
PHONES 1-2: 44 ohms

Recommended Load Impedance:
MAIN OUT, SUB OUT, OUTPUT 1-10: 10 k ohms or greater
PHONES 1-2: 32 ohm or greater

Phantom Power:
DC +48 V(unloaded maximum),
10 mA(maximum load) (All XLR type inputs)
- Should be less than 50 mA in total

Frequency Response:

INPUT 1-8 --> MAIN OUT:
20-20kHz 0 dB / -2 dB (Sampling Frequency: 44.1 kHz / 48 kHz)
20-40kHz 0 dB / -2 dB (Sampling Frequency: 88.2 kHz / 96 kHz)
20-60kHz 0 dB / -3 dB (Sampling Frequency: 192 kHz)
20-90kHz 0 dB / -8 dB (Sampling Frequency: 192 kHz)

AUX IN --> MAIN OUT:
20-20kHz 0 dB / -2 dB (Sampling Frequency: 44.1 kHz / 48 kHz,
NORMAL / Hi-Z, SENS: min.)
20-40kHz 0 dB / -3 dB (Sampling Frequency: 88.2 kHz / 96 kHz,
NORMAL / Hi-Z, SENS: min.)
20-40kHz 0 dB / -3 dB (Sampling Frequency: 192 kHz,
NORMAL / Hi-Z, SENS: min.)
20-90kHz 0 dB / -12 dB (Sampling Frequency: 192 kHz,
NORMAL / Hi-Z, SENS: min.)
- Internal Direct Monitor Mixer setting Stereo Link: ON,
Input channel fader: Unity only one channel
Total Harmonic Distortion + Noise

INPUT 1-8 --> MAIN OUT: 0.07 % typ. (PAD: ON, GAIN: min., -1dB)
AUX IN --> MAIN OUT: 0.07 % typ. (NORMAL, SENS: min., -1dB)
0.3 % typ. (Hi-Z, SENS: min., -1dB)
- Internal Direct Monitor Mixer setting Stereo Link on,
Input channel fader: Unity only one channel
- All sampling frequency

Residual Noise Level:
INPUT 1-8 --> MAIN OUT: -81 dBu typ.
(PAD: ON, GAIN: min., 400 ohms terminated, IHF-A)
AUX IN --> MAIN OUT: -83 dBu typ.
(PAD: ON, GAIN: min., 400 ohms terminated, IHF-A)
- Internal Direct Monitor Mixer setting Stereo Link: ON,
Input channel fader: Unity only one channel
- All sampling frequency

Equivalent Input Noise Level (E.I.N.):
INPUT 1-8: -123 dBu typ. (PAD: OFF, GAIN: max.,
400 ohms terminated, IHF-A)
AUX IN: -120 dBu typ. (NORMAL, SENS: max.,
400 ohms terminated, IHF-A)
AUX IN: -108 dBu typ. (Hi-Z, SENS: max.,
400 ohms terminated, IHF-A)
- Output Connector: MAIN OUT
- Internal Direct Monitor Mixer setting Stereo Link: ON,
Input channel fader: Unity only one channel
- All sampling frequency

Dynamic Range:

AD block
INPUT 1-8: 104 dB typ. (PAD: ON, GAIN: min.)
AUX IN: 106 dB typ. (NORMAL / Hi-Z, SENS: min.)

DA block
MAIN OUT, SUB OUT, OUTPUT 1-10: 108 dB typ.
- All sampling frequency

Crosstalk @ 1 kHz:
INPUT 1-8 --> MAIN OUT: -98 dB typ. (PAD: ON, GAIN: Min.)
- Internal Direct Monitor Mixer setting Stereo Link: ON,
Input channel fader: Unity only two channels
which are adjacent each other.
- All sampling frequency

Built-in Sound Generator (Fantom VS):

Parts: 16 parts
Maximum Polyphony: 128 voices
Wave Memory: 128 M bytes (16-bit linear equivalent)
Preset: Patches 1,152 + 256 (GM2)
Rhythm Sets 19 + 9 (GM2)
ARX Series Expansion: 1 slot

Display:

VS-700C Console
32 characters, 2 lines (backlit LCD) x 2
40 characters, 2 lines (backlit LCD) x 1

Connectors:

VS-700C Console
AUX IN jack: 1/4 inch phone type
PHONES jacks (PHONES1, 2): Stereo 1/4 inch phone type
FOOT SW jacks (FOOT SW 1, 2): 1/4 inch phone type
USB connector: USB Type B
AC INPUT connector

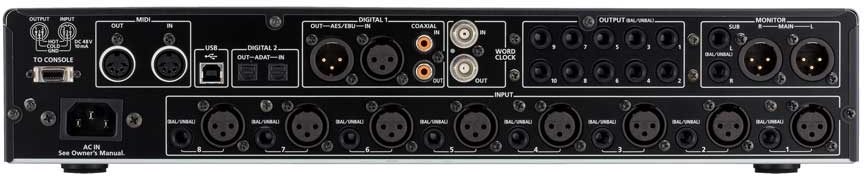

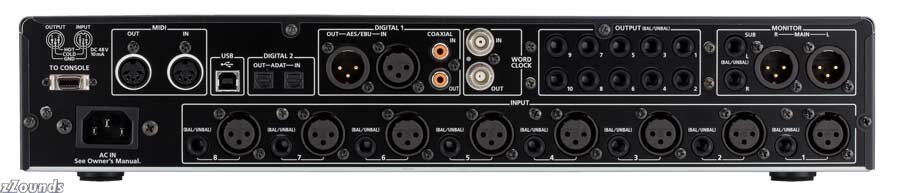

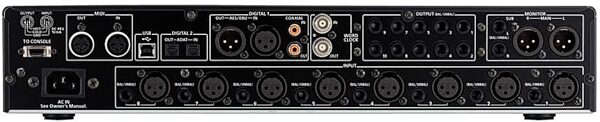

VS-700R I/O:
INPUT jacks (1-8): XLR type, 1/4 inch TRS phone type
MAIN OUT jacks (L / R): XLR type
SUB OUT jacks (L / R): 1/4 inch TRS phone type
OUTPUT jacks (1-10): 1/4 inch TRS phone type
WORD CLOCK connector (IN, OUT): BNC type
DIGITAL 1 jacks (AES/EBU IN, OUT): XLR type
(COAXIAL IN, OUT): RCA phono type
DIGITAL 2 jacks (ADAT IN, OUT): Optical type
MIDI connectors (IN, OUT): 5-pin DIN type
USB connector: USB type B
AC INPUT connector
- XLR type: 1 GND, 2 HOT, 3: COLD

Power Supply:
AC 117 V, AC 230 V, AC 240 V (50/60 Hz)
Current Consumption, Power Consumption

VS-700C Console
0.31 A, 31 W (AC 117 V)
0.21 A, 31 W (AC 230 V / AC 240 V)

VS-700R I/O
0.51 A, 33 W (117 V)
0.35 A, 39 W (AC 230 V / AC 240 V)
Dimensions
VS-700C Console
730 (W) x 430.9 (D) x 126.5 (H) mm
28-3/4 (W) x 17 (D) x 5 (H) inches

VS-700R I/O
433.9 (W) x 348.4 (D) x 87.3 (H) mm
17-1/8 (W) x 13-3/4 (D) x 3-7/16 (H) inches

Weight:

VS-700C Console
10.2 kg / 22 lbs 8 oz

VS-700R I/O
5.3 kg / 11 lbs 11 oz

Included Accessories:

Power Cord x 2, USB Cable, Special Cable,
VS-700R Rack Mount Angle x 2, Getting Started,
VS-700 Owner's Manual, SONAR 8 User's Guide,
Shortcuts and Quick Keys Guide,
SONAR 8 DVD-ROMs, Dimension Pro DVD-ROM,
RAPTURE + SONAR V-STUDIO 700 Driver CD-ROM
