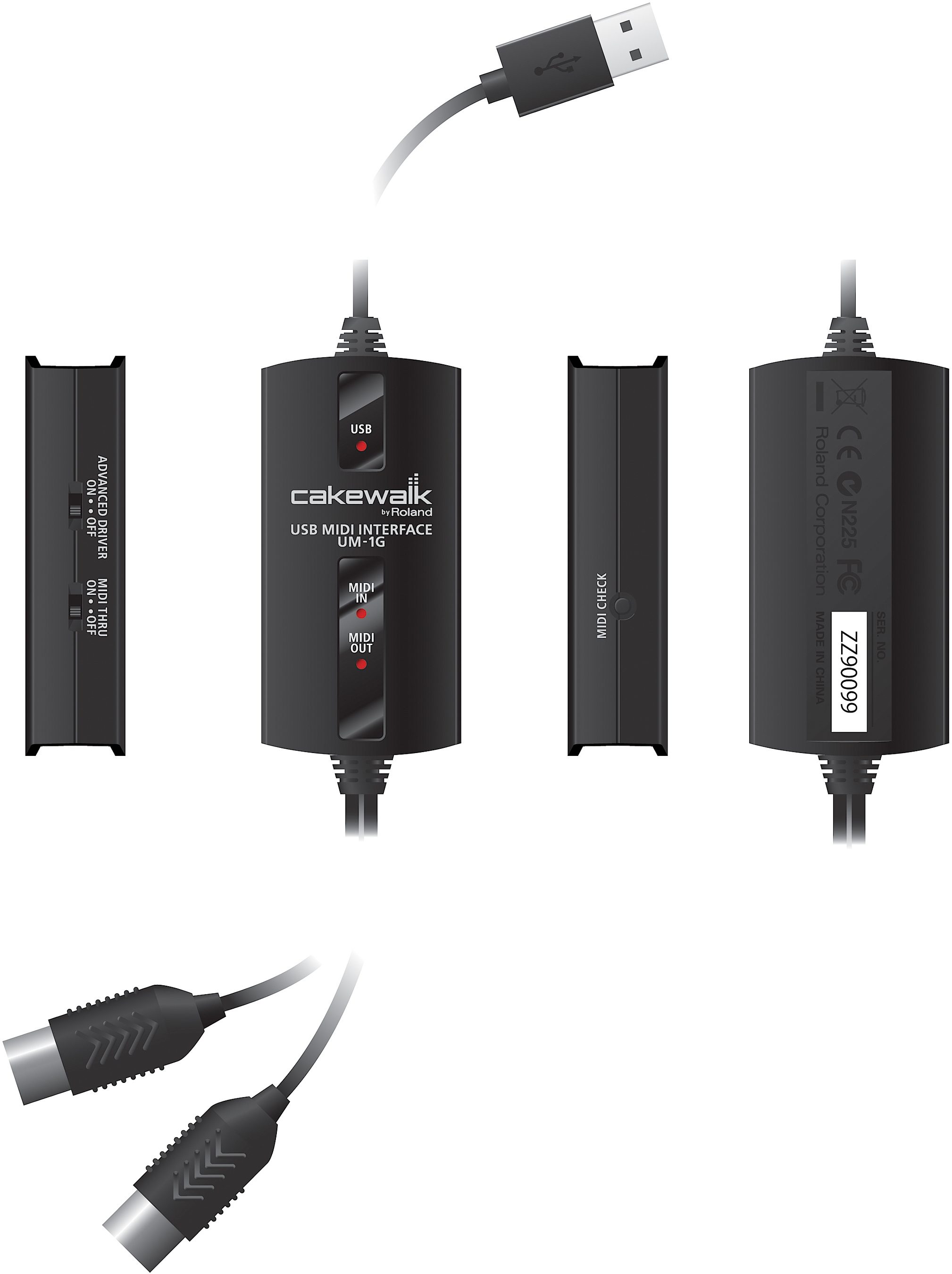

The UM-1G is a compact, cable-style 1-In/1-Out USB MIDI Interface. With features like intuitive connector cable labels, a MIDI indicator LED, and a MIDI Check Switch, the UM-1G has been designed to provide the easiest connection of MIDI devices to your computer.
Features
- 1-In/1-Out MIDI port (male), with LED indicators for MIDI I/O signal monitoring
- MIDI Check switch for quick troubleshooting of MIDI connections
- MIDI cables are engraved with "Connect to MIDI In" and "Connect to MIDI Out" labels for no confusion when connecting devices
- Perfect for hobbyists who want to connect a MIDI keyboard to a computer, or musicians who need MIDI connectivity to control or record music with a computer
- Ideal for small studios or academic settings where only one MIDI device will be connected in close proximity to the computer
- In live performance settings, use the UM-1G to control a synth, drum machine, MIDI light set-up
Technical Info
Specifications
Controllers:
- ADVANCED DRIVER switch
- MIDI THRU switch
- MIDI Check button
Connectors:
- MIDI IN Cable x 1 (16 MIDI Channels)
- MIDI OUT Cable x 1 (16 MIDI Channels)
- USB Cable
Power Supply: Supplied from the computer via USB
Current Draw: 60 mA
Dimensions:
- 80 (W) x 41.2 (D) x 20 (H) mm
- 3-3/16 (W) x 1-5/8 (D) x 13/16 (H) in.
Weight: 100 g / 4 oz
Accessories:
- Owner's Manual
- CD-ROM
* In the interest of product improvement, the specifications,
appearance, and/or contents of this unit are subject to change
without prior notice.
Windows System Requirements
OS: Microsoft(R) Windows Vista(R) x32 or x64, Windows(R) XP Home x32, XP Professional x32 SP2 or later**
Computer: Windows compatible PC equipped with a USB port.
CPU: Pentium(R),Celeron(R) or compatible processor/800 MHz or faster
Memory (RAM): 256 MB or more
**Windows XP Media Center Edition not supported.
Macintosh System Requirements
OS Mac OS X v10.3.9 or later
Computer: Apple(R) Macintosh(R) series with on-board USB port.
CPU: Intel Processor or Power PC/400MHz or faster
Memory (RAM): 256 MB or more
Compatible with USB 2.0 port. Works as a USB 1.1 device without changing the specifications and performance.
The use of this product under Boot Camp is not supported.
This product will not operate in the Mac OS X Classic environment.
This product has been tested on representative computers that meet the system requirements, but we cannot guarantee that it will operate on any computer that meets these requirements. Please be aware that even under the same conditions, differences in the operating environment may produce differences
