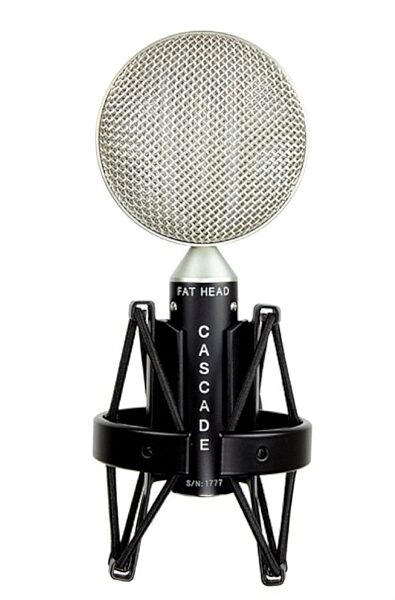

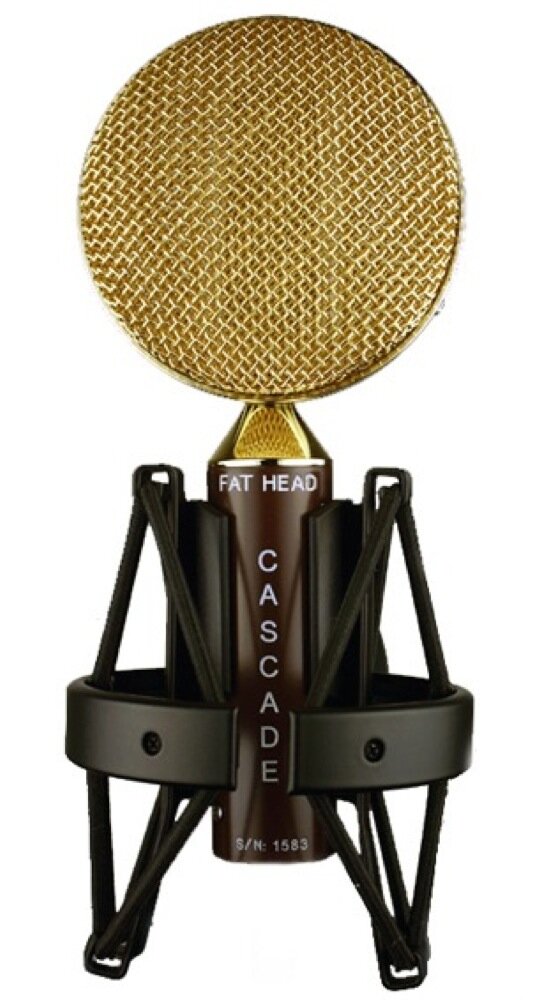

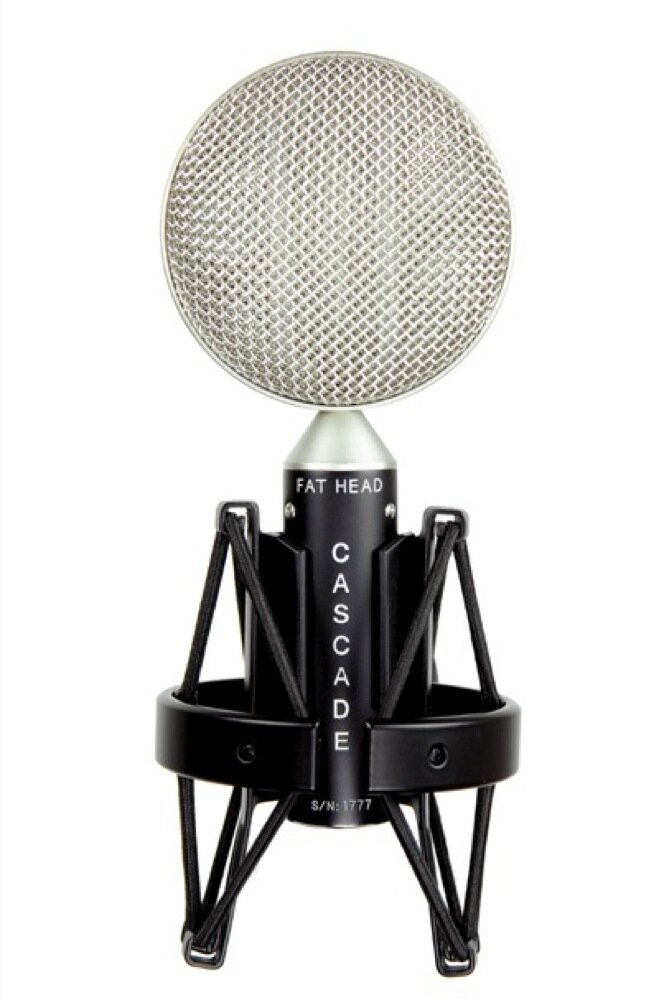

Cascade Microphones 98GL Fat Head Short Ribbon Microphone with Lundahl LL2912 Transformer
No longer available at zZounds
Add the versatility of a ribbon mic to your locker. The 98GL includes a Lundahl LL2912 transformer, and pairs perfectly in a Blumlein configuration.
Overview -
Unlike most ribbon motors designed today with an offset ribbon the Cascade FAT HEAD with Lundahl LL2912 transformer, houses a hand-tuned ribbon element that incorporates the legendary symmetrical ribbon design. This design offers a true figure 8 pattern. The corrugated aluminum membrane itself is positioned in the center from front to back, thus producing a balanced audio input signal to both sides of the ribbon assembly. This design is very useful when executing a mid-side or Blumlein recording set-up and also great for live stage use. The FAT HEAD 98GL kicks things up a notch with the use of a Lundahl LL2912 Transformer
The FAT HEAD with Lundahl LL2912 transformer warm full-bodied signature and increased sensitivity is what you would expect and demand from a professional ribbon microphone and the FAT HEAD delivers. The FAT HEAD is suited for guitar cabinets, drum over-heads, vocal, piano, horns, strings, and much more. For a versatile and affordable ribbon mic that can do it all, the 98GL Fat Head is an excellent choice.
- Aluminum case
- Deluxe oil stained wood box
- Premium suspension shockmount
- Drawcord cloth storage pouch
- Micro-fiber cleaning cloth
- Specifications and typical measurement report
The FAT HEAD with Lundahl LL2912 transformer warm full-bodied signature and increased sensitivity is what you would expect and demand from a professional ribbon microphone and the FAT HEAD delivers. The FAT HEAD is suited for guitar cabinets, drum over-heads, vocal, piano, horns, strings, and much more. For a versatile and affordable ribbon mic that can do it all, the 98GL Fat Head is an excellent choice.
Includes:
- FAT HEAD Ribbon Microphone- Aluminum case
- Deluxe oil stained wood box
- Premium suspension shockmount
- Drawcord cloth storage pouch
- Micro-fiber cleaning cloth
- Specifications and typical measurement report
Specs +
- Type: Ribbon (velocity) Microphone
- Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)
- Polar pattern: Figure 8 Symmetrical design
- Lundahl LL2912 Transformer
- Sensitivity: -56 db +/- 2 dB (0 dB=1V/Pa)
- Frequency response: 30 - 18,000 Hz (+/- 3dB)
- Output Impedance: <=200 Ohms
- Recommended load impedance: >1000 Ohms
- Max.SPL (1% THD @1000 Hz): 165 dB
- Connector: 3-Pin male XLR
- Size: Diameter: 3" (O.D. grill), overall length 6 1/2", 1" (O.D. body)
- Ribbon type & Dimensions: 99% Pure aluminum, 2.5 micron, 1 3/4" (L) X 3/16" (W)
- Polar pattern: Figure 8 Symmetrical design
- Lundahl LL2912 Transformer
- Sensitivity: -56 db +/- 2 dB (0 dB=1V/Pa)
- Frequency response: 30 - 18,000 Hz (+/- 3dB)
- Output Impedance: <=200 Ohms
- Recommended load impedance: >1000 Ohms
- Max.SPL (1% THD @1000 Hz): 165 dB
- Connector: 3-Pin male XLR
- Size: Diameter: 3" (O.D. grill), overall length 6 1/2", 1" (O.D. body)
