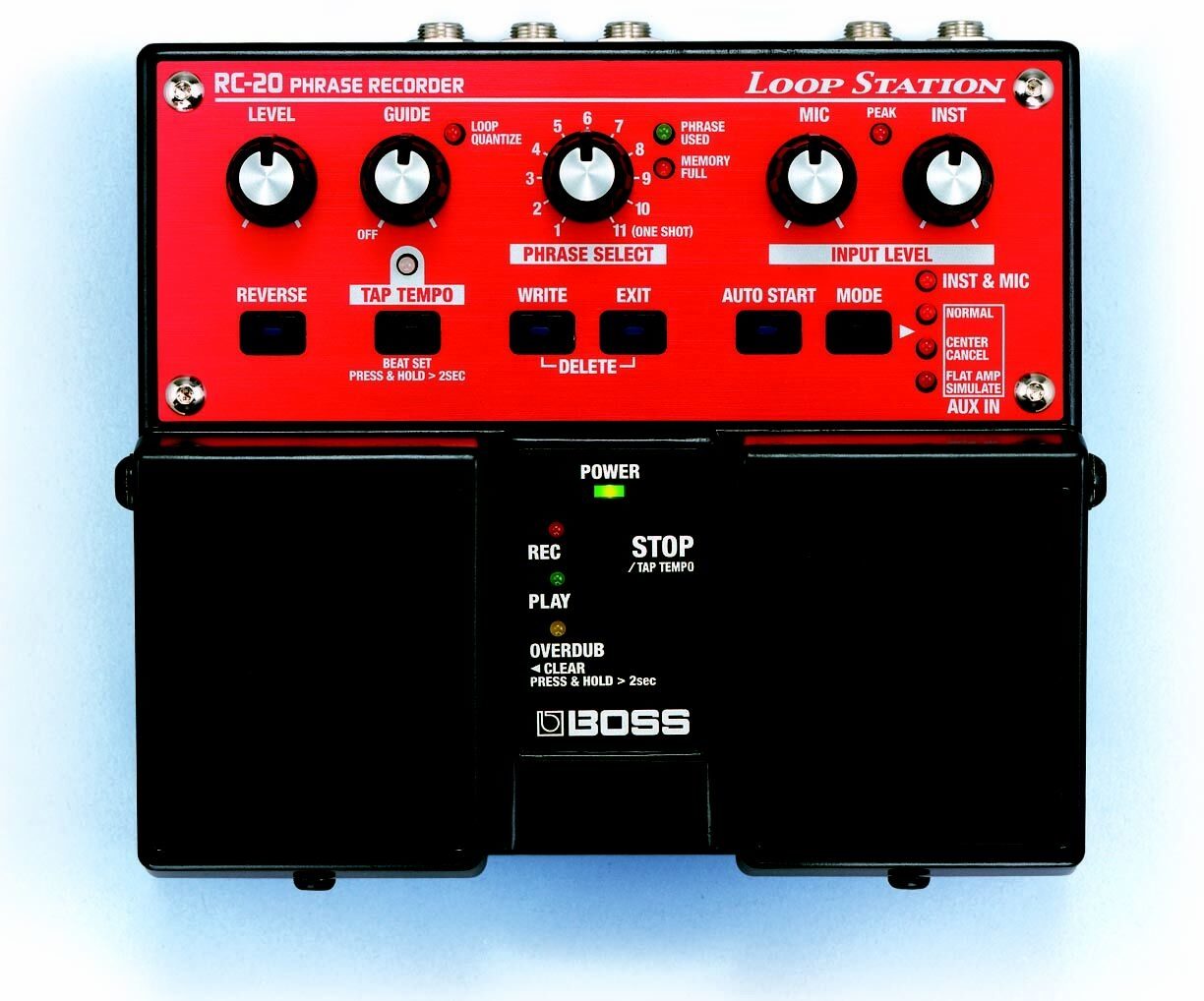

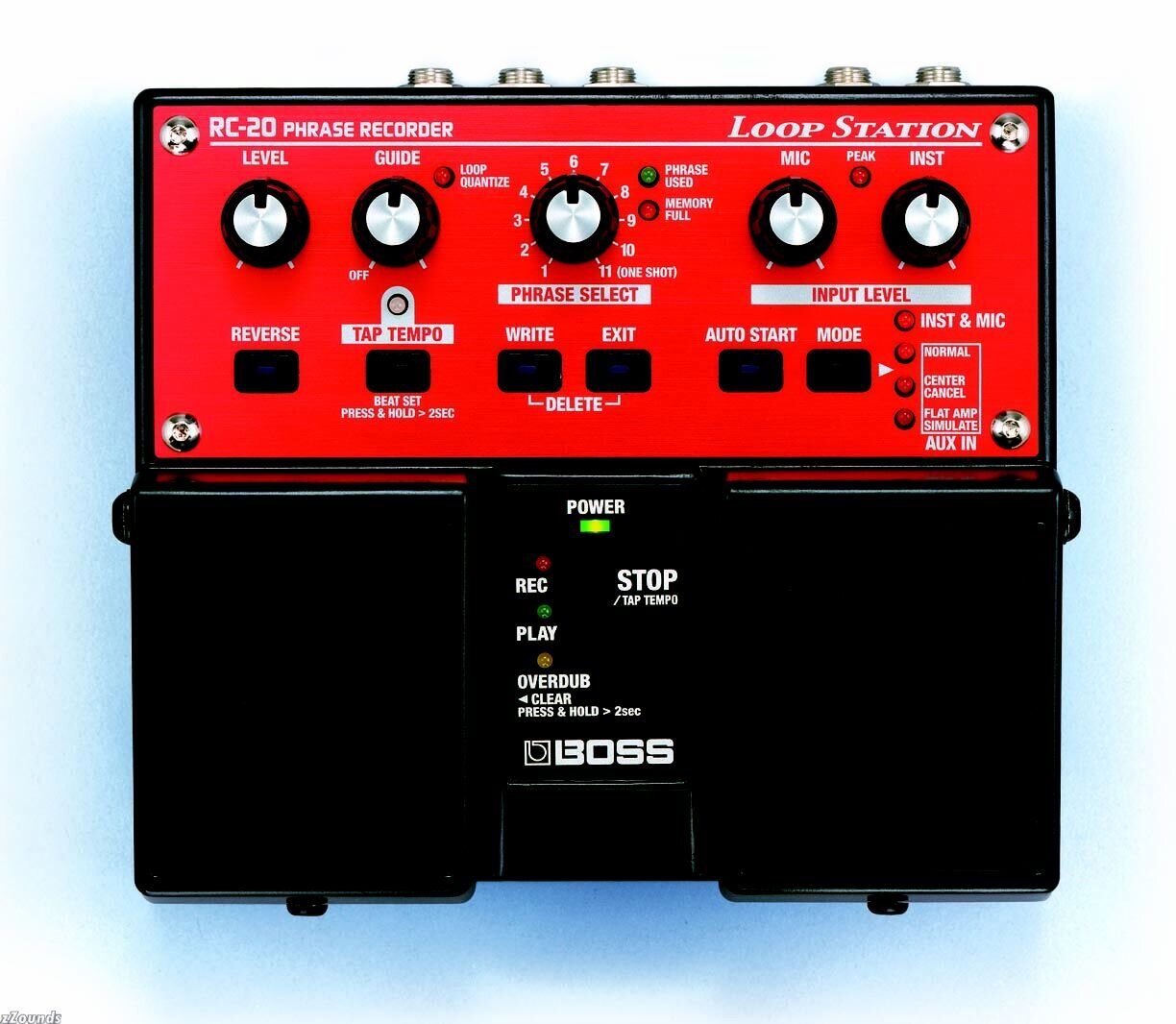

The RC-20 Loop Station is the answer to many live performers' dreams - a compact phrase recording and sampling pedal that's actually easy to use! A long sampling time of up to 5 min. 30 seconds, helpful Guide Click and Loop Quantize functions, Realtime Tempo Change, and hands-free control make the RC-20 a "must-own" pedal for guitarists, bassists, and other musicians looking to create and play back loops "on the fly."
Features:
Phrase Recording/Sampling pedal designed for performers who want to create and play back loops during live performances
Guide Click and Loop Quantize functions for quick, easy creation of perfect loops using footpedals
Realtime Tempo Change function allows for changing recorded samples' tempo without changing pitch
Overdub function allows for creation of "sound-on-sound" loops
5 min. 30 seconds total sampling time
Stores up to 10 looped phrases and 1 "one-shot" phrase, even after power-off
Mic input, Instrument input and Auxiliary input for sampling vocals or pre-recorded audio; Mic and Instrument inputs can be used simultaneously
Auto Start lets users start sampling automatically with incoming audio
Reverse function creates reverse sample playback on the fly
Technical Info
Controls: REC/PLAY/OVERDUB PEDAL, STOP/TAP TEMPO PEDAL, INST Knob, MIC Knob, PHRASE SELECT SWITCH, GUIDE Knob, LEVEL Knob, REVERSE Switch, TAP TEMPO Switch, WRITE Switch, EXIT Switch, AUTO START Switch, MODE Switch
Indicators: POWER (can be used as battery checker), REC, PLAY, OVERDUB, PEAK, PHRASE USED, MEMORY FULL, LOOP QUANTIZE, TAP TEMPO, REVERSE, WRITE, EXIT, AUTO START, INST & MIC, NORMAL, CENTER CANCEL, FLAT AMP SIMULATE

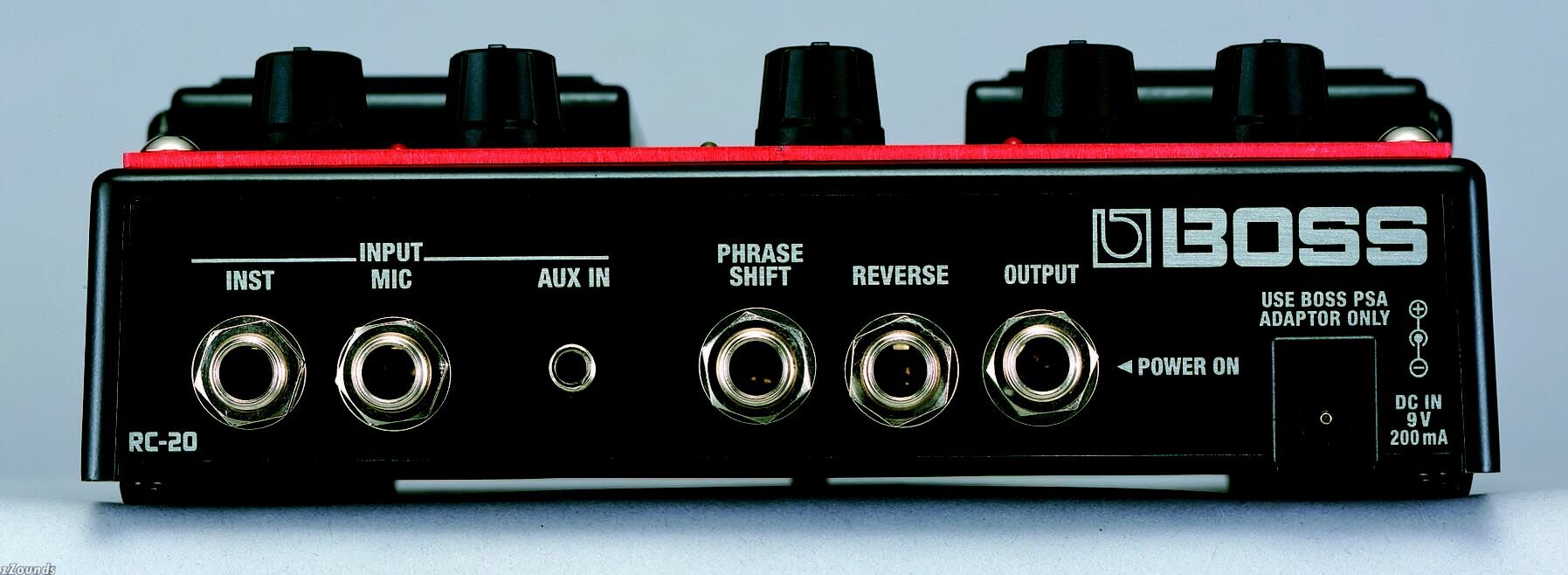

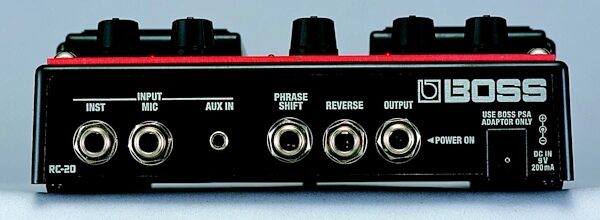

Connectors: INST JACK, MIC JACK, AUX IN JACK, PHRASE SHIFT JACK, REVERSE JACK, OUTPUT JACK
Power Supply: DC 9V: Dry Battery (6 x Alkaline LR6 (AA) Type), AC Adapter (PSA Series: Optional)
Dimensions (H x W x D): 57 x 174 x 157mm (2-1/4 x 6-7/8 x 6-3/16 in.)
