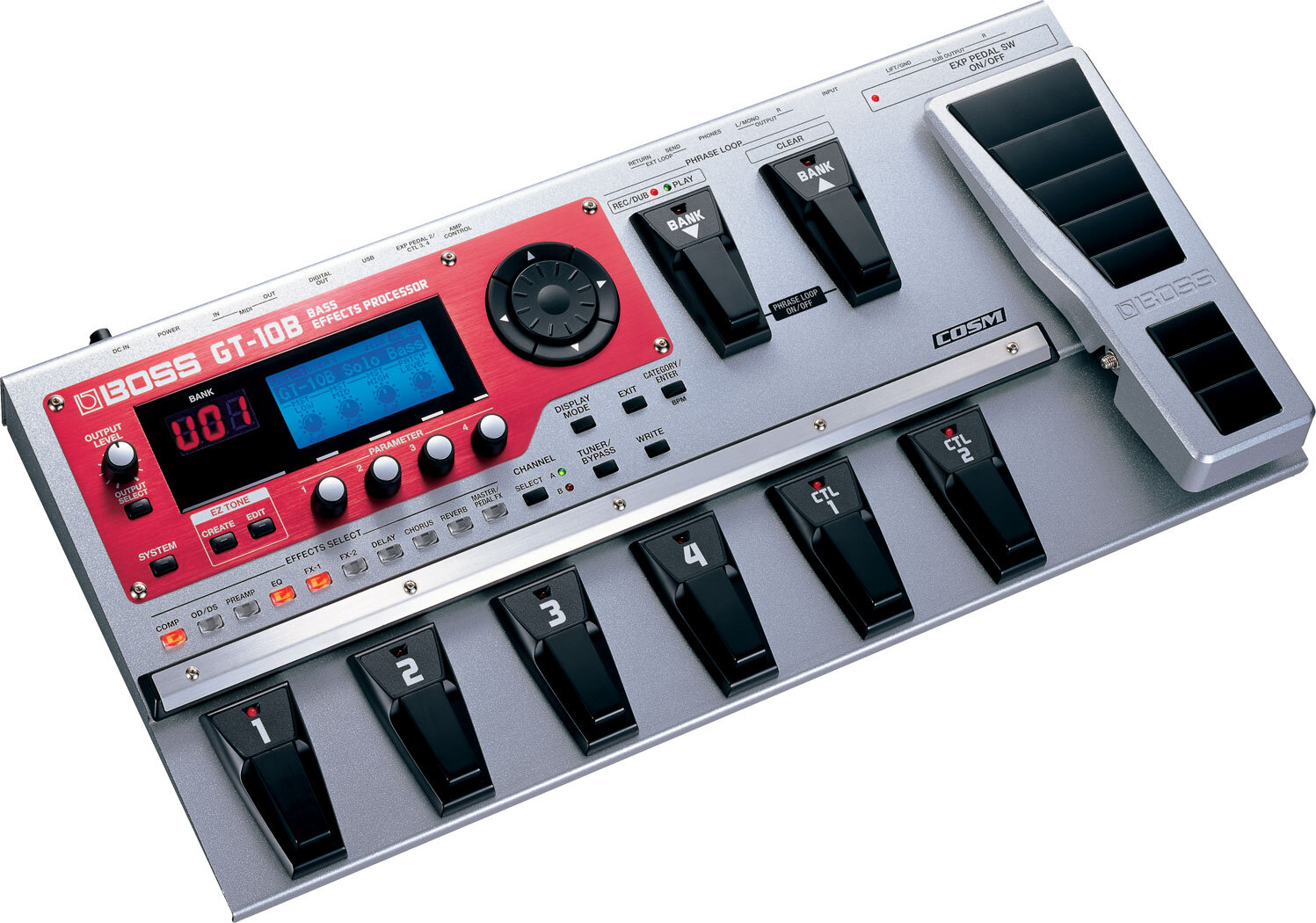

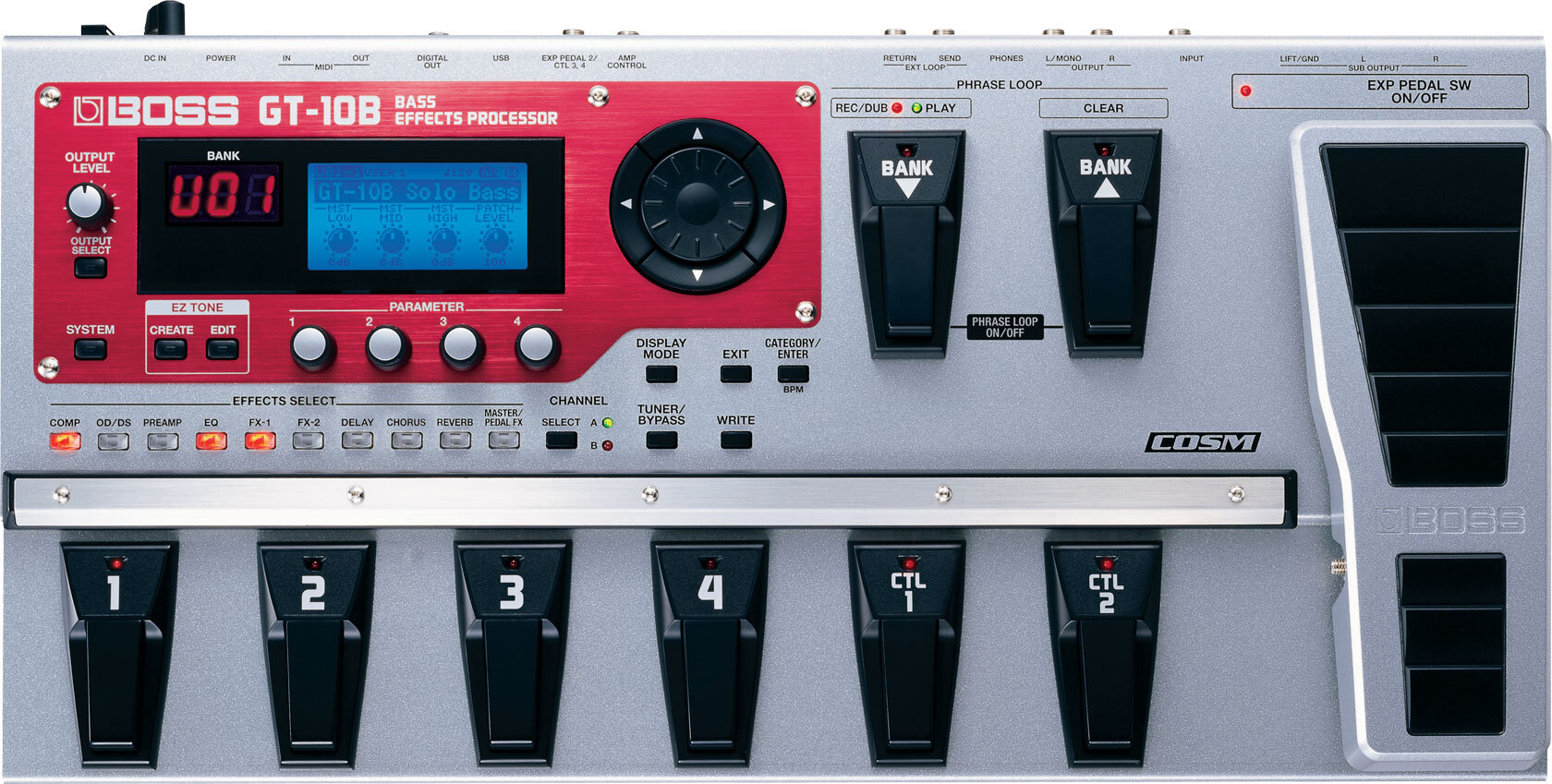

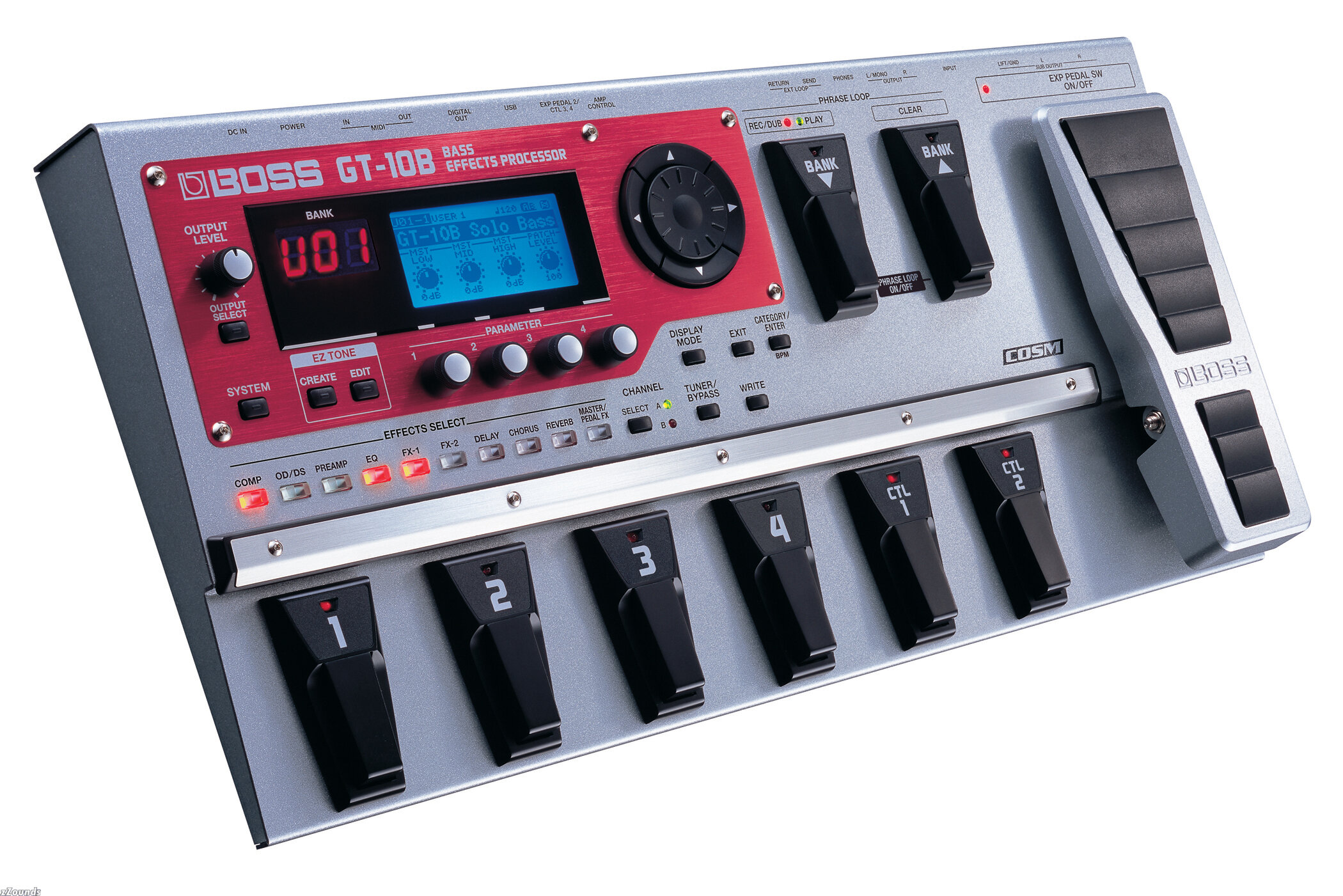

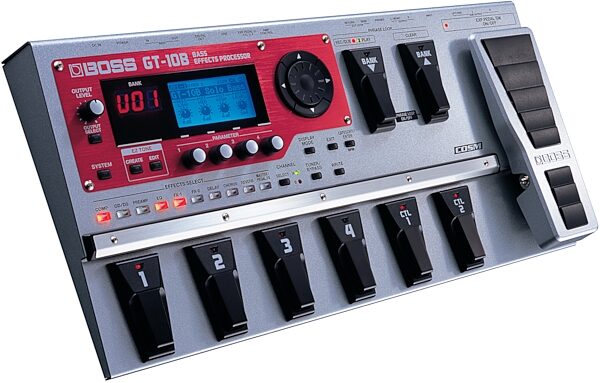

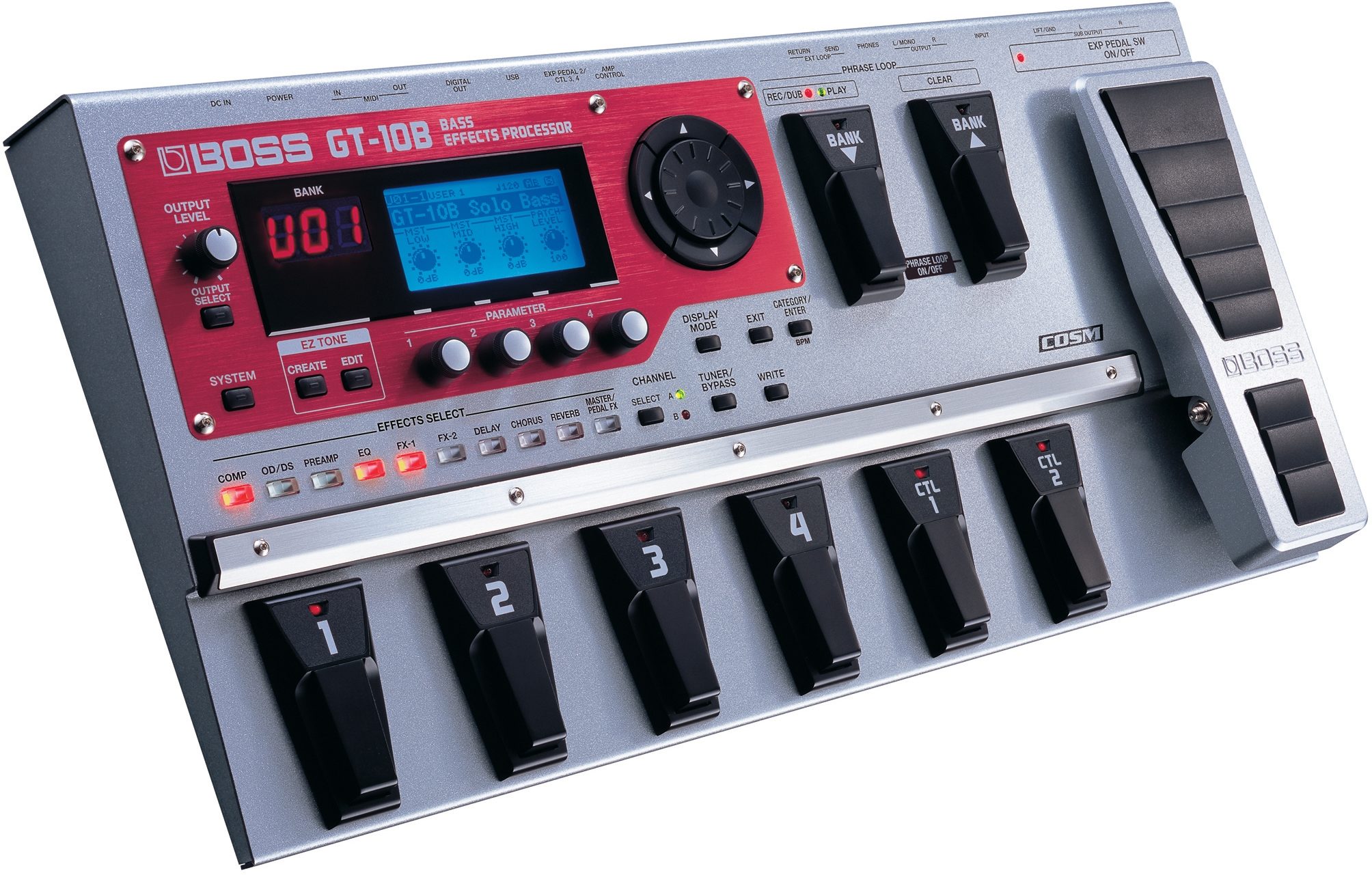

Boss GT-10B Bass Multi-Effects Pedal

Bass players can enjoy the same core processing muscle and flexibility of the GT10 in a specially made sibling: the GT10B, optimized for the low-frequency domain. The massive power of Boss' latest DSP engine and COSM sound-modeling know-how are integrated to provide the most creative and essential features for bass. With Parallel Chain, Phrase Loop and EZ Tone onboard, the GT10B takes its place as the most advanced-yet-friendly bass station on the market.

Features

Optimized for bass, with essential effects such as OD/DS and Comp/Limiter, the GT10B provides top-quality sounds without sacrificing richness and bottom of the bass tone

EZ Tone enables intuitive tone creation by using an interactive user interface based on graphic icons

Parallel Chain offers two separate effects paths that can be blended, switched by playing dynamics, or with the onboard pedals

Phrase Loop allows instant sound-on-sound loop creation

USB capability offers audio- and MIDI-streaming in real time

GT10B comes equipped with XLR outputs as well as 1/4-inch jacks

Bass Tone Factory
Powered by Boss’ latest custom-made sound processor, the GT10B provides dozens of stunning effects algorithms and COSM amp models to explore, combine, and customize, but with careful attention given to the needs of bass players. Indispensable effects for bass, including pro-grade Comp/Limiter, EQ and OD/DS, compliment the full range of effects offerings onboard, from essential to esoteric.

EZ Tone Wizard
Tone creation is more than easy with the GT10B. The amazing, intuitive EZ Tone wizard lets bass players unlock their full creative potential with its unique interactive approach to programming.

Parallel Chain
Parallel Chain is an ideal feature for bass performance. Complex effects sound can be blended with powerful, pure tones. Switching or blending these two paths according to your playing intensity offers more dynamic and impressive bass performances than ever.

Technical Info

Effects Processor
AD Conversion: 24-bit + AF method (*1)

DA Conversion: 24-bit

Sampling Frequency: 44.1 kHz

Program Memories: 400: 200 (user) + 200 (preset)

Nominal Input Level:
- INPUT: -10 dBu
- RETURN: -10 dBu

Input Impedance:
- INPUT: 1 M ohm
- RETURN: 220 k ohms

Nominal Output Level:
- OUTPUT: -10 dBu / +4 dBu
- SEND: -10 dBu

Output Impedance:
- OUTPUT: 2 k ohms
- SEND: 3 k ohms
- SUB OUTPUT: 600 ohms

Dynamic Range: 100 dB or greater (IHF-A)

Digital Output: Coaxial type (conforms to IEC60958)

Display:
- 132 x 64 dots graphic LCD with backlit
-7 segments, 3 characters LED

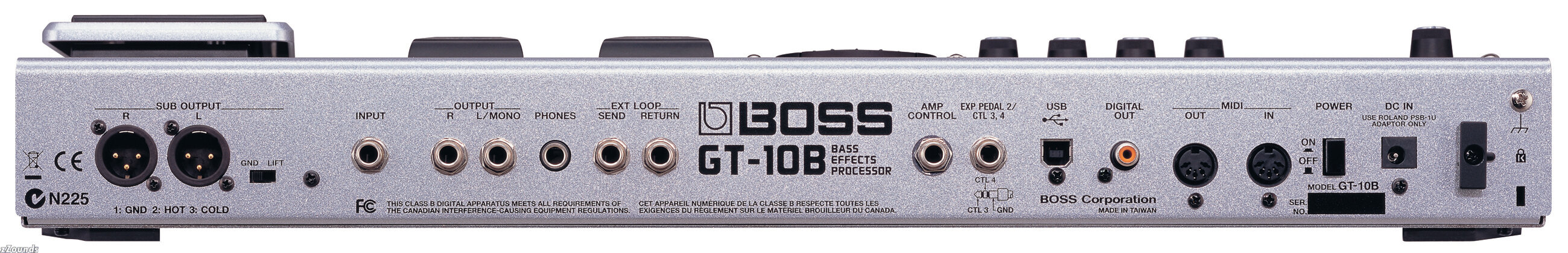

Connectors: SUB OUTPUT jacks L, R (XLR type), INPUT jack (1/4 inch phone type), OUTPUT L/MONO, R jacks (1/4 inch phone type), PHONES jack (Stereo 1/4 inch phone type), EXT LOOP jacks SEND, RETURN (1/4 inch phone type), AMP CONTROL jack (1/4 inch phone type), EXP PEDAL 2/CTL3,4 jack (1/4 inch TRS phone type), USB connector, DIGITAL OUT jack, MIDI connectors IN, OUT, DC IN jack

Power Supply: DC 9 V (AC Adaptor: Roland PSB-1U)

Current Draw: 800 mA

Accessories Included: AC Adaptor (Roland PSB-1U), Owner's Manual, Roland Service (Information Sheet)

Size and Weight
Dimensions (WxDxH): (542 mm, 21 3/8 in.) x (272 mm, 10 3/4 in.) x (77 mm, 3 1/16 in.)

Weight: 4.9 kg, 10 lbs. 13 oz.

The best Boss bass processor ever! Rugged metal chassis and hi-contrast LCD screen perfect for dark stages. Use any of the 200 onboard effects patches, or create 200 of your favorites with the intuitive EZ Tone wizard. Phrase sampler for instant layered loop creation. XLR and 1/4" analog outs, plus USB port for direct computer recording!
