Boss DR-670 Dr. Rhythm Drum Machine

While the DR-670 features new velocity-sensitive pads and a large LCD with fixed tempo display, most notable is the all-new 12-voice sound engine derived from the flagship DR-770. In total, there are 255 amazing drum and percussion waveforms grouped into 64 Preset and 64 User kits. In addition, the DR-670 features a new Bass part and an intuitive bass guitar-style interface for programming basslines using 16 distinct sounds including Finger Bass, Slap Bass, Acoustic Bass, Pick Bass, and more.

The DR-670's 200 Preset patterns provide a quick and easy way to incorporate realistic drum and percussion into songs and live performance. Carefully programmed to capture the nuances of a real drummer, these outstanding patterns cover a wide range of styles from Rock and Pop to Fusion, Jazz, Latin, Dance, World, and more. And with the DR-670's Direct Pattern Play function, any of these patterns can be instantly selected using the drum pads. Up to 200 User patterns can also be programmed using the onboard sequencer. Preset and User patterns can then be easily chained to create up to 100 Songs.

While the DR-670 is at home with songwriters and studio musicians, it can also be used for live drum and bass accompaniment. And with its Direct Pattern Play and optional footswitch control over start/stop and fill-ins, the DR-670 is hard to beat as an affordable and programmable accompaniment tool. In fact, this compact drum machine is small enough to be taken just about anywhere and can even run on battery power.

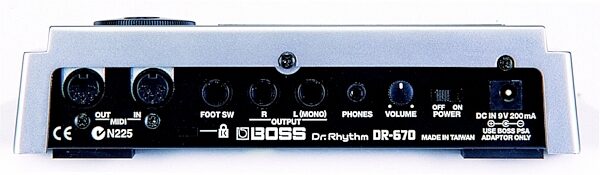

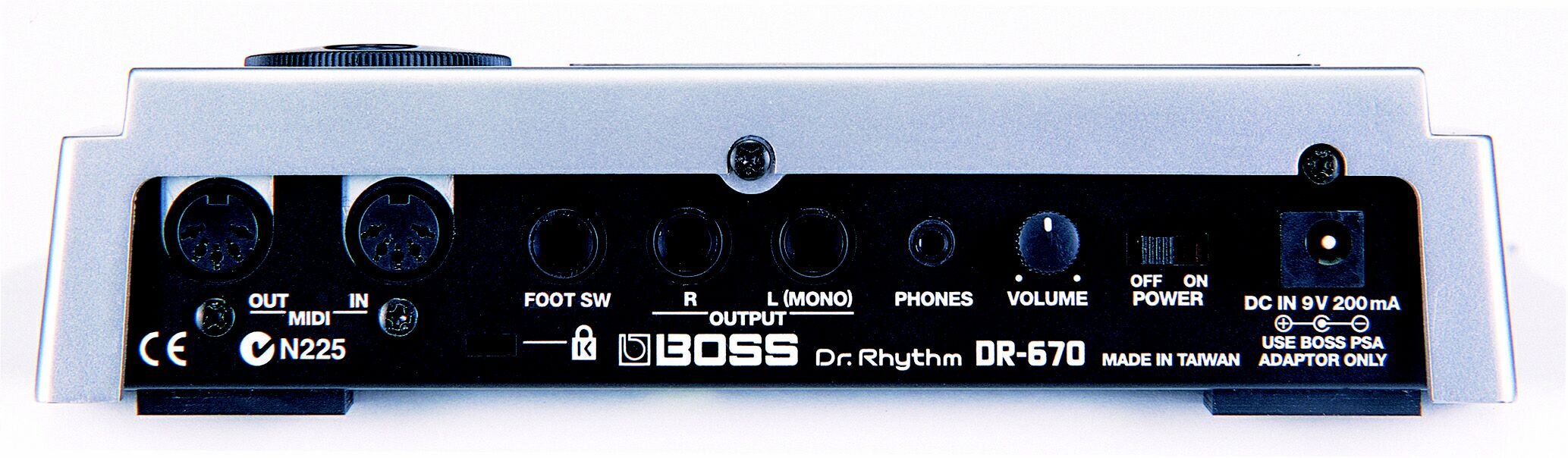

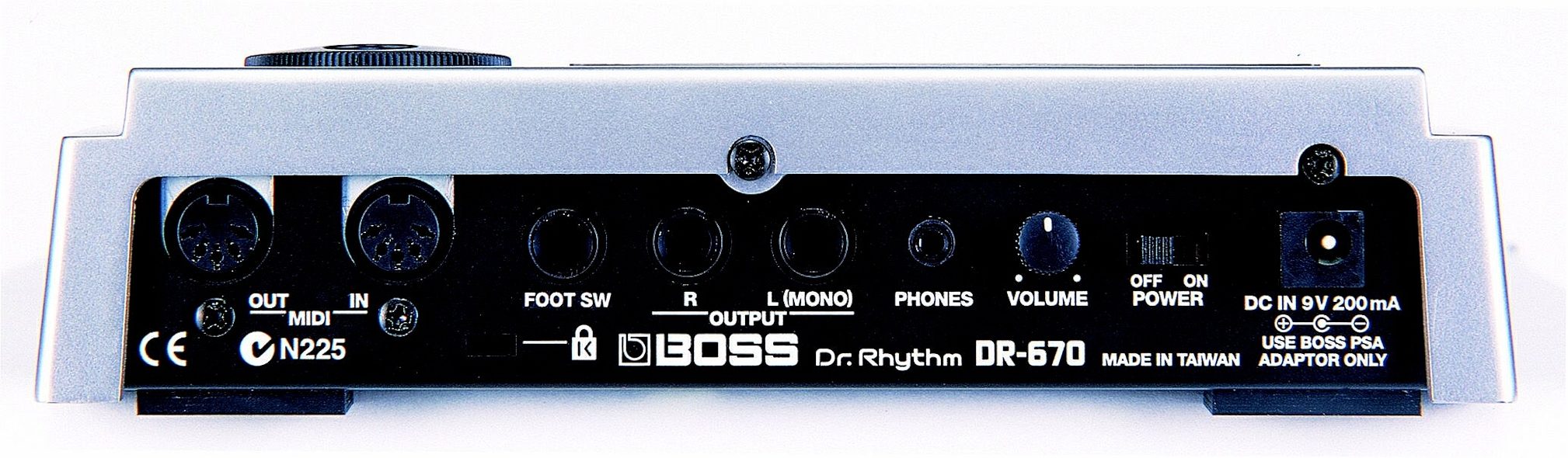

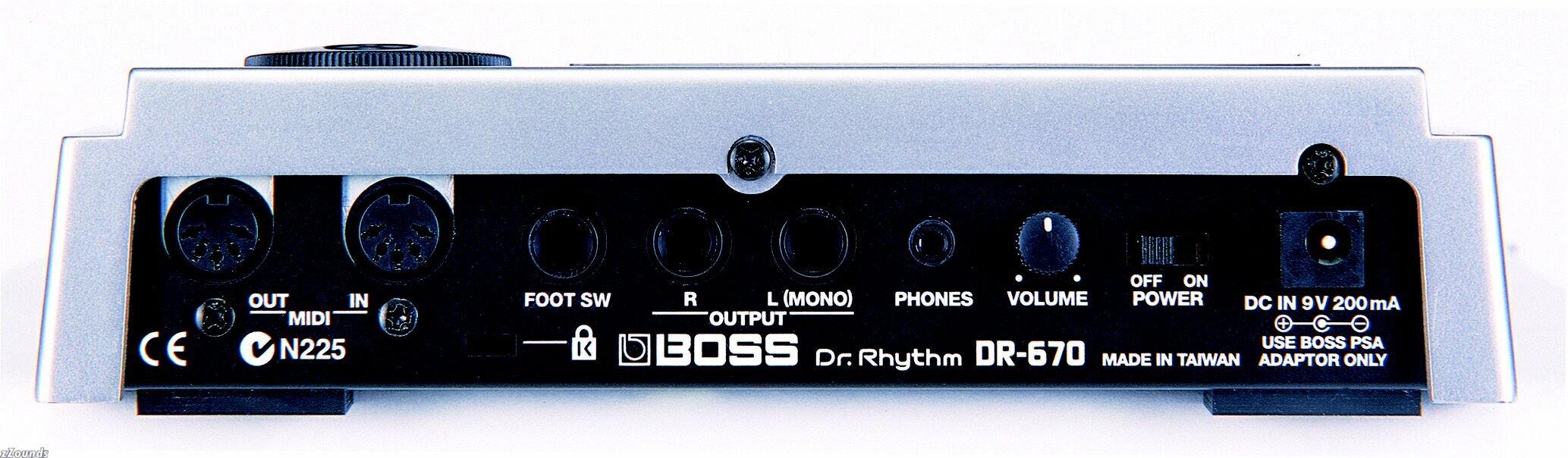

Connections to the DR-670 include 1/4 in. stereo outputs, a stereo Headphone output (stereo mini-jack type), Pedal Switch input, plus MIDI In and Out jacks.

Features
Affordable Boss drum machine with 255 superb-quality drum and percussion sounds.

Velocity-sensitive pads permit very expressive rhythm pattern programming.

New! Bass part allows for programming bass lines using 16 different bass sounds.

200 versatile preset rhythm patterns and 200 user-programmable patterns.

Large LCD for confirming pattern tempo at all times.

Foot control jack permits connection to optional footswitch for hands-free start/stop and fills.

Unique pad interface designed like a bass guitar neck for easy programming of rhythm/bass lines.

Direct Pattern Play function lets users assign internal patterns to pads for triggering "on the fly."

Selectable battery or AC operation (adapter optional.)

Technical Info

Max. Polyphony: 20 voices

Number of tones: 256 drum tones, 16 bass tones

Number of rhythm patterns: User Pattern: 200. Preset Pattern: 200

Number of songs: 100

Song length: Max 250 patterns per one song

Total song patterns: Approx. 10,000 patterns

Max. Note capacity: Approx. 10,000 patterns

Resolution: 96 TPQN

Tempo: 20 ~ 260 bpm

Input method: Realtime, Step

Number of pads: 20

Display: Custom LCD

Connections: Output Jack (L, R), Headphone Jack (Stereo Mini), Foot Switch
Jack (Stereo Type), MIDI (IN, OUT), AC Adapter Jack (DC 9 V)

Power Supply: DC 9 V: Dry battery (AA type) x 6, AC Adapter (optional)

Dimensions (H x W x L): 53 x 213 x 169 mm (2-1/16 x 8-3/8 x 6-5/8 in.)

Audio Samples
  Boss DR670 Interactive Demo

Awesome drums in a box! Velocity-sensitive pads and 12-voice sound engine derived from the flagship DR-770. In total, there are 255 amazing drum and percussion sounds across 128 kits, plus a bass part with a range of bass sounds and styles.
