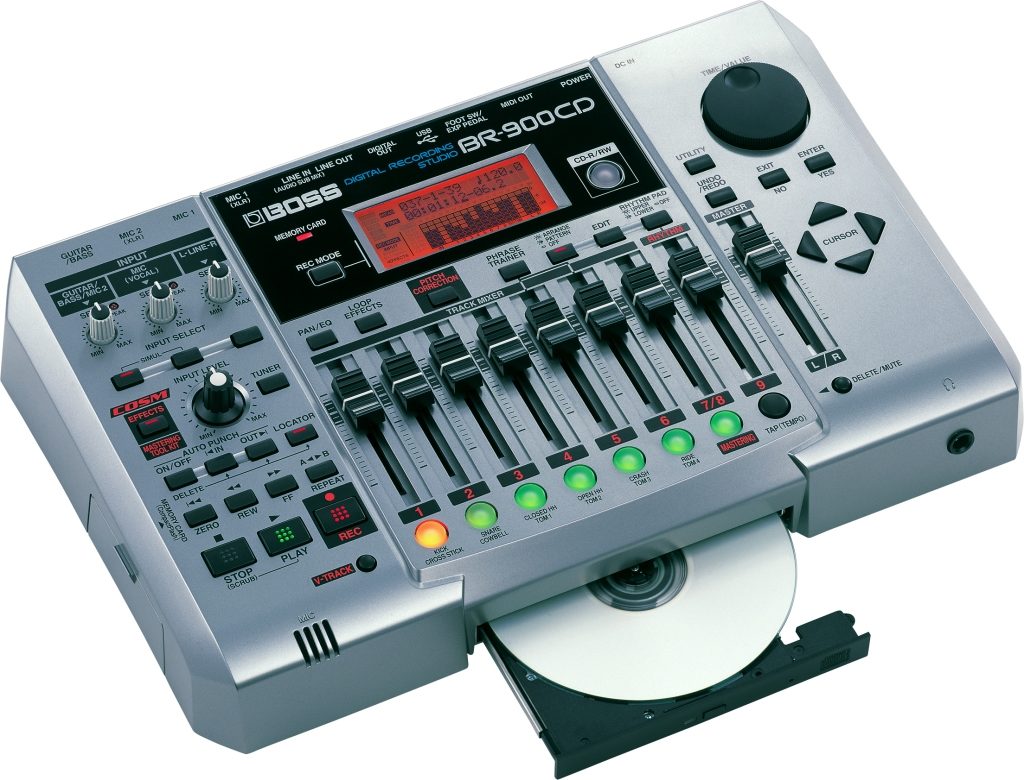

Boss BR-900CD 8-Track Recorder with CDR and Effects

Boss BR-900CD: Portable and Powerful Mobile Recording Solution

The BR-900CD from Boss is the perfect mobile recording solution. Besides being extremely intuitive and easily portable, the BR-900CD allows you to complete the whole recording process (from tracking to mixing to burning) right on the unit itself. With tons of new COSM guitar-amp models, the new drum-editing software and 500 minutes of recording time via 1GB Compact Flash, this powerful unit is perfect for archiving that killer new riff you just worked out or tracking a full prog-rock masterpiece with the built in drum accompaniment. zZounds is an authorized dealer of Boss products.

Tracks
Track: 8

V-Track: 64 (8 V-Tracks per each Track)

* Up to 2 tracks can be recorded simultaneously, and up to 8 tracks can be played back simultaneously.

Useful capacity
CompactFlash: 32 MB to 1 GB

Data type
HiFi (MT2)

STANDARD (LV1)

LONG (LV2)

Signal processing
AD conversion: 24 bit delta-sigma Modulation + AF-AD (guitar/bass, mic), 24 bit delta-sigma modulation (line, simul)

DA conversion: 24 bit delta-sigma modulation

Internal processing: 24 bit (digital mixer section)

Sample rate
44.1 kHz

Frequency response
20 Hz to 20 kHz (+1/-3 dBu)

Nominal input level (variable)
Guitar/bass jack: -20 dBu

Mic (TRS balanced/XLR) jack: -40 dBu

Line jack: -10 dBu

Input impedance
Guitar/bass jack: 1 M ohms

Mic 1/2 jack: 1.0 k ohms (hot-cold)(TRS balanced/XLR), 1.0 k ohms (hot-gnd, cold-gnd)

Line jack: 10 k ohms

Nominal output level
Line out jack: -10 dBu

Output impedance
Line out jack: 2 k ohms

Headphones jack: 140 ohms

Recommended load impedance
Line out jack: 20 k ohms or greater

Headphones jack: 32 to 100 ohms

Residual noise level
Line out jack: -85 dBu or less (Input select: guitar/bass, input terminated with 1 k ohms, input sens: center, IHF-A, typ., effect: off)

Interface
Digital out: optical type

USB connector

Display
16 characters x 2 lines + approx. 100 icons (backlit LCD)

Connectors
Guitar/bass jack (1/4 inch phone type)

Mic 1, 2 jacks (TRS Balanced 1/4 inch phone type)

Mic 1, 2 jacks (XLR type)

Line in jack L/R (RCA Pin type)

Line out jack L/R (RCA Pin type)

Digital out connector (optical type)

Foot switch/expression pedal jack (1/4 inch phone type)

MIDI out connector

Headphones jack (stereo 1/4 inch phone type)

Physical
Power supply: DC 9 V; Supply AC adapter (PSA series), Dry batteries x 6

Current Draw: 900 mA (AC adapter), 200 mA (dry batteries)

* Expected battery life under continuous use: alkaline: 4 hours (these figures will vary depending on the actual conditions of use.)

Accessories: PSA series AC adapter, demo card, owner's manual

Options:
-- Foot switch: FS-5U

-- Pedal switch: DP-2 (Roland)

-- Expression pedal: EV-5 (Roland), FV-300L

-- Stereo headphones: RH-200/RH-50

Dimensions (D x H x W): 13 7/8 x 8 7/8 x 2 3/4 in.

Weight: 4 lbs. 14 oz.

Product Description

The BR-900CD is one of the world's most popular, easy-to-use portable multi-track recorders. With Version 2, BOSS takes the best BR features and expands it with dozens of new COSM guitar-amp models, plus a super-cool new drum-editing software app and 500 minutes of recording time via 1GB Compact Flash.

Features

8-track recorder with CD burner

2 XLR phantom-powered mic inputs

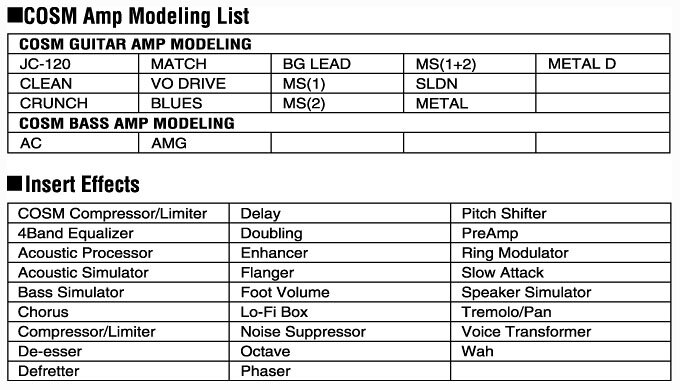

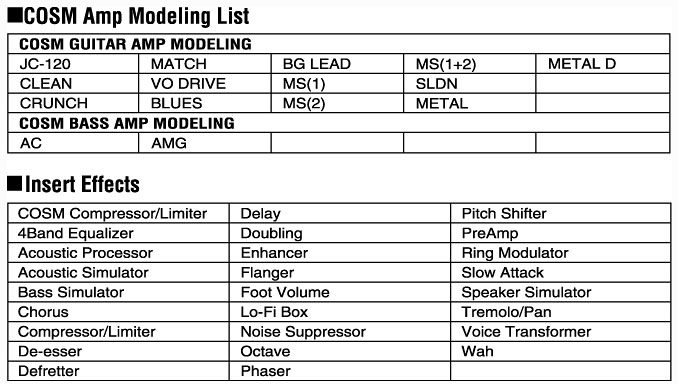

46 types of BOSS GT-Pro class COSM amps onboard

1 GB Compact Flash card included for 500 track-minutes of recording time

Pro-quality effects for every instrument type, plus mastering and pitch correction

The best gets better

With the same reliable and ultra-friendly operation as BOSS's highly popular BR-864, the BR-900CD takes three big steps forward by increasing the front-panel fader count from four to eight, and adding a built-in CD-RW drive and Pitch Correction to the feature set. The BR-900CD is compatible with CompactFlash cards up to 1GB capacity, which provides up to 500 minutes of record time (standard mode) in one shot. Even with all of these great new features, the unit's footprint remains small for ease of travel.

Expanded Recording Time

No need to worry about track- record lengths. With a 1GB Compact Flash card onboard, the BR-900CD Version 2 provides up to 500 minutes of recording time.

New COSM Amps Onboard

It's a dream collection for guitarists. Direct from BOSS' top-of-the-line GT-Pro come 46 types of COSM guitar-amp models. Simply plug in and explore an amazing treasure trove of tone without the cost and hassle of dealing with physical amplifiers.

New Ways to Groove

The original BR-900CD was equipped with a built-in drum machine.Version 2 has a virtual drummer onboard as well, but with an advantage: a downloadable graphical Rhythm Editor software forcreating rhythm pattern and arrangements visually via Mac or PC. It's the best of both worlds.

USB Spoken

Connect the BR-900CD to the outside world with one convenient USB connection. Import and export audio files and song data quickly and easily. Need to add some drum loops or vocal samples to your song? Simply drag and drop your favorite WAV files from USB-equipped computer directly into the BR-900CD. Conversely, you can export audio that you've created internally on the BR-900CD to computers.
