Bose L1 Model I System Single Bass Package

Manufacturer's Description for Bose L1 Model I System Single Bass Package

This full sounding loudspeaker system is perfect for a variety of applications, voiced for mid-ranged instruments and vocals, the L1 Model I delivers clear, powerful sound across the stage and throughout small to medium-sized venues. Hear what your audience hears, and eliminate conventional monitors, mixers and PA systems. This package includes one B1 bass module for enhanced low-end performance.

Features

- Recommended for mid-range instruments and voices
- Bose Spatial Dispersion(TM) loudspeaker technology

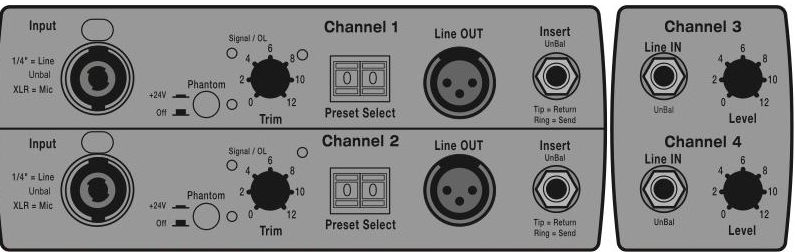

- Four inputs, two with ToneMatch(R) presets
- Four-channel mixer
- Cylindrical Radiator(R) loudspeaker
- Integrated power amplifiers
- Channel inserts/effects loops
- Bass module and Bass line out
- Digital data in/out
- R1 remote input
- One B1 bass module included
- Unique, all-in-one system

Bose' L1 Model I PA projects clean, detailed sound evenly across the stage and throughout an audience of up to several hundred, with little change in tone or volume while producing a smooth, consistent tone, whether you're in front of the loudspeaker or off to the side. The L1 System eliminates the need for monitors, mixers or complicated PAs and reduces unwanted room reverberation. The innovative L1 Model I Cylindrical Radiator(R) loudspeaker allows for wide, uniform coverage throughout an entire room thanks to the line array of 24 small drivers mounted into a vertical enclosure. The coverage area is nearly 180 degrees which is very broad in comparison to conventional stage speakers where volume and tone diminish very slowly over distance.

[The] ... sound radiates and fills the room in a way far more natural than
a typical loudspeaker... it's a real breakthrough in amplified sound. ...
- Guitar World Magazine; 4/04/09

The loudspeaker's wedge-shaped dispersion pattern sends very little audio up or down, preventing much of the room reverberation that can muddy your sound. Unlike traditional amplification setups, a Bose L1 system lets you, your fellow musicians and the audience hear the same sound. You don't need any other stage monitors, mixers or PA speakers. Your L1 system replaces them all with one sleek, powerful setup.

Cylindrical Radiator(R) Loudspeaker

Utilizing 24 small drivers mounted into a slim, vertical enclosure to create nearly 180 degrees of horizontal coverage, the Cylindrical Radiator loudspeaker has very little dropoff in volume and tone. Loudspeaker's two-piece, interlocking design makes for quick and easy setup, breakdown and transport.

Integrated Power Amplifiers

Mounted in the power stand, the integrated power amps deliver clean, precise amplification for L1 Model I loudspeaker and up to two B1 bass modules.

Channel Inserts/Effects Loops

Add external effect with ease! Just connect external effects and processors to channels 1 and 2 via 1/4 inch TRS line input/output jack. Use a stereo plug to connect the send and return signals with one cord.

Bass Module Out

Connect the included B1 Module (and a second optional B1) to the amplified bass output and the L1 system automatically adjusts equalization appropriately when a bass module is connected.

Bass Line Out

Connect a 1/4 inch TRS phone cable and connect your own powered subwoofer, additional amplifiers or one of Bose(R) own PackLite(R) amplifiers that allow you to connect up to two additional B1 bass modules.

Digital Data In/Out

Use the Digital out to send a digital mix of channels 1 and 2 to external recording gear at 48KHz sample rate, the Digital data input allows you to update product firmware and ToneMatch presets.

R1 Remote

The included R1 Remote makes it easy to control your L1 system from a distance if when necessary. The R1 provides tone controls that provide 12 dB cut or boost to the high, mid and low frequencies on channels 1 and 2, level controls with signal/overload LEDs that show green/red signal status to help you set proper gain levels and use the Master level to adjust volume of all four input channels simultaneously.

Bass Module

Compact, lightweight enclosure is easy to transport, set up and break down. Small footprint takes up considerably less space than traditional bass cabs required for same performance. Interlocking feet let you securely stack up to four modules together on their sides.

Highly efficient speaker design features two 5.25 inch (13.3 cm), high-output, high-excursion drivers that produce deep, strong bass from a small enclosure. When connected to power stand, active equalization circuitry automatically adjusts bass signal appropriately.

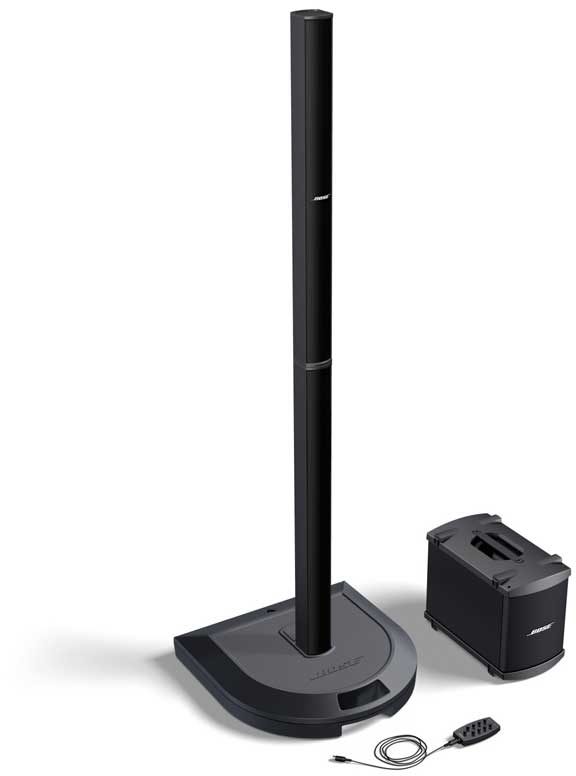

Includes:

- L1 Model I power stand and carrying bag
- L1 Model I Cylindrical Radiator loudspeaker and carrying bag
- B1 bass module with cable and slip cover
- Power stand cord, spare fuse and protective plug
- R1 remote and cable zZounds is an authorized dealer of Bose products.

Specifications
Bose L1 Model I Cylindrical Radiator(R) top:
- Dimensions (HxWxD): 43 x 3.5 x 4 in. (110.5 x 8.9 x 10.5 cm)
- Weight: 14.5 lbs (6 kg)

L1 Model I Cylindrical Radiator(R) bottom:
- Dimensions (HxWxD): 43 x 3.5 x 4 in. (110.5 x 8.9 x 10.5 cm)
- Weight: 16 lbs (7 kg)

L1 Model I power stand:
- Dimensions (HxWxD): 5 x 26 x 26 in. (12.7 x 66 x 66 cm)
- Weight: 35 lbs (16 kg)

R1 remote:
- Dimensions (HxWxD): 1.6 x 2.8 x 5.6 in. (4 x 7.1 x 14.1 cm)
- Weight: 0.6 lbs (.27 kg)

B1 bass module:
- Dimensions (HxWxD): 15 x 10.25 x 17.75 in. (38 x 26 x 45 cm)
- Weight: 25.1 lbs (11.4 kg)

Dimensions and Weight in Packaging

Shipping Weight: 130 lbs
