Blizzard Puck Unplugged RGB Stage Light
No longer available at zZounds

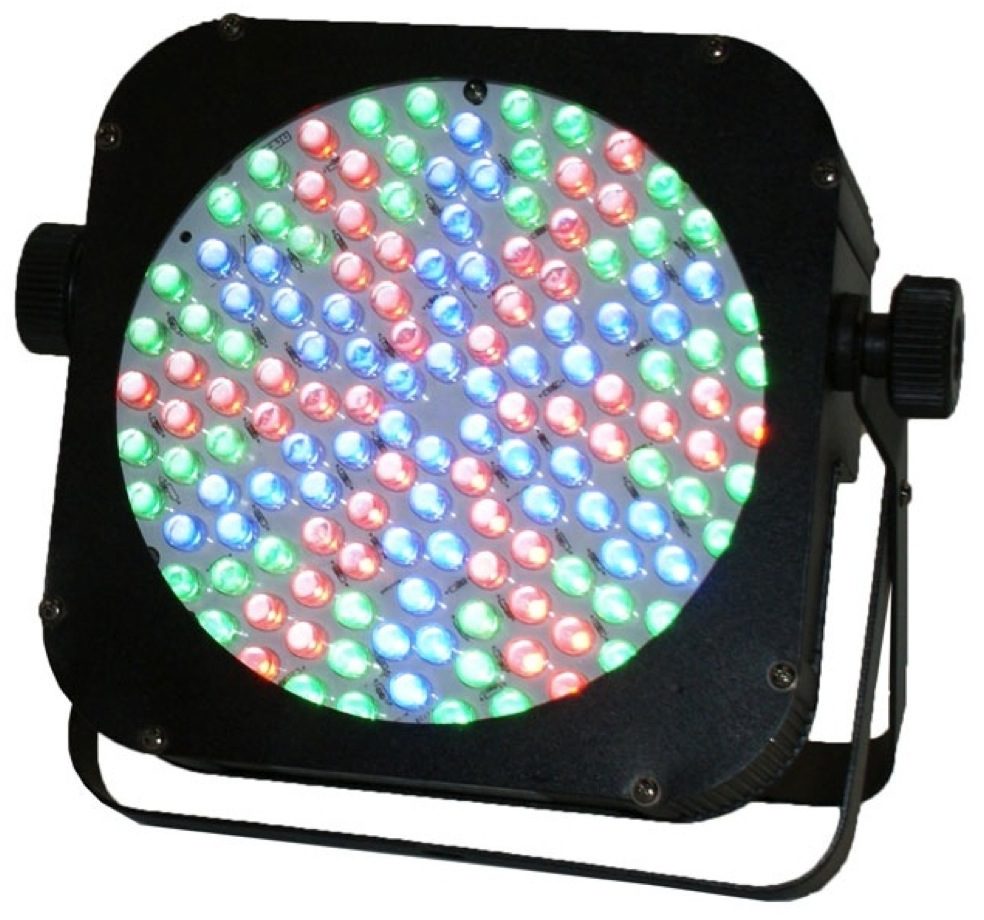

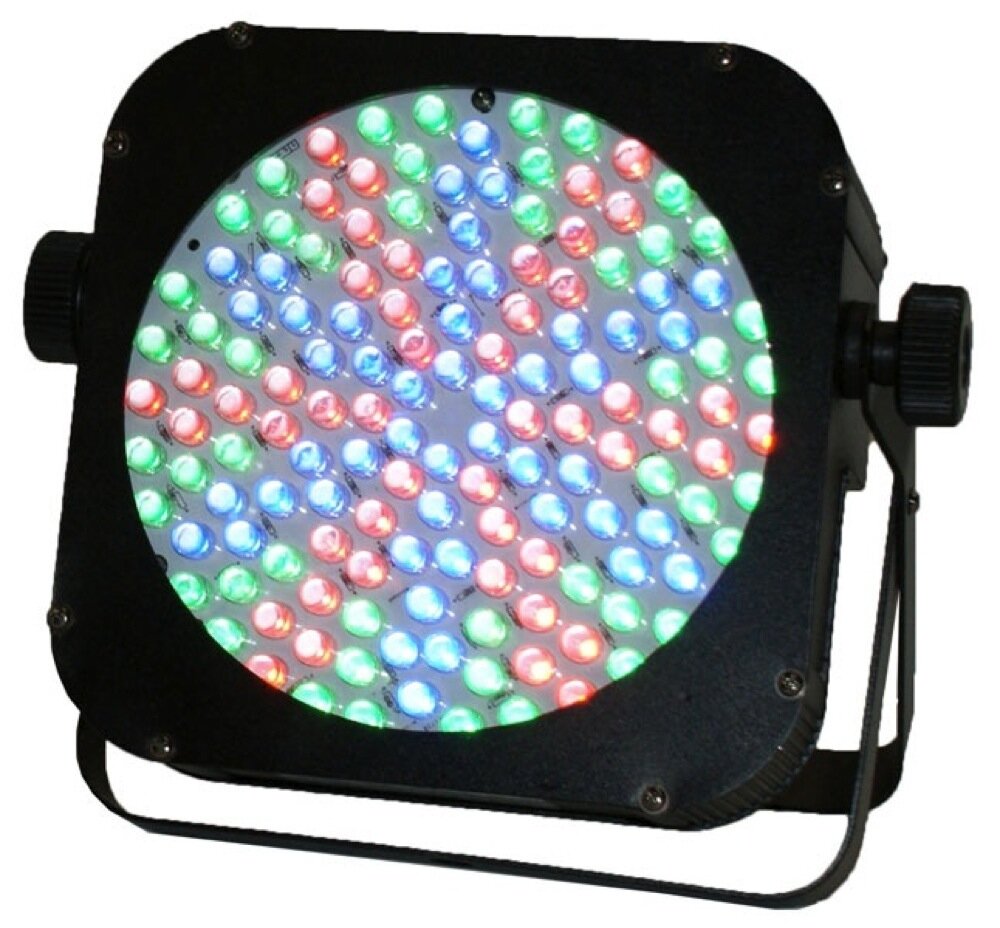

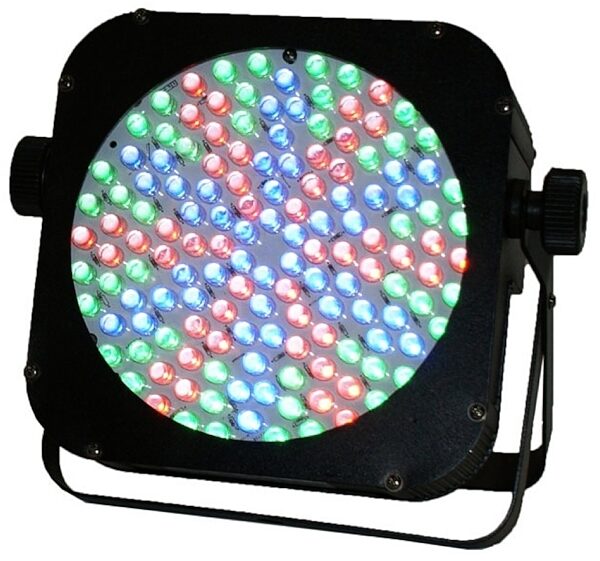

The Blizzard Unplugged offers exceptional color washing via its 144 LED lights in a fixture that can run on battery power for up to 20 hours.
Overview
The Blizzard Puck: Unplugged builds on the versatility, reliability and ease of use of the original Puck by featuring an easy-to-use lithium-ion internal battery system which allows the user to the flexibility to operate their light fixture without AC power for up to 20 hours.
144 ultra-bright 10 mm LEDs also make it big on output, while an LED control panel and power daisy chain connectors make it flexible and perfect for uplighting.
The Puck: Unplugged RGB features three- and six-channel control modes which means it works great with any type of controller, including popular three-channel easy controllers. Plus, the built-in four character/four button LED control panel allows total control over the fixture, including sound active and standalone modes, display invert and service hour readout.

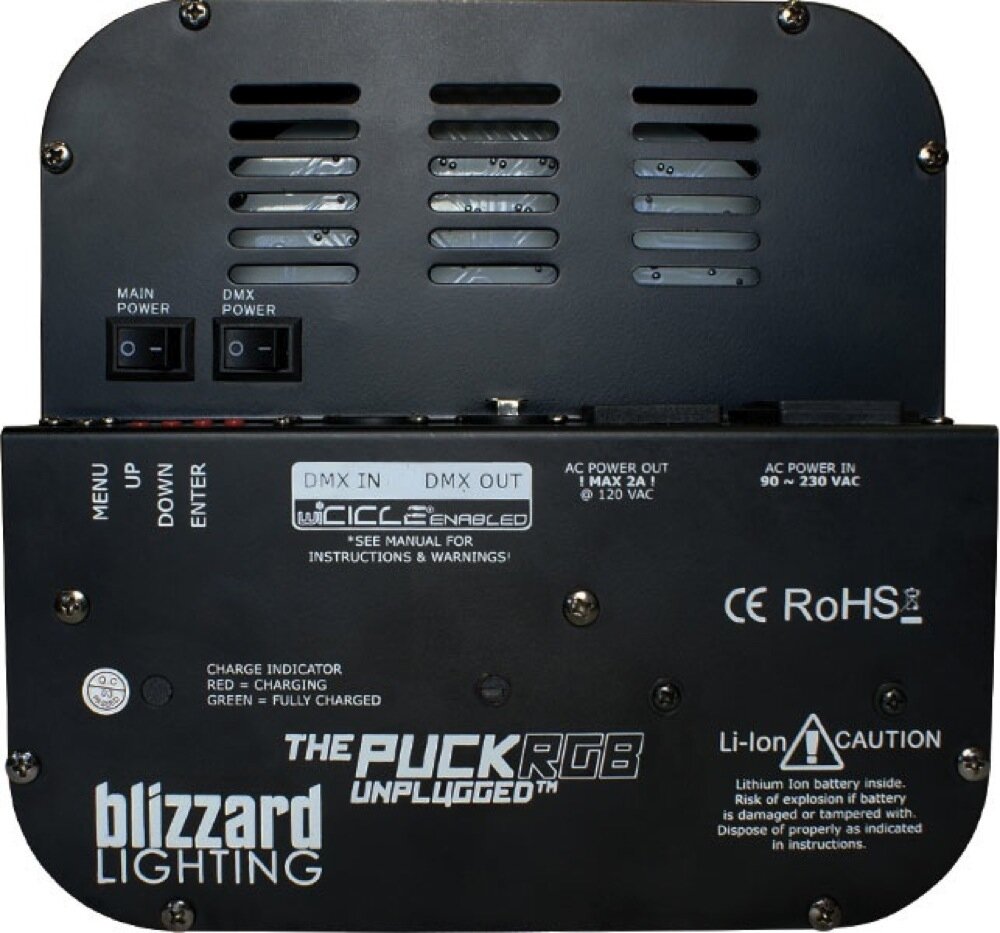

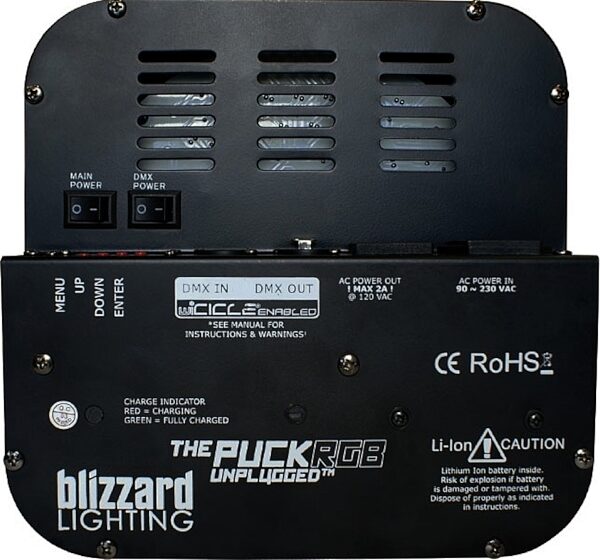

Just like the original Puck, all the power connections, DMX connections, LED control panel, main power switch, and the DMX power switch are all strategically placed on the back of the unit. This allows you to truly use The Puck: Unplugged in ANY position, including flat on the floor.
Take full advantage of Blizzard's wiCICLE wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks. An innovative design provides power to the system directly from the fixture's DMX jack, meaning even fewer cords and less setup time.
- RGB color mixing via 144x… read more high-power 10 mm Red/Green/Blue LEDs
- Variable electronic strobe
- Variable electronic dimmer (0 - 100%)
- User selectable 3 (Red/Green/Blue dimming) or 6 DMX channels
- Built-in chase macros via DMX
- Full RGB color mixing in Standalone, Master/Slave and DMX modes.
- Built-in automated programs via master/slave
- Built-in sound activated programs via master/slave
- Easy to use LED control panel
- Running hours display
- Rugged all-metal case with dual mounting yokes
- IEC power in and daisy chain connections to connect additional units
- Ability to directly power the wiCICLE(R) wireless system via DMX
- Rear connections and control panel are strategically placed to allow usage in ANY position, including flat on the floor!
- Two-piece mounting yoke allows flexibility in positioning read less
144 ultra-bright 10 mm LEDs also make it big on output, while an LED control panel and power daisy chain connectors make it flexible and perfect for uplighting.
The Puck: Unplugged RGB features three- and six-channel control modes which means it works great with any type of controller, including popular three-channel easy controllers. Plus, the built-in four character/four button LED control panel allows total control over the fixture, including sound active and standalone modes, display invert and service hour readout.
Just like the original Puck, all the power connections, DMX connections, LED control panel, main power switch, and the DMX power switch are all strategically placed on the back of the unit. This allows you to truly use The Puck: Unplugged in ANY position, including flat on the floor.
Take full advantage of Blizzard's wiCICLE wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks. An innovative design provides power to the system directly from the fixture's DMX jack, meaning even fewer cords and less setup time.
Features:
- High-capacity lithium-ion Battery system provides unplugged operation for up to 20 hours!- RGB color mixing via 144x… read more high-power 10 mm Red/Green/Blue LEDs
- Variable electronic strobe
- Variable electronic dimmer (0 - 100%)
- User selectable 3 (Red/Green/Blue dimming) or 6 DMX channels
- Built-in chase macros via DMX
- Full RGB color mixing in Standalone, Master/Slave and DMX modes.
- Built-in automated programs via master/slave
- Built-in sound activated programs via master/slave
- Easy to use LED control panel
- Running hours display
- Rugged all-metal case with dual mounting yokes
- IEC power in and daisy chain connections to connect additional units
- Ability to directly power the wiCICLE(R) wireless system via DMX
- Rear connections and control panel are strategically placed to allow usage in ANY position, including flat on the floor!
- Two-piece mounting yoke allows flexibility in positioning read less
Specs
Weight & Dimensions:
- Length 8.25-inches (210 mm)
- Width 3.75-inches (63.5 mm)
- Height 8.25-inches (210 mm)
- Weight 4.5 lbs. (2.05 kg)
Power:
- Operating Voltage 90-230VAC, 50-60 Hertz
- Fuse 3A 250V
- Power Consumption 20W
Light Source:
- LED 144x 10 mm Red/Green/Blue 100K hrs.
Optical:
- Beam Angle 21-degrees
- 32 degree field
- Luminous Intensity 3,920 Lux @ 1m
Thermal:
- Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control:
- Protocol USITT DMX-512
- DMX Channels 3 or 6 (User Selectable)
- Input 3-pin XLR Male
- Output 3-pin XLR Female
Other Operating Modes:
- Standalone, Master/Slave, Sound Active,
- Color Preset, Standalone color mixing
Battery:
- Type/Rating
- Field-replaceable Lithium-Ion, 12V 8400mAh with built-in protection circuit.
Warranty:
- Fixture: 2-year limited warranty.
- Battery: 1-year limited warranty covering failure only.
- Length 8.25-inches (210 mm)
- Width 3.75-inches (63.5 mm)
- Height 8.25-inches (210 mm)
- Weight 4.5 lbs. (2.05 kg)
Power:
- Operating Voltage 90-230VAC, 50-60 Hertz
- Fuse 3A 250V
- Power Consumption 20W
Light Source:
- LED 144x 10 mm Red/Green/Blue 100K hrs.
Optical:
- Beam Angle 21-degrees
- 32 degree field
- Luminous Intensity 3,920 Lux @ 1m
Thermal:
- Max. Operating Temp. 104 degrees F (40 degrees C) ambient
Control:
- Protocol USITT DMX-512
- DMX Channels 3 or 6 (User Selectable)
- Input 3-pin XLR Male
- Output 3-pin XLR Female
Other Operating Modes:
- Standalone, Master/Slave, Sound Active,
- Color Preset, Standalone color mixing
Battery:
- Type/Rating
- Field-replaceable Lithium-Ion, 12V 8400mAh with built-in protection circuit.
Warranty:
- Fixture: 2-year limited warranty.
- Battery: 1-year limited warranty covering failure only.
Documents and Manuals
For support or warranty questions, please contact the manufacturer:
Phone: 866-493-6025
Web: https://www.blizzardpro.com/support
Phone: 866-493-6025
Web: https://www.blizzardpro.com/support
