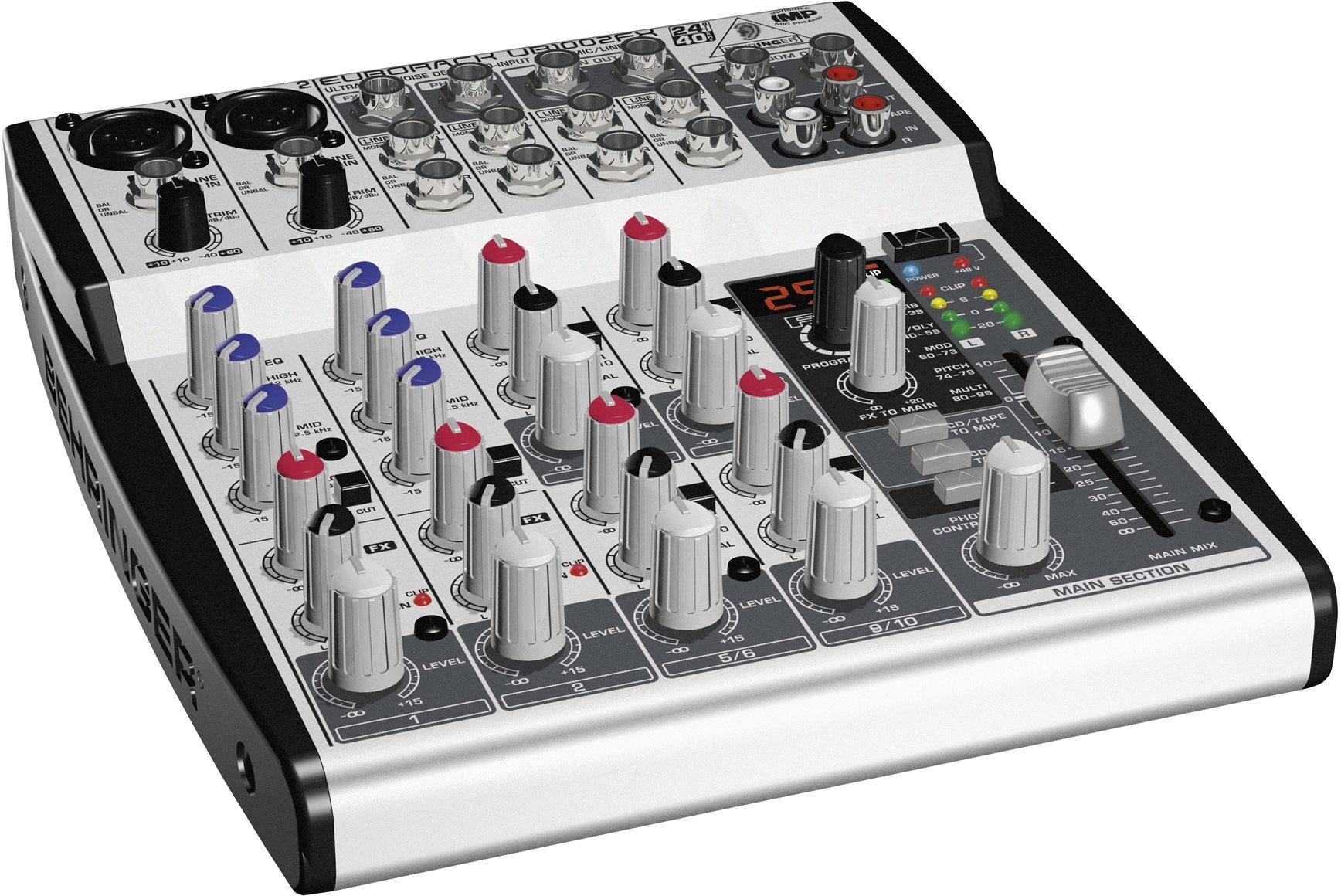

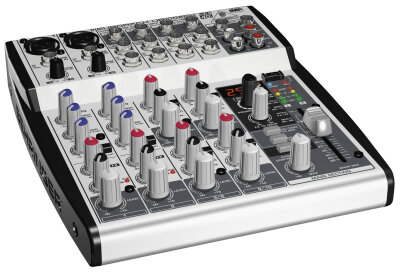

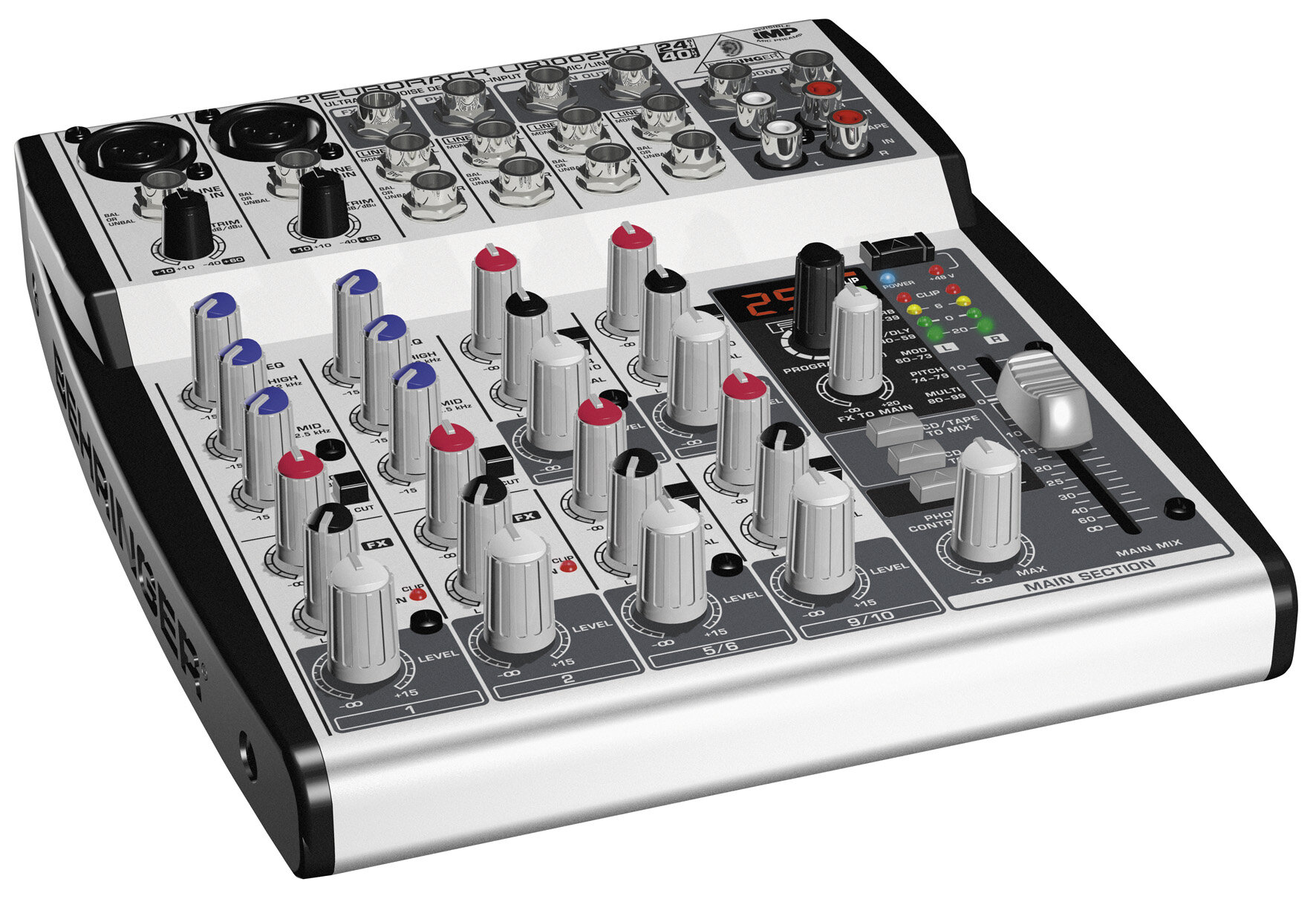

Behringer UB1002FX Stereo Mixer with Effects

This 10-input, 2-bus mic/line mixer features 2 state-of-the-art Invisible Mic Preamps (IMPs) and an effective, extremely musical 3-band EQ plus switchable low-cut filter on all mono channels. There is 1 post fader FX send per channel for external FX devices, main mix outputs plus separate control room, headphones and stereo tape outputs. Tape inputs are assignable to main mix or control room/phones outputs. This is an extremely versatile mixer with possibilities ranging from connecting a DAT recorder and monitor speakers to running permanent video and audio installations.

Features
Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio

2 new state-of-the-art, studio-grade IMP 'Invisible' Mic Preamps with:
- 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
- Ultra-wide 60 dB gain range
- Lowest possible distortion 0.0007% (20 Hz - 20 kHz)

Integrated 24-bit digital stereo FX processor with 100 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects

Effective, extremely musical 3-band EQ plus switchable low-cut filter on all mono channels

10 balanced high-headroom line inputs with +4/-10 level selection on all stereo channels

State-of-the-art 4580 operational amplifiers provide lowest noise and distortion, better than 4560 op amps

FX send control per channel for internal FX processor and/or as external send

Peak LEDs on all mono channels

Main mix outputs plus separate control room, headphones and stereo tape outputs

CD/tape inputs assignable to main mix or control room/phones outputs

FX to control room function helps to monitor effects signal via headphones and control room outputs

Switchable +48 V phantom power for condenser microphones

Long-wearing 60 mm logarithmic-taper ALPS master fader and sealed rotary controls

External power supply for noise-free audio and superior transient response

Extremely rugged steel construction ensures long life even under the most demanding conditions

Conceived and designed by Behringer Germany

Technical Info

Mono Inputs
Microphone inputs
(IMP "Invisible Mic Preamp)

Type: XLR, electronically balanced, discrete input circuit

Mic EIN (20Hz - 20kHz):
- @ 0 Ohms Source Resistance: -134dB/135.7dB A-weighted
- @ 50 Ohms Source Resistance: -131dB/133.3dB A-weighted
- @ 150 Ohms Source Resistance: -129dB/130.5dB A-weighted

Frequency Response:
-1dB: <10Hz - 150kHz

Gain Range: +10 to +60dB

Maximum Input Level: +12dBu @ 10dB gain

Impedance (approx.): 2.6 kOhms balanced

Signal-to-Noise Ratio: 107dB/111dB A-weighted (0dBu In @ +22dB gain)

Distortion (THD+N): 0.005%/0.004% A-weighted

Line Input
Type: 1/4 in. TRS connector electronically balanced

Impedance (approx.):
- Balanced: 20kOhms
- Unbalanced: 10kOhms

Gain Range: -10 to +40dB

Maximum Input Level: +20dBu @ 0dB Gain

Fade Out Attenuation (Crosstalk Attenuation)
Main Fader Closed: 90dB

Channel Muted: 85dB

Channel Fader Closed: 88dB

Frequency Response
Microphone Input to Main Out
<10Hz - 80kHz: +0dB/-1dB
<10Hz - 137kHz: +0dB/-3dB

Stereo Inputs
Type: 1/4 in. TRS connector, electronically balanced

Impedance:
- Balanced: 20kOhms
- Unbalanced: 10kOhms
(+4dBu operating level)

-Balanced: approx. 20kOhms
-Unbalanced: 5kOhms
(-10dBV)

Maximum Input Level: +22dBu

EQ Mono Channels
Low: 80Hz, +/-15dB
Mid: 2.5 KHz, +/-15dB
High: 12kHz, +/-15dB

Audio Outputs
FX Sends
Type: 1/4 in. TS connector, unbalanced

Impedance: Approx. 120 Ohms

Maximum Output Level: +22dBu

Main Outputs
Type: 1/4 in. TRS connector, unbalanced

Impedance: Approx 120 Ohm

Maximum Output Level: +22dBu

Control Room Outputs
Type: 1/4 in. TS connector, unbalanced

Impedance: Approx. 120 Ohms

Maximum Output Level: +22dBu

Power
Mains Voltage: 120 V~, 60Hz, MXUL6 adapter

Physical
Dimensions: 1-5/6 x 7-2/5 x 8-2/3 in. (47 x 189 x 220 mm)

Weight (approx.): 2.31 lbs (1.05 kg)
