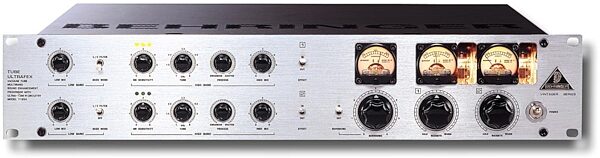

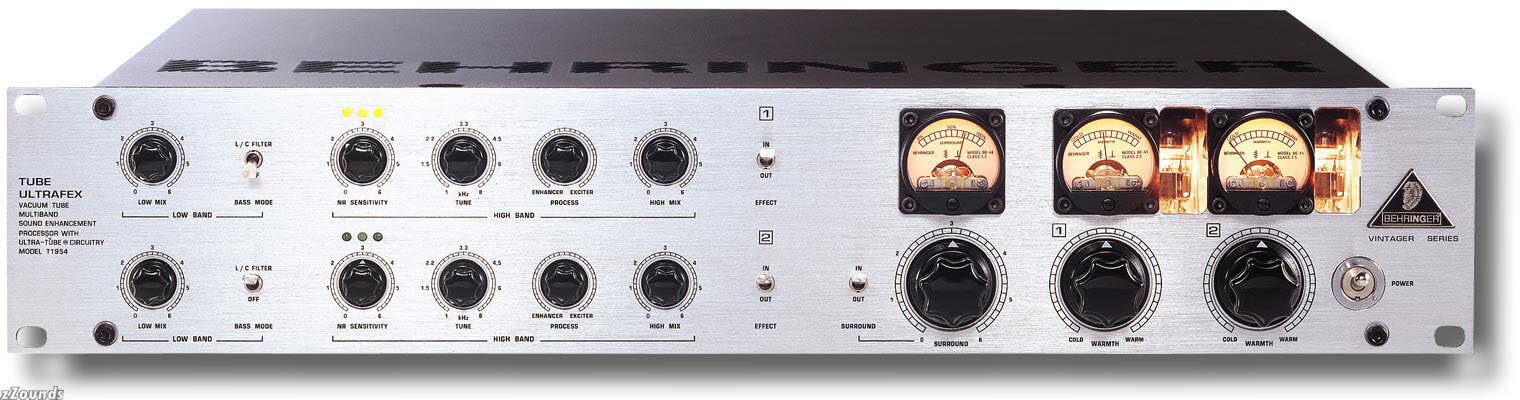

Behringer T1954 Tube Ultrafex Processor

The Ultrafex is one of the best-selling psycho-acoustic processors worldwide and is found in numerous outboard racks of renowned studios and touring companies. With good reason: Behringer has been developing and producing this type of processor for over 10 years, achieving pioneer status along the way. The Tube Ultrafex impressively combines their entire development experience with the sound enhancement characteristics of tubes.

Features
A new "Tube interpretation" of Behringer's most popular multi-band sound enhancement processor

Enhances high and low frequencies independently to add transparency, presence, and intelligibility without adding noise

Surround processor makes a dramatic difference in the width and intensity of your spatial stereo image

Produce a more powerful, fuller bass, increases the "subjective" volume level, and reduces listening fatigue

"Natural Sonic" processor continuously optimizes the ratio of Enhancement to Exciting the signal, maximizing the Tube Ultrafex's impact on your music

Sliding-filter, single-ended Noise Reduction system removes audible hiss generated by the exciter/enhancer side-chain while leaving your original signal untouched

Independent Bass Processor provides low frequency enhancement with variable processing and a switchable 50/100 Hz corner frequency

Unique Solo function lets you isolate the processed signal and patch the unit into any mixer's Aux Send & Return circuit, allowing individual channel control of enhancement process

Servo-balanced XLR and TRS inputs and outputs on gold-plated connectors. patent pending "Ultra-Tube" circuitry for more warmth without distortion, which is controlled by an independent "Warmth" control

Special LC coil/cap filter also adds to the authentically vintage sound of this unit

Efficient SOVTEK tubes, gigantic backlit analog VU meters and a cool "Retro" design with polished chrome front panel and vintage style knobs

Technical Info

Audio Input
Connectors: XLR and 1/4 in. jack

Type: RF filtered, servo-balanced input

Impedance: 50 kOhms balanced, 25 kOhm unbalanced

Max. Input Level: +21 dBu balanced and unbalanced (unity gain)

CMRR: typ. 40 dB, >55 dB @ 1 kHz

Audio Output
Connectors: XLR and 1/4 in. jack

Type: electronically servo-balanced output stage (optional transformer-
balanced). Automatic level correction for unbalanced use (6 dB)

Impedance: 60 Ohms balanced, 30 Ohm unbalanced

Max. Output Level: +21 dBu, +20 dBm balanced and unbalanced

System Specifications
Bandwidth: 18 Hz to 30 kHz, +/-3 dB

Signal-to-noise ratio: > 100dB, unweighted, 22 Hz to 22 kHz

THD: 0.008 % typ. @ +4 dBu, 1 kHz, Gain 1
0.04 % typ. @ +20 dBu, 1 kHz, Gain 1

IMD: 0.01 % typ. SMPTE

Crosstalk: < -100 dB, 22 Hz to 22 kHz

Bass Processor
Type: "Dual Mode" Bass Processor

Low Mix: variable (0 to 6)

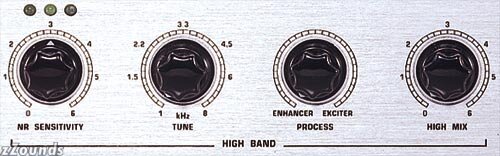

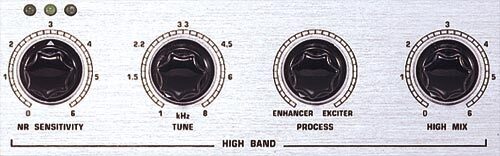

Multi-band Processor
Type: Natural Sonic Processor with VSP (Variable Sound Processing)

NR Sensitivity: variable (0 to 6)

Tune: variable (1 to 8 kHz)

Process: variable (Enhancer to Exciter)

High Mix: variable (0 to 6)

Surround Section
Surround: variable (0 to 6)

Function: switches and controls

Bass Mode: switches the bass sound from "Soft" to "Tight"

Effect In/Out: activates the relay controlled hard-bypass

Surround In/Out: activates the Surround Processor

Power Supply
Mains voltage: USA/Canada ~ 120 V AC, 60 Hz

Power consumption: 25 Watts

Fuse: 100-120 V AC: 1 A (slow-blow)

Mains connection: standard IEC receptacle

Physical
Dimension (H x W x D): approximately 3-1/2 x 19 x 8-1/2 in. (89.5 x 482.6 x 217 mm)

Net weight: 8.0 kg, approximately

Shipping weight: 10.0 kg, approximately
