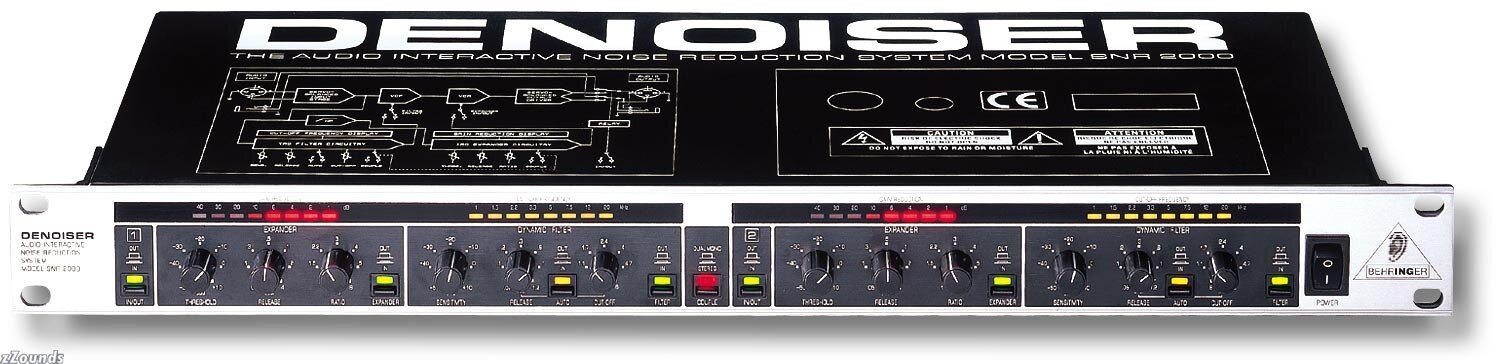

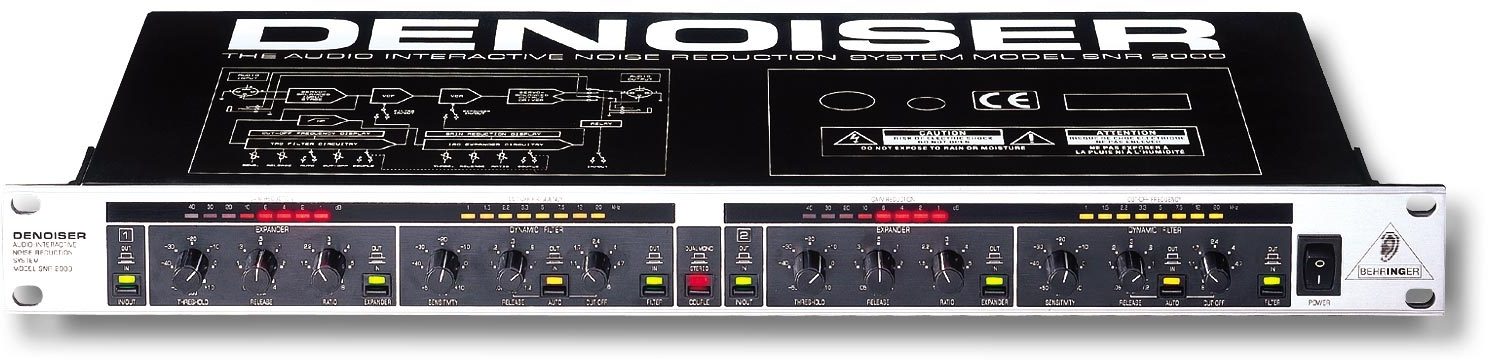

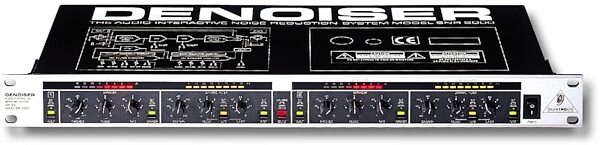

Interactive, multi-band, 2-channel, single-ended noise reduction system.
Ideal for removing noise from recordings, improving clarity of soundtracks, eliminating noise from electric instruments, effects processors, and samplers.
New! Dual-Filter circuitry and multi-band audio detection breaks new ground in single-ended noise reduction technology.
Unique Transient Attack Control filter responds to the fastest attack signals.
Multi-band frequency analysis for more accurate performance.
Interactive Ratio Control Expander gives you complete control over Threshold and Release settings.
Adjustable filter cut-off and release time.
Up to 80 dB of noise reduction.
Dual mono or stereo modes.
Four 8-segments LEDs display gain reduction (Expander) and frequency (filter cut-off) for both channels.
Servo balanced inputs and outputs on XLR and 1/4 in. connectors.
Technical Info
Analog Inputs
Connectors: XLR and Õ in. jack
Type: RF filtered, servo balanced input
Impedance: 80 kW balanced
Nominal operating level: -10 dBV to +4 dBu
Max. input level: +20 dBu balanced and unbalanced
Analog Outputs
Connectors: XLR and Õ in. jack
Type: electronically servo-balanced output stage (optional transformer-balanced)
Impedance: 40 W balanced or unbalanced
Max. output level: +26 dBm balanced, +20 dBm unbalanced
System Specifications
Bandwidth: 5 Hz to 100 kHz, +0/-3 dB
Noise: > 104 dBu, fully off
THD: 0.02 % typ. @ +4 dBu, 1 kHz, gain 1
Crosstalk: < -85 dBu
Expander Section
Threshold: variable (-40 to +20 dBu)
Release: variable (0.05 to 6 seconds)
Ratio: variable (1:1 to 1:6)
Filter Section
Sensitivity: variable (-50 to +10 dBu)
Release: variable (0.06 to 1.2 seconds)
Cut off: variable (800 Hz to 6 kHz)
Function Switches
Channel In/Out: relay controlled hard-bypass
Expander In/Out: activates the expander section
Filter In/Out: activates the filter section
Auto: activates the automatic filter circuitry
Couple: link feature for stereo tracking
Indicators
8 LED gain reduction: 1/2/4/6/10/15/20/30 dB
8 LED filter bandwidth: 1/1.5/2.2/3.3/5/7.5/12/20 kHz
LED indicator for each function switch
Power Supply
Mains voltage: USA/Canada 120 V ~, 60 Hz
Fuse: 100 - 120 V ~: T 320 mA H
Power consumption: 9 Watts
Mains connection standard IEC receptacle
Physical
Dimensions (H x W x D): 1-Ó x 19 x 8-1/2 in. (44.5 x 482.6 x 217 mm)
Net weight: 3.0 kg, approximately
Shipping weight: 4.2 kg, approximately
