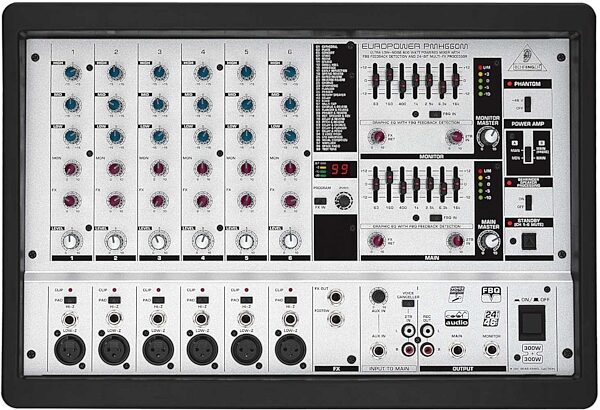

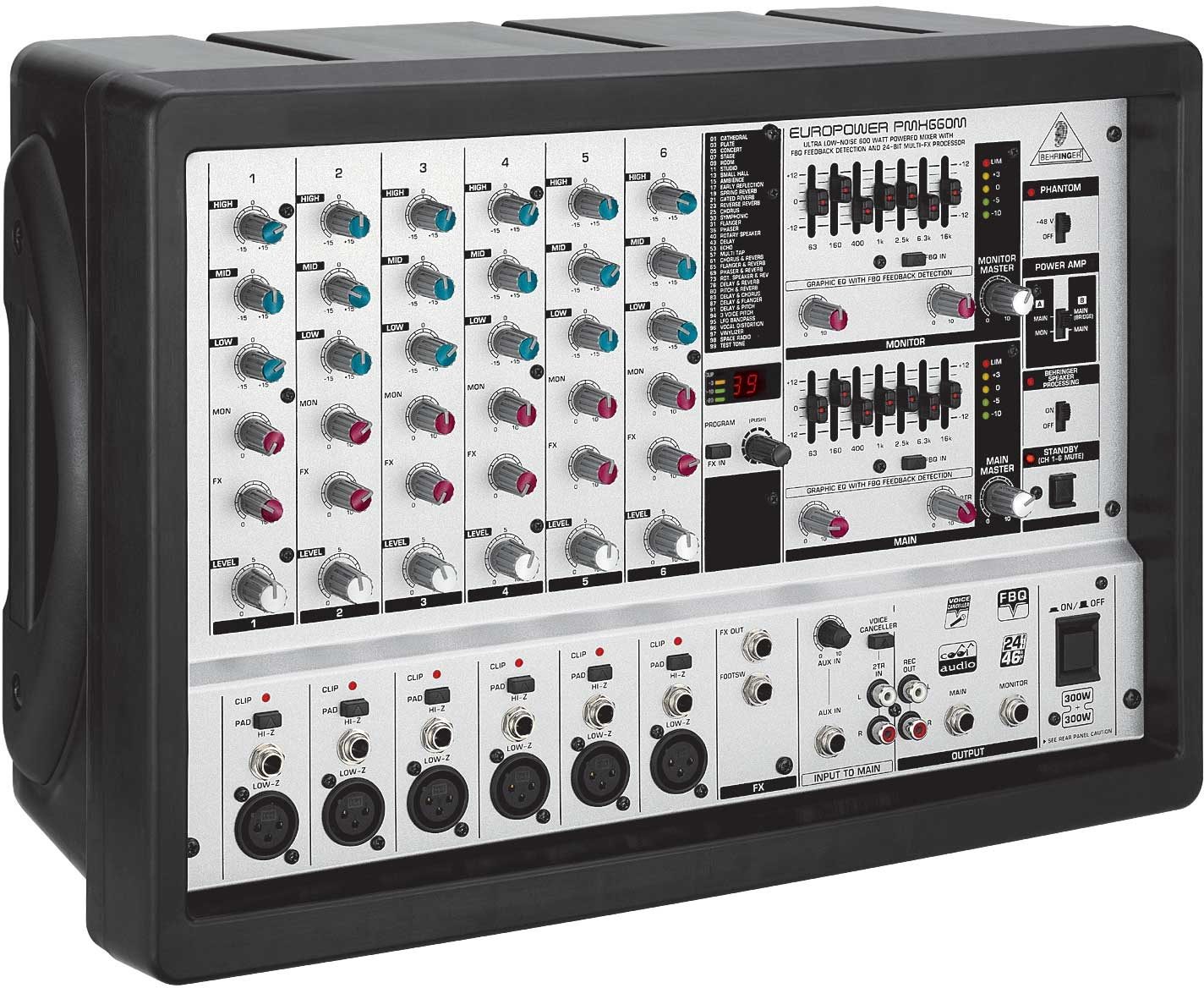

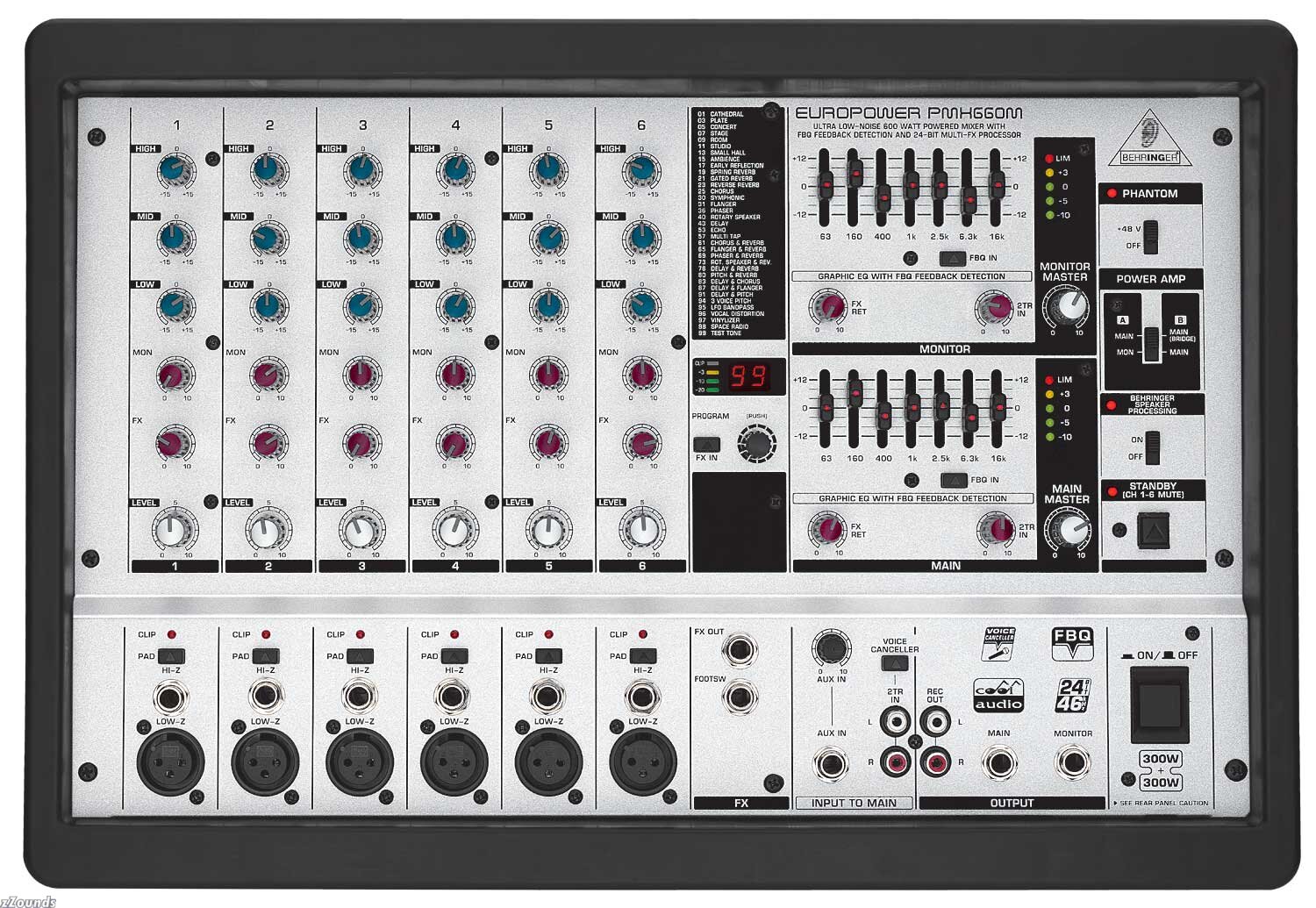

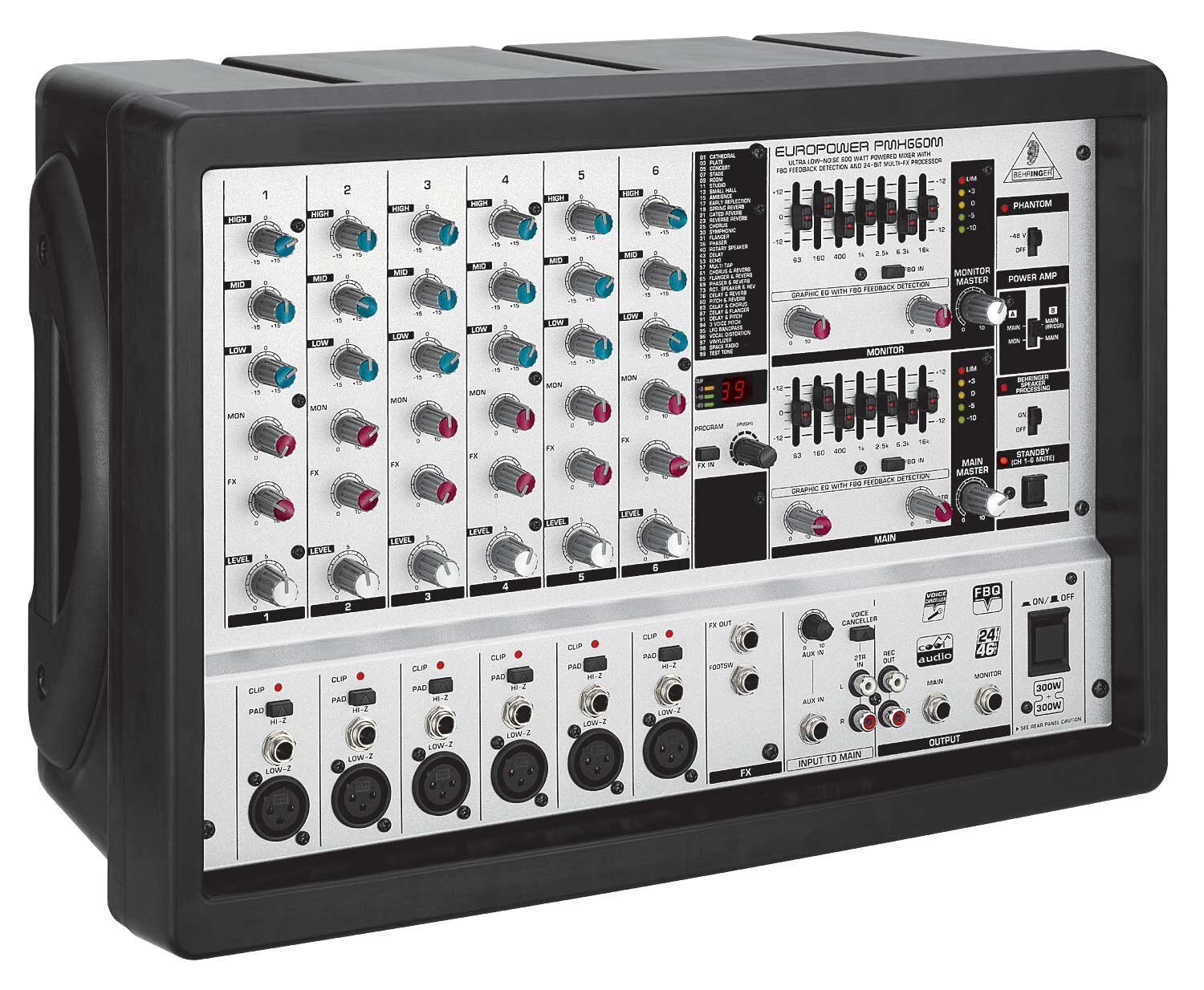

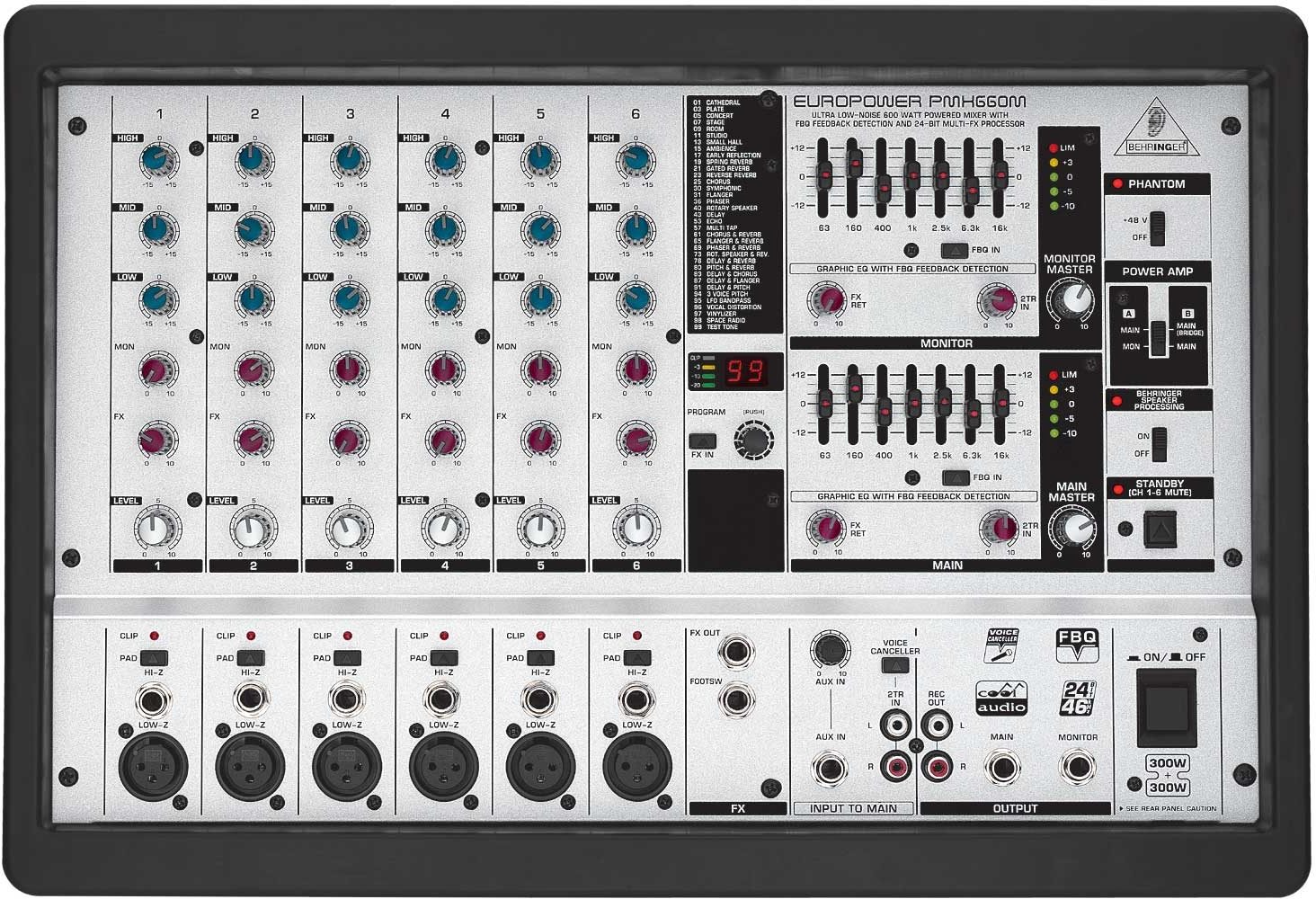

Behringer PMH660M 8-Channel Powered Mixer with FX (400 Watts)

Behringer PMH660M 8-Channel Powered Mixer with FX (400 Watts)
The Europower PMH660M is the most compact powered mixer in our groundbreaking new PMX series. Its super-compact 400 Watts, 6 mono channels plus stereo tape return configuration is a powerful solution that will exceed your expectations.

With our revolutionary CoolAudio amplifier technology you get enormous power, incredible sonic performance and super-light weight delivered in an ultra-compact mixer that is nearly half the depth and weight of conventional powered mixers.

Along with 6 high-quality balanced low-impedance mic preamps, there are balanced high-impedance line inputs for direct connection of line sources or high-output instruments. Each PMH660M channel features a monitor send, an FX send and a switchable -30 dB pad.

The PMH660M also has 'big mixer' features like a 24-bit/46 kHz effects processor with 99 great-sounding Virtualizer presets, two 7-band graphic EQs (one each for the main and monitor signals), FBQ Feedback Detection and dual 5-segment LED output level meters. Plus, it features a standby switch that mutes all mic channels, so you can play music during your breaks without having to change the channels volume controls and lose your mix. Adding to the list of features are the integrated Voice Canceller which removes vocals for karaoke applications, Behringer's Speaker Processing function for enhanced performance with Behringer Eurolive or other professional speaker systems and professional Speakon (r) connectors. The integrated carrying handle makes it easy to transport.

Technical Info

Max. Output Power:
2 x 200 W @ 4 ohms
1 x 400 W @ 8 ohms

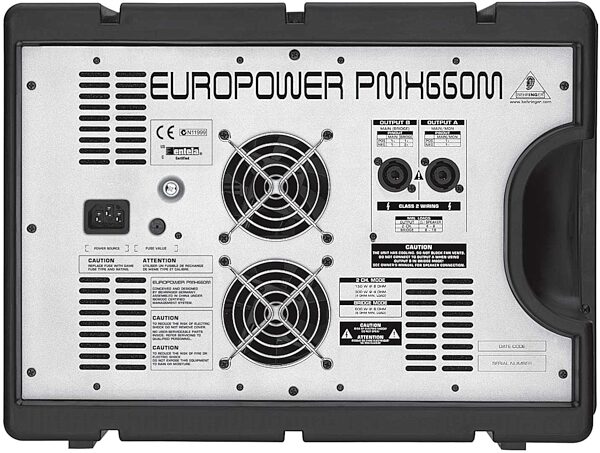

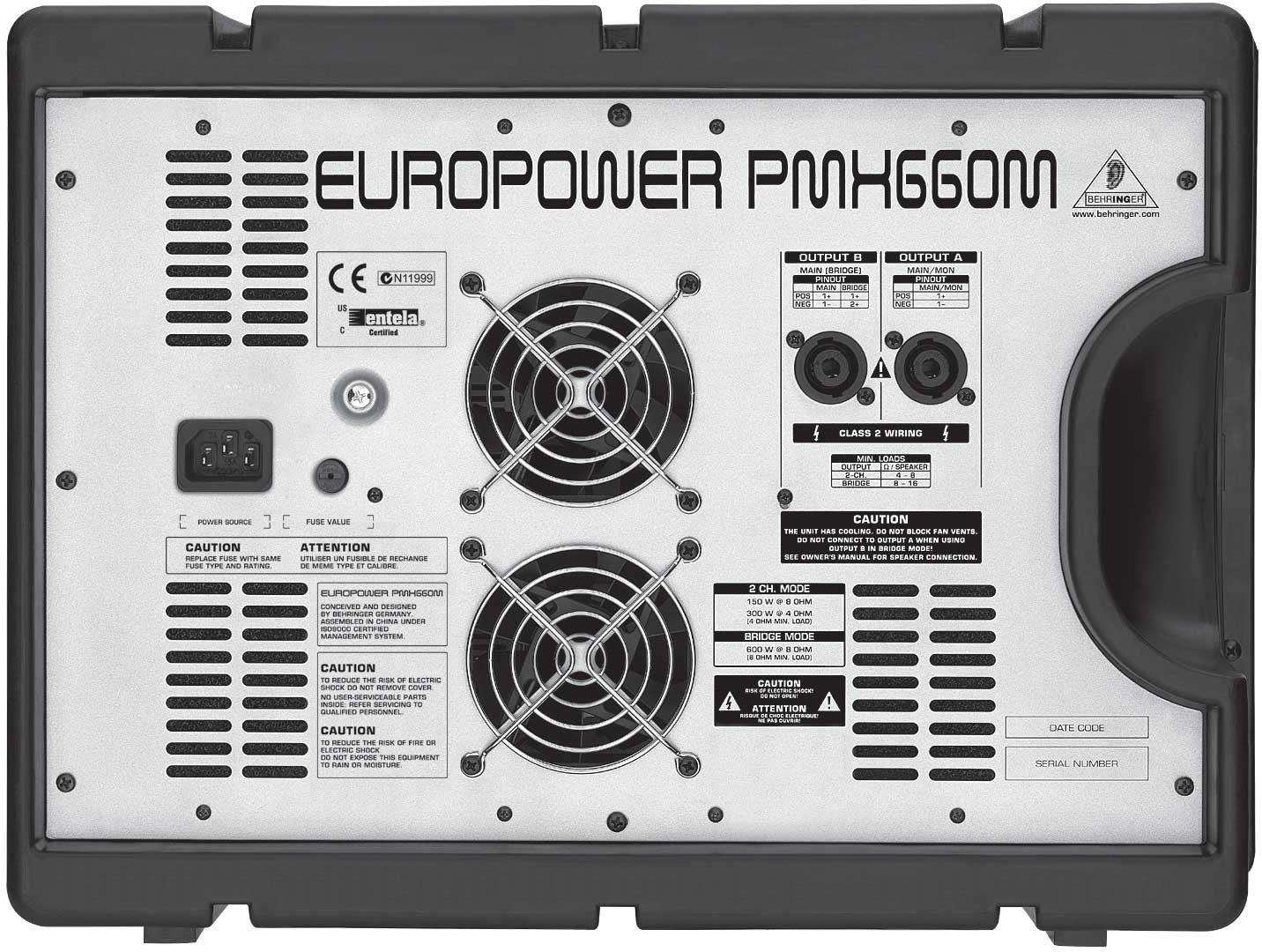

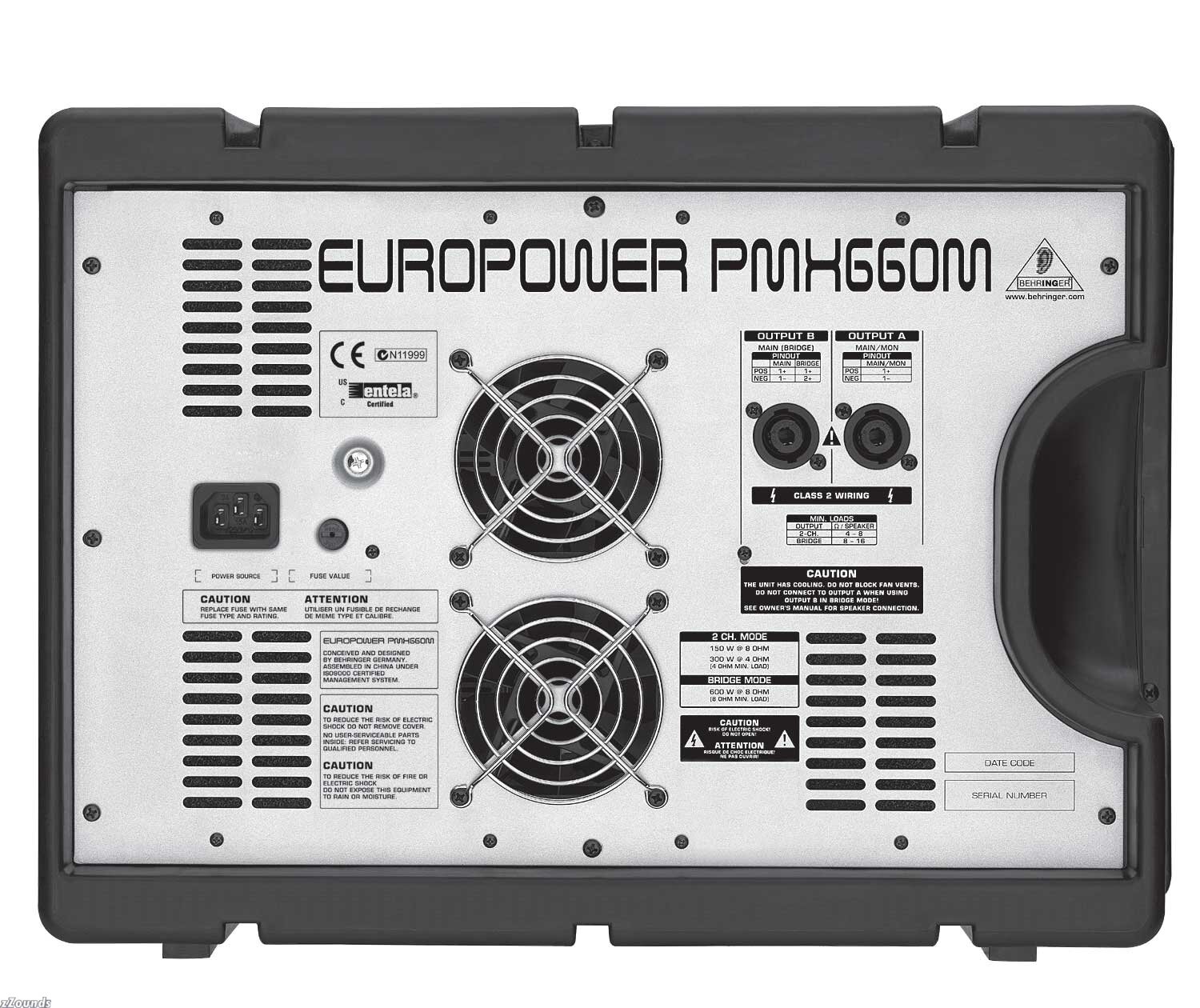

Speaker Outputs: Neutrik Speakon comparable

Mono Mic/Line Channels: 6 (XLR + 1/4 in. TRS)

Stereo Line Channels: No

Channel Inserts: No

Channel EQ: 3-band

Graphic EQ/FBQ Feedback Detection: 2 x 7-band EQ + FBQ

Phantom Power (+48 V): Yes

Aux Sends: 1 pre/1 post fader

24-Bit Digital FX Processor: 1

XPQ Surround Effect: No

Voice Canceler: Yes

Standby Switch: Yes

Speaker Processing: Yes

Power Amp Modes: Monitor + Main, Main bridge mode (or double mono)

Power Amp Inserts: No

Main Mix Line Outputs: 1 x 1/4 in. TRS

Mono Line Output: No

Monitor Line Outputs: 1 x 1/4 in. TRS

2-Track I/O (RCA conn.): Yes

Phones/Ctrl.Room Output: No

Dimensions H x W x D (approx.):
12 2/5 in. x 18 1/10 in. x 8 3/5 in. (315 x 460 x 220 mm)

Weight (approx.): 9.2 kg (20.2 lbs.)

Special Features:
Input pad; aux input with level control
Hi-Z line inputs on channels 1-6
