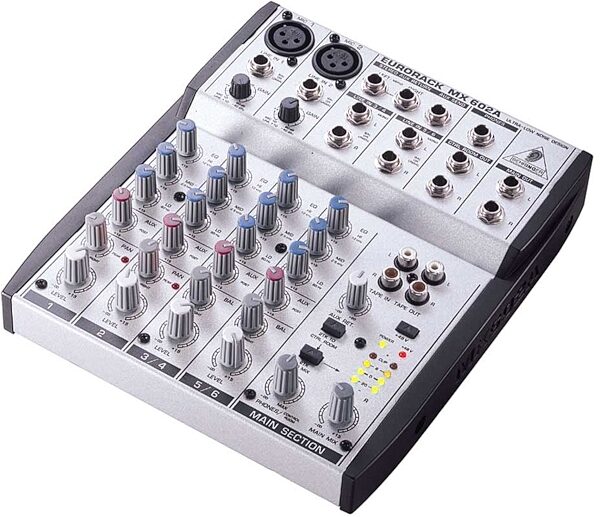

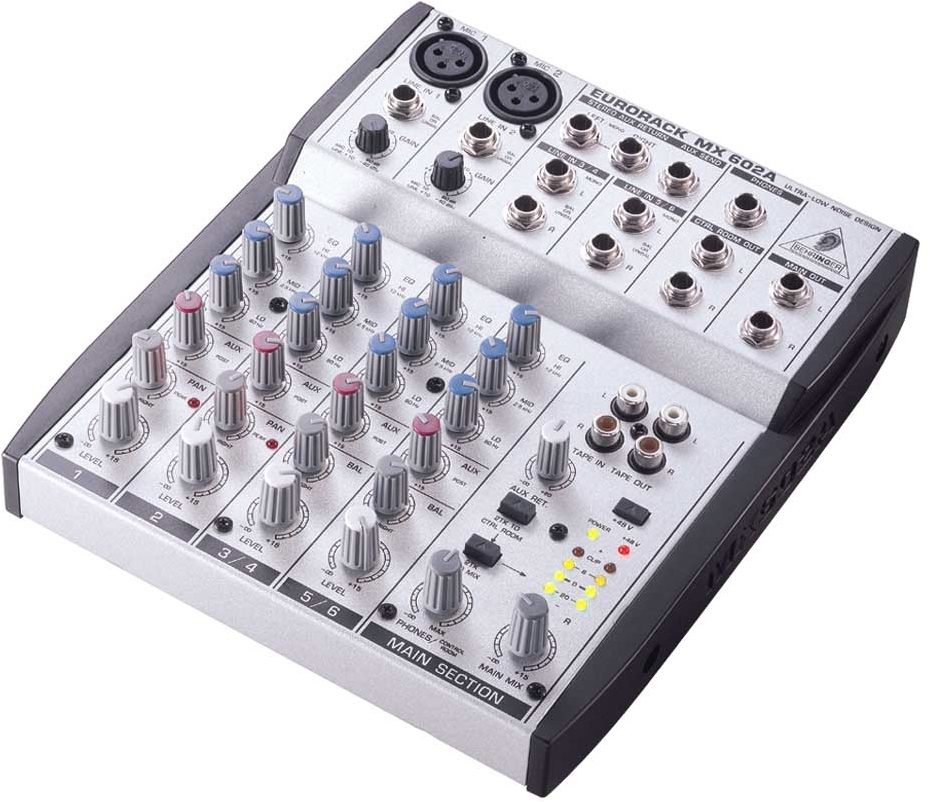

Behringer MX602A 6 Channel Mixing Console

Ultra-low noise discrete Mic Preamps. Phantom Power. 2 Stereo input Channels. 127 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized Behringer dealer

The World's Smallest Eurorack
The ultra-compact MX602A features the same discrete microphone preamps and super-clean ULN circuitry. Its 2 mono and 2 stereo channels each sport a complete 3-band EQ with 15 dB of boost/attenuation. The success of the award-winning MX802A proved we were right: there is a demand for high-quality consoles in miniature format - whether for audio/video, home stereo, or other general audio applications. Our development engineers had an ambitious goal with the MX602A: to offer everything you'd expect from a Behringer console in spite of the miniscule size. Things like first-class audio quality, an auxiliary path, a stereo aux return, a 2-track input/output, precise LED level meters, and a phones output. It goes without saying that we also included +48 V phantom power for your valuable condenser microphones. What more do you need? And with balanced inputs and flexible main mix and control room outputs you'll always be able to connect.

Eurorack MX602A: Ultra Compact, Ultra Noise-Free!

Features:
Ultra-low noise 6-Channel, 2-Bus Mixer

2 Mono Input Channels with gold plated XLR and Line Inputs

Ultra-low noise dicrete Mic Preamps with +48 V Phantom Power

2 Stereo input Channels with balanced TRS Jacks

Additional multifunctional Stereo Aux Return

Extremely high headroom - offering a huge dynamic range

Balanced Inputs for highest signal integrity

Ultra-musical 3-band EQ on all channels

Peak LEDs on all Mono Channels

Aux Send for external effects and monitoring

Separate Main Mix, Control Room, and Headphone Outputs

2-Track Inputs assignable to Main Mix, Control Room/Headphone Outputs

Highly accurate 4 segment Bargraph Meters

High-quality sealed potentiometers

Rugged design Power Supply ensures superior transient response

State-of-the-art 4580 ICs and highest quality components ensure crystal-clear audio performance and ultra-low noise performance

Extremely rugged construction ensures long life even under the most demanding conditions

Manufactured under ISO9000 certified management system zZounds is an authorized dealer of Behringer products.

Mono Input Channels
Mic Input: electronically balanced, discrete input configuration
Mic E.I.N. (22 Hz - 22 kHz) -129.5 dBu, 150 Ohm source
-117.3 dBqp, 150 Ohm source
-132.0 dBu, input shorted
-122.0 dBqp, input shorted
Bandwidth: 10 Hz to 60 kHz, +/- 3 dB
Distortion: (THD&N) 0.007 % at +4 dBu, 1 kHz, Bandwidth 80 kHz
Gain range: +10 dB to +60 dB
Signal-to-noise ratio: 113,6 dB
Line Input: electronically balanced
Bandwidth: 10 Hz to 60 kHz, +/- 3 dB
Distortion: (THD&N) 0.007 % at +4 dBu, 1 kHz, Bandwidth 80 kHz
Line level range: +10 dBu to -40 dBu
Equalization:
Hi Shelving 12 kHz +/-15 dB
Mid Range 2.5 kHz +/-15 dB
Lo Shelving 80 Hz +/-15 dB

Stereo Inputs
Line Input: unbalanced
Bandwidth: 10 Hz to 55 kHz, +/- 3 dB
Distortion: (THD&N) 0.007 % at +4 dBu, 1 kHz, Bandwidth 80 kHz
Equalization:
Hi Shelving 12 kHz +/-15 dB
Mid Range 2.5 kHz +/-15 dB
Lo Shelving 80 Hz +/-15 dB

Main Mix Section
Max output: +22 dBu unbalanced
Aux send max out: +22 dBu unbalanced
Control room out: +22 dBu unbalanced
Signal to noise ratio: 112 dB
Equivalent Input Noise: -90 dBu (all channels open, Unity Gain)

Power supply
Mains Voltages: USA/Canada 115 V ~, 60 Hz, power supply unit MXUL3
U.K./Australia 240 V ~, 50 Hz, power supply unit MXUK3
Europe 230 V ~, 50 Hz, power supply unit MXEU3
Japan 100 V ~, 60 Hz, power supply unit MXJP3

Physical
Dimensions (H x W x D): 1.46 x 7.4 x 8.35 in. (37/48 mm x 188 x 212 mm), approximately
Net weight: 1.3 kg, approximately (PSU not included)
Shipping weight: 2.8 kg, approximatelyBEHMX802A

Behringer Warranty

Behringer Warranty

If you have additional warranty questions, please call the manufacturer at 425-672-0816

zZounds is an
authorized Behringer dealer

Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!

Our Return Policy

Payment Options

Purchase Orders

What Our Customers Are Saying About zZounds "My whole experience with zZounds was above and beyond my expectations yet again. Time after time, I continue to get great deals on the best products that move my business to the next level." - customer on May 1st, 2012

Customer Reviews

4.5 out of 5 (127 ratings) Rate and Review This Product

Read 2 Behringer MX602A 6 Channel Mixing Console Reviews

"Hot Little Machine"

Sound: Very, very clean; EQ is ok Feature: All the basic mixing components are there, even phantom power (which makes this board a steal) Quality: I've had my MX-602A for a year or two- the pots are as smooth as ever- not one is scratchy or loose. The quality of the case is excellent- no rust or loose parts. Value: It's worth more than it costs for sure. Behringer could get away with selling this puppy for a bundle more. Manufacturer Support: Good support, friendly people. The Wow Factor: It feels like an expensive piece of equipment- it's made with the same components as Behringer's big dogs- it's sleek looking, feels like butter- fits in you lap- sounds like fantastic... Overall: I need more tracks which is the only reason I'm going to move up sooner or later. For a long time I was more than completely satisfied with the 602A's capabilities.

Style of Music: Funk/jazz/raggae/rock/blues/folk./techno/jam/whatever

4 of 4 people (100%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

zZounds has verified that this customer bought this product from us. "Great little mixer, especially for one person recording."

Sound: Great sound comes through this thing. Works very well with behringer's B-1 and B-2 microphones. Feature: Very basic - great for morons like me who don't know what they're doing and get into trouble when they have too many features to mess with. Phantom power, nice EQ, only one send and return, but works great for what I do. Quality: Very tough little guy. I never worry about mine. Value: An awesome value if you're like me and only need a couple of channels at a time (I never use more than four and usually only two). Manufacturer Support: I have not dealt with the company. The Wow Factor: Hard to resist (and I guess I didn't since i bought it). Overall: Perfect for what I'm into i don't see replacing this with anything else.

Style of Music: Jazz, Funk, Reggae, R&B and Hip-Hop influenced

3 of 4 people (75%) found this review helpful. Did you?

Thanks for your opinion!

close [x]

Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?

Read 2 Behringer MX602A 6 Channel Mixing Console Reviews
