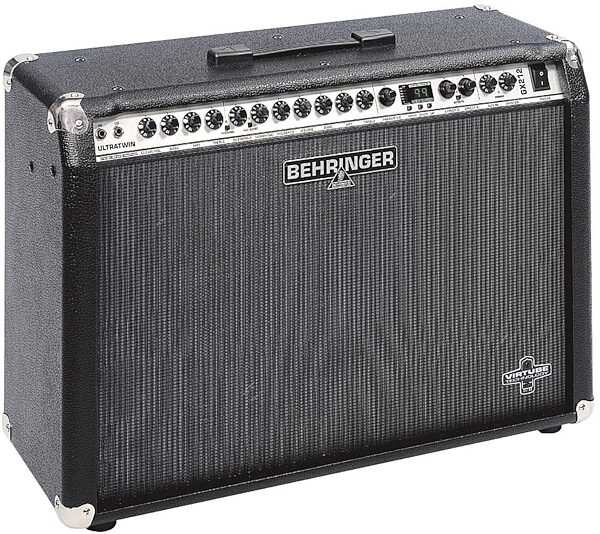

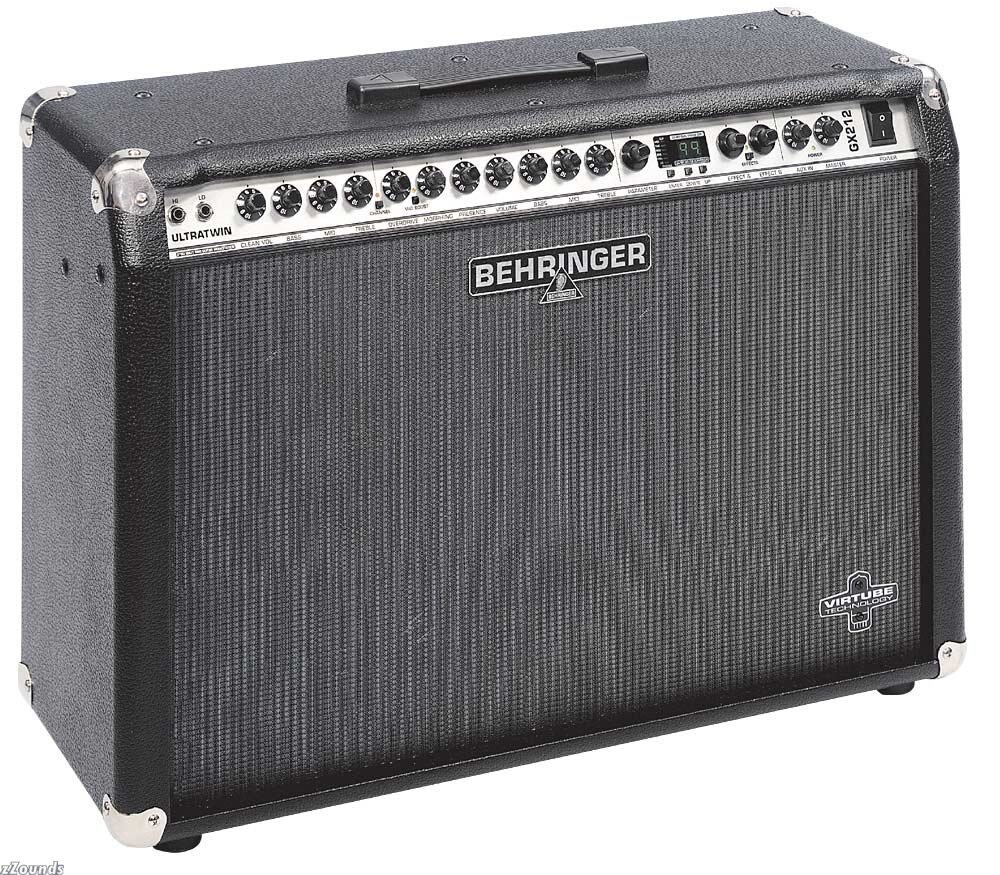

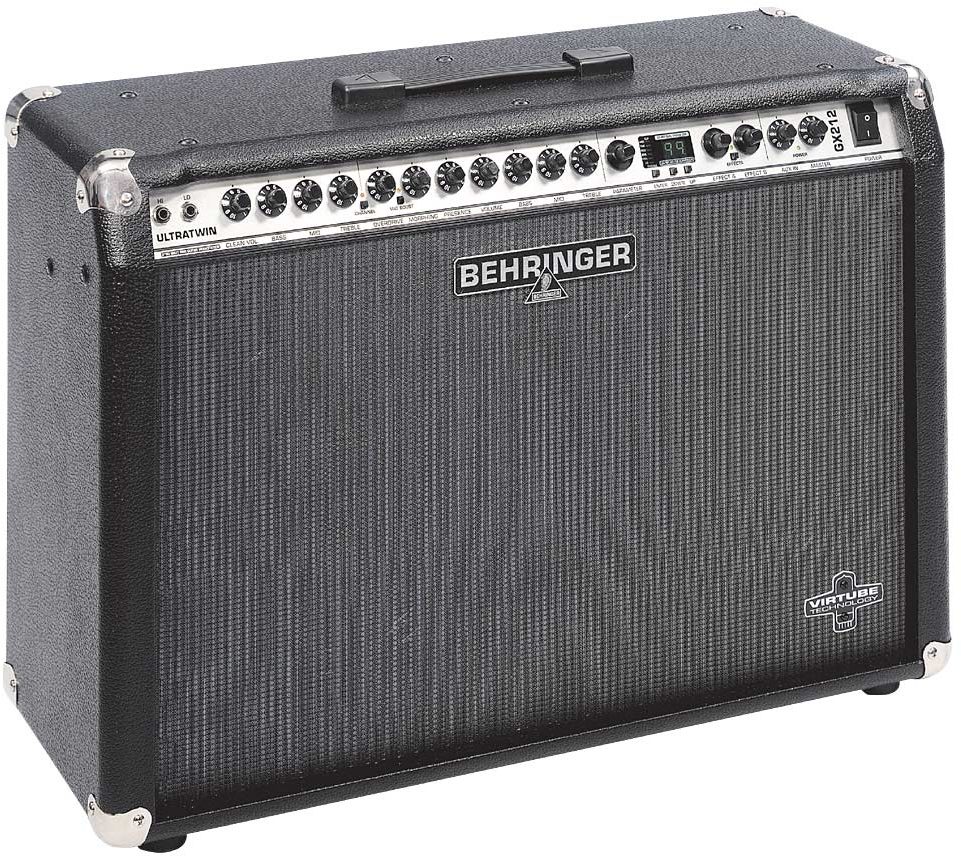

Twice the pleasure with twice the power. The ULTRATWIN GX212. When you need extra cutting power. With G212's Clean channel, you get the straightest, clearest tube sound. The overdrive channel offers a broad range, from more modern grunge, to high-gain sounds.
Features:
2 x 60 Watts RMS Virtube amp
2 custom-made 100-Watt 12 in. Jensen speakers
2 channels with separate volume, EQ, and FX
Morphing knob for effective sound shaping
Digital stereo FX unit with 24-bit converters
Insert, stereo aux in and line out, phones, MIDI
Dedicated vintage-type 3-band EQ
24-bit stereo multi-effects processor with ultra-high resolution 24-bit AD/DA converters
31 original VIRTUALIZER/MODULIZER presets with world-class effects such as Reverb, Delay, Phaser, Chorus, Flanger, Pitch Shifter, Speaker Simulator, Rotary Speaker, Magic Drive, Compressor, Expander, Wah, Tube Emulator, and various effect combinations
99 outstanding and easy-to-edit user presets
Quasi-analog operation: three FX parameters per preset can be edited with dedicated controls
Adjustable aux and tape input for playback or other line-level signals (e.g. CD player, drum computer, etc.)
Frequency-corrected stereo line output for recording and live applications
Additional speaker outputs
Insert facility for external effects devices (stomp boxes, wah-wah pedals, etc.)
Channel select and effect bypass footswitch FS112 included
Complete MIDI implementation for channel and effect selection as well as real time control
Master volume control and frequency-corrected stereo headphones output
Extremely rugged construction ensures long life, even under the most demanding conditions
Technical Info
Audio Inputs
Connector: 1/4" mono jack
Type: RF filtered input
Guitar input: impedance approx. 1 Mohms unbalanced
Insert return: impedance approx. 50 kohms unbalanced
Aux input: impedance approx. 10 kohms unbalanced
Slave input: impedance approx. 30 kohms unbalanced
Tape input: connector RCA
impedance: approx. 10 kohms unbalanced
Audio Outputs
Connector: 1/4" mono jack
Type: line level output
Insert send;
impedance approx. 1 kohms unbalanced
Line output:
impedance approx. 100 ohms unbalanced
max. output level- +12 dBu unbalanced
Tape output:
connector RCA
impedance approx. 100 ohms unbalanced
max. output level +12 dBu unbalanced
Loudspeaker Outputs
Connector: 1/4" mono jack
Load impedance: (nom.) 8 ohms
System Specifications (power amplifier)
Power amp output: 2 x 60 Watts RMS @ 5 % THD + N into 8 W; 230 V ~
MIDI Interface
Type: 5-pin-DIN-socket, MIDI IN
Digital Processing
Converters: 24-bit sigma-delta, 64/128-times oversampling
Sampling: rate 46.875 kHz
Display
Type: 2-digit numeric LED-display
Loudspeaker
Type: 2 x 12" heavy duty loudspeaker, Jensen
Impedance: 8 ohms
Power handling: 100 Watts
Power Supply
Mains voltages: USA/Canada 120 V ~, 60 Hz
U.K./Australia 240 V ~, 50 Hz
Europe 230 V ~, 50 Hz
General export model: 100 - 120 V ~, 200 - 240 V ~, 50 - 60 Hz
Power consumption: app. 30 Watts min./approx. 200 Watts max.
Fuse: 100 - 120 V ~ : T 3.15 A H
200 - 240 V ~ : T 1.6 A H
Mains connection: standard IEC receptacle
Physical
Dimensions (H x W x L): 469.9 x 677.6 x 250mm (18.5 x 26.68 x 9.84 in.)
Weight: app. 21.0 kg
