This is the one that brings it all together!! There are also 31 original Virtualizer /Modulizer presets with world-class effects such as Reverb, Delay, Phaser, Chorus, Flanger, Pitch Shifter, Speaker Simulator, Rotary Speaker, Magic Drive, Compressor, Expander, Wah, Tube Emulator, and various effect combinations.

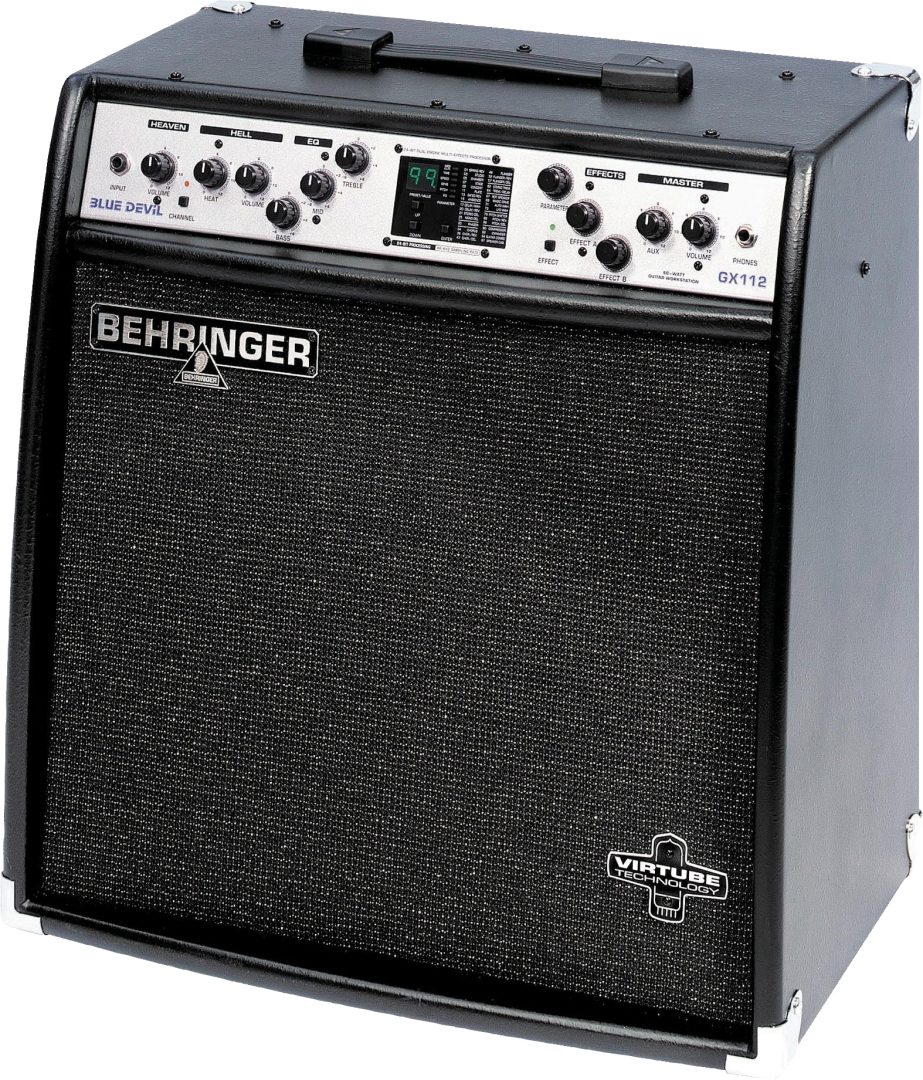

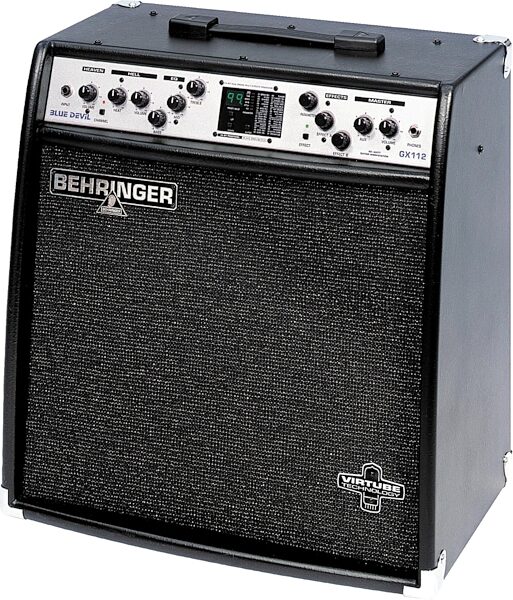

One of the GX112's core elements is our acclaimed VIRTUBE circuitry, which gives you true tube-amp character in a completely solid-state amp that responds to every nuance of your playing over the entire dynamic range. Then there's our stereo 24-bit multi-effects unit, which offers 99 dynamite effects presets ranging from simple reverb to far-out modulation effects and useful combinations with three adjustable parameters per preset.

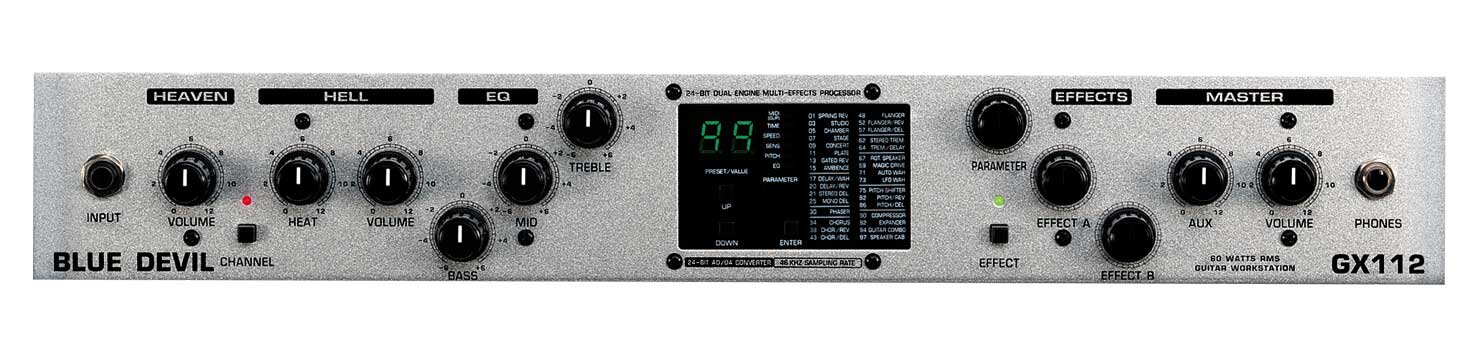

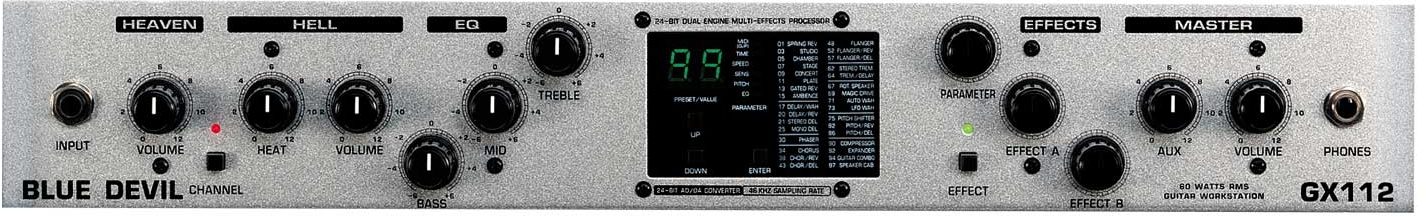

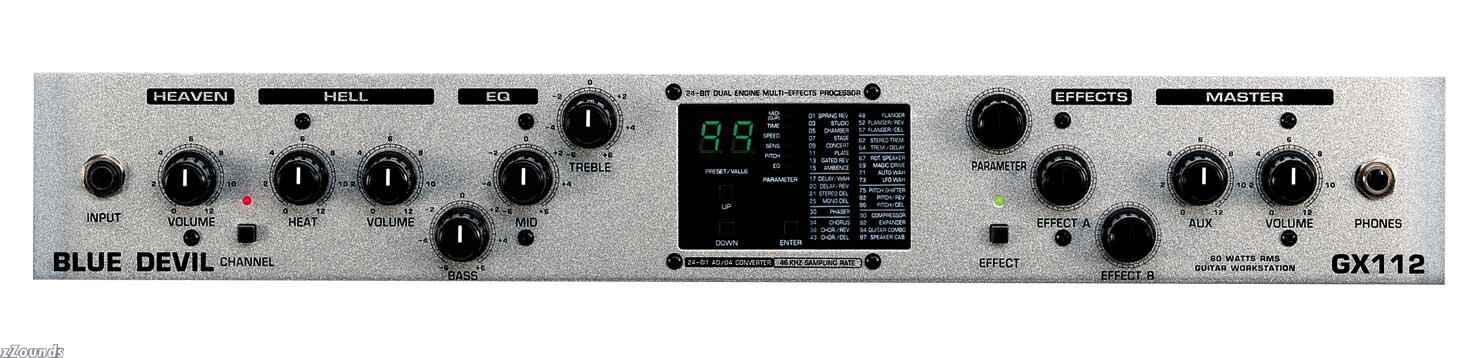

The "Heaven" or clean channel, with its single volume control, is intentionally straight-ahead, while the "Hell" or overdrive channel offers an additional "Heat" control for gain adjustment. Effects settings can be made separately for each channel. In addition to master volume, the master section sports a level control for the aux in.
Like all of our amps, the BLUE DEVIL features an impressive array of I/O options, including an insert path, stereo aux in, line and headphones out, and a MIDI interface for remote effects selection and parameter control. And with its rugged construction, it'll stand up to years of the toughest gigging you can put it through.
Technical Info
Audio Inputs
Connector: 1/4" mono jack
Type: RF filtered input
Guitar input
Impedance: approximately 1 MW unbalanced
Aux input
Impedance: approximately 10 kW unbalanced
Insert return
Impedance: approximately 1 kW unbalanced
Audio Outputs
Connector: 1/4" mono jack
Type: line level output
Impedance: approximately 100 W unbalanced
Max. output level: +12 dBu unbalanced
System Specifications
(power amplifier)
Power amp output: 60 watts RMS @ 5 % THD + N into 8 W; 230 V ~
MIDI Interface
Type: 5-pin-DIN-socket, MIDI IN
Digital Processing
Converters: 24-bit sigma-delta, 64/128-times oversampling
Sampling rate: 46.875 kHz
Display
Type: 2-digit numeric LED-display
Loudspeaker
Type: 12 in. heavy-duty loudspeaker, model SHARK 12G100A
Impedance: 8 W
Power handling: 100 watts
Power Supply
Mains voltages: USA/Canada 120 V ~, 60 Hz
U.K./Australia 240 V ~, 50 Hz
Europe 230 V ~, 50 Hz
general export model: 100 - 120 V ~, 200 - 240 V ~, 50 - 60 Hz
Power consumption: approximately 100 watts @ 60 watts/8 W; 120 watts max.
Fuse: 100 - 120 V ~: T 3.15 A H
200 - 240 V ~: T 1.6 A H
Mains: connection standard IEC receptacle
Physical
Dimensions (H x W x D): 19 x 19 x 8.35/11.7 in. (482.6 x 482.6 x 212.1/297.2 mm), approximately
Net weight: 19 kg, approximately
Shipping weight: 22 kg, approximately 22
Channel select/FX bypass footswitch included.
