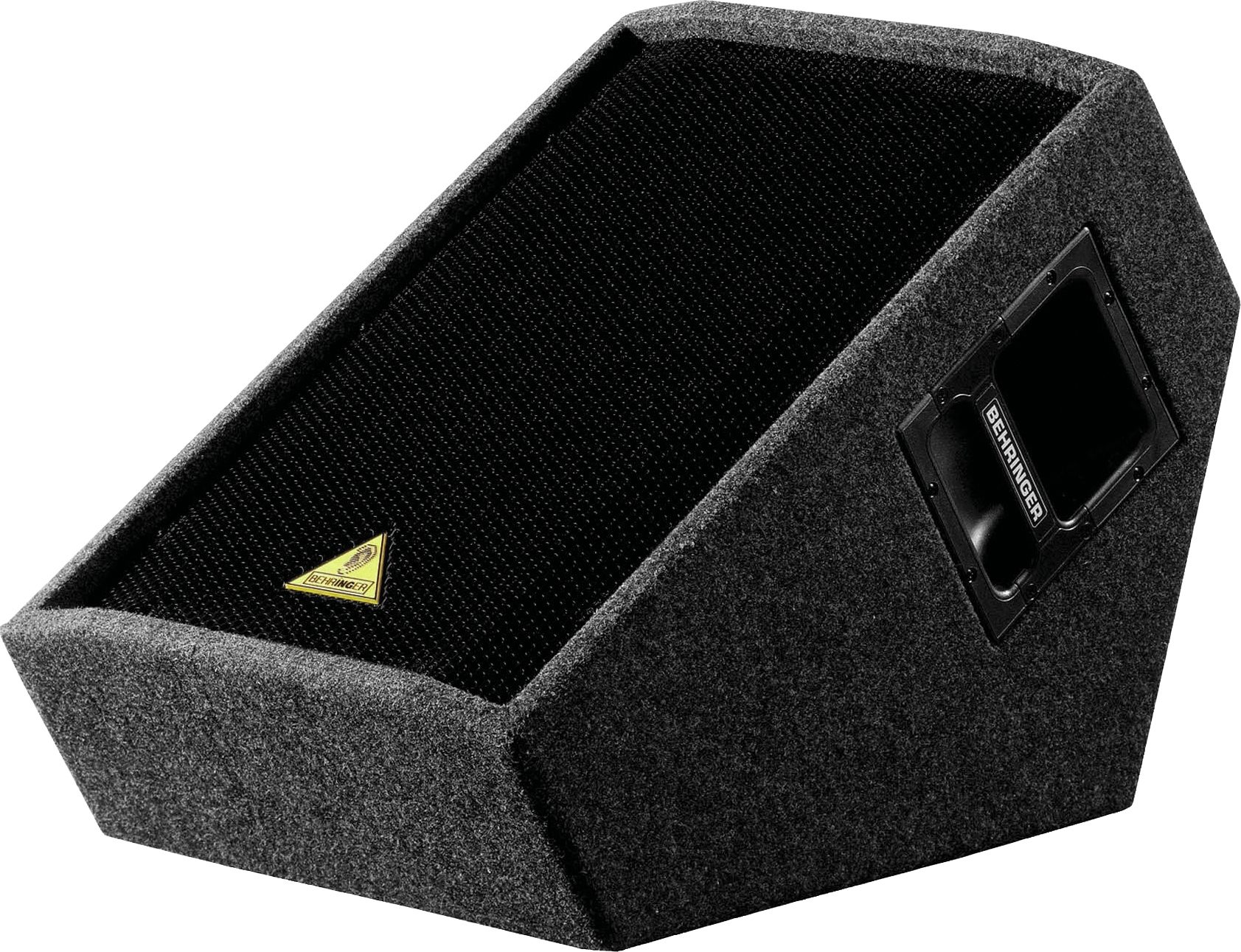

Behringer F1220 12-inch 2-Way Floor Monitor Cabinet

The Behringer Eurolive F1220 Monitor Speaker Systems are equipped with the same components and sport the same professional features as the B1220 enclosures, giving the musician on stage all the advantages of our professional P.A. systems. Furthermore, the F1220 Monitor Speaker Systems can be used in bi-amping mode. The integrated HF driver protection effectively prevents damage caused by feedbacks.

Features:

200 W (RMS) / 400 W (pink noise), nominal impedance: 8 Ohms

Extremely high sound pressure level (95 dB full space 1 W @ 1 m)

50 Hz - 18 kHz frequency response (-10 dB)

Optional bi-amping or full range operation

1 in. titanium HF driver for natural high-frequency reproduction

Behringer CD-horn technology for controlled dispersion (90Á x 40Á)

Behringer HF driver protection

2 different cabinet angles

Sturdy rubber feet

Technical Info

Type: 2-way floor monitor (12 in. + 1 in.)

Frequency response: 50 Hz - 18 kHz (-10 dB)

Power rating (RMS): 200 Watts

Power rating1 (pink noise): 400 Watts

Impedance: 8 Ohms

Sound pressure level*2: (1 W @ 1 m): 95 dB (full space)

Dispersion: 90Á x 40Á

Crossover frequency: 2.5 kHz

HF driver: 44P60A8

Woofer: 12P200A8

Connetors: SpeakOn

W x H x D: approx. 15 11/16 in. x 25 5/8 in. x 15ü in. (398 mm x 574 mm x 393 mm)

Weight: approx. 21 kg

Mounting angle: 30Á / 60Á

BI-AMPING MODE
Recommended crossover frequency (external crossover network)*3: 1.8 kHz - 3.5 kHz

Power rating/Impedance Woofer: 200 Watts RMS/8 Ohms

Power rating/Impedance HF driver: 60 Watts RMS/8 Ohms (>2.2 kHz/12 dB/oct)

*1 Average value over bandwidth of 50 Hz - 5 kHz (multi-way systems) and 40 Hz - 250 Hz (subwoofer) according to IEC 268-5.

*2 Average value over bandwidth of 100 Hz - 2 kHz (multi-way systems) and 100 Hz - 250 Hz (subwoofer) according to IEC 268-5.

*3 Slope: 12 - 24 dB.
