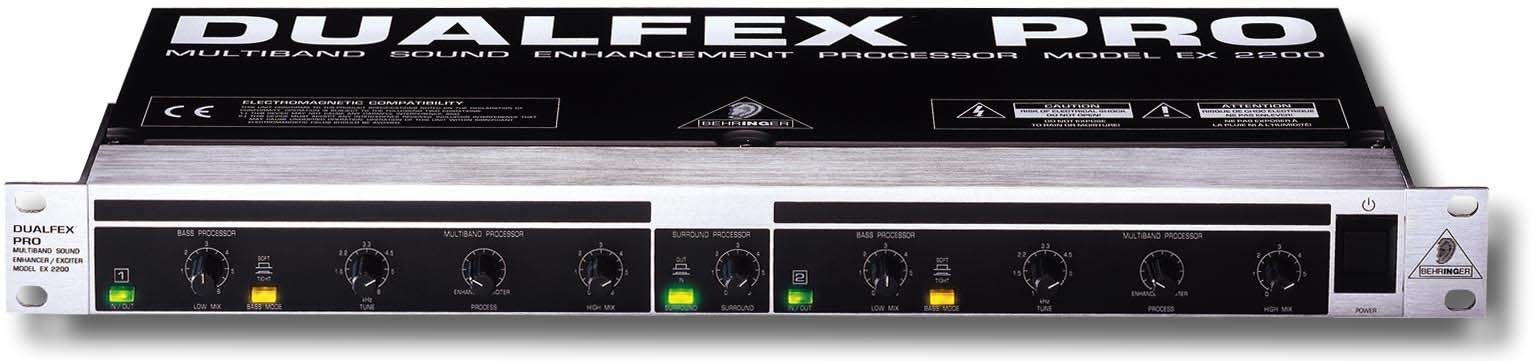

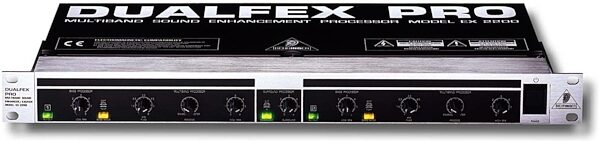

Behringer EX2200 Dualfex Pro Enhancer

Manufacturer's Description for Behringer EX2200 Dualfex Pro Enhancer

Behringer's newly re-designed Dualfex Pro EX2200 achieves new standards in affordable psychoacoustic processing, adding fantastic new dimensions to your sound. The net result is a subjective "loudening" of the audio signal in a manner not achievable by simply applying high and low end boost via an equalizer. Your mixes will sound wider, bigger, brighter, and clearer, with a fuller, firmer, and far better defined bass end when you use the Dualfex Pro from Behringer.

VSP (Variable Sound Processing) Circuit
The upper-frequencies processor has three controls per channel. "Tune" alters the high pass filter cut-off, determining which part of the audio spectrum is to be processed. Thanks to the new VSP circuit, the Dualfex Pro "Process" control enables you to mix between Enhancer and Exciter, until you find a balance that is perfect for your music. As the control is turned clockwise, the ratio classical Enhancement decreases, while that of the other processor, a more aggressive Exciter, increases.

A 50/50 blend occurs at the zero position. The "High Mix" control determines how much high-end processing is applied.

The Dualfex Pro is equipped with a double bass processor for low-frequency enhancement. It combines adjustable low-end Phase Shift with Frequency Correction in a single control. With the "Bass Mode"-control you can choose between a subtle "soft" bass improvement and a more progressive "tight" bass enhancement is added. The bass processor has been designed to perfectly complement the action of VSP high-end processor.

Surround Processor
The integrated surround processor enables to improve the intensity of the spatial stereo effect dramatically.

Dualfex Pro - unleash your sound potential.

Features
Professional and multi-application sound enhancement system

Releases the untapped resources of any recording and instrument

VSP (Variable Sound Processing) circuit for simultaneous Enhancer and Exciter Mode

Natural Sonic processor for intelligent sound improvement

Multi-band concept for bass power and high frequency transparency

Super bass enhancer produces "Soft" and "Tight" bass sounds

No decoding needed during reproduction

ALC (Automatic Level Control) system

Integrated Stereo Surround Processor

Applications
Improves presence and transparency

Improves intelligibility

Provides sharper stereo imaging

Produces more powerful, fuller bass for your recording

Increases subjective volume level

Reduces listening fatigue zZounds is an authorized dealer of Behringer products.

Audio Input
Connectors: RCA and 1/4" jack

Type: RF filtered, servo-balanced input

Impedance: 30 kOhms balanced, 15 kOhm unbalanced

Max. Input Level: +21 dBu balanced and unbalanced (unity gain)

CMRR: typ. 40 dB, >55 dB @ 1 kHz

Audio Output
Connectors: RCA and 1/4 in. jack

Type: unbalanced output stage

Impedance: 30 Ohm

Max. Output Level: +21 dBu, +20 dBm

System Specifications
Bandwidth: 20 Hz to 20 kHz, +0/-0.5 dB

Frequency Response: 0.35 Hz to 200 kHz, +0/-3 dB

Noise: >95 dBu, unweighted, 22 Hz to 22 kHz

THD: 0.008 % typ. @ +4 dBu, 1 kHz, Gain 1
0.04 % typ. @ +20 dBu, 1 kHz, Gain 1

IMD: 0.01 % typ. SMPTE

Crosstalk: <-100 dB, 22 Hz to 22 kHz

Bass Processor
Type: "Dual Mode" bass processor

Low Mix: variable (0 to 6)

Multi-band Processor
Type: "Natural Sonic" processor with VSP (Variable Sound Processing)

Tune: variable (1 to 8 kHz)

Process: variable (Enhancer to Exciter)

High Mix: variable (0 to 6)

Surround Section
Surround variable (0 to 6)

Function Switches and Controls
Mode switches the bass sound from "Soft" to "Tight"

In/Out activates the relay controlled hard-bypass

Surround activates the surround processor

Indicators
Function switch LED indicator for each function switch

Power Supply
Mains voltages: USA/Canada ~ 120 V AC, 60 Hz

Power consumption: 5 Watts

Mains connection: standard IEC receptacle

Physical
Dimension (H x W x D): approximately 1-1/4 x 19 x 8-1/2 in. (44.5 x 482.6 x 217 mm)

Net Weight: approximately 2.2 kg

Shipping Weight: approximately 3.4 kg
