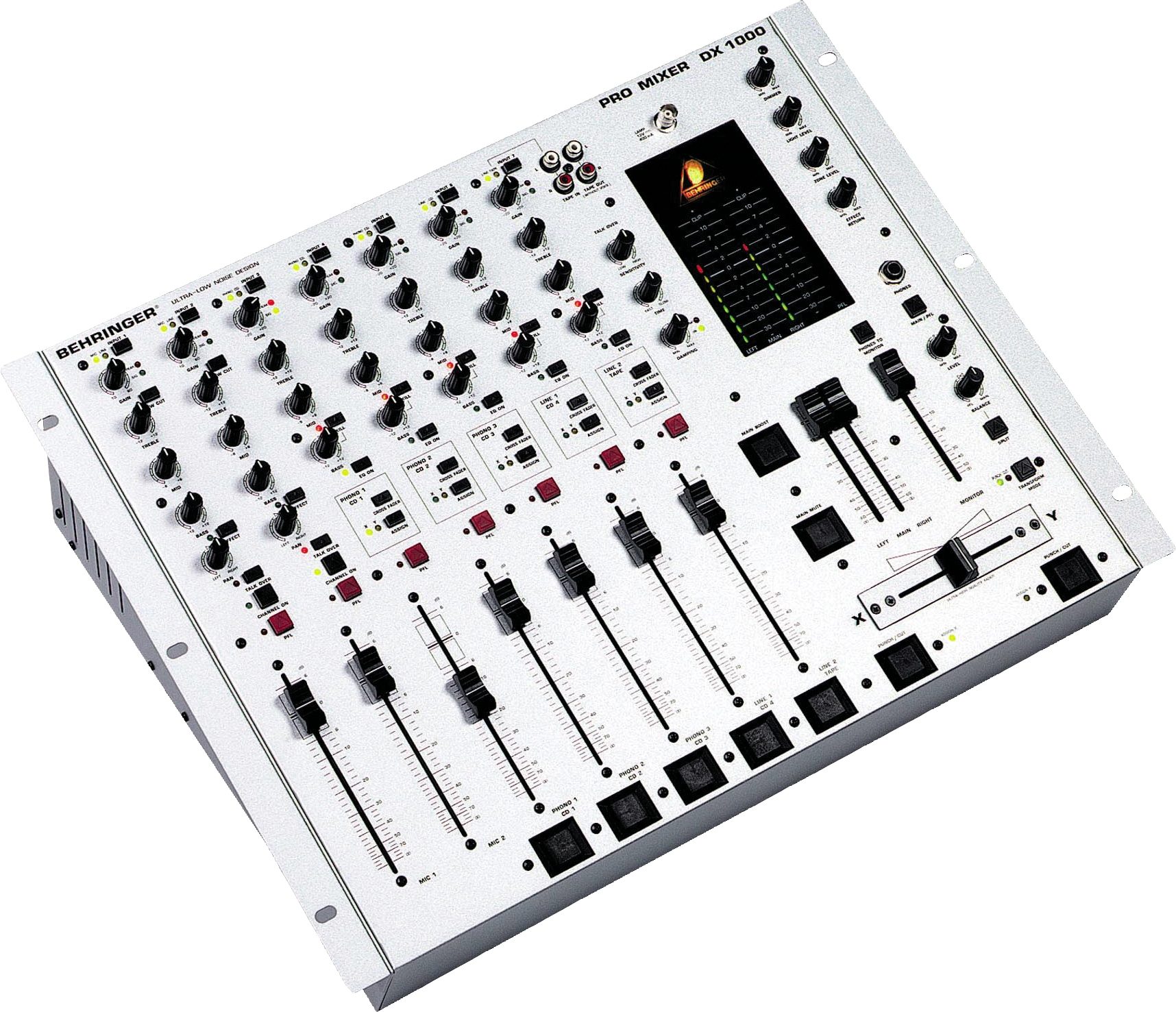

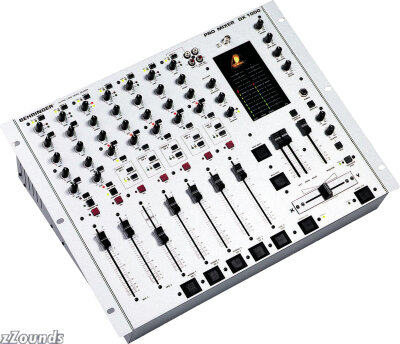

Behringer DX1000 Pro Mixer

The Behringer Pro Mixer DX1000's most brilliant highlight is the extremely wide range of applications it can be used for. It has all the features you'd expect from a state-of-the-art DJ mixer, making it the heart of your DJ system. Five dual input stereo channels give you the freedom to choose from any signal source you like, and 2 additional mic channels having the same control features as the stereo channels underline the DX1000's functionality and increase the fun factor considerably.

With the ultra-musical 3-band EQ you can shape the sound and remove low frequencies with the kill switch. Interactive contact with the dance floor is ensured by the main mute and main boost buttons. High-precision 100-mm channel faders of the type usually found in high-end recording consoles and the ultra-high quality VCA crossfader fulfill any wishes you may have.

The Behringer DX1000 backs your pro-level commitment, down to the smallest detail. This creative instrument with its ultra-DJ-friendly user interface guides you through the most essential functions and monitors each option you select with its status LEDs. Indispensable ingredients such as the PFL function, which is monitored visually together with the main output signal by a 12-segment LED VU meter, the talk-over function and the subbass output are just a few of the DX1000's many special features, offering both you and your audience a sound experience undreamed-of before.

XY Routing Solves Even the Trickiest Performance Problems
The heart of a successful mix is the crossfader that determines the X and Y signal portions. We use extremely rugged and precisely working components for the perfect design of our sophisticated VCA controller - enduring more than 200,000 operating cycles. The master LEDs "assign X" and "assign Y" ensure convenient and flexible XY routing of all tracks. The crossfader and additional mix transforming (e.g. with the punch and cut buttons) allow for handling the DX1000 intuitively - throwing your audience on the dance floor into rhythmical ecstasy and making you the star of an unlimited DJ performance.

"Mr. Bombastic" - The Unbeatable 3-Band EQ with Subbass Output
Punch and power, crystal-clear quality - that's what your sounds get from the DX1000's ultra-musical 3-band EQ. You want some more power? Here you are! Use the subbass output on the rear with 2 separate output level and crossover frequency controls to get the definite punch on the dance floor. Be "Mr. Bombastic" with the DX1000!

Features Unlimited - Solutions Can Be So Easy
The Pre-Fader-Listen function is the most professional way to adjust signal levels. Naturally, each channel has this indispensable DJ feature. The perfect talk-over system of the DX1000 allows you to seamlessly announce the next track. With the second main mix and zone output you can feed your mix into a separate system, which can even be located in a different room. The effect return input enables you to connect an effects device or another music source, while the 12-V lamp socket and dimmer make sure that you've got everything under control!

Pro Mixer DX1000 - DJ-ing at its best!

Features
5 dual stereo input channels for 10 stereo sources

Ultra-musical 3-band EQ with bypass and kill switch for the bass EQ

Replaceable ultra-high quality VCA crossfader enduring 200,000 cycles

Smooth 100-mm channel faders made by Panasonic, like those found on pro-level studio consoles

2 extremely high-grade mic channels with peak LED

Talk-over function for automatic fade-outs of main signals depending on the mic signal

PFL button with status LED on all channels

Balance control for crossfading from main and PFL signals to headphones section

Extremely flexible and clearly structured XY routing with status LED on each channel

Unlimited creativity with main mute (-20 dB) and main boost buttons (+4 dB)

Subbass output for separate subwoofer

"Machine control" on all channels allows for starting external devices from the mixer

2 tape outputs with or without mic signal

Super-robust construction with ultra-low noise ULN design

Additional zone output for control of a second sound reinforcement area

Manufactured under ISO9000 certified management system

Technical Info

Mono Input Channels
Mic input - electronically balanced, discrete input configuration
Gain: +10 to +60 dB
Frequency response: 10 Hz to 100 kHz, +/- 3 dB
THD: 0.004 % typ. @ -30 dBu, 1 kHz

Line Input
Gain: -10 dB to +40 dB
Frequency response: 10 Hz to 100 kHz, +/- 3 dB
THD: 0.003 % typ. @ +4 dBu, 1 kHz, Gain 1
S/N ratio: 115 dB

EQ
Low: 50 Hz, +/- 12 dB
Mid: 700 Hz, +/- 8 dB
High: 10 kHz, +/- 12 dB
Low cut: 75 Hz, 18 dB/oct.

Stereo Input Channels
Phono/line/CD input - unbalanced input
Gain
Line/CD: +/- 15 dB
Phono: +/- 15 dB (variable from 25 dB to 55 dB)

Frequency response
Line/CD: 10 Hz to 100 kHz, +/- 3 dB
Phono: 20 Hz to 20 kHz, RIAA

THD
Line/CD: 0.003 % typ. @ +4 dBu, 1 kHz, Gain 1
Phono: 0.004 % typ. @ -30 dBu, 1 kHz

S/N ratio
Line/CD: 106 dB
Phono: 105 dB

EQ
Low: 50 Hz, +/- 12 dB
Mid: 700 Hz, +/- 8 dB
High: 10 kHz, +/- 12 dB

Connectors
Master out
Jack: 0 dB
XLR: +6 dB

Monitor out
Jack: 0 dB (max. 10 dB gain)

Zone out
Jack: 0 dB (max. 10 dB gain)

Insert send: 0 dB

Insert return: 0 dB

Effect send: 0 dB

Power Supply
Mains Voltages USA/Canada ~ 120 V AC, 60 Hz, PSU MXUL 1

Physical
Dimensions (W x H x D): approximately 14 in. (355.6mm) x 19 in. (482.6mm) x 2.4 in./6 in. (60.96 mm/152.4 mm)

Net weight (without PSU): approximately 6.5 kg
