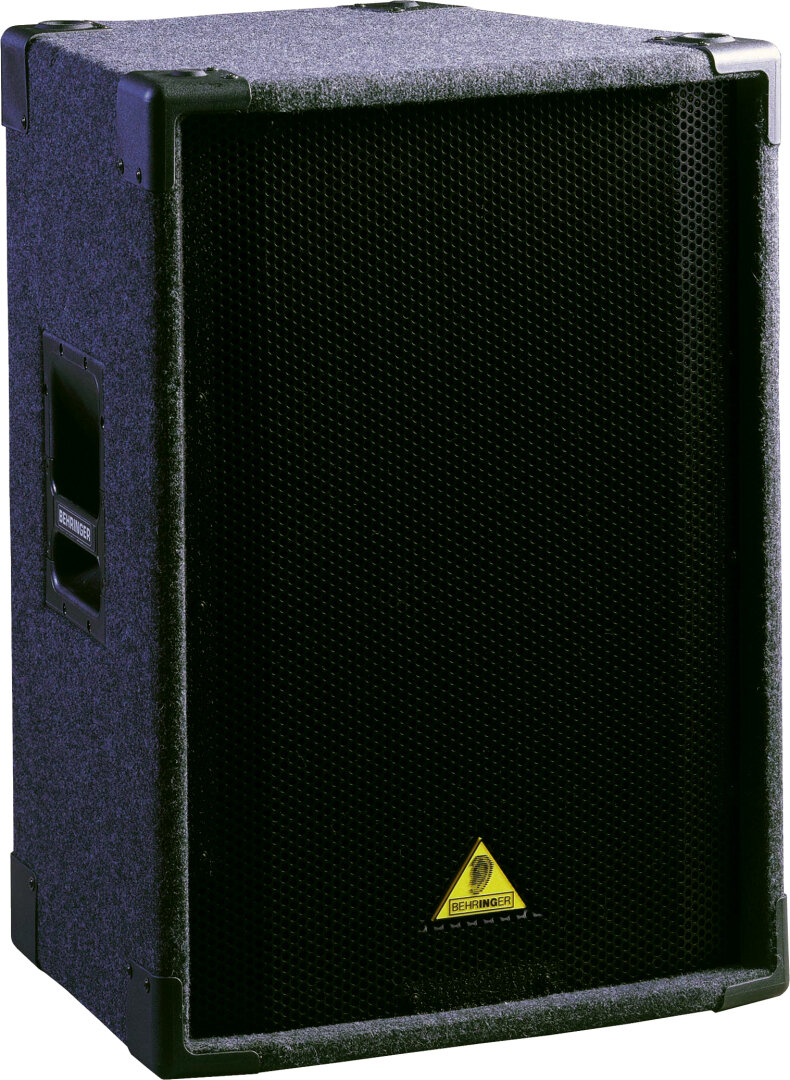

The Behringer Eurolive B1520 is a high performance speaker system equipped with the same great features as the B1220 but with a 15" woofer. The result is better performance in the low frequency range, eliminating the need for additional subwoofers in many applications. For large PA setups the B1520 may be used in bi-amping mode adding a B1800 subwoofer for low frequency transmission. You get a PA system that grows with your needs without making any compromises. Its trapezoidal cabinet design is perfect for cluster formation in larger systems. Integrated HF driver protection and professional Speakon input and output connectors complement this professional package.
Features
200 W (RMS)/400 W (pink noise), nominal impedance: 8 Ohms
Extremely high sound pressure level (95 dB full space 1 W @ 1 m)
50 Hz - 18 kHz frequency response (-10 dB)
Optional bi-amping or full range operation
1 in. titanium HF driver for natural high-frequency reproduction
Behringer CD-horn technology for controlled dispersion (100Á x 40Á)
Behringer HF driver protection
Trapezoidal cabinet for optimal cluster formation
Rugged corners for additional protection
Socket for stand or pole mounting
Technical Info
Type: 2-way full range speaker (15" + 1")
Frequency response: 50 Hz - 18 kHz (-10 dB)
Power rating (RMS): 200 Watts
Power rating (pink noise): 400 Watts
Impedance: 8 Ohms
Sound pressure level: (1 W @ 1 m) 95 dB (full space)
Dispersion: 100Á x 40Á
Crossover frequency: 1.8 kHz
Components: HF driver: 44P60A8
Woofer: 15P200A8
Dimensions (H x W x D): 711 x 529 x 414mm (28 x 20-7/8 x 16-5/16 in.)
Weight: 29.75 kg, approximately
Bi-amping mode: Recommended crossover frequency (external crossover network): 1.2 kHz - 2.2 kHz
Power rating/Impedance: Woofer 200 Watts RMS/8 Ohms
Power rating/Impedance HF driver: 60 Watts RMS/8 Ohms (>2.2 kHz/12 dB/oct)
