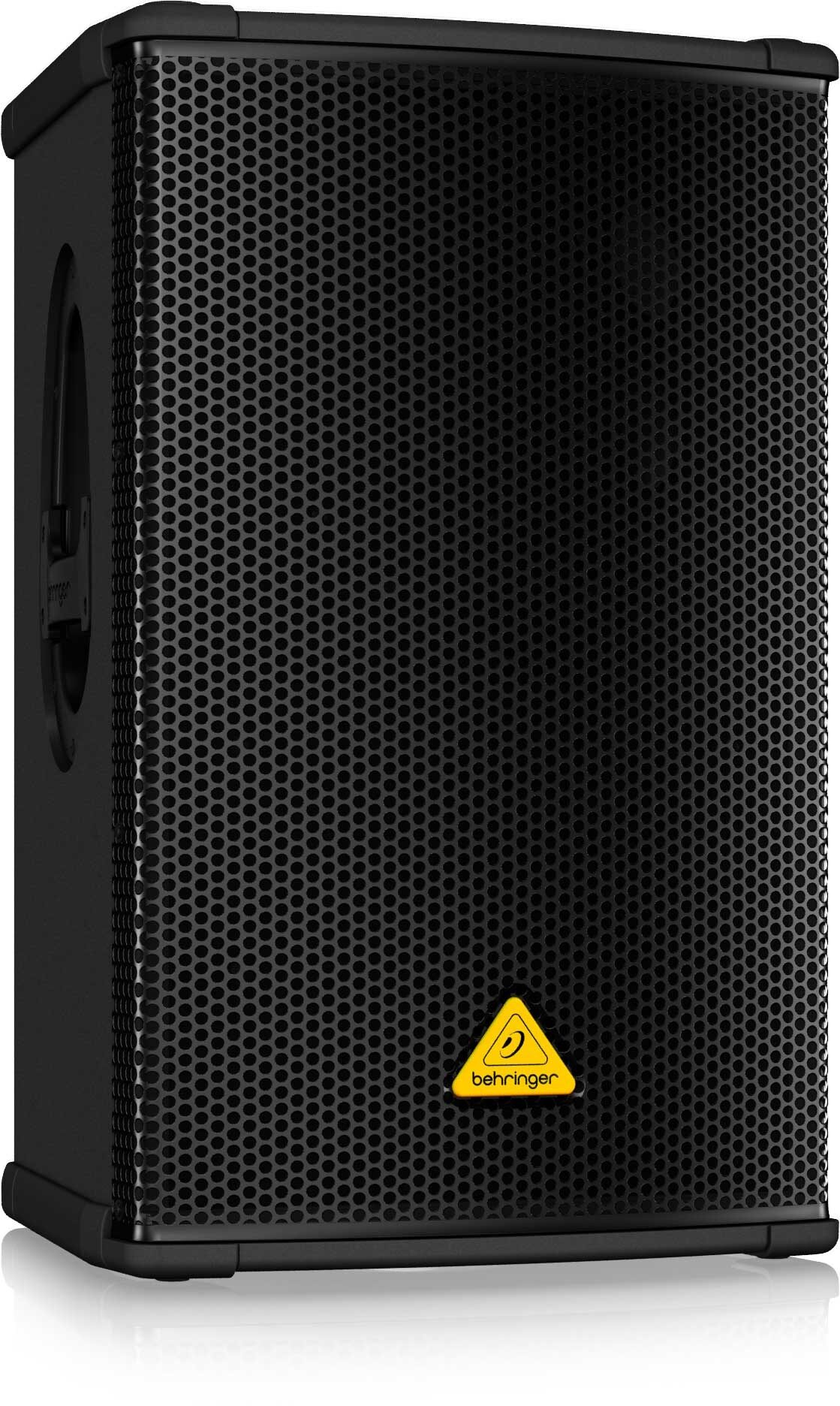

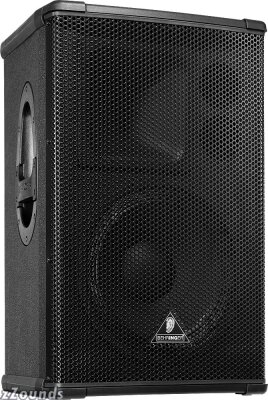

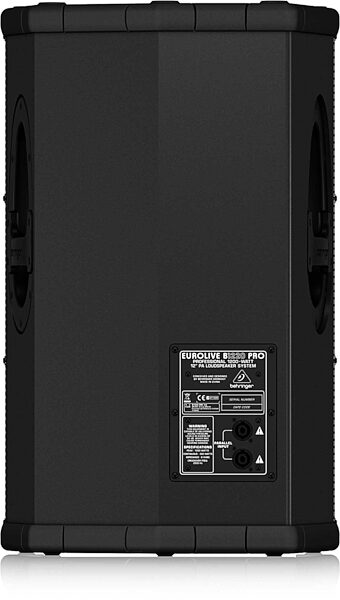

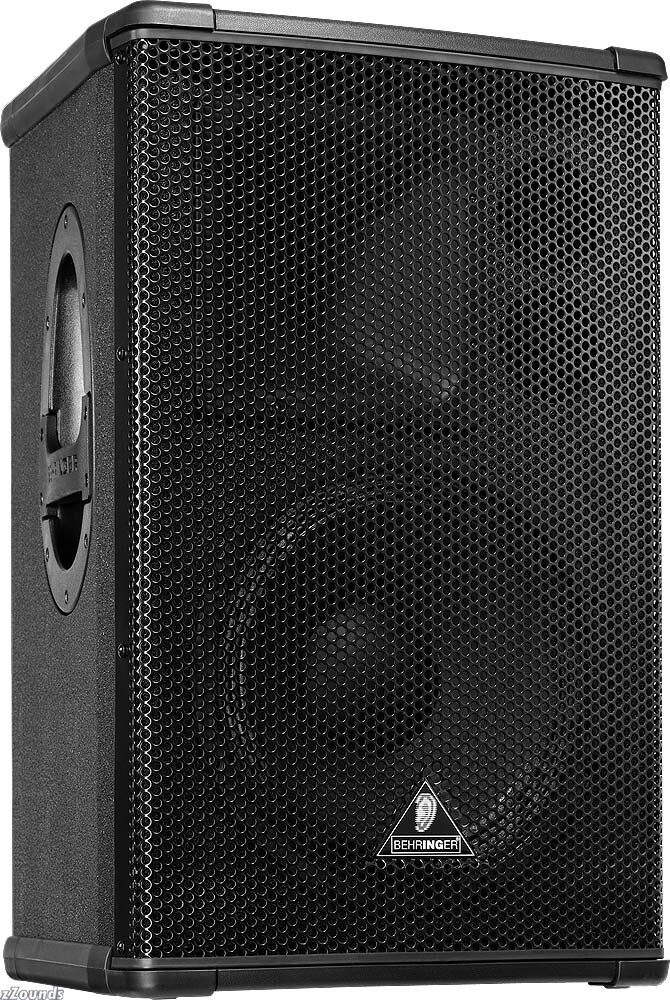

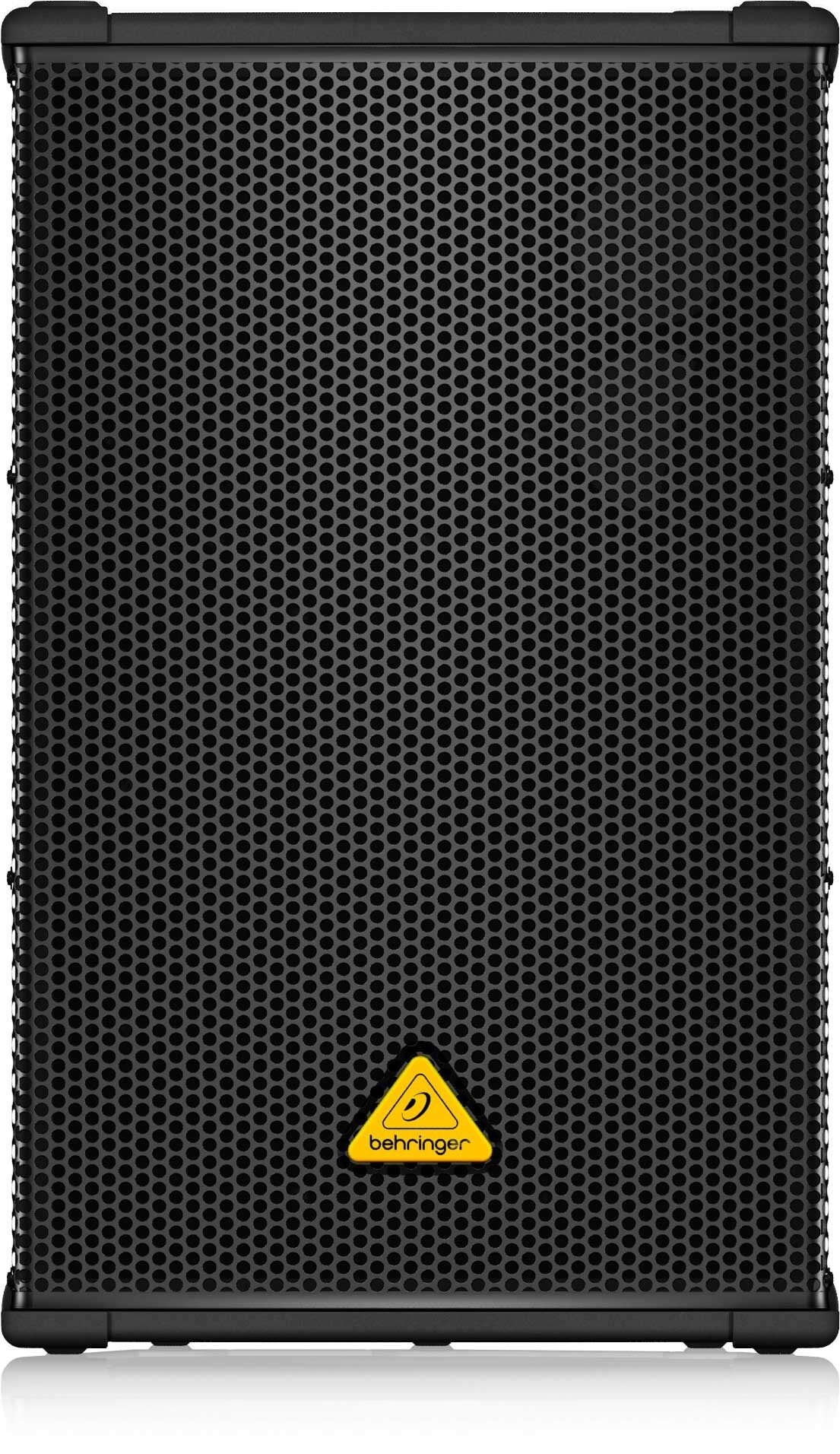

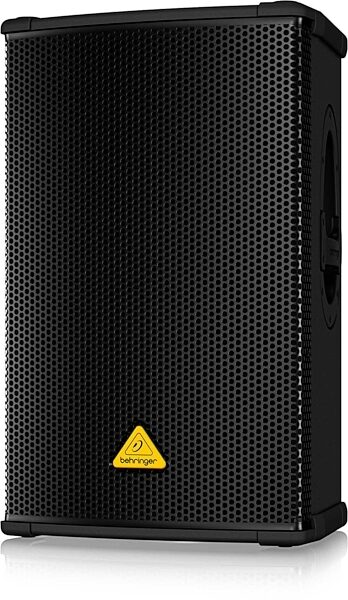

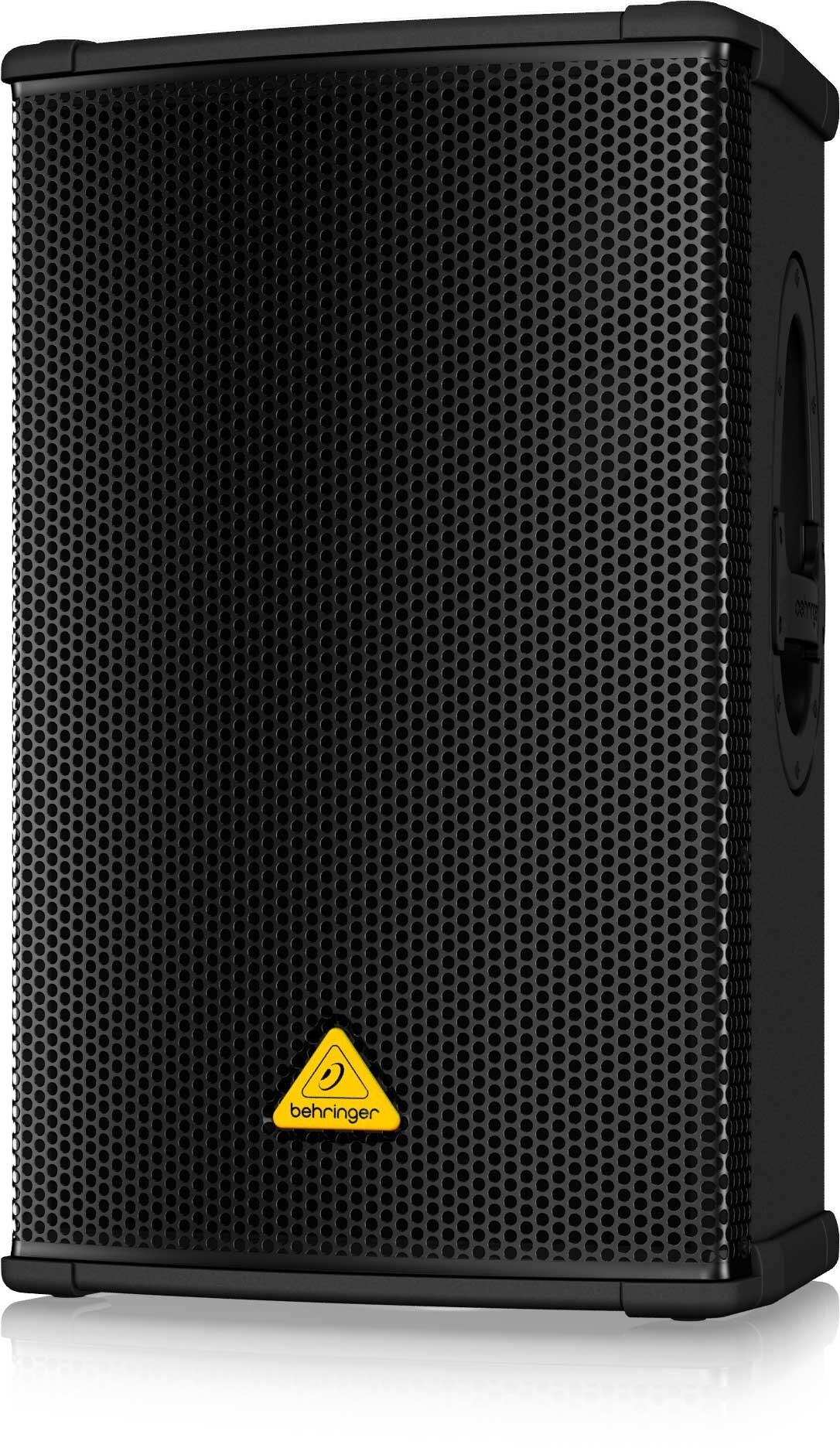

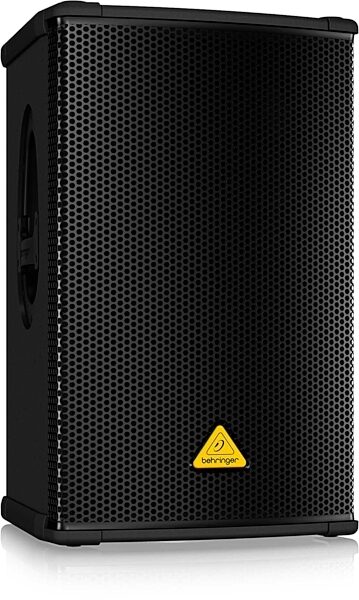

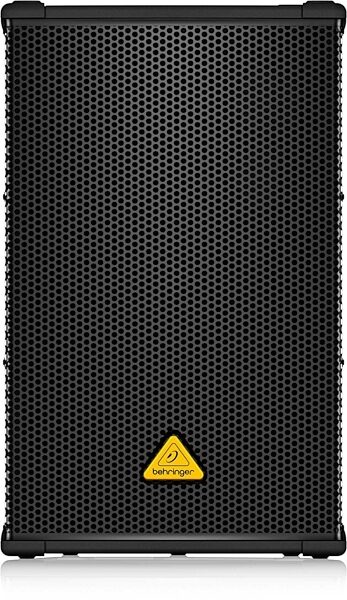

The new B1220 PRO loudspeaker is yet another addition to our outstanding EUROLIVE series, and is geared towards real professional applications. This reference 800-watt loudspeaker with a great price-to-performance ratio is intended for PA applications, and can also be used as floor monitor. Its extremely versatile enclosure profile allows different positioning: 10 & 35 degree cluster and stacking mode, stand mounting with 35-mm pole socket or positioning as a floor monitor wedge. The technical highlights include extremely high sound pressure levels (95 dB full space 1 W @ 1 m), an ultra-wide 50 Hz - 18 kHz frequency range and a proprietary 1 3/4 in. titanium diaphragm compression driver for brilliant, natural high frequency reproduction. Built-in overload-protection circuitry ensures optimal HF driver protection. The B1220 PRO's distinctive design and build quality truly deliver unrivalled sonic excellence.
Technical Info
Type: 2-way full-range speaker (12-inch + 1-inch)
Frequency Response: 55 Hz - 18 kHz (-10 dB)
Power Rating(*1) (RMS): 400 Watts
Power Rating (Peak Program): 800 Watts
Impedance: 8 Ohms
Sound Pressure Level(*2) (1W @ 1m): 95 dB (Full Space)
HF Driver: 25T20A8
Woofer: 12W400A8
Dimensions: Approx. 15 3/5 x 25 1/8 x 16 inches (397 x 638 x 406 mm)
Weight: Approx. 52 1/10 lbs. (24 kg)
Power Rating and Impedance of the Woofer: 400 Watts IEC; 8 Ohms
Power Rating and Impedance of the HF Driver: 60 Watts IEC; 8 Ohms (>2.5 kHz/12 dB/oct)
(1) Average value over bandwidth of 50 Hz - 5 kHz (multi-way systems) and 40 Hz - 250 Hz (subwoofer) according to IEC 268-5.
(2) Average value over bandwidth 100 Hz - 2 kHz (multi-way systems) und 100 Hz - 250 Hz (subwoofer) according to IEC 268-5.
(3) Slope: 12 - 24 dB
