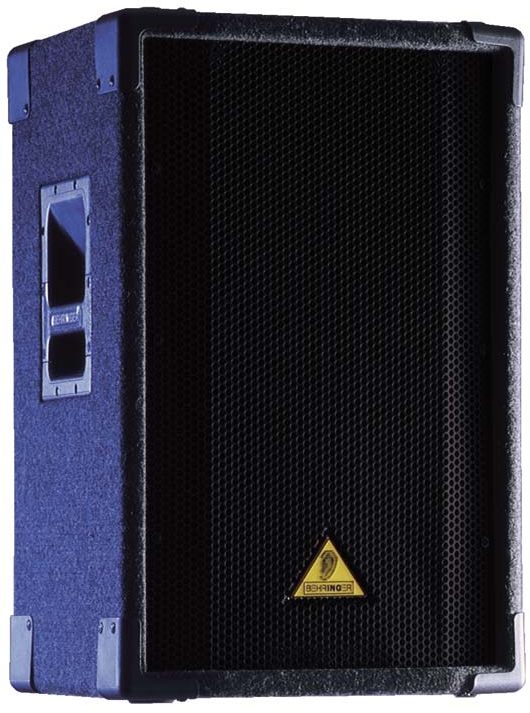

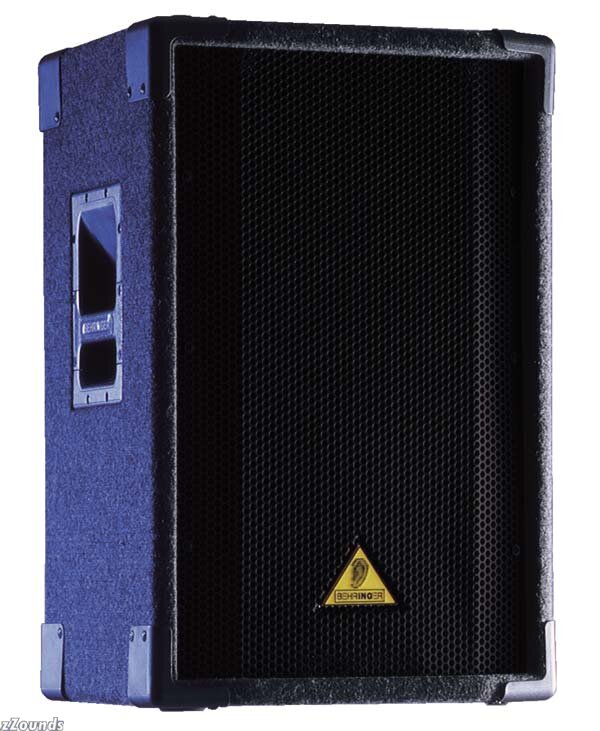

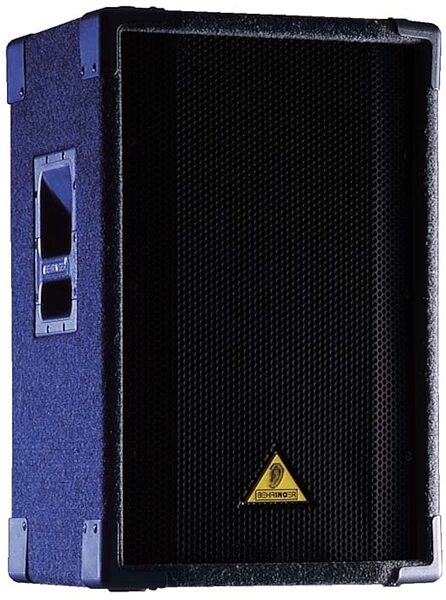

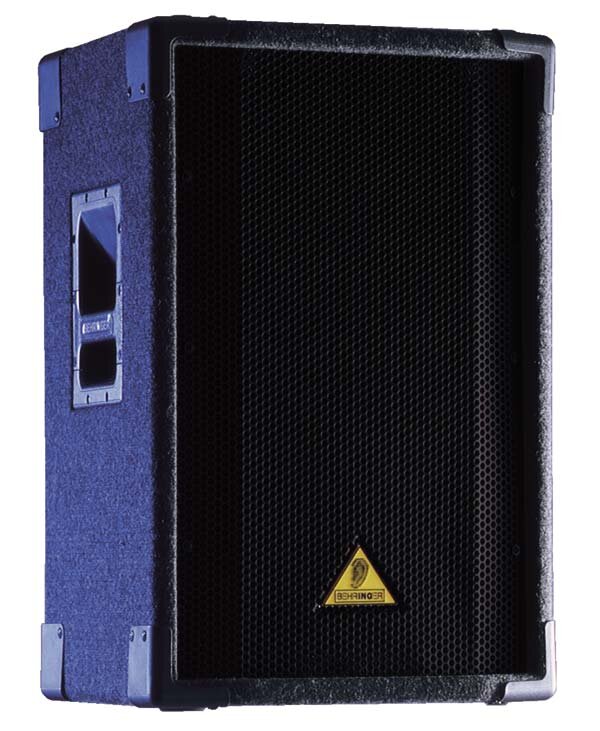

The Behringer Eurolive B1220 is an ultra-flexible speaker system for a great range of possible applications, i.e. for club gigs, vocal, and instrument reproduction in churches, karaoke, or as a mid/high system in large-scale PAs. It provides an ultra-clean and bright sound even at higher levels with virtually no distortion. Its trapezoidal cabinet design is perfect for cluster formation in larger PA systems. For larger setups the B1220 can be easily combined with the Eurolive B1800 subwoofer.
Features
200 W (RMS)/400 W (pink noise), nominal impedance: 8 Ohms
Extremely high sound pressure level (95 dB full space 1 W @ 1 m)
50 Hz - 18 kHz frequency response (-10 dB)
Optional bi-amping or full range operation
1" titanium HF driver for natural high-frequency reproduction
Behringer CD-horn technology for controlled dispersion (90Á x 40Á)
Behringer HF driver protection
Trapezoidal cabinet for optimal cluster formation
Rugged corners for additional protection
Socked for stand or pole mounting
Technical Info
Type: 2-way, full-range speaker (12" + 1")
Frequency response: 50 Hz - 18 kHz (-10 dB)
Power rating (RMS): 200 Watts
Power rating (pink noise): 400 Watts
Impedance: 8 Ohms
Sound pressure level: (1 W @ 1 m) 95 dB (full space)
Dispersion: 90Á x 40Á
Crossover frequency: 2.5 kHz
Components: HF driver: 44P60A8
Woofer: 12P200A8
Dimensions (H x W x D): 638 x 438 x 399 mm (25-5/8 x 17-5/16 x 15-11/16 in.)
Weight: 23.25 kg, approximately
BI-AMPING MODE: Recommended crossover frequency (external crossover network): 1.8 kHz - 3.5 kHz
Power rating/Impedance Woofer: 200 Watts RMS/8 Ohms
Power rating/Impedance HF driver: 60 Watts RMS/8 Ohms (>2.2 kHz/12 dB/oct)
