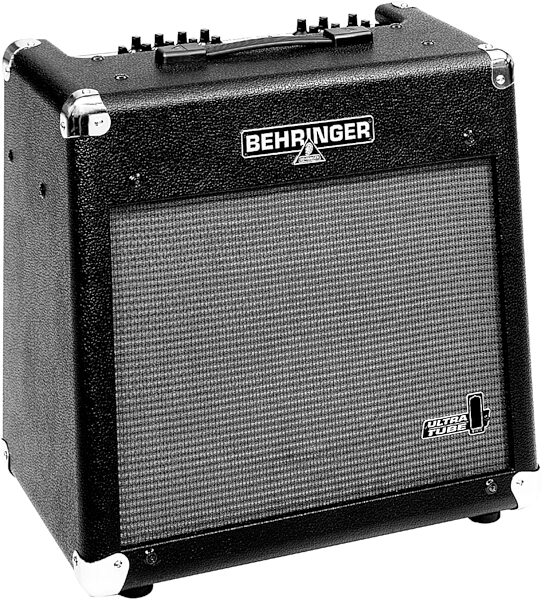

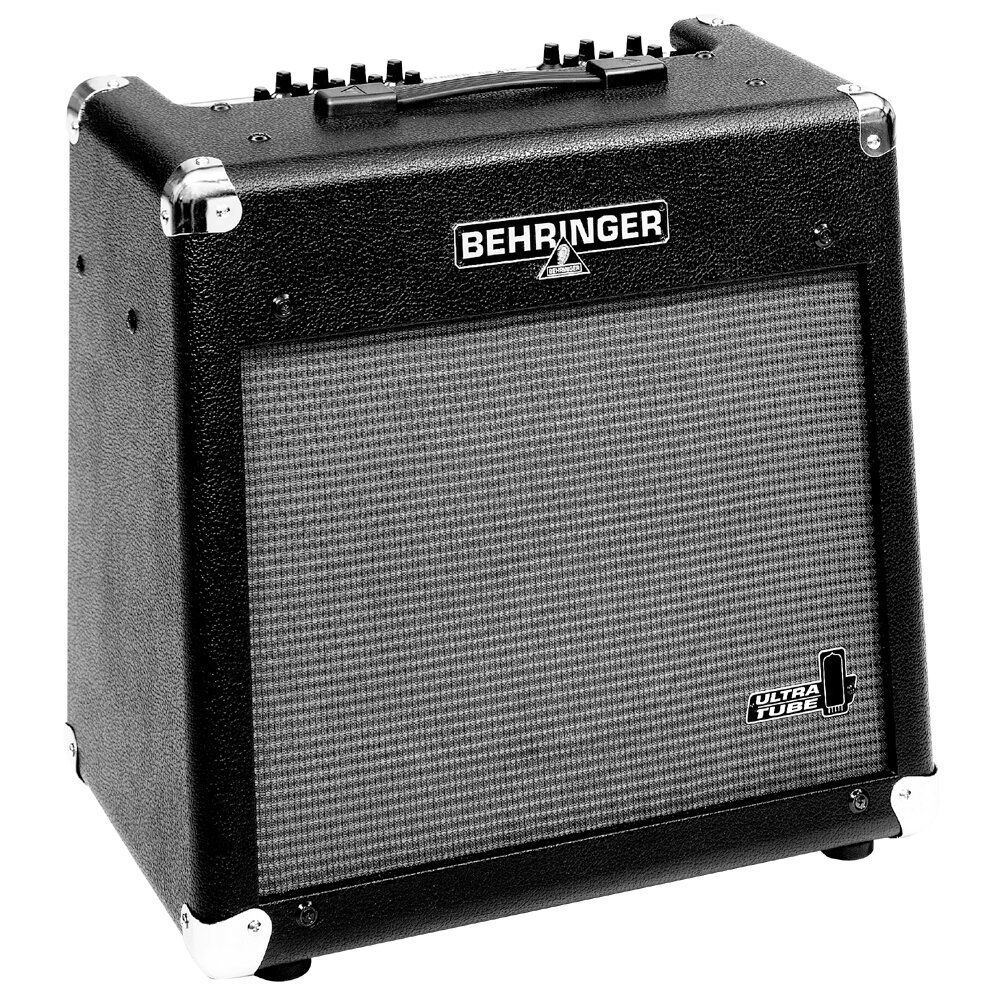

Tube character at its best. The VINTAGER AC112. Warm, powerful clean sounds and sexy, singing overdrive.
Favorites
60 Watts RMS UltraTube¬ amp
Original 70-Watt 12" JENSEN¬ speaker
2 channels with separate volume, EQ, and FX
3 FX parameters adjustable per preset
Digital stereo FX unit with 24-bit converters
Insert, stereo aux in and line out, phones, MIDI
Technical Info
Audio Inputs
Connector: 1/4 in. mono jack
Type: RF filtered input
Guitar Impedance: 1M ohm unbalanced, approximately
Insert Return Impedance: 10k ohm unbalanced, approximately
Aux Impedance: 10k ohm unbalanced, approximately
Audio Outputs
Connector: 1/4 in. mono jack
Type: Line level output
Insert Send Impedance: 100 ohm unbalanced, approximately
Line Out Impedance: 120 ohm unbalanced, approximately
Max. Output Level: +12dBu unbalanced
Power Amp Output: 60W RMS @ 5%THD + N into 8 ohms
MIDI Interface: 5-pin DIN socket, MIDI In
Converters: 24-bit sigma-delta, 64/128x oversampling
Sample Rate: 46.875 kHz
Display: 2-segment LED
Speaker: 12 in. heavy-duty loudspeaker, model Jensen JCH12/70
Speaker Impedance: 8 ohms
Speaker Power Handling: 70W
Power Supply: 120V/60Hz
Power Consumption: 40W min. 130W max.
Fuse: T 2A H
Mains Connection: Standard IEC receptacle
Dimensions: 18.8 x 20.3 x 10.5/12.5 in., approximately
Weight: 18.5 kg, approximately
