Product Description

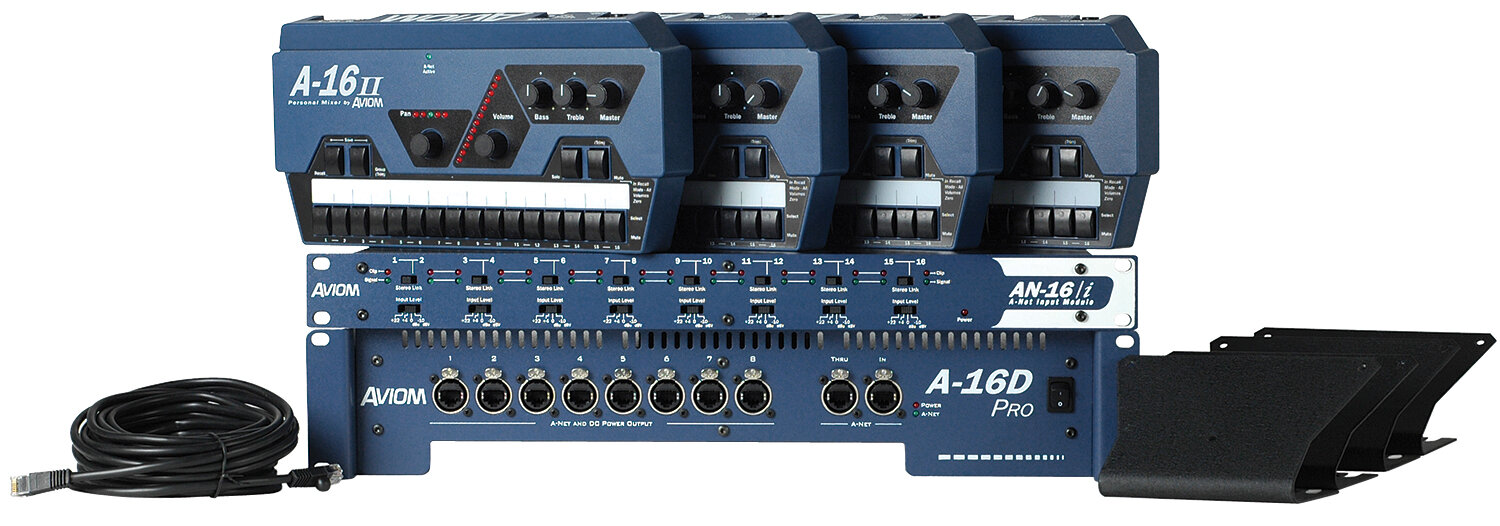

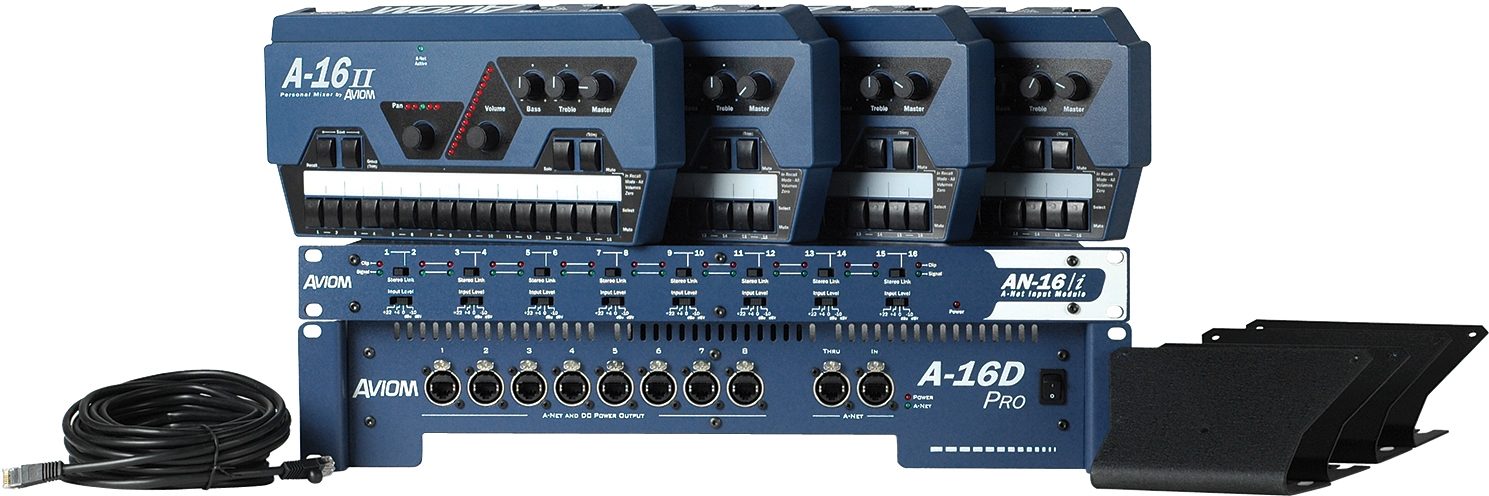

The Aviom Mix4 is a complete monitor mixing solution for four performers. The system includes an AN-16/i line-level input module which accepts up to 16 line-level inputs. Audio is converted to digital and transmitted via A-Net(R), up to 500ft/150m over Cat-5e. A dedicated audio thru is available for each input channel, allowing the AN-16/i to be seamlessly inserted into an existing audio signal path.
The 16-channel A-16II Personal Mixer allows a performer to create and save up to 16 custom mixes, and gives each performer control over channel volume, grouping, pan, stereo spread, along with master volume and tone. The system also includes an MT-1 for each Personal Mixer to allow the personal mixer to be mounted on any standard mic stand.
The Aviom A-16D Pro A-Net Distributor eliminates the need to daisy chain Personal Mixers, and simplifies set-up by eliminating the need to connect a power supply to each mixer. The A-16D Pro accepts one Pro16 A- Net input signal and provides nine parallel outputs, using rugged EtherCon connectors and standard Cat-5e cables. The A-16D Pro provides isolated (floating ground) DC power through the eight A-Net Outs; the ninth output is an unpowered A-Net Thru connector, designed for distributing a copy of the A-Net signal to a second A-Net Distributor or remote location.
As with all Aviom personal mixing systems, this four-mix package can be expanded as needed to include more Personal Mixers at any time.
Includes
- 1 x AN-16/i Input Module
- 1 x A-16D Pro A-Net Distributor
- 4 x A-16II Personal Mixers
- 4 x MT-1 Mic Stand Mounts
- 1 x L-25 Cat-5e Cable
zZounds is an authorized dealer of
Aviom products.
AN-16/i Input Module
-
Audio Inputs: 16, balanced line-level, 1/4-inch TRS connector
-
Inputs: Tip: Audio +; Ring: Audio -; Sleeve: Ground
-
TRS Thru: Impedance matched output
-
Analog to Digital Conversion: 48kHz sample rate, 24 bit
-
Frequency Response: 4Hz-22kHz
-
A-Net Output: one Category 5 (RJ45 connector)
-
A-Net Expansion: one Category 5 (RJ45 connector)
-
Gain Settings: Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu
-
Channel LED Indicators: Signal Present and Clip, per channel
-
Line Inputs: Impedance: 48k ohms
-
Metering: LEDs; green: Signal Present, red: Clip; per channel
-
Stereo Operation:- Stereo Link, per channel pair;
- Two-position switch (Normal, Link)
-
Maximum Input Level: +22dBu
-
Input Impedance: 17.8k ohm
-
Freq. Response: 4Hz-22kHz +0.2dB/-3dB
-
THD +N: < 0.003%
-
Crosstalk: -90dB
-
Bit Error Rate (BER): 10(-12)
-
Signal to Noise (unweighted): - 90dB typical, A/D to D/A
- Measured from AN- 16/i to AN-16/o Output Module
-
Digital Outputs: A-Net: 1; A-Net Expansion: 1; RJ45 connector
-
A-Net Pro16: A-Net Expansion combines two A-Net streams (32 channels of audio) onto one Cat-5e cable; use unshielded Cat-5e UTP (or better) cable
-
Latency: <0.880 msec (measured from analog input to analog output)
-
Power Supply- Input Voltage
- Output Voltage
-
- Plug Size: - External, DC, universal switching type
- 100-240 volts, 50/60Hz, 30VA
- 18-24 VDC, 0.5 amp
- 2 mm
-
Power: 18-24 VDC, 500mA
-
Dimensions: 19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
-
Weight: 6.8 lbs. (3.08 kg)
A-16II Personal Mixer
-
Audio Output: 1/4-inch TRS stereo, headphone or line level
-
Line/Headphone TRS Output: Tip: Audio Left; Ring: Audio Right;Sleeve: Ground Auto-detects mono plugs
-
A-Net Input/Output: 1 A-Net input, 1 A-Net output; Category 5 (RJ45 connector)
-
Digital to Analog Conversion Bit Depth: 24 bit
-
Signal to Noise Ratio: (Referenced to 0dB) -103dB
-
Latency: <0.880 msec (measured from analog input to analog output)
-
Pro16 A-Net: uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices
-
Tone Controls: - Treble +/-12dB at 9kHz shelving
- Bass +/-12dB at 160Hz shelving
-
Maximum Levels (RMS): Line/Headphone outs: 1.0 watt at 100 ohms
-
Impedance: Line/Headphone outs: 32 ohms
-
Power Supply:- Input Voltage
- Output Voltage
-
- Plug Size: External, DC, universal switching type
- 100-240 volts, 50/60Hz, 30VA
- 18-24 VDC, 0.5 amp
- 2 mm
-
Dimensions: 10.75" (273 mm) wide x 5.6" (142.2 mm) deep; 2.25" (57.5 mm) high
-
Weight: 3.4 lbs. (1.54 kg)
-
Options: - MT-1 Mic Stand Mount (uses 6-32 1/4-inch screws)
- EB-1 Extension Bracket
- MT-X Expansion Box (requires MT-1)
A-16D Pro A-Net Distributor
-
A-Net Input: One EtherCon RJ45 connector
-
A-Net Thru: One EtherCon RJ45 connector, unpowered
-
A-Net Outputs: 8 EtherCon RJ45 connectors, powered (DC)
-
LEDs: Power On; A-Net Active
-
Pro16 A-Net: 16 channels of digital audio over Cat-5e cable, uses unshielded Cat-5e UTP (or better) cable
-
Power Supply: Internal, universal switching type
-
Cooling: One ultra-quiet fan
-
Input Voltage: 100-240VAC, 50-60Hz, 60W
- Output Voltage for
-
Personal Mixers: 18-24 VDC, 0.5 amp transmitted over the Cat-5e cable
-
Dimensions: 19" (482.6 mm) wide x 14.25" (362 mm) deep; 2U, 3.5" (88.9 mm) high
-
Weight: 12.0 lbs (5.44 kg)
T-1 Mic Stand Mount
-
Boxed Weight: 1lb.
-
Boxed Dimensions: 7"w x 5"d x 3"h
-
Dimensions: 6.25" wide at front x 4.5" wide at rear x 3" high
-
Connections: Attaches with three screws to bottom of A-16II or A-16CS
-
Connectors: size: 6-32, 1/4-inch long screws
- Dimensions and Weight in Packaging
- Shipping Weight: 88 lbs
-
Shipping Dimensions:
25 x
24 x
18 in
