Aviom A16II Personal Monitor Mixer

No longer available at zZounds
This is a carousel with one large image and a track of thumbnails on the left side. Select any of the thumbnail buttons to change the main image. You may also use the left and right arrow keys to navigate between images.

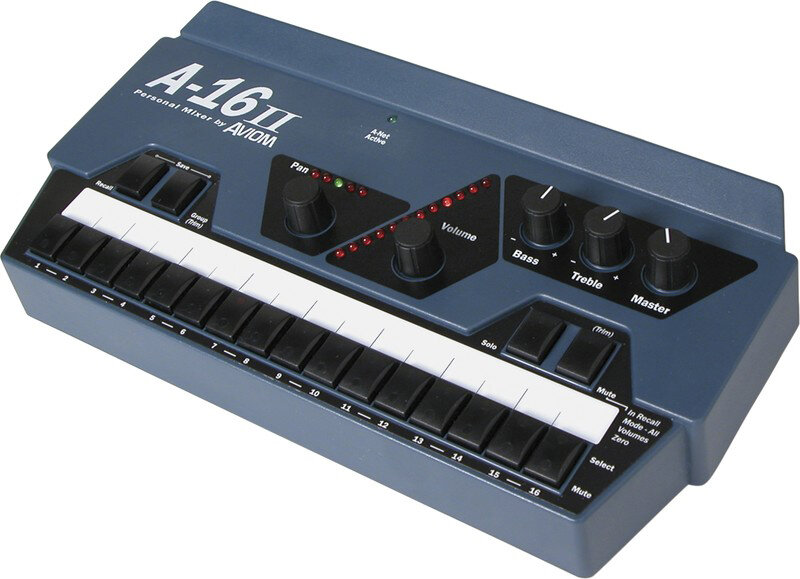

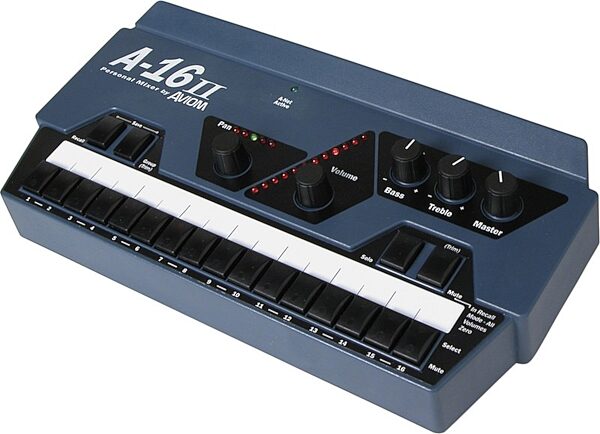

Aviom A16II Personal Monitor Mixer, Main

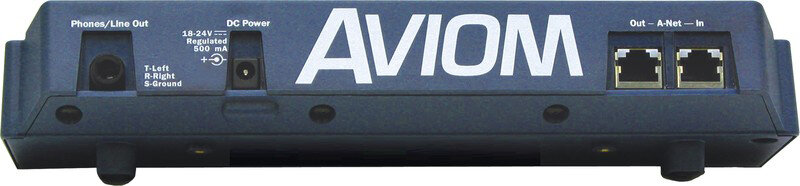

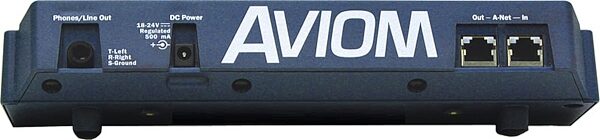

Aviom A16II Personal Monitor Mixer, Rear

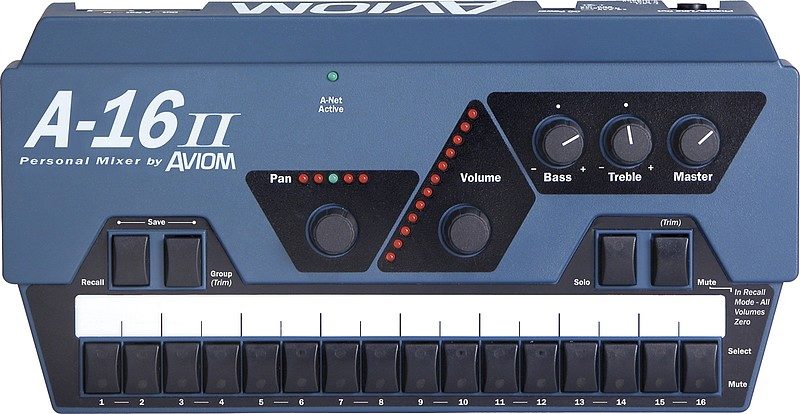

Aviom A16II Personal Monitor Mixer, Top
Aviom A16II Personal Monitor Mixer, Main Aviom A16II Personal Monitor Mixer, Rear Aviom A16II Personal Monitor Mixer, Top
On stage or in studio, easily save and quickly recall up to 16 custom preset mixes tailored to the specific needs of each band member with Aviom's A16II.

The A16II allows individual performers to create custom monitor mixes tailored to their individual needs. Designed for use in live performance or in the studio, the A16II Personal Mixer gives each performer control over channel volume, grouping, pan, stereo spread, and master volume and tone. Every Personal Mixer in a system can create a unique monitor mix for a performer. Users can save and recall up to sixteen custom mixes as presets in their Personal Mixer.

The stereo output from the A16II can be used to drive wired or wireless in-the-ear monitors, headphones, powered floor wedges, an amplifier, or spot monitors.

The A16II Personal Mixer is fully compatible with all Pro16 Series products, including Aviom's digital interface card for Yamaha digital mixing consoles. Support for Aviom monitor mixing is available in the form of console interface cards from an ever- increasing list of digital console manufacturers including Digidesign, Soundcraft, Innovason, etc. Look for the A-Net Active logo, and see the Partners page for additional information.

Mixers can be daisy-chained or connected in parallel using an A-Net Distributor. Parallel connections also allow power to be supplied to the mixers over the Cat-5e cable. As with all Pro16 Series products, Cat-5e cable runs of up to 500 feet (150 meters) are possible between devices, and there is no limit to the number of mixers in a system.

Features
16-channel stereo mixer

Fully adjustable pan per channel

Line/headphone audio… read more output

Auto-detect mono/stereo circuitry

Simple set-up with Cat-5e cables

Sixteen Preset locations for storing custom mixes

Channel solo, mute, and group functions

Global trim for reducing all channel volumes

Sixteen channel select buttons with dual LEDs

Pan/Spread control with LED readout

Channel volume control with LED level readout

Master Volume, Treble, and Bass controls

Mounts easily on a mic stand with the optional MT-1 Mic Stand Mount read less

Audio Output: 1/4-inch TRS stereo, headphone or line level

Line/Headphone TRS Output:
- Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
- Auto-detects mono plugs

A-Net Input/Output: 1 A-Net input, 1 A-Net output; Category 5 (RJ45 connector)

Digital to Analog Conversion Bit Depth: 24 bit

Signal to Noise Ratio: (Referenced to 0dB) -103dB

Latency: <0.880 msec (measured from analog input to analog output)

Pro16 A-Net: Uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices

Tone Controls:
- Treble +/-12dB at 9kHz shelving
- Bass +/-12dB at 160Hz shelving

Maximum Levels (RMS): Line/Headphone outs: 1.0 watt at 100 ohms

Impedance: Line/Headphone outs: 32 ohms

Power Supply:
- Input Voltage: 100-240 volts, 50/60Hz, 30VA
- Output Voltage: External, DC, universal switching type, 18-24 VDC, 0.5 amp; Plug Size - 2 mm

Dimensions: (WxDxH): 10.75" (273 mm) x 5.6" (142.2 mm); 2.25" (57.5 mm)

Weight: 3.4 lbs. (1.54 kilos)

Options:
- MT-1 Mic Stand Mount
- EB-1 Extension Bracket

For support or warranty questions, please contact the manufacturer:
Phone: 610-738-9005
Data Sheet
