This product is no longer available at zZounds.

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

Aviom A16DPRO A-Net and Power Distribution

One A-Net input, provides eight powered A-Net outputs. A-Net Thru (passive) for system expansion.

Roll Over to Enlarge

Main

overview specs docs

Product Description

zZounds is an
authorized Aviom dealer

Each A16D Pro accepts one Pro16 A-Net input signal and provides nine parallel outputs, using rugged EtherCon connectors and standard Cat-5e cables. The A16D Pro provides isolated (floating ground) DC power through the eight A-Net Outs; the ninth output is an unpowered A-Net Thru connector, designed for distributing a copy of the A-Net signal to a second A-Net Distributor or remote location.

The 2U A16D Pro eliminates the need to daisy chain Personal Mixers, and simplifies set-up by eliminating the need to connect a power supply to each mixer. Inside the A16D Pro is Aviom's unique power sub- system design, which requires no external power supplies and which virtually eliminates the possibility of introducing hum or ground loops. The A16D Pro can also be used as a central hub in an audio distribution system or snake, providing outputs to multiple locations or redundant outputs to a single location.

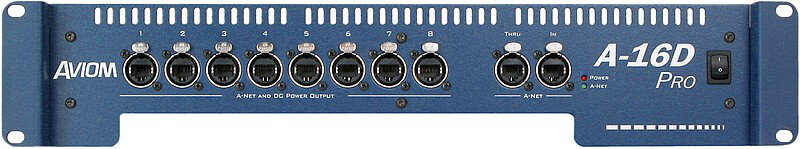

All connections on the A16D Pro are on the front panel. A pass-through cable cutout is provided for flexible cable routing. As with all Pro16 Series products, Cat-5e cable runs can be up to 500 ft/150m.

Features
One A-Net input, eight powered A-Net outputs

A-Net Thru for system expansion (passive A-Net output)

Isolated DC power supplies for eight A-Net Personal Mixers via the Cat-5e cable

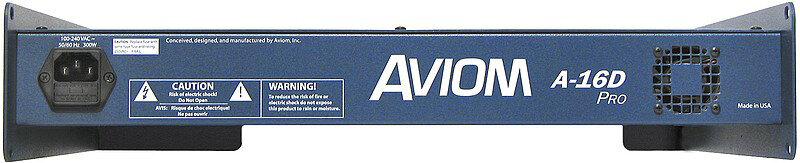

Standard IEC power connection

EtherCon connections throughout

Multiple A-Net Distributors can be used in a system zZounds is an authorized dealer of Aviom products.

A-Net Input: One EtherCon RJ45 connector

A-Net Thru: One EtherCon RJ45 connector, unpowered

A-Net Outputs: 8 EtherCon RJ45 connectors, powered (DC)

LEDs: Power On; A-Net Active

Pro16 A-Net: 16 channels of digital audio over Cat-5e cable uses unshielded Cat-5e UTP (or better) cable

Power Supply: Internal, universal switching type

Input Voltage: 100-240VAC, 50-60Hz, 60W

Output Voltage for Personal Mixers: 18-24 VDC, 0.5 amp transmitted over the Cat-5e cable

Dimensions (WxDxH): 19 in. (482.6 mm) x 14.25 in. (362 mm); 2U, 3.5 in (88.9 mm)

Weight: 12.0 lbs (5.44 kilo)
