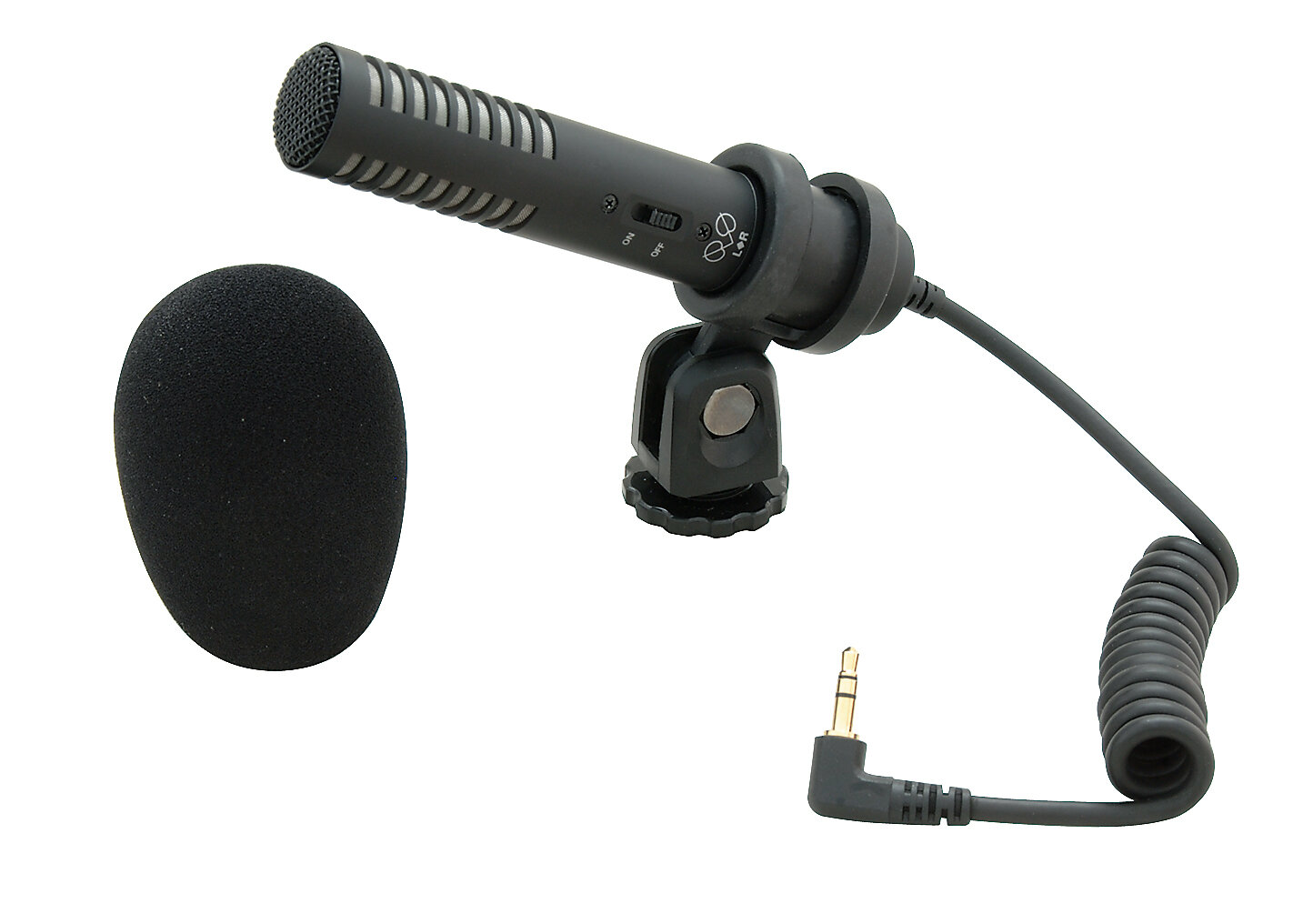

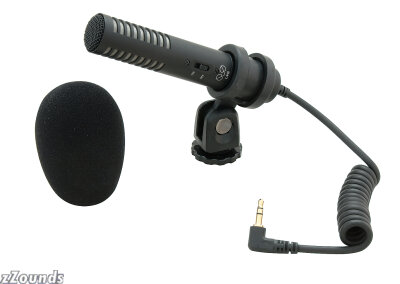

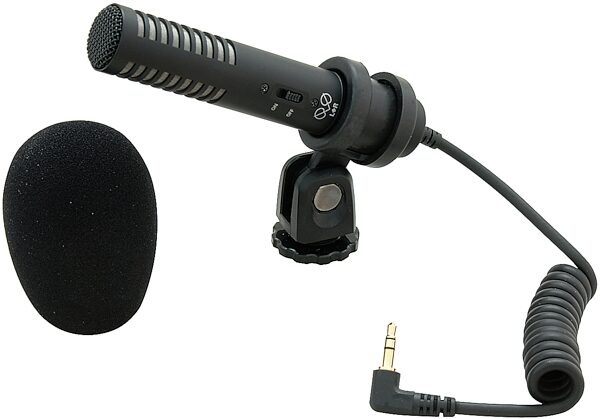

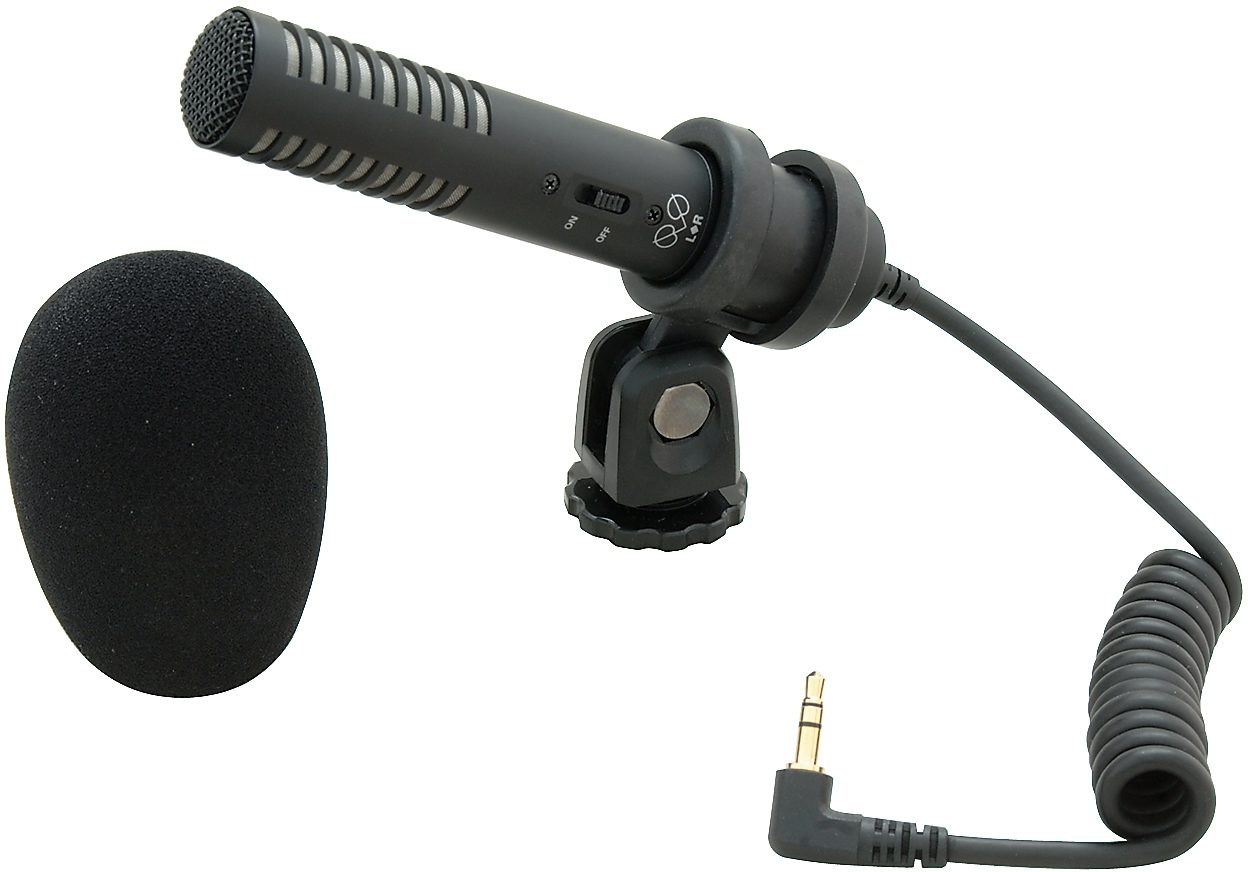

Audio Technica PRO 24-CM Stereo Condenser Microphone

The PRO24CM camcorder microphone is a lightweight, compact stereo condenser ideal for digital recording with high-fidelity stereo sound. Equipped with an accessory shoe and permanently attached coiled cable, the microphone features a pair of cardioid elements in an X-Y configuration to provide the spatial impact and realism of a live sound field. The microphone is designed for either battery operation or battery-free operation when used with camcorders that provide plug-in power at the mic input. Like all Audio-Technica mics, the PRO24CM is rugged; it’s built to endure the rigors of field production.

Features

Stereo microphone designed to attach to a camcorder

For camcorders with an accessory shoe and stereo microphone input

Lightweight, portable design with rugged all-metal construction

Pair of cardioid condenser elements provides spatial impact and high-fidelity stereo sound image

Battery-free operation when used with recording devices that provide plug-in power at the mic input

On/off switch for convenient operation

Includes camera-mount, windscreen, battery and protective pouch

Permanently attached 6-12 in. coiled cable with right-angle molded 3.5 mm stereo mini plug at output end

Technical Info

Elements: Fixed-charge back plate permanently polarized condenser

Polar pattern: X/Y stereo

Frequency response: 100-17,000 hz

Open circuit sensitivity: -50 db (3.1 Mv) RE 1v at 1 PA

Impedance: 600 ohms

Maximum input sound level: 119 dB SPL, 1 khz at 1% T.H.D.

Dynamic range (typical): 82 dB, 1 khz at Max SPL

Signal-to-noise ratio: 57 dB, 1 kHz at 1 PA

Power requirements: 2-10v DC plug-in power

Battery type: 1.5V lR44

Battery current / life 0.6 Ma / 200 hours typical

Switch: On/off

Weight: 3.9 Oz (111 g)

Dimensions: 4.59 in. (116.5 Mm) long, 0.83 in. (21.0 Mm) maximum body diameter

Output connector: 3.5 mm stereo mini plug on cable

Cable: permanently attached 152.4 mm - 304.8 mm (6 in.-12 in.) coiled cable with right-angle molded 3.5 mm stereo mini-plug at output end

Accessories furnished: Video-camera shoe mount; LR44 battery; windscreen; soft protective pouch

Audio-Technica case style: S10

Pro sound for your camcorder! This stereo condenser microphone features a pair of cardioid elements in an XY configuration for high-fidelity digital recording. Powered by battery or through attached miniplug cable. Response from 100Hz-17kHz; includes camera shoe-mount, windscreen, protective pouch.
