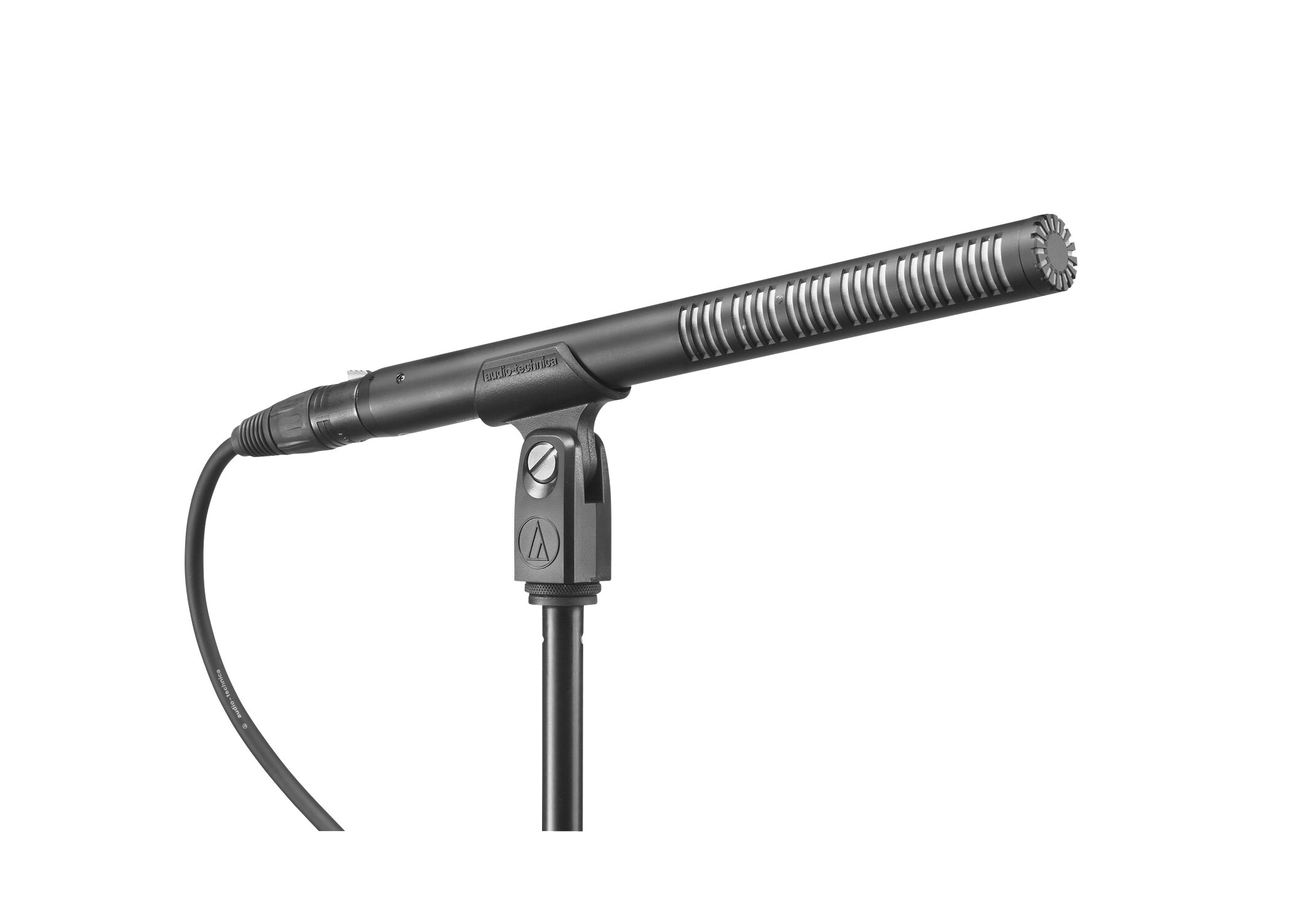

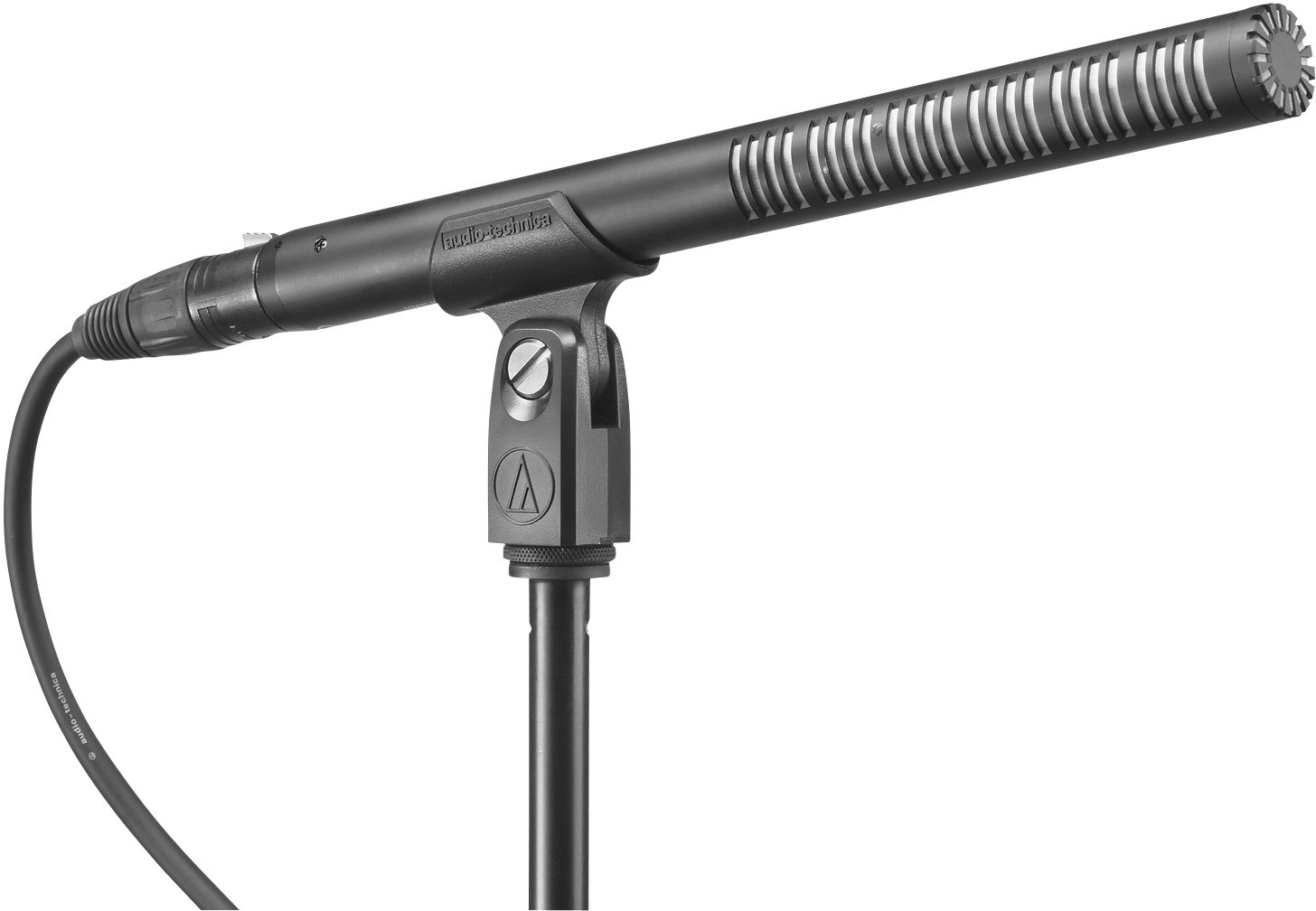

Audio-Technica BP4073 Line Plus Gradient Condenser Microphone
Ideal for film, Audio-Technica's lightweight BP4073 is easy to mount on a minicam and can pick up distant sounds through its narrow acceptance angle.
Overview
With an overall length of just 9.17-inches and weight of just 3.5 oz, the Audio-Technica BP4073 microphone adds virtually no heft to the end of a fish pole or the top of a minicam. Through the use of an innovative Audio-Technica design, the interference tube of the BP4073 provides a narrow acceptance angle, effective for long-distance pickup. The highly directional mics offer low self-noise and are fully RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS).
- Direct-coupled, balanced output ensures a clean signal even in high-output conditions
- Innovative acoustic design provides same directivity as mics up to 50% longer
- Switchable 80 Hz hi-pass filter & 10 dB pad
- Rugged housing made of lightweight structural-grade aluminum alloy
- RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
Features:
- Designed for use in broadcasting, film/TV production and theater sound reinforcement applications- Direct-coupled, balanced output ensures a clean signal even in high-output conditions
- Innovative acoustic design provides same directivity as mics up to 50% longer
- Switchable 80 Hz hi-pass filter & 10 dB pad
- Rugged housing made of lightweight structural-grade aluminum alloy
- RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
Specs
Element: Externally Polarized (Dc Bias) Capacitor
Polar Pattern: Line + Gradient
Frequency Response: 20-20,000 Hz
Low Frequency Roll-Off: 80 Hz, 12 Db/Octave
Open Circuit Sensitivity: -29 Db (35.5 Mv) Re 1v At 1 Pa
Impedance: 50 Ohms
Maximum Input Sound Level: 141 Db Spl, 1 Khz At 1% T.H.D.; 151 Db Spl, With 10 Db Pad (Nominal)
Noise: 13 Db Spl
Dynamic Range (Typical): 128 Db, 1 Khz At Max Spl
Signal-To-Noise Ratio: 81 Db, 1 Khz At 1 Pa
Phantom Power Requirements: 48v Dc, 4.8 Ma Typical
Switches: Flat, Roll-Off; 10 Db Pad (Nominal)
Weight: 99 G (3.5 Oz)
Dimensions: 233.0 Mm (9.17") Long, 21.0 Mm (0.83") Maximum Body Diameter
Output Connector: Integral 3-Pin Xlrm-Type
Accessories Furnished: At8405a Stand Clamp For 5/8"-27 Threaded Stands; 5/8"-27 To 3/8"-16 Threaded Adapter; At8144 Windscreen; Two O-Rings; Protective Carrying Case
Audio-Technica Case Style: Sg2
Polar Pattern: Line + Gradient
Frequency Response: 20-20,000 Hz
Low Frequency Roll-Off: 80 Hz, 12 Db/Octave
Open Circuit Sensitivity: -29 Db (35.5 Mv) Re 1v At 1 Pa
Impedance: 50 Ohms
Maximum Input Sound Level: 141 Db Spl, 1 Khz At 1% T.H.D.; 151 Db Spl, With 10 Db Pad (Nominal)
Noise: 13 Db Spl
Dynamic Range (Typical): 128 Db, 1 Khz At Max Spl
Signal-To-Noise Ratio: 81 Db, 1 Khz At 1 Pa
Phantom Power Requirements: 48v Dc, 4.8 Ma Typical
Switches: Flat, Roll-Off; 10 Db Pad (Nominal)
Weight: 99 G (3.5 Oz)
Dimensions: 233.0 Mm (9.17") Long, 21.0 Mm (0.83") Maximum Body Diameter
Output Connector: Integral 3-Pin Xlrm-Type
Accessories Furnished: At8405a Stand Clamp For 5/8"-27 Threaded Stands; 5/8"-27 To 3/8"-16 Threaded Adapter; At8144 Windscreen; Two O-Rings; Protective Carrying Case
Audio-Technica Case Style: Sg2
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 1.74 lbs
- Shipping Dimensions: 22 x 8 x 3 in
- Manufacturer Part Number (MPN): BP4073
