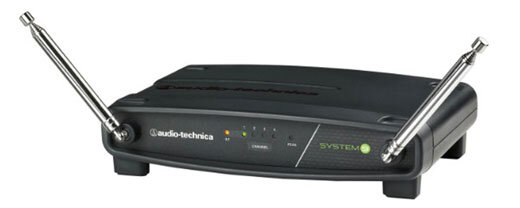

Audio-Technica ATW-R900 System 9 Wireless System Receiver
No longer available at zZounds
Audio-Technica offers an affordable, reliable receiver that offers volume control along with AF Peak, RF and Power indicator lights.
Overview -
The Audio Technica ATW-R900 System 9 Wireless Receiver is designed for use with the System 9 wireless system. The ATW-R900 also offers volume control along with AF Peak, RF and Power indicator lights.
Specs +
- Operating Frequencies: VHF highband, 169 MHz to 172 MHz
- Modulation Mode: FM Maximum Deviation+/-10 kHz
- Dynamic Range: >/=90 dB (A-weighted), typical
- Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
- Operating Range: 200 feet typical (Open range environment with no interfering signals)
- Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C) (Battery performance may be reduced at very low temperatures)
- Frequency Response: 80 Hz to 13 kHz
- Image Rejection: 50 dB minimum
- RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- Audio Output: Nominal Output Level XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) 1/4 inch, unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions (W x H x D): 7.48 x 1.82 x 5.06 inches
- Net Weight: 12.0 oz.
- Accessory Included: Power supply
- Modulation Mode: FM Maximum Deviation+/-10 kHz
- Dynamic Range: >/=90 dB (A-weighted), typical
- Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
- Operating Range: 200 feet typical (Open range environment with no interfering signals)
- Operating Temperature Range: 40 degrees F (4 degrees C) to 110 degrees F (43 degrees C) (Battery performance may be reduced at very low temperatures)
- Frequency Response: 80 Hz to 13 kHz
Receiver Specifications:
- Receiving System: Non-diversity, single-channel, dual antenna system- Image Rejection: 50 dB minimum
- RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- Audio Output: Nominal Output Level XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load) 1/4 inch, unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions (W x H x D): 7.48 x 1.82 x 5.06 inches
- Net Weight: 12.0 oz.
- Accessory Included: Power supply
Documents and Manuals +
For support or warranty questions, please contact the manufacturer:
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com
Phone: 330-686-2600 x5000
Email: audio-solutions@atus.com
No longer available at zZounds
In most cases, a product is unavailable because it has been discontinued by the manufacturer
