Audio Technica ATW-901/H92 System 9 Wireless Headset Microphone System

No longer available at zZounds

Audio Technica ATW-901/H92 System 9 Wireless Headset Microphone System, Black

Reinforce theater performances or presentations with this low-profile wireless bodypack system, which includes Audio-Technica's PRO 92cW headworn microphone.

Overview

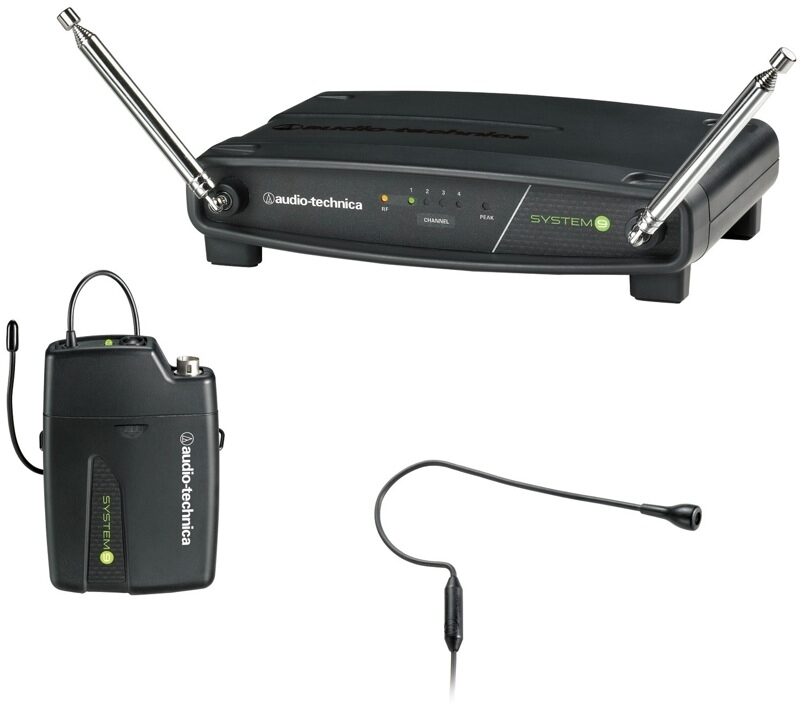

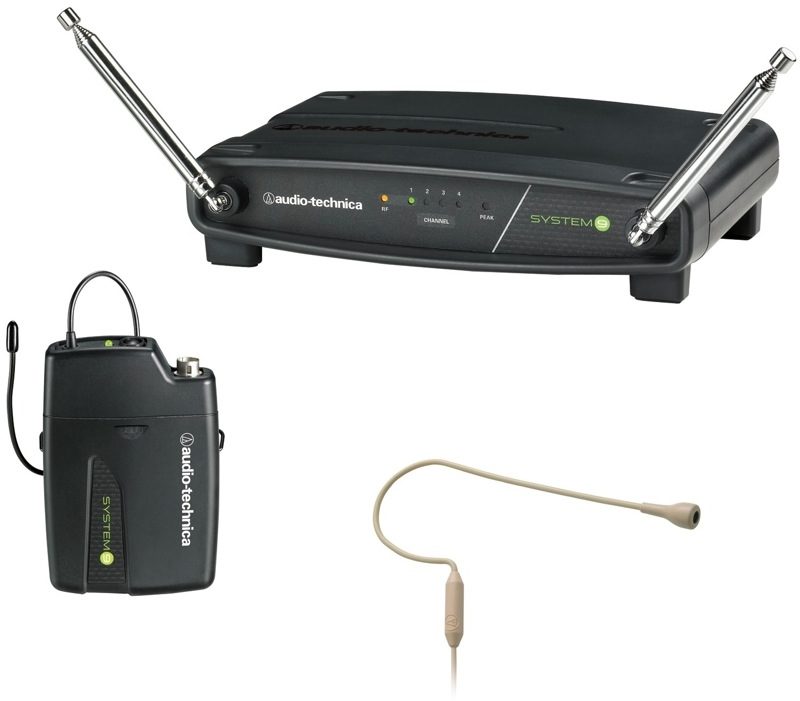

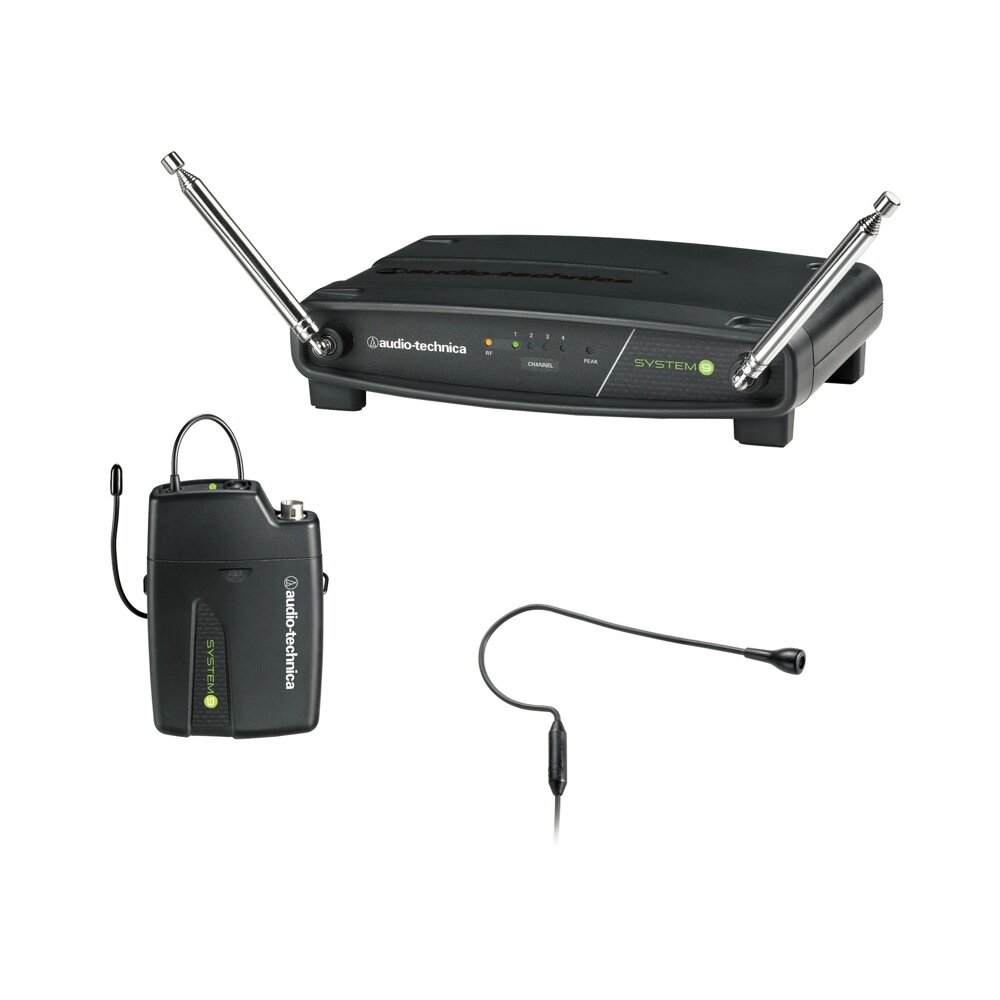

Audio Technica ATW-901/H92 System 9 wireless headset microphone system is a four channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality. Featuring sleek, stackable, contemporary styling, System 9 has an ATW-R900 receiver and ATW-T901 UniPak transmitter with PRO 92cW headworn microphone. The system offers four compatible user-switchable VHF channels (169.505, 170.245, 171.045, and 171.905 MHz).

Each System 9 configuration includes the ATW-R900 receiver. The ATW-R900 is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900 also offers volume control along with AF Peak, RF and Power indicator lights.

Features:

- Easy operation and clear, natural sound quality
- Four selectable frequency-coordinated VHF channels
- Balanced XLR and unbalanced 1/4" +/- output jacks enable use with a wide variety of audio gear
- Reliable performance and durable construction
- Advanced dipole antenna system for extended operating range

Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no… read more protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones

NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.

Specs

- Operating Frequencies: VHF highband, 169 MHz to 172 MHz
- Modulation Mode: FM
- Maximum Deviation: +/-10 kHz
- Dynamic Range: >/=90 dB (A-weighted), typical
- Total Harmonic Distortion: <1% (at 1 kHz, +/-10 kHz deviation)
- Operating Range: 200' (60 m) typical
- Open range environment with no interfering signals
- Operating Temperature Range: 40* F (4* C) to 110* F (43* C)
- Battery performance may be reduced at very low temperatures
- Frequency Response: 80 Hz to 13 kHz

Receiver:
- Receiving System: Non-diversity, single-channel, dual antenna system
- Image Rejection: 50 dB minimum
- RF Sensitivity: 20 dBuV at 60 dB S/N ratio (50 ohms termination)
- Audio Output: Nominal Output Level
- XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load
- 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
- Power Supply: 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
- Dimensions: 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
- Net Weight: 12.0 oz (337 grams)
- Accessory Included: Power supply
