Audio Technica ATW601 UniPak Transmitter System

AudioTechnica has broken the price barrier for exceptional audio quality and switchable-frequency UHF wireless. The new Freeway systems feature 10 selectable UHF channels and an advanced dipole antenna design. Each Freeway system includes the ATW-R600 receiver and either a body-pack transmitter or a handheld mic/transmitter. The receiver includes squelch and volume controls, along with AF Peak, RF, and Power indicator lights. The body-pack transmitter features a professional locking connector and a dual-impedance input for instruments and mics. Just add your choice of headset or lapel mics, or a guitar cable (Wireless Essentials). The handheld system includes the ATW-T602 dynamic mic/transmitter. Both the handheld and body-pack transmitters operate on a single 9-volt battery, and feature a battery-condition indicator light, a 3-position Off/Standby/On switch, an internal channel selector and a variable trim control.

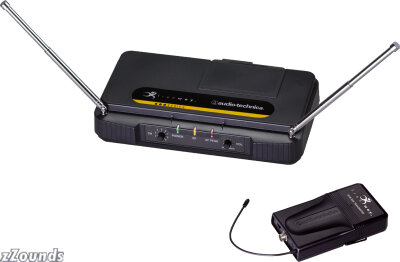

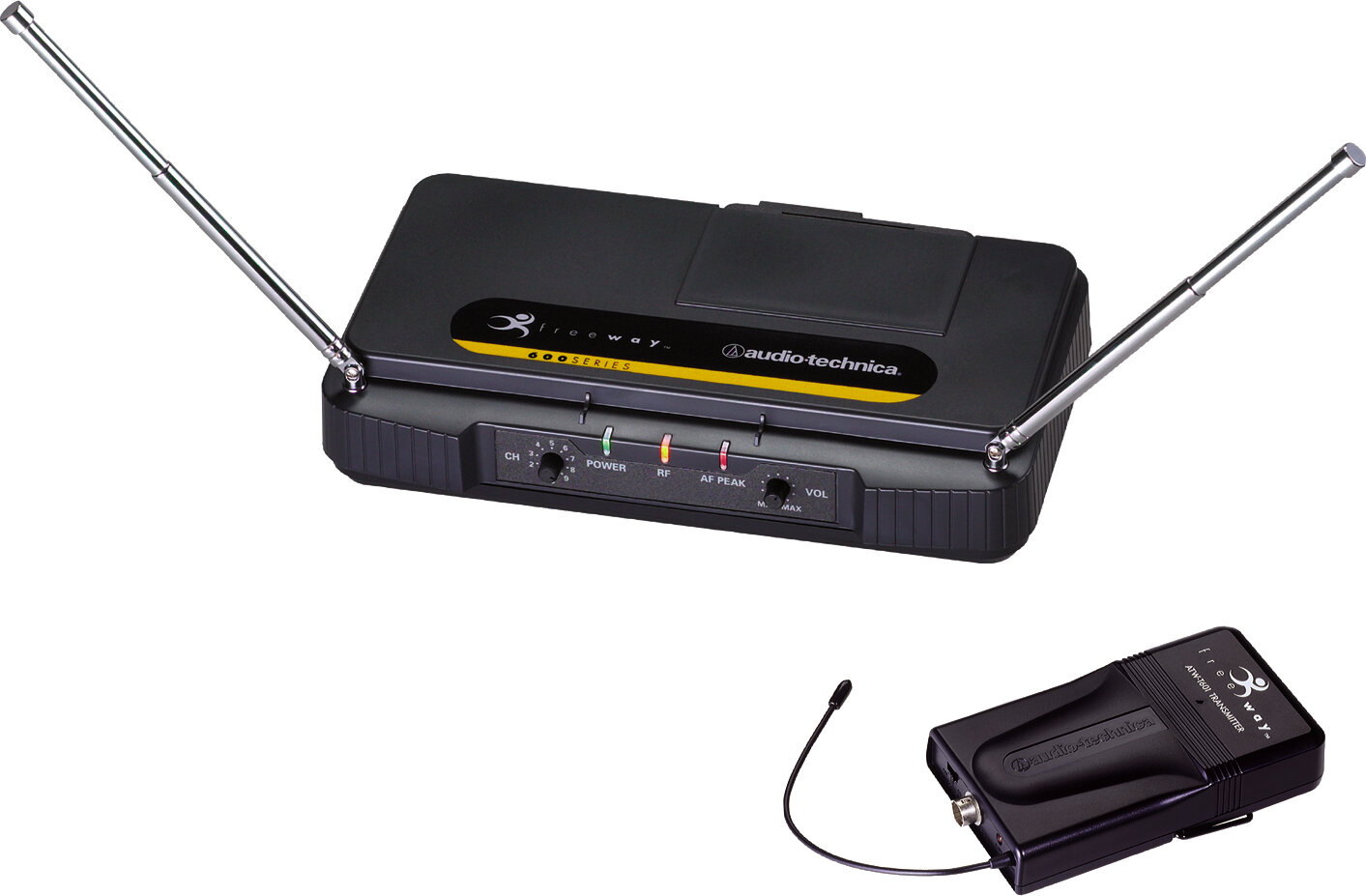

System Includes: ATW-R600 Receiver and ATW-T601 UniPak Transmitter.

Features
Frequency-agile with 10 selectable UHF channels

Available in 2 frequency bands:
Band A: 470 - 480 MHz (TV channels 14 - 15)
Band B: 482 - 492 MHz (TV channels 16 - 17)

Advanced dipole antenna system

Adjustable squelch control

Removable docking power supply inserts into back of receiver

ATW-T601 UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups

ATW-T602 handheld microphone/transmitter features a dynamic unidirectional element with superior internal shock mounting

Technical Info

System Includes: ATW-R600 Receiver and ATW-T601 UniPak Transmitter.

Overall System

Operating Frequency UHF band:
Band A: 470.000 MHz to 479.750 MHz
Band B: 482.000 MHz to 491.750 MHz

Number of channels: 10

Frequency Stability: ±0.005%, Phase Lock Loop frequency control

Modulation Mode: FM

Maximum Deviation: ±15 kHz

Operating Range: 150 ft. minimum

Operating Temperature Range: 40Á F (4Á C) to 110Á F (43Á C)

Frequency Response:
ATW-601: 50 Hz to 16 kHz
ATW-602: 100 Hz to 13 kHz

ATW-R600 Receiver

Receiving System: Non-diversity, 10 channel synthesized, dual antenna system
Image Rejection: 50 dB minimum

Signal-to-noise Ratio: 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz

Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)

Sensitivity: 25 µV for 60 dB S/N (IEC-weighted)

Audio Output: 350 mV (at 1 kHz, ±10 kHz deviation, 100k ohm load)

Output Connector: 1/4 in. phone jack

Power Supply: 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external DC supply

Dimensions (W x H x D): 8.27 x 1.72 x 4.73 in. (210.0 x 43.5 x 120.0 mm)

Net Weight: 18.9 oz. (536 g), without AC adapter, 11.9 oz. (336 g)

Accessories Included: AD1202A 120V docking AC adapter; 120V AC IEC cordset

ATW-T601 UniPak Transmitter

RF Power Output: 10 mW nominal, 5 mW typical

Spurious Emissions: Under federal regulations

Dynamic Range: >=90 dB, A-weighted

Input Connections: High impedance, low impedance, bias

Battery (not included): 9V (NEDA type 1604) alkaline

Current Consumption: 60 mA typical

Battery Life: 4-5 hours

Dimensions: 2.56 in. (65.0 mm) W x 4.41 in. (112.0 mm) H x 0.87 in. (22.0 mm) D

Net Weight: (without battery)

*Except for operating frequencies, specifications for "A" and "B" units are identical.
