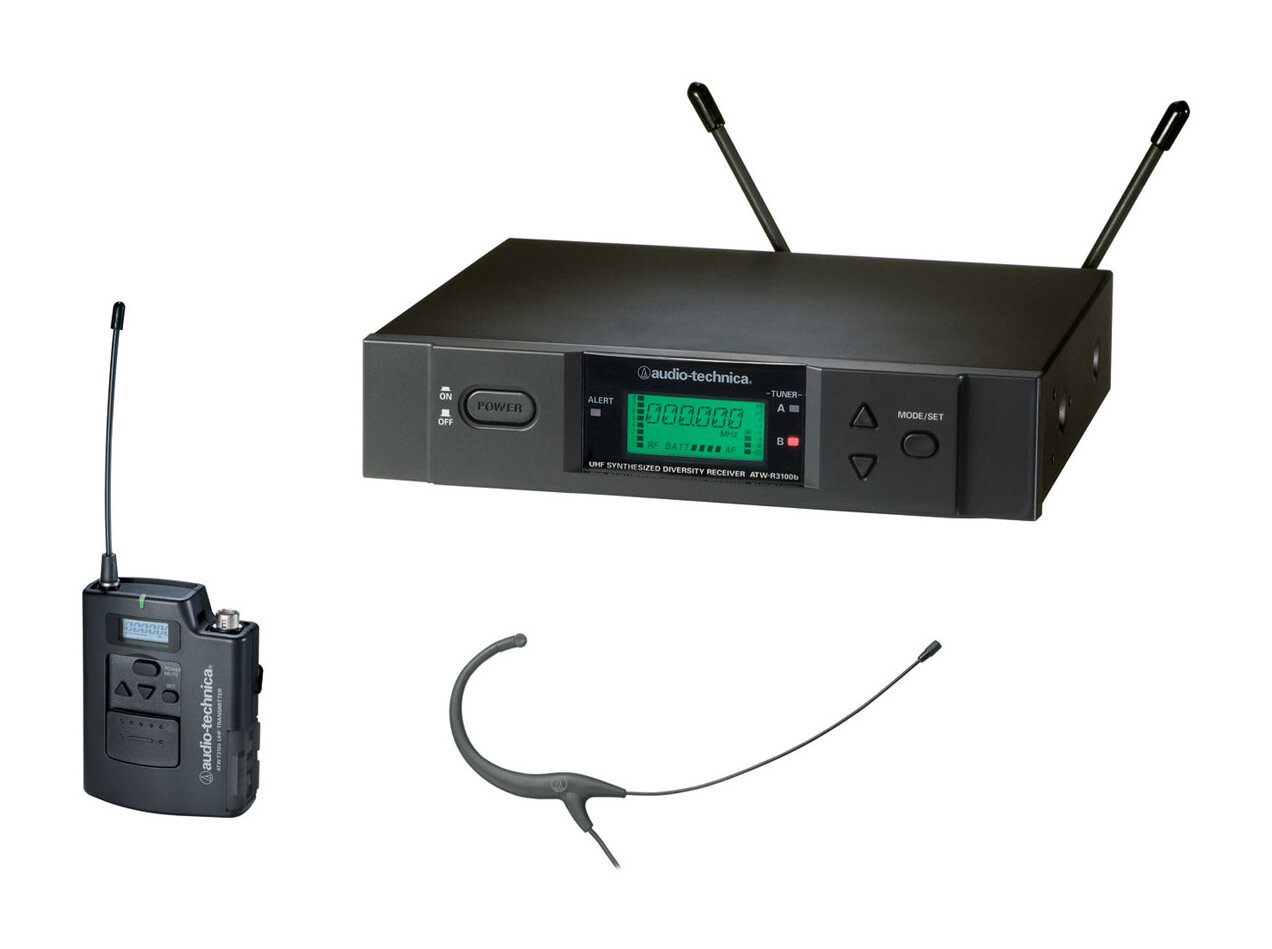

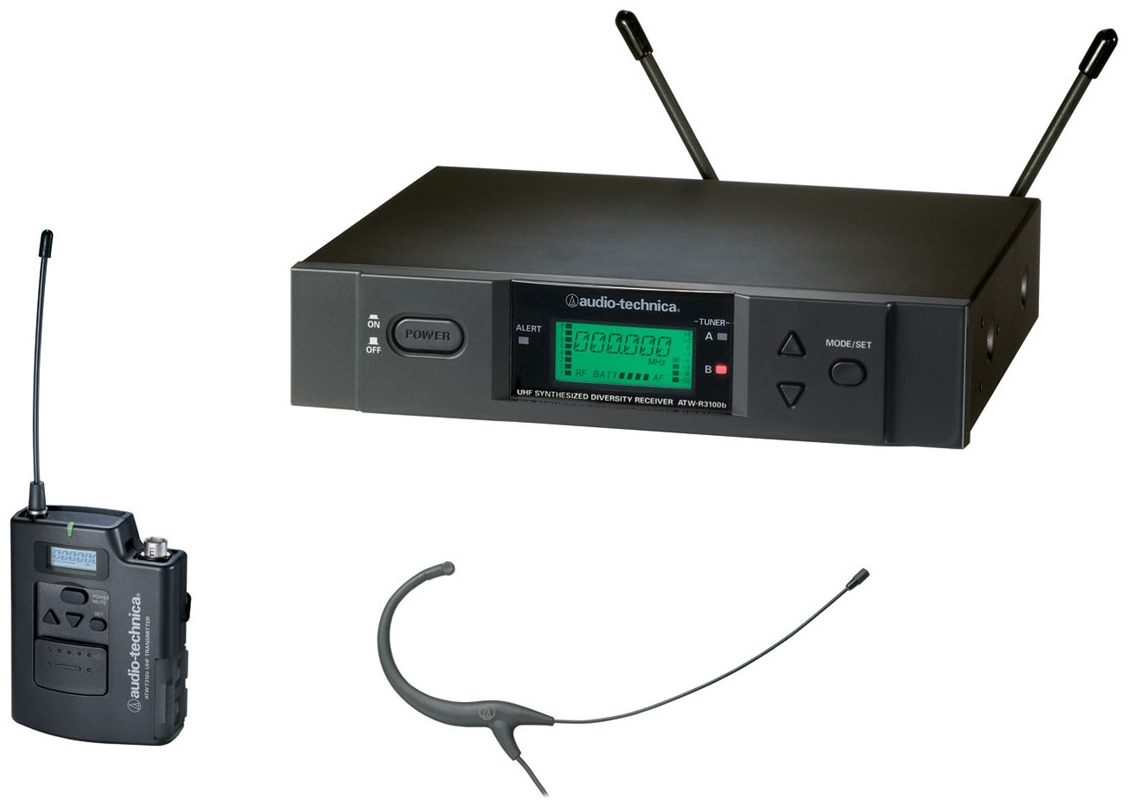

Audio-Technica ATW-3192B Headset Wireless System

Product Description

Audio-Technica's third-generation 3000 Series wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. They've simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.

The versatile ATW-T310B UniPak(R) body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter's control panel prevents accidental shut-off or channel-switching. A new locking battery compartment provides a more secure latch and more robust design.

Features:

- 996 - 1001 UHF frequencies in one of three UHF frequency ranges
- Antenna power available for powered antennas & other in-line RF devices
- Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
- True Diversity operation reduces dropouts
- Advanced digital Tone Lock(TM) squelch effectively blocks stray RF and communicates transmitter data for receiver display
- Transmitters offer backlit LCD & dual-color LED
- Locking battery compartment with secure latch and robust design
- Ground-lift switch helps eliminate audible hum caused by ground loops
- Balanced and unbalanced audio output jacks

- Available in three frequency bands:
541.500 MHZ to 566.375 MHz (TV Channels 25 - 30)
655.500 MHz to 680.375 MHz (TV Channels 44 - 49)
482.000 MHz to 507.000 MHz (TV Channels 16 -20) zZounds is an authorized dealer of Audio-Technica products.

System Specifications
Operating Frequencies: UHF band

Band C: 541.500 MHz to 566.375 MHz (996 frequencies)

Band D: 655.500 MHz to 680.375 MHz (996 frequencies)

Band I: 482.000 MHz to 507.000 MHz (1001 frequencies)

Not all frequencies are available in all areas. Please check with local regulations.

Minimum Frequency Step: 25 kHz

Modulation Mode: FM

Maximum Deviation: +/-35 kHz

Dynamic Range: > 110 dB (A-weighted), typical

Total Harmonic Distortion: < 1% (at 1 kHz, +/-17.5 kHz deviation)

Operating Range: 100 m (300'), typical

Open range environment with no interfering signals.

Operating Temperature Range: -5o C to +45o C (23o F to 113o F)

Battery and LCD performance may be reduced at very low temperatures.

Frequency Response: 70 Hz to 15 kHz (+1 dB, -3 dB)

Receiver
Receiving System: True diversity

Image Rejection: 60 dB nominal, 55 dB minimum

RF Sensitivity: 20 dBuV at 60 dB S/N ratio

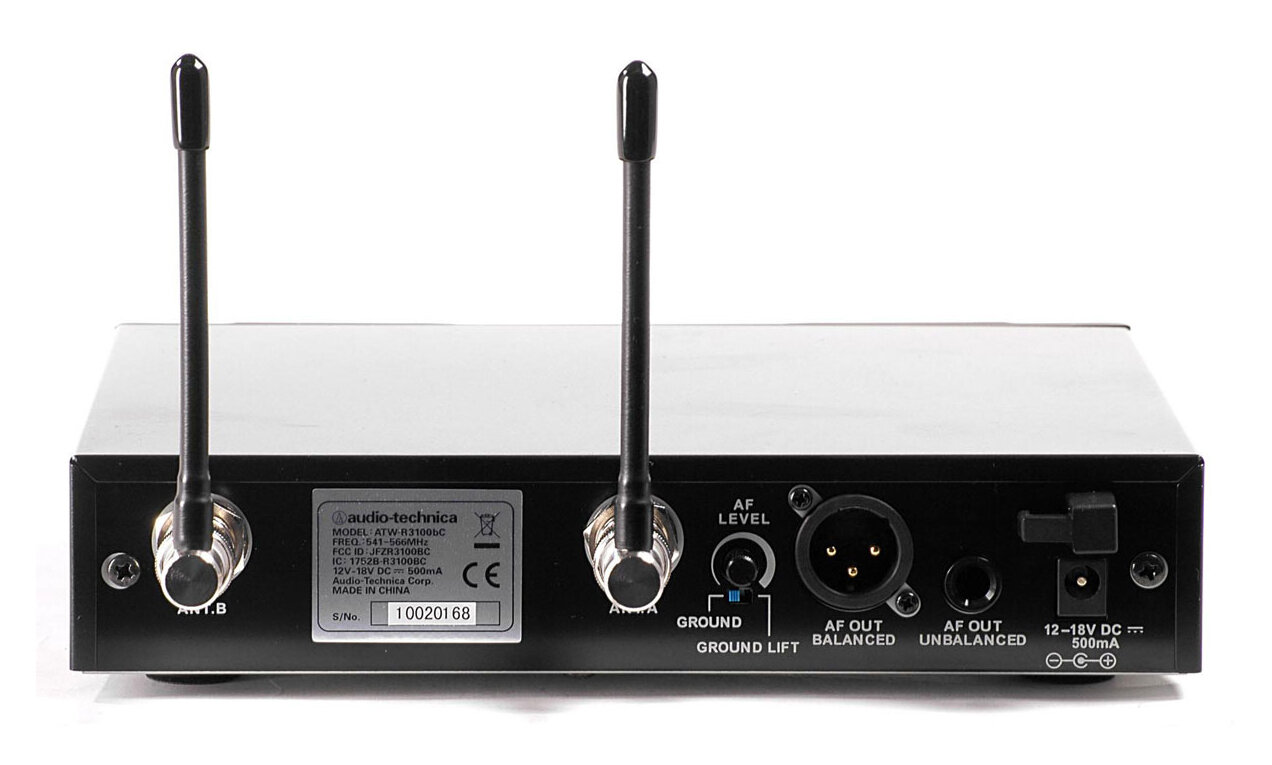

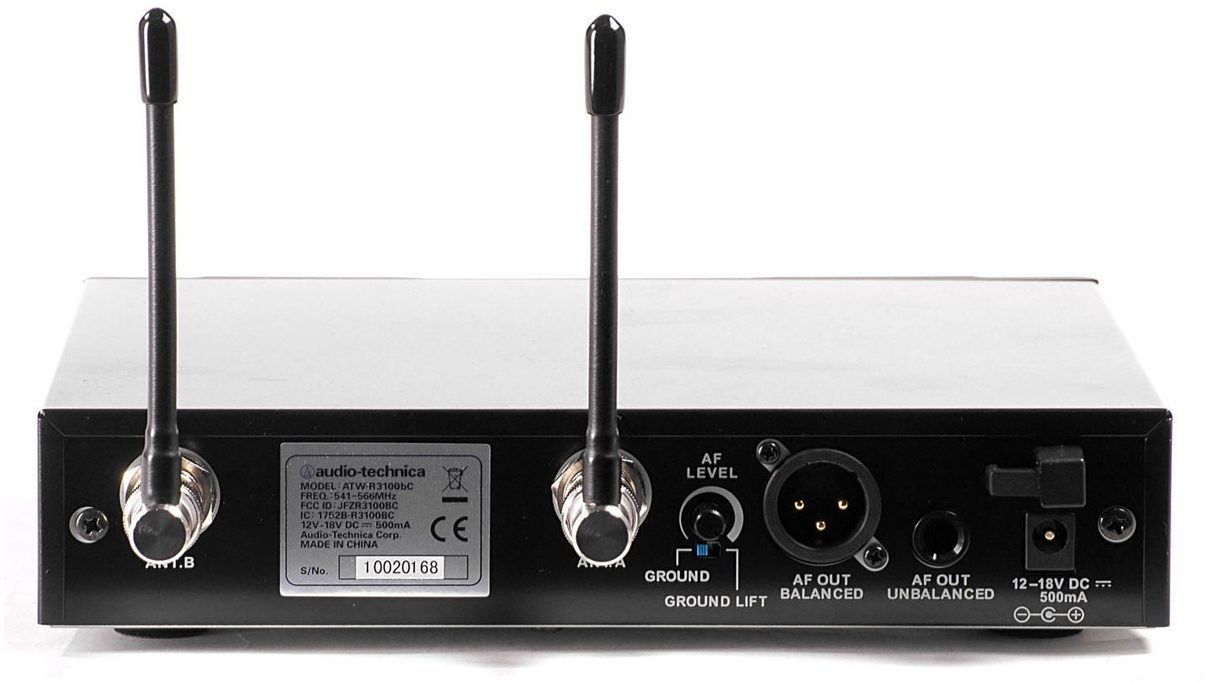

Maximum Output Level: XLR, balanced: +9 dBV; 1/4-inch (6.3 mm), unbalanced: +7 dBV

Antenna Input: BNC-type, 50 ohms

Bias voltage 12V DC, 60 mA, each

Power Requirements: 12-18V DC, 500 mA

Dimensions: 210.0 mm (8.27") W x 164.4 mm (6.47") D x 44.0 mm (1.73") H
Not including BNC connectors or feet.

Net Weight: 1.1 kg (38.8 oz), without accessories

Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters

Body Pack
RF Power Output High: 30 mW, Low: 10 mW (switchable), at 50 ohms

Spurious Emissions: Following federal and national regulations

Input Connection: Four-pin Locking Connector
- Pin 1: GND
- Pin 2: INST INPUT
- Pin 3: MIC INPUT
- Pin 4: DC BIAS +5V

Batteries: Two 1.5V AA, not included

Battery Life:
- High: 6 hours (alkaline)
- Low: 8 hours (alkaline)

Depending on battery type and use pattern.

Dimensions: 66.0 mm (2.60") W x 24.0 mm (0.94") D x 87.0 mm (3.43") H

Net Weight: 81 g (2.9 oz), without batteries

Headset
Element: Fixed-Charge Back Plate, Permanently Polarized Condenser

Polar Pattern: Omnidirectional

Frequency Response: 20-20,000 Hz

Low Frequency Roll-Off: 80 Hz, 18 Db/Octave (Wired Only)

Open Circuit Sensitivity: -49 Db (3.5 Mv) Re 1v At 1 Pa

Impedance: 250 Ohms (Wired Only)

Maximum Input Sound Level: 135 Db Spl, 1 Khz At 3% T.H.D.

Dynamic Range (Typical): 104 Db, 1 Khz At Max Spl (Wired Only)

Signal-To-Noise Ratio: 63 Db, 1 Khz At 1 Pa

Phantom Power Requirements: 11-52v Dc, 2 Ma Typical (Wired Only)

Switch: Flat, Roll-Off (Wired Only)

Current Consumption: 0.1 Ma Typical At 5v (Wireless Only)

Voltage Range: 2.5-11v (Wireless Only)

Weight (Microphone): Microphone, Boom & Earpiece: 2.6 G (0.09 Oz)

Dimensions and Weight in Packaging

Channel C

Shipping Weight: 5 lbs

Shipping Dimensions: 16 x 14 x 4 in

Channel I

Shipping Weight: 6 lbs

Shipping Dimensions: 15 x 13 x 4 in

Channel D

Shipping Weight: 6 lbs

Shipping Dimensions: 15 x 13 x 4 in
