Manufacturer's Description for Audio Technica ATW3192A Headset Wireless System
With automatic frequency scanning to find and set the best available channel, 200 selectable UHF channels, true diversity protection from RF hits and dropouts, soft-touch controls, easy setup and great sound, the 3000 Series wireless delivers truly professional performance.
The versatile UniPak body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter's control panel prevents accidental shut-off or channel-switching.

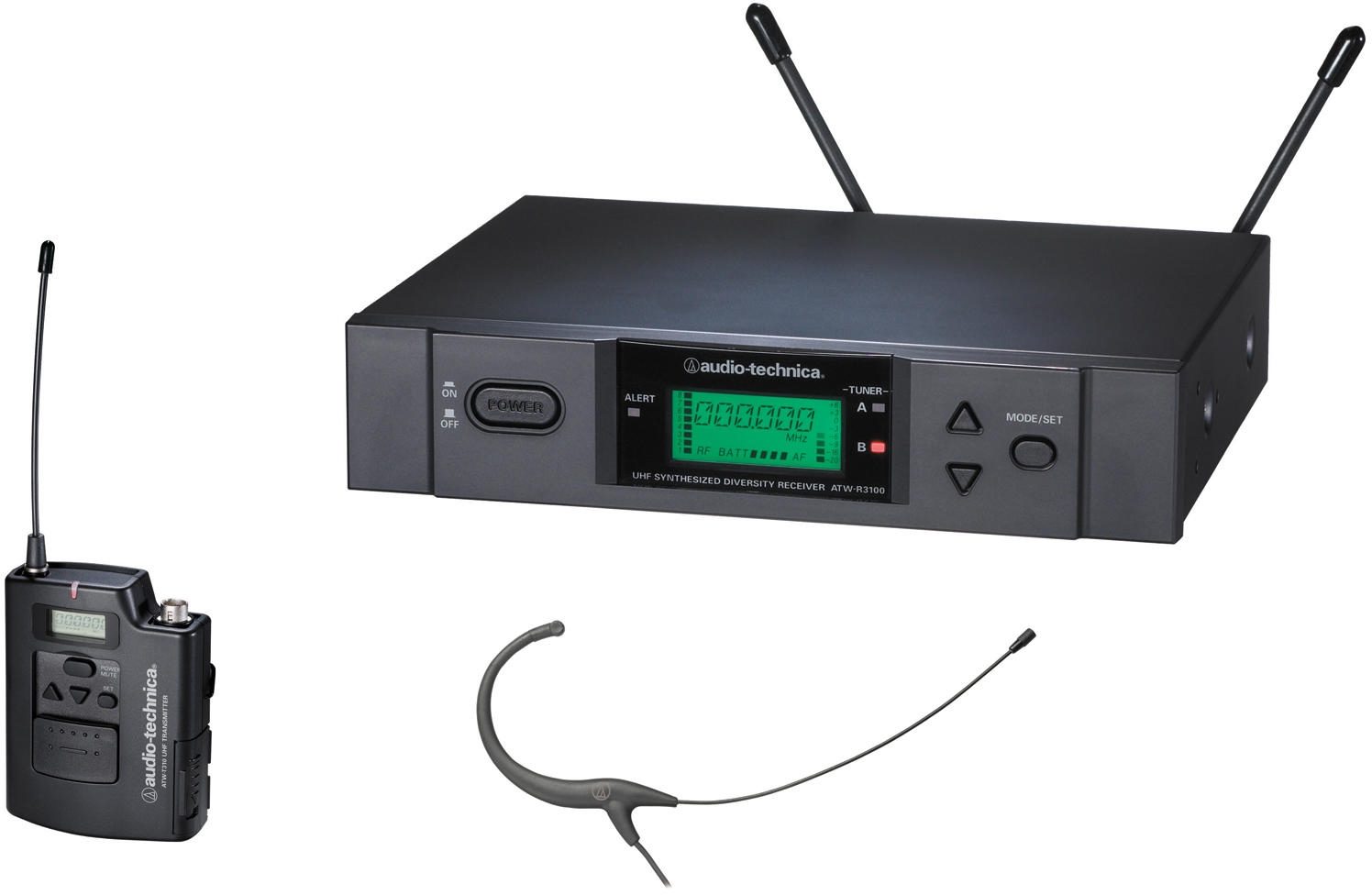

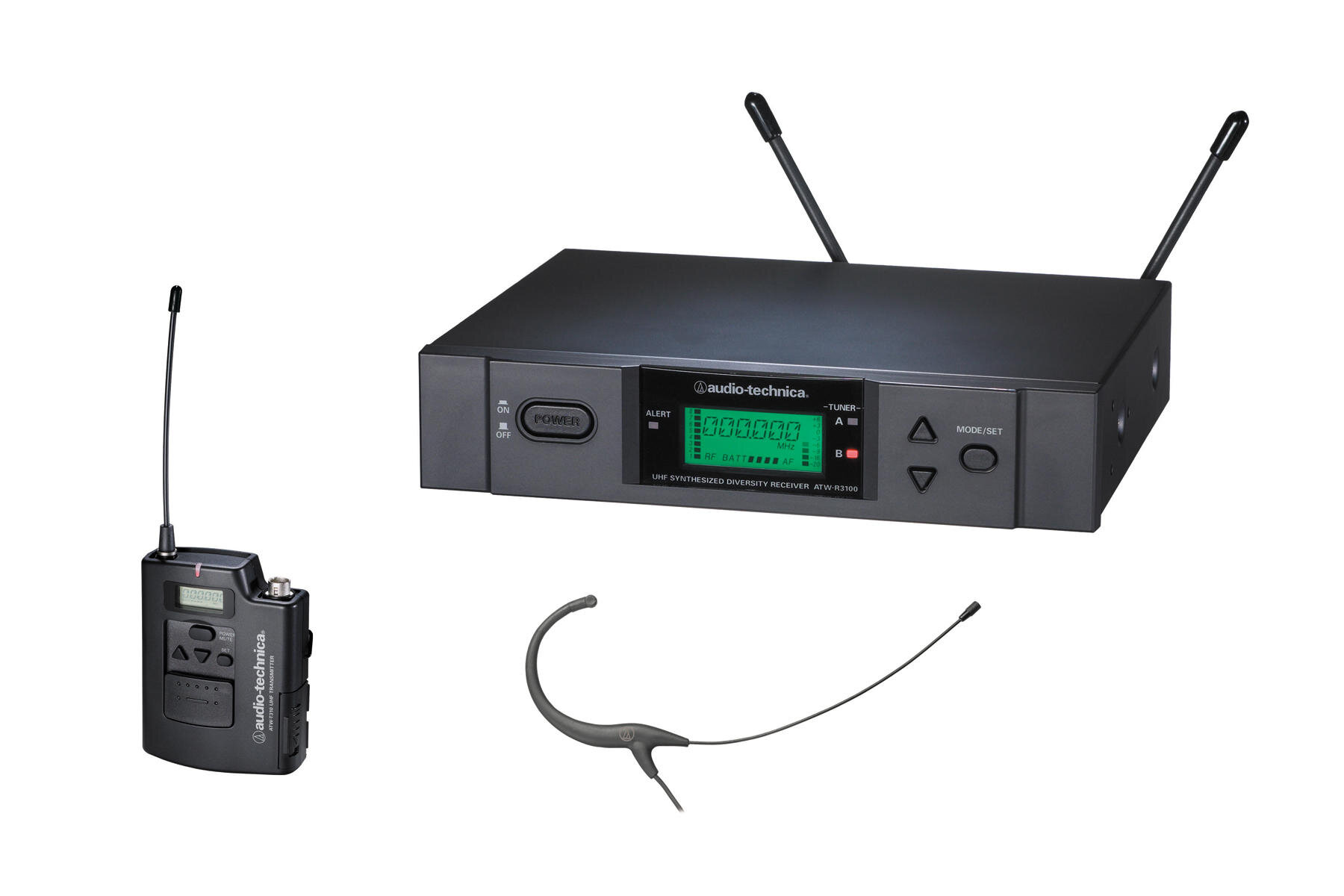

The ATW3192AC Headset System includes a ATWR3100 receiver and ATWT310 UniPak transmitter with AT892CW omnidirectional condenser headworn microphone. Likewise it includes element covers, windscreens and a clothing clip.
Features
- Automatic frequency scanning
- 200 PLL-synthesized channels per band selectable via soft-touch controls on receiver and transmitter
- Available in two frequency bands:
- 41.500 - 566.375 MHz (TV Channels 25 - 30)
- 655.500 - 680.375 MHz (TV Channels 44 - 49)
- True Diversity operation selects the better signal from two independent receiver sections, reducing dropouts
- Interference-resistant UHF band operation
- Advanced digital Tone Lock squelch
- Red alert light that warns of low battery power, signal loss and input overload
- Transmitter battery-life fuel gauge on the receiver
- Ground-lift switch
- Balanced and unbalanced audio output jacks
- Two receivers can be mounted side-by-side in a single 19 in. rack space
Consumer Alert
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC's wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones
NOTE: None of the wireless systems we carry are capable of violating the FCC guidelines stated above. We are presenting this information as a matter of legally required disclosure.
zZounds is an authorized dealer of
Audio Technica products.
Channel Frequencies
Channel C: 541.500 to 566.375 MHz (TV Channels 25-30)
Channel D: 655.500 to 680.375 MHz (TV Channels 44-49)
Overall System
Operating frequencies: UHF band
-- Band C: 541.500 MHz to 566.375 MHz
-- Band D: 655.500 MHz to 680.375 MHz
Number of channels: 200 total per band
Frequency stability: +/-0.005%, Phase Lock Loop frequency control
Modulation mode: FM
Normal deviation: +/-10 kHz
Operating range: 300' typical
Operating temperature range: 41 degrees F (5 degrees C) to 113 degrees F (45 degrees C)
Frequency response: 70 Hz to 15 kHz
Receiver
Receiving system: Dual independent receivers, automatic-switching diversity
Image rejection: 60 dB nominal, 55 dB minimum
Signal-to-noise ratio: 110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz
Total harmonic distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 24 dBuV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
Intermediate frequency: 243.950 MHz, 10.7 MHz
Audio output:
-- Unbalanced: 50 mV (at 1 kHz, +/-5 kHz deviation, 10k ohm load)
-- Balanced: 32 mV (at 1 kHz, +/-5 kHz deviation, 10k ohm load)
Output connectors:
-- Unbalanced: 1/4 in. TS ("mono") phone jack
-- Balanced: XLRM-type
Power supply: 120V AC 60 Hz, or 12-18V DC, 500 mA, center positive, with external supply
Dimensions: 8.27 in. (210.0 mm) W x 1.93 in. (49.0 mm) H x 7.20 in. (183.0 mm) D
Weight: 2.4 lbs (1.1 kg)
Accessories Included: AD1205AA 120V 60 Hz in-line AC adapter; two flexible UHF antennas; rack-mount adapters
Body-Pack Transmitter
RF power output: High: 30 mW; Low: 10 mW, nominal
Spurious emissions: Under federal regulations
Dynamic range: >=110 dB, A-weighted
Input connections: High impedance, low impedance, bias
Antenna tip color: Band C: Blue; Band D: Green
Batteries: Two 1.5V AA alkaline (not included)
Current consumption: High: 200 mA; Low: 150 mA, typical
Battery life: Approximately 6 hours (High); 8 hours (Low), depending on battery type and use pattern
Dimensions: 2.60 in. (66.0 mm) W x 3.43 in. (87.0 mm) H x 0.94 in. (24.0 mm) D
Net weight: 2.8 oz (80 grams)
Headset
Element: Condenser
Polar pattern: Omnidirectional
Frequency response: 20-20,000 hz
Open circuit sensitivity: -44 db (6.3 Mv) re 1v at 1 pa
Maximum input sound level: 122 db spl, 1 khz at 1% t.H.D.
Signal-to-noise ratio: 60 db, 1 khz at 1 pa
Power requirements: Voltage range: 2.5-11V
Current consumption: 0.1 Ma typical @ 5v
Weight - microphone, boom & earpiece: 0.08 Oz (2.4 G)
Dimensions: Microphone: 0.32 in. (8.1 Mm) long,
0.11 in. (2.7 Mm) diameter
Boom: 3.87 in. (98.4 Mm) long, 0.042 in. (1.07 Mm) boom diameter
Cable: 55 in. (1.4 M), unterminated
