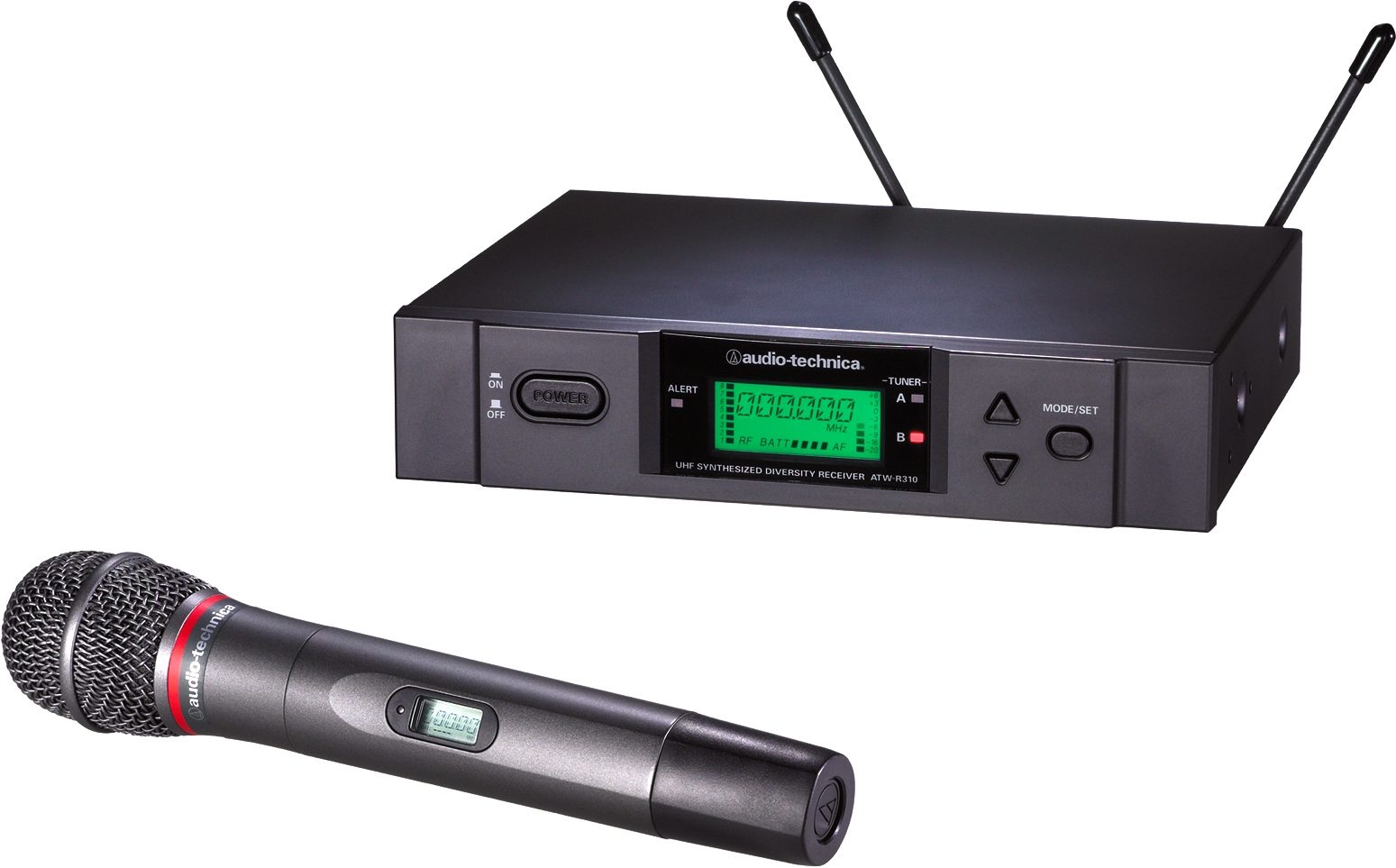

Audio Technica ATW3141AD T341AD Handheld UHF System

With automatic frequency scanning to find and set the best available channel, 200 selectable UHF channels, true diversity protection from RF hits and dropouts, soft-touch controls, easy setup and great sound, the 3000 Series wireless delivers truly professional performance.

The versatile UniPak body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter's control panel prevents accidental shut-off or channel-switching.

Features
Automatic frequency scanning

200 PLL-synthesized channels per band selectable via soft-touch controls on receiver and transmitter

Available in two frequency bands:
-- 541.500 - 566.375 MHz (TV channels 25 - 30)

-- 655.500 - 680.375 MHz (TV channels 44 - 49)

True diversity operation selects the better signal from two independent receiver sections, reducing dropouts

Interference-resistant UHF band operation

Advanced digital ToneLock squelch

Red alert light that warns of low battery power, signal loss and input overload

Transmitter battery-life fuel gauge on the receiver

Ground-lift switch

Balanced and unbalanced audio output jacks

Two receivers can be mounted side-by-side in a single 19 in. rack space

ATW-T341 handheld microphone/transmitter features the Artist Elite AE4100 cardioid dynamic element

Technical Info

Channel Frequencies
Channel C: 541.500 to 566.375 MHz (TV Channels 25-30)
Channel D: 655.500 to 680.375 MHz (TV Channels 44-49)

Overall System
Operating frequencies: UHF band
-- Band C: 541.500 MHz to 566.375 MHz

-- Band D: 655.500 MHz to 680.375 MHz

Number of channels: 200 total per band

Frequency stability: +/-0.005%, Phase Lock Loop frequency control

Modulation mode: FM

Normal deviation: +/-10 kHz

Operating range: 300' typical

Operating temperature range: 41 degrees F (5 degrees C) to 113 degrees F (45 degrees C)

Frequency response: 70 Hz to 15 kHz

Receiver
Receiving system: Dual independent receivers, automatic-switching diversity

Image rejection: 60 dB nominal, 55 dB minimum

Signal-to-noise ratio: 110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz

Total harmonic distortion: <=1% (10 kHz deviation at 1 kHz)

Sensitivity: 24 dB-V (S/N 60 dB at 5 kHz deviation, IEC-weighted)

Intermediate frequency: 243.950 MHz, 10.7 MHz

Audio output:
-- Unbalanced: 50 mV (at 1 kHz, +/-5 kHz deviation, 10k ohm load)

-- Balanced: 32 mV (at 1 kHz, +/-5 kHz deviation, 10k ohm load)

Output connectors:
-- Unbalanced: 1/4 in. TS ("mono") phone jack

-- Balanced: XLRM-type

Power supply: 120V AC 60 Hz, or 12-18V DC, 500 mA, center positive, with external supply

Dimensions: 8.27 in. (210.0 mm) W x 1.93 in. (49.0 mm) H x 7.20 in. (183.0 mm) D

Weight: 2.4 lbs (1.1 kg)

Accessories Included: AD1205AA 120V 60 Hz in-line AC adapter; two flexible UHF antennas; rack-mount adapters

Handheld Transmitter Specifications
RF power output: High: 30 mW; Low: 10 mW, nominal

Spurious emissions: Under federal regulations

Dynamic range: >=110 dB, A-weighted

Microphone element: Dynamic cardioid (unidirectional)

Batteries two: 1.5V AA alkaline (not included)

Current consumption: High: 230 mA; Low: 180 mA, typical

Battery life: Approximately 6 hours (High); 8 hours (Low), depending on battery type and use pattern

Dimensions: 9.33 in. (237.0 mm) long, 1.89 in. (48.0 mm) diameter

Net weight: 9.9 oz (280 grams)

Rebates

With handheld transmitter and cardioid dynamic mic capsule.
