This product is no longer available at zZounds.
We recommend this product instead:
Audio Technica ATW3110A UHF Body Pack System
-
- New from $399.00
- List: $858.95
- SAVE: 53%
- Blowouts save up to $49.05!
- 4 payments of $99.75
- In Stock
With automatic frequency scanning to find and set the best available channel, 200 selectable UHF channels, true diversity protection from RF hits and dropouts, soft-touch controls, easy setup and great sound, the 3000 Series wireless delivers truly professional performance. Learn More...
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

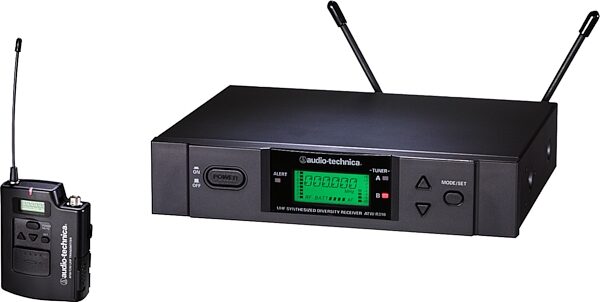

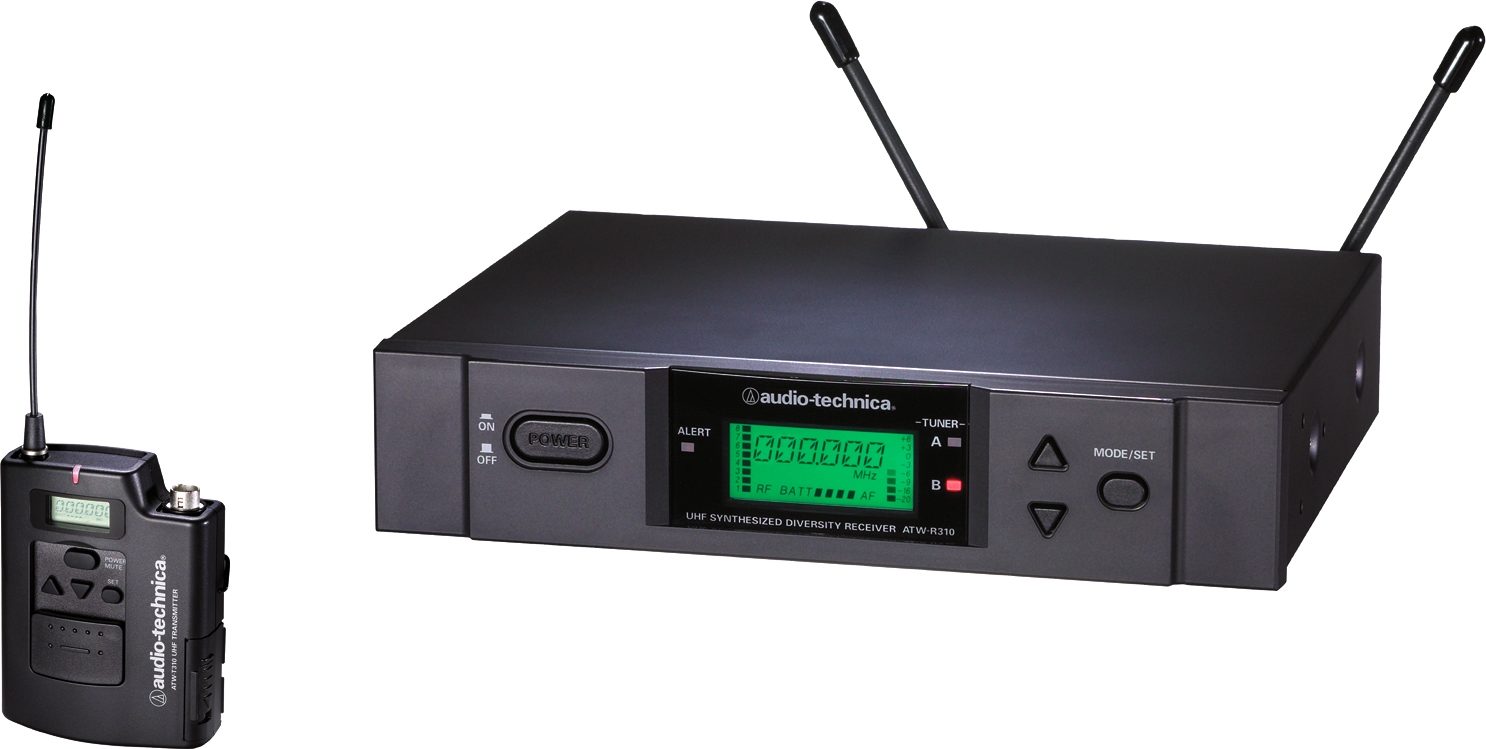

Audio Technica ATW3110D UHF Body Pack System
Includes ATW-R310D receiver and ATW-T310D UniPak? transmitter.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
Docs
AudioTechnica's new pro UHF wireless features 200 selectable frequencies, true diversity technology, soft-touch controls for quick, easy access to the most important functions during set-up and operation, AudioTechnica's Digital Tone Lock® Squelch plus an easy-to-read LCD in each unit. The all-metal receiver features XLR and 1/4 in. unbalanced outputs and an advanced display with a transmitter battery-life fuel gauge and a meter hold setting function - great for setup or sound check. The ATW-3110 UniPak body-pack system lets you choose Wireless Essentials to complete your system. Add a guitar cable or your choice of microphones as your application requires. In addition the transmitter has dual-power settings permitting selection of high for maximum range or low for extended battery life (up to 10 hours).
Features:
200 PLL-synthesized channels selectable via soft-touch controls on receiver and transmitter
True Diversity operation selects the better signal from two independent receiver sections, reducing dropouts
Interference-resistant UHF band operation
Advanced digital ToneLock squelch
Red alert light that warns of low battery power, signal loss and input overload
Transmitter battery-life fuel gauge on the receiver
Ground-lift switch
Balanced and unbalanced audio output jacks
2 receivers can be mounted side-by-side in a single 19 in. rack space
ATW-T310 UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups
Operating Frequency
UHF band
"D" system: 655.500 MHz to 680.375 MHz
Number of Channels: 200 total
Frequency Stability: ±0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Normal Deviation: ±10 kHz
Operating Range: 300' typical
Operating Temperature Range: 41° F (5° C) to 113° F (45° C)
Frequency Response: 70 Hz to 15 kHz
ATW-R310 Receiver
Receiving System: Dual independent receivers, automatic-switching diversity
Image Rejection: 60 dB nominal, 55 dB minimum
Signal-to-noise Ratio: 110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 24 dBµV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
Intermediate Frequency: 60 MHz, 10.7 MHz
Audio Output (AF Level set at "0")
Unbalanced: 50 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load)
Balanced: 32 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load)
Output Connectors
Unbalanced: 1/4 in. phone jack
Balanced: XLRM-type
Power Supply: 120V AC 60 Hz; 12-18V DC, 500 mA, with external supply
Dimensions: 8.27 in. (210.0 mm) W x 1.93 in. (49.0 mm) H x 6.93 in. (176.0 mm) D
Net Weight: 2.4 lbs (1.1 kg)
Accessories Included: 2 flexible UHF antennas, rack-mount adapters
ATW-T310 UniPak Transmitter
RF Power Output
Low: 10 mW
High: 30 mW Max
Spurious Emissions: Under federal regulations
Input Connections: High impedance, low impedance, bias
Batteries (not included): 2 x 1.5V AA alkaline
Current Consumption: 200 mA typical
Battery Life: Approximately 6 hours (High) and 8 hours (Low) (depending on battery type and use pattern)
Dimensions 2.60 in. (66.0 mm:) W x 3.43 in. (87.0 mm) H x 0.94 in. (24.0 mm) D
Net Weight (without batteries): 2.8 oz (80 grams)
Features:
200 PLL-synthesized channels selectable via soft-touch controls on receiver and transmitter
True Diversity operation selects the better signal from two independent receiver sections, reducing dropouts
Interference-resistant UHF band operation
Advanced digital ToneLock squelch
Red alert light that warns of low battery power, signal loss and input overload
Transmitter battery-life fuel gauge on the receiver
Ground-lift switch
Balanced and unbalanced audio output jacks
2 receivers can be mounted side-by-side in a single 19 in. rack space
ATW-T310 UniPak transmitter includes Super Hi-Z input that provides optimum load for guitar pickups
Technical Info
Overall SystemOperating Frequency
UHF band
"D" system: 655.500 MHz to 680.375 MHz
Number of Channels: 200 total
Frequency Stability: ±0.005%, Phase Lock Loop frequency control
Modulation Mode: FM
Normal Deviation: ±10 kHz
Operating Range: 300' typical
Operating Temperature Range: 41° F (5° C) to 113° F (45° C)
Frequency Response: 70 Hz to 15 kHz
ATW-R310 Receiver
Receiving System: Dual independent receivers, automatic-switching diversity
Image Rejection: 60 dB nominal, 55 dB minimum
Signal-to-noise Ratio: 110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz
Total Harmonic Distortion: <=1% (10 kHz deviation at 1 kHz)
Sensitivity: 24 dBµV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
Intermediate Frequency: 60 MHz, 10.7 MHz
Audio Output (AF Level set at "0")
Unbalanced: 50 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load)
Balanced: 32 mV (at 1 kHz, ±5 kHz deviation, 10k ohm load)
Output Connectors
Unbalanced: 1/4 in. phone jack
Balanced: XLRM-type
Power Supply: 120V AC 60 Hz; 12-18V DC, 500 mA, with external supply
Dimensions: 8.27 in. (210.0 mm) W x 1.93 in. (49.0 mm) H x 6.93 in. (176.0 mm) D
Net Weight: 2.4 lbs (1.1 kg)
Accessories Included: 2 flexible UHF antennas, rack-mount adapters
ATW-T310 UniPak Transmitter
RF Power Output
Low: 10 mW
High: 30 mW Max
Spurious Emissions: Under federal regulations
Input Connections: High impedance, low impedance, bias
Batteries (not included): 2 x 1.5V AA alkaline
Current Consumption: 200 mA typical
Battery Life: Approximately 6 hours (High) and 8 hours (Low) (depending on battery type and use pattern)
Dimensions 2.60 in. (66.0 mm:) W x 3.43 in. (87.0 mm) H x 0.94 in. (24.0 mm) D
Net Weight (without batteries): 2.8 oz (80 grams)
What Our Customers Say About zZounds
"You guys had an otherwise hard to find item, with great price, shipping, and service. Thank you!" - customer on October 28, 2009
Audio Technica ATW3110D UHF Body Pack System Reviews
9 out of 10
zZounds has verified that this customer bought this product from us.
"Overall great product with a minor annoyance...."
Feature:
Had needed guitar cable and all other needed accessories.
Quality:
The most aggravating thing about this unit is the cheapy wire belt clip for the body pack. It quickly wears the holes in the case, pops off at the worst possible times, and doesn't clip well to guitar straps or other non-belt objects. Solution: use a button-style clip and holder for cell phones (from Radio Shack and others), makes it secure and flexible.
Value:
I'm very happy with mine, despite needing the belt clip modification.
Desirability:
Best of both worlds; the little door on the body pack hides the controls for those that don't want to know what they do, give easy access for setup when needed. Base unit is clean-looking and neat, with a nice LCD display that's easy to read but not too flashy. LEDs and bar graphs for radio signal level and audio level, clipping, etc. are easy to see from across a stage.
Sound:
Very clear sound, uncolored. No static or distortion. Cable and connector are solid and secure, no popping or intermittents.
Support:
No problems at this point.
Had needed guitar cable and all other needed accessories.
Quality:
The most aggravating thing about this unit is the cheapy wire belt clip for the body pack. It quickly wears the holes in the case, pops off at the worst possible times, and doesn't clip well to guitar straps or other non-belt objects. Solution: use a button-style clip and holder for cell phones (from Radio Shack and others), makes it secure and flexible.
Value:
I'm very happy with mine, despite needing the belt clip modification.
Desirability:
Best of both worlds; the little door on the body pack hides the controls for those that don't want to know what they do, give easy access for setup when needed. Base unit is clean-looking and neat, with a nice LCD display that's easy to read but not too flashy. LEDs and bar graphs for radio signal level and audio level, clipping, etc. are easy to see from across a stage.
Sound:
Very clear sound, uncolored. No static or distortion. Cable and connector are solid and secure, no popping or intermittents.
Support:
No problems at this point.
Submitted: 09/01/2004
Style of Music: Worship, CCM, rock to ballads to hymns.
9 out of 10
zZounds has verified that this customer bought this product from us.
"I own 2 AT-3000 units and plan on buying several more within the next year"
Feature:
I love the battery level from the transmitter on the receiver and the use of cheaper AA batteries instead of 9V.
Quality:
I like the metal casing, the half rack space size and the availablity of other antennas and boosters.
Value:
I have purchased 2 complete systems and added the other transitters to make it more versitile. I have looked at other brands, but I keep coming back to the 3000 series.
Desirability:
I love the features. It's in a frequency range that others aren't crowding. I love how I can use up to 24 of these units at the same time.
Support:
The handheld transmitter has a good sounding dynamic head, but I wish there was more than just one head available, prefferably a condencer head.
Overall:
I believe these units will do good for me for several years. If I would buy something else in the next few years, the new units would probably supplement these units.
I love the battery level from the transmitter on the receiver and the use of cheaper AA batteries instead of 9V.
Quality:
I like the metal casing, the half rack space size and the availablity of other antennas and boosters.
Value:
I have purchased 2 complete systems and added the other transitters to make it more versitile. I have looked at other brands, but I keep coming back to the 3000 series.
Desirability:
I love the features. It's in a frequency range that others aren't crowding. I love how I can use up to 24 of these units at the same time.
Support:
The handheld transmitter has a good sounding dynamic head, but I wish there was more than just one head available, prefferably a condencer head.
Overall:
I believe these units will do good for me for several years. If I would buy something else in the next few years, the new units would probably supplement these units.
Submitted: 05/27/2003
Style of Music: Contemporary Rock
